So a buddy of mine wanted to put a smaller system in his car, and I told him I would get it all hooked up for him (with the help of revoracing247). He ended up getting a Rockford Prime 600.5 to power his whole system. He has some Alpine Type S components in the front, and the stockers in the rear. The amp puts out 300 watts at 2 ohms for the sub channel, so he went with a Sundown E15. It'll be slightly underpowered, but I'm building the box slightly on the larger side to help compensate for that. Anyways, this is just gonna be a little build log of the box so he can follow along with what I'm doing, and also so I can get tips and pointers from you guys. Now for pictures!

The sub
Posted Image

Posted Image

I got this table saw last night and it made cutting all the boards incredibly easy!
Posted Image

Folds up really easily for storage
Posted Image

We were cutting the wood right next to my truck...
Posted Image

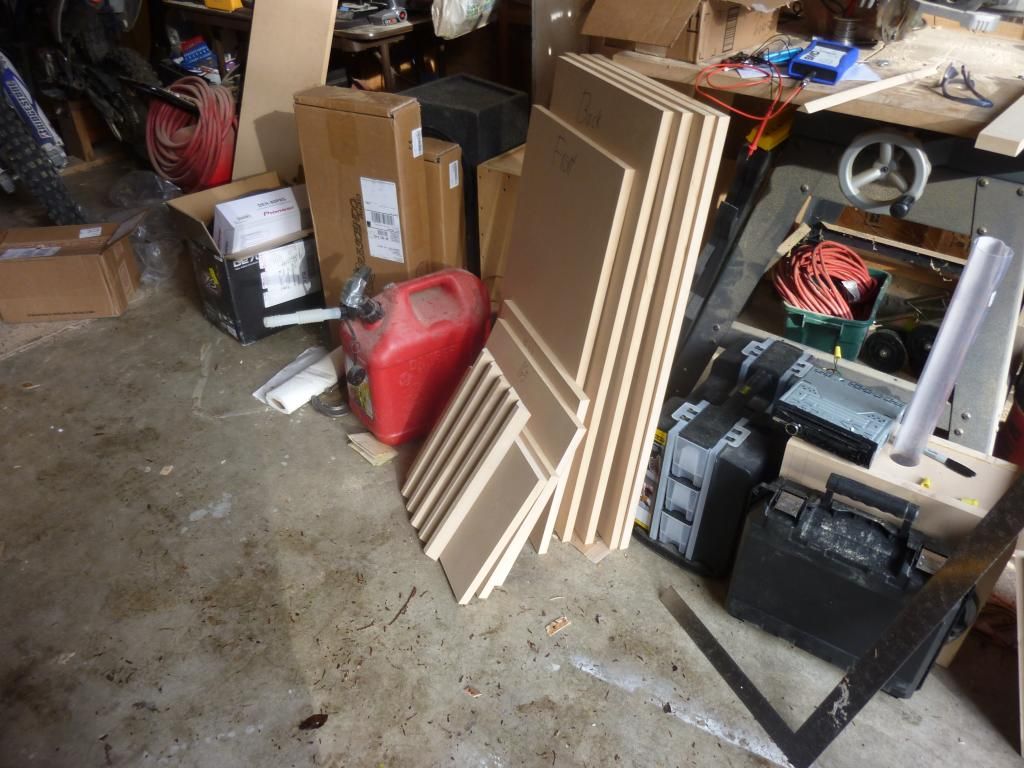

And here's the wood all cut out!
Posted Image

Mockup of the box
Posted Image

Posted Image

I used a circle jig I made for my router out of plexiglass to cut the holes in the baffles
Posted Image

Fits in there nice and snug
Posted Image

Posted Image

Top baffle cut out
Posted Image

Posted Image

Then I put a small round over on the outside baffle
Posted Image

I LOVE flush mounted subs...
Posted Image

Then it was time to glue the baffles together
Posted Image

Posted Image

And then I added some weight!
Posted Image

Once I did that, I went and rounded out all the corners in the port
Posted Image

That's as far as I am for now. I'm hoping to get all the predrilling and countersinking done tomorrow, and then I can get it glued up by tomorrow night and it should be good to go on Sunday!

My build log: http://www.stevemead...a-budget-build/



2002 Dodge Dakota 4.7 club cab

- Fi and Crescendo



136.4 Sealed @ 29hz

137.0 Drivers window open @ 26hz


#2
REVOofRustler

REVOofRustler

    145db

  • Members
  • 1,048 posts
  • Gender:Male
  • Location:Pacific NorthWest
  • Interests:Dirtbiking, Mountain Biking, basically anything with wheels...
Garage View Garage
Last night before I went to sleep, I started getting some of the pre-drilling and countersinking out of the way. I like to put the whole box together with screws beofre I bring out the glue, just to make sure everything is fitting as well as it should.

So here's where I ended last night
Posted Image

Posted Image

I also glued the port pieces together and let them dry overnight
Posted Image

Corner clamps are the best!
Posted Image

And then I got the front piece on this morning
Posted Image

Port went in
Posted Image

Posted Image

And then it was time for glue! I also had a terminal cup lying around that I decided to throw on there for ease of taking the box out if needed.
Posted Image

And then the top went on!
Posted Image

Posted Image

Once I get off work at 4 tomorrow, I'm gonna take the palm sander to it to get the glue off that got smeared around on the surface. I'm also gonna put a 3/8 inch roundover on the mouth of the port. That's all for now!

Edited by REVOofRustler, 30 December 2012 - 01:05 AM.

My build log: http://www.stevemead...a-budget-build/



2002 Dodge Dakota 4.7 club cab

- Fi and Crescendo



136.4 Sealed @ 29hz

137.0 Drivers window open @ 26hz


#3
REVOofRustler

REVOofRustler

    145db

  • Members
  • 1,048 posts
  • Gender:Male
  • Location:Pacific NorthWest
  • Interests:Dirtbiking, Mountain Biking, basically anything with wheels...
Garage View Garage
I got it all finished tonight!
Posted Image

Rounded over the port
Posted Image

We're gonna put it in his car (it's a 2002 Pathfinder) tomorrow morning, so I may be able to get some videos up of how it does. Let me know what you guys think!

My build log: http://www.stevemead...a-budget-build/



2002 Dodge Dakota 4.7 club cab

- Fi and Crescendo



136.4 Sealed @ 29hz

137.0 Drivers window open @ 26hz


#4
REVOofRustler

REVOofRustler

    145db

  • Members
  • 1,048 posts
  • Gender:Male
  • Location:Pacific NorthWest
  • Interests:Dirtbiking, Mountain Biking, basically anything with wheels...
Garage View Garage
Well just in case anyone is actually interested in this... we got it in his car today!

Mounted the amp on the back of the seat. The wiring is a bit messy, but it can be cleaned up. All the connections are good, which is what matters most.
Posted Image

And then the box went in!
Posted Image

It sounds pretty good! It definitely comes alive in the upper 30 to lower 40 hz range. I did think it would have a bit more authority on the lows (down to around 30 hz), seeing as it's tuned to 32 hz, but I also think I've been a bit spoiled by the lows from my Q12. The nice thing is that he does have a bit of room to upgrade to a nice monoblock amp if he ever wants to.
