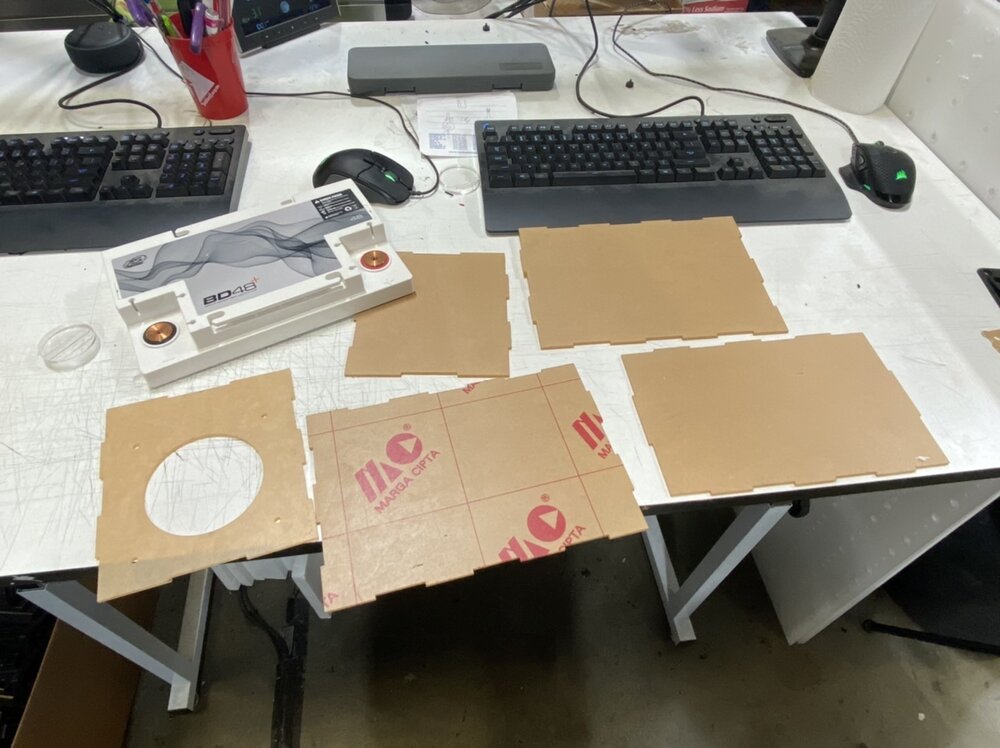

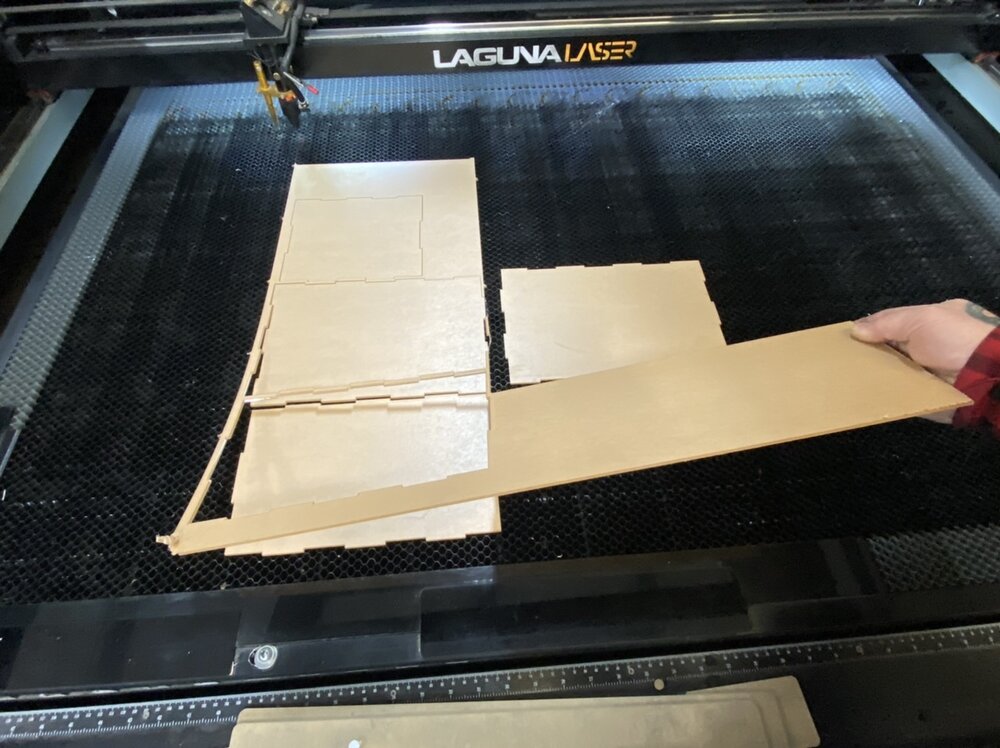

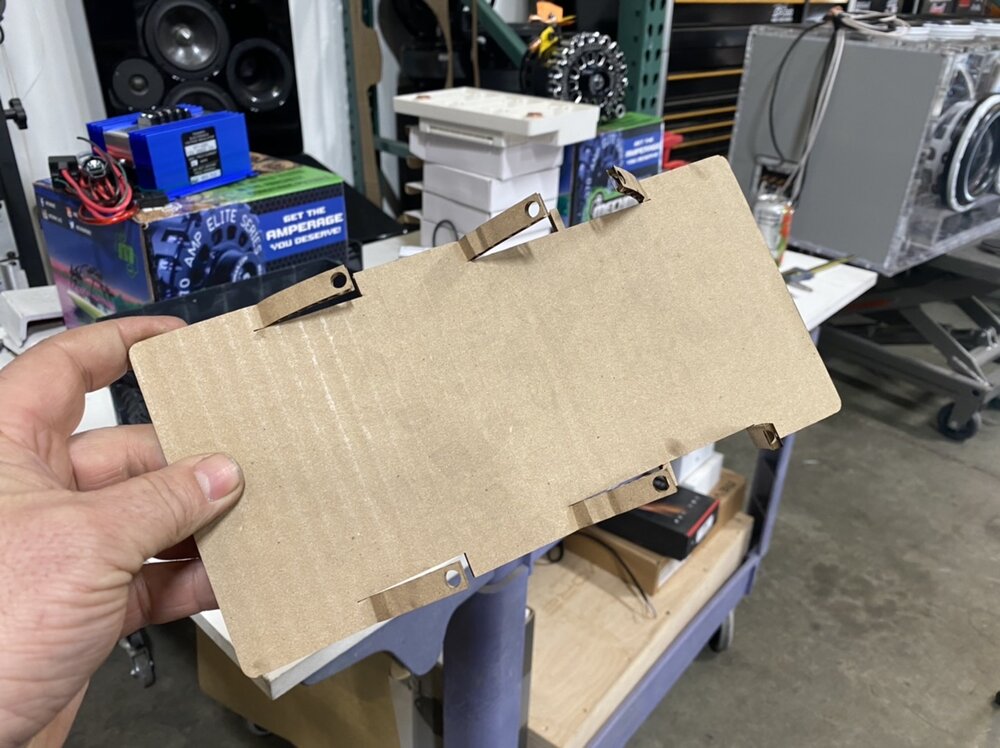

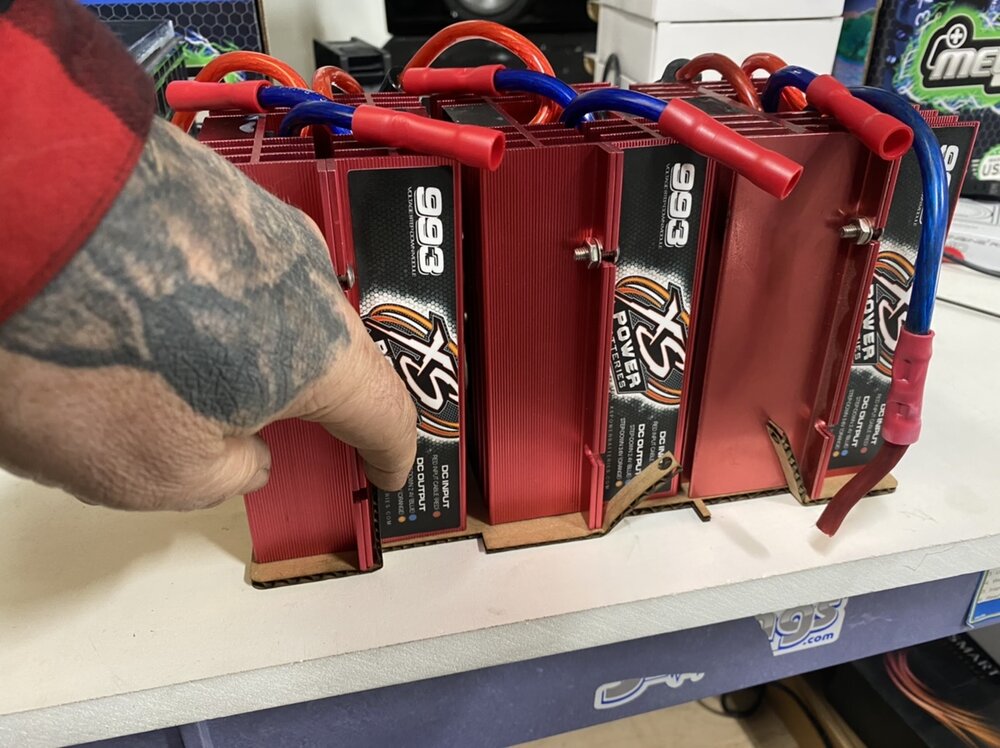

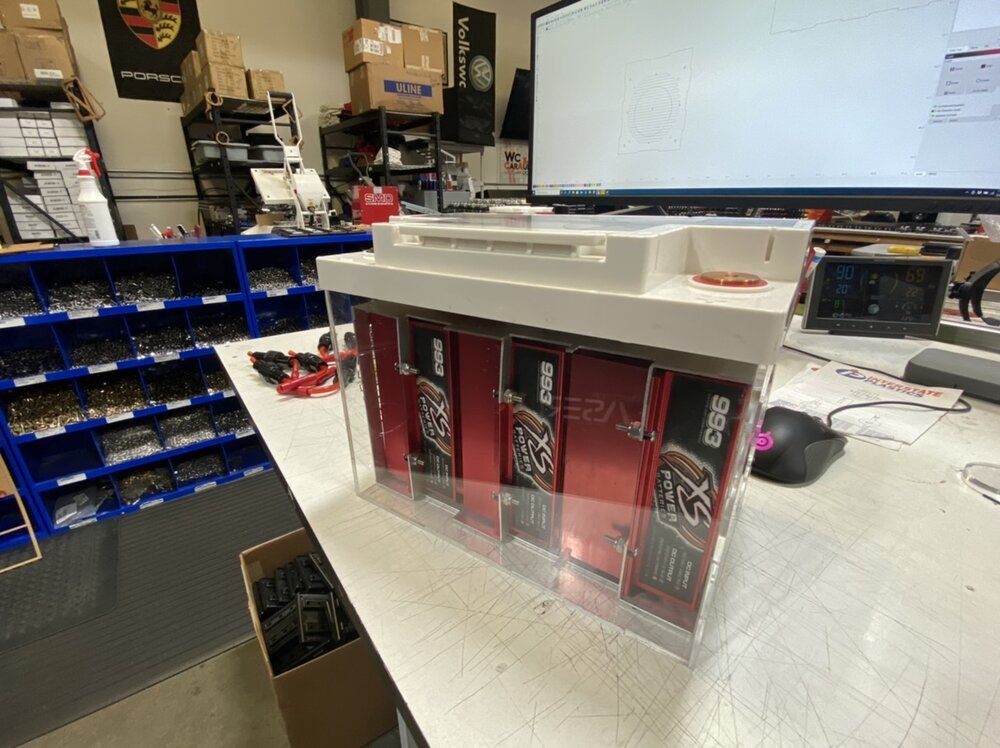

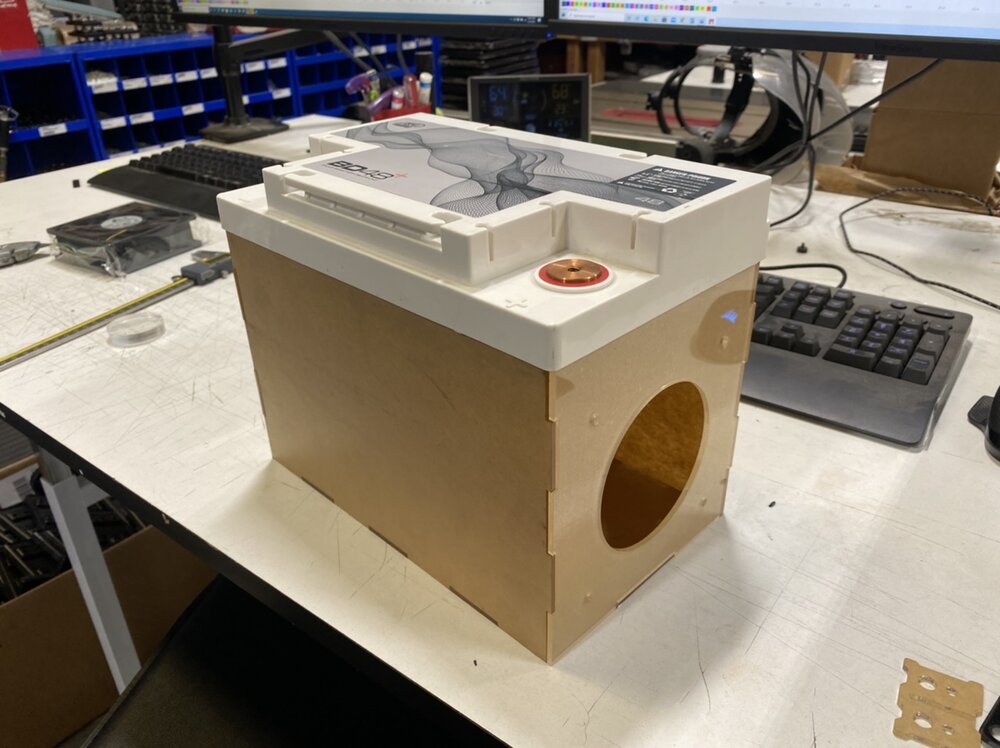

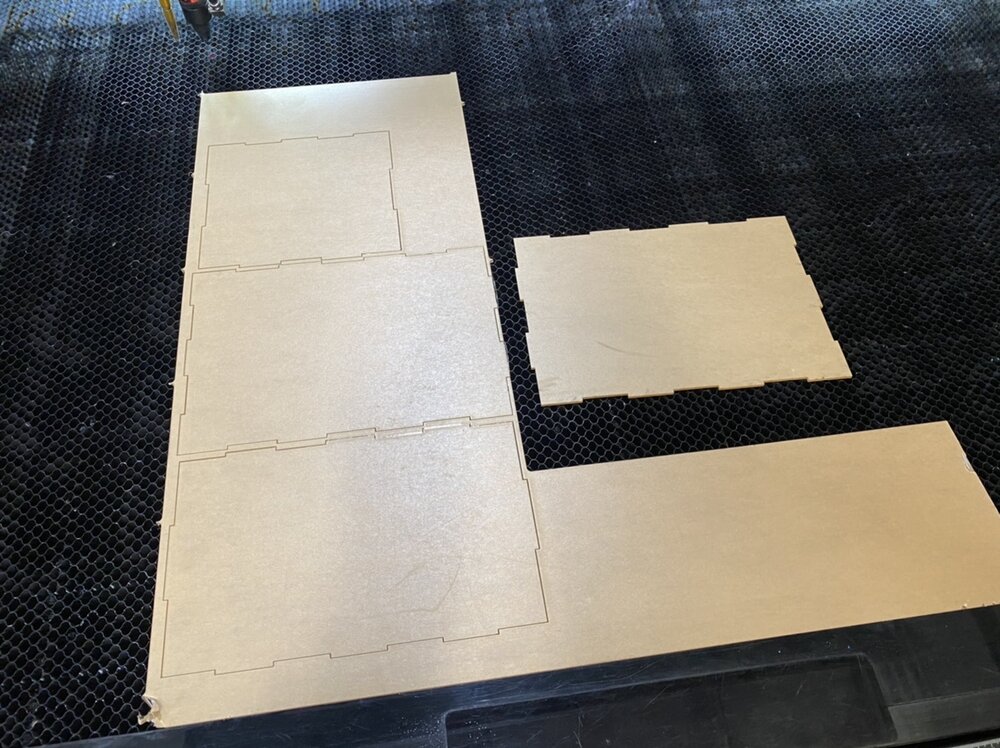

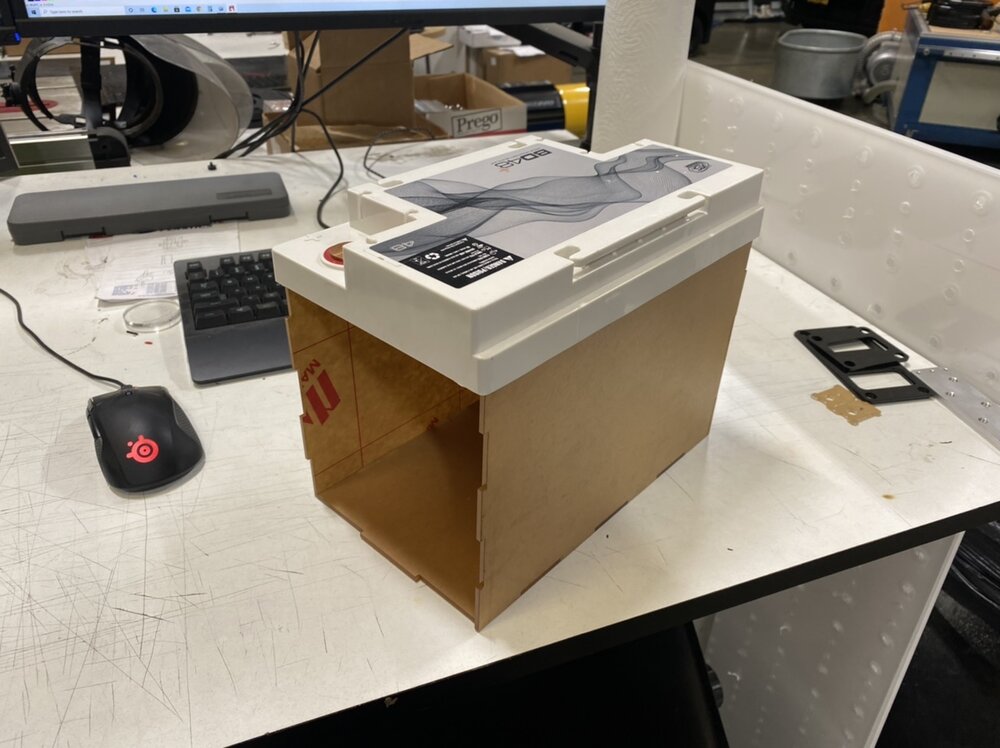

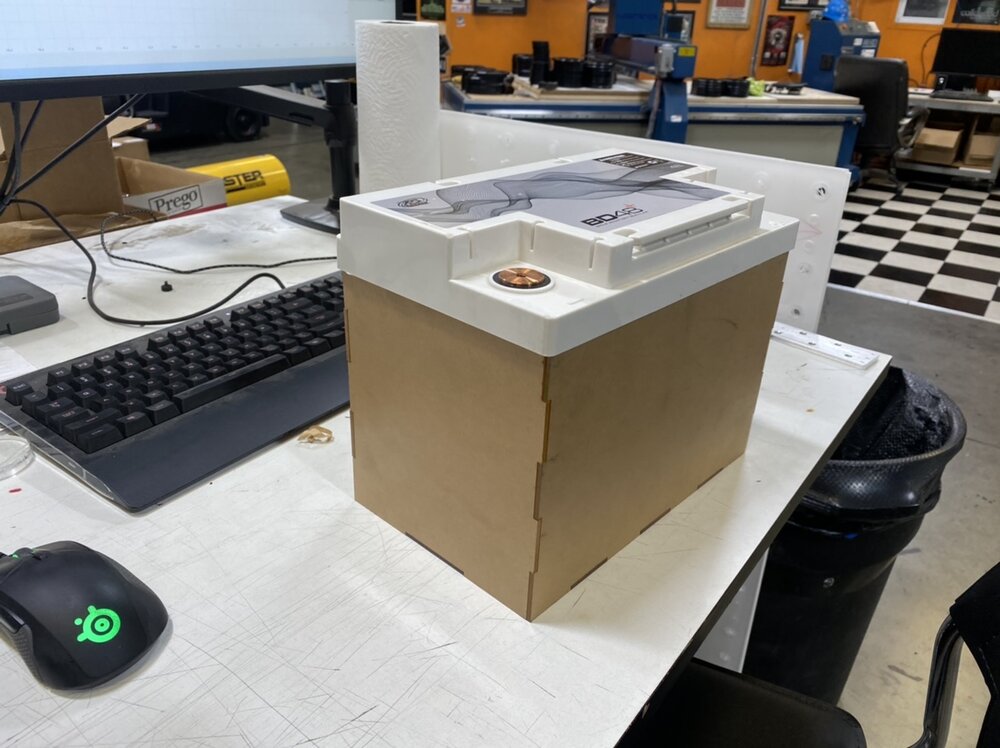

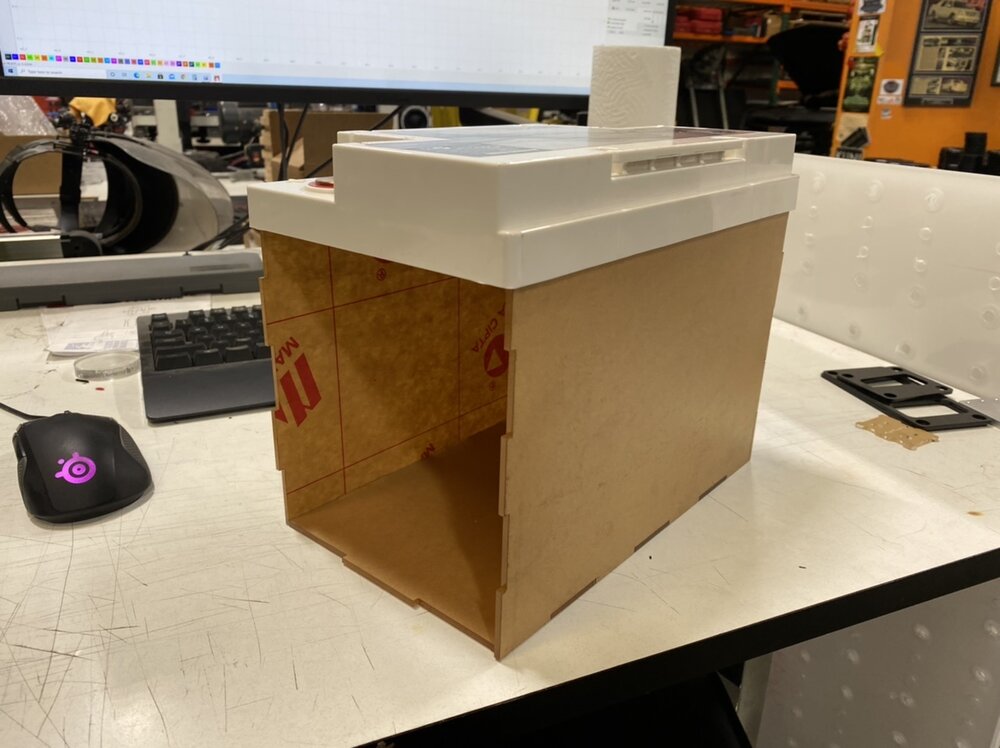

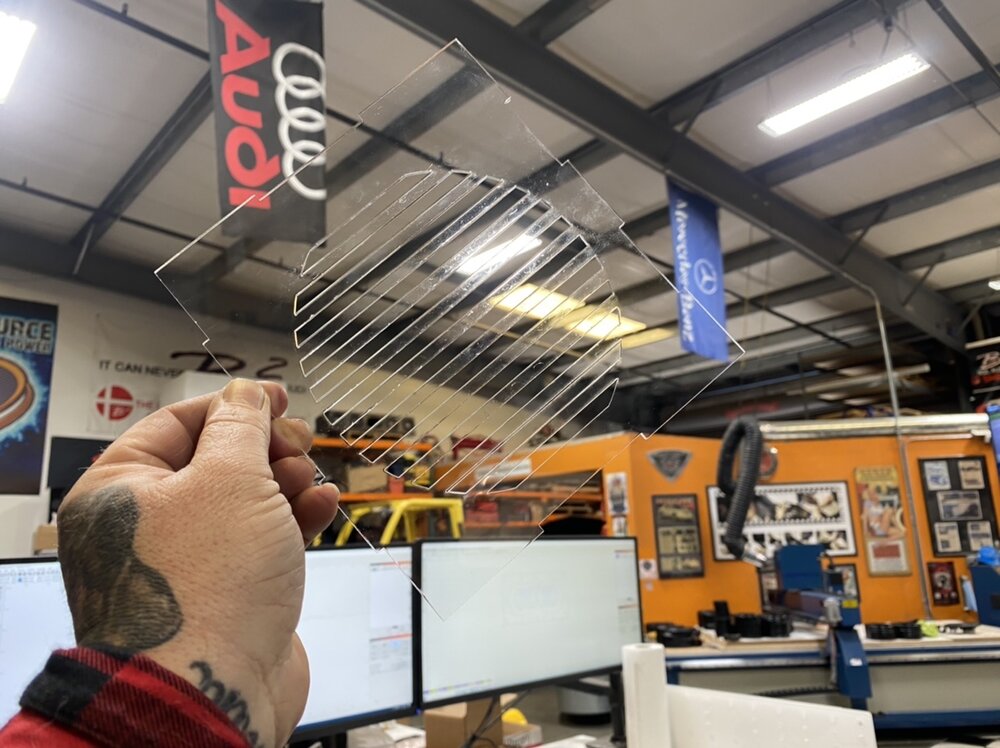

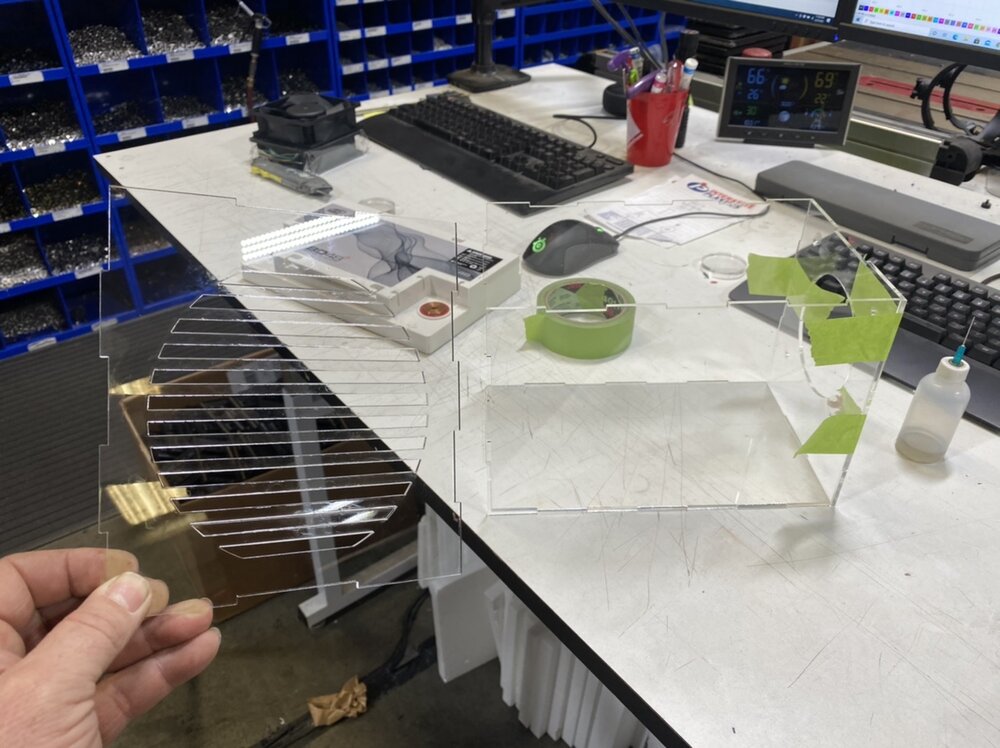

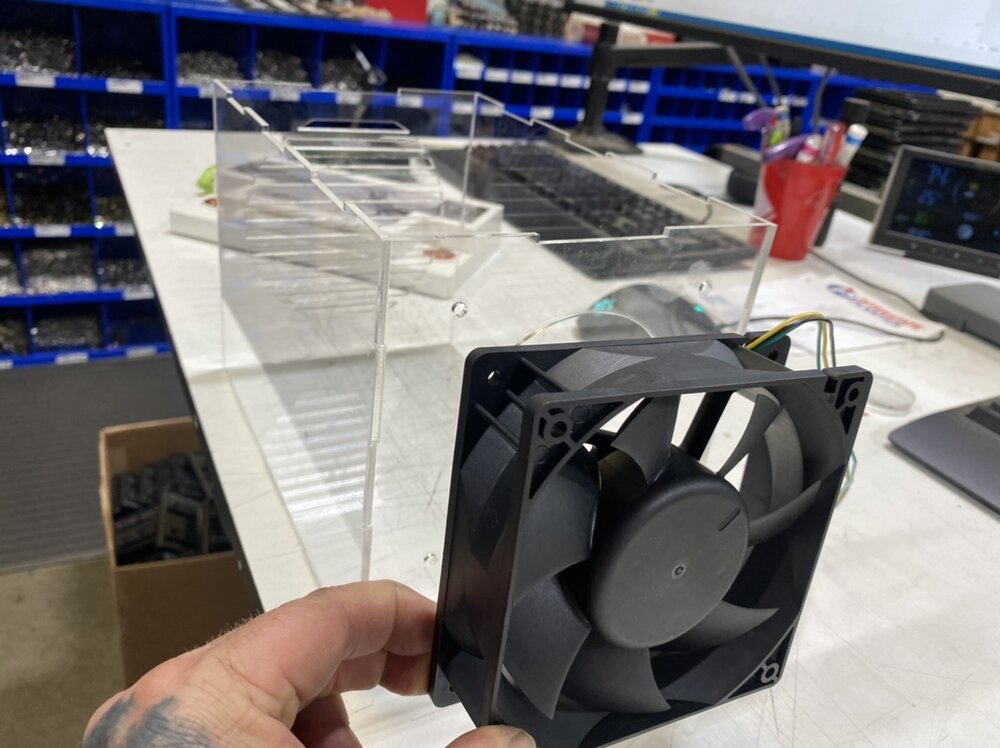

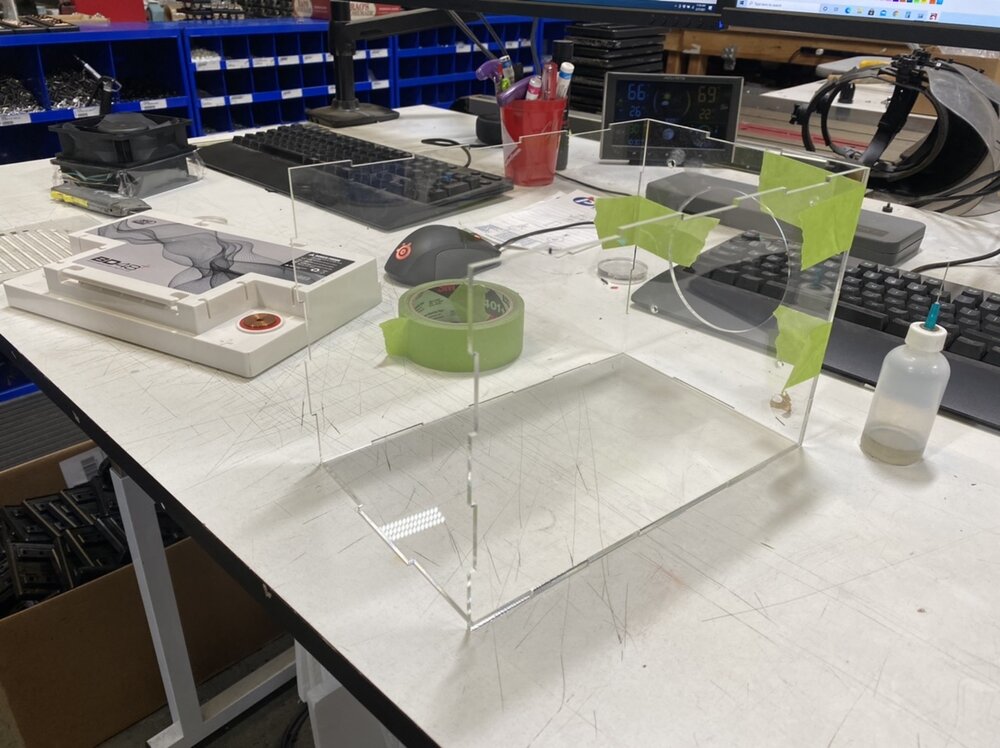

Time to step my game DOWN.  In order to get these 6 modules in the empty battery, i had to get creative.  I didn't want to just throw these in there and call it done. I wanted something at least half way proper.  It always starts with cardboard though!



























All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

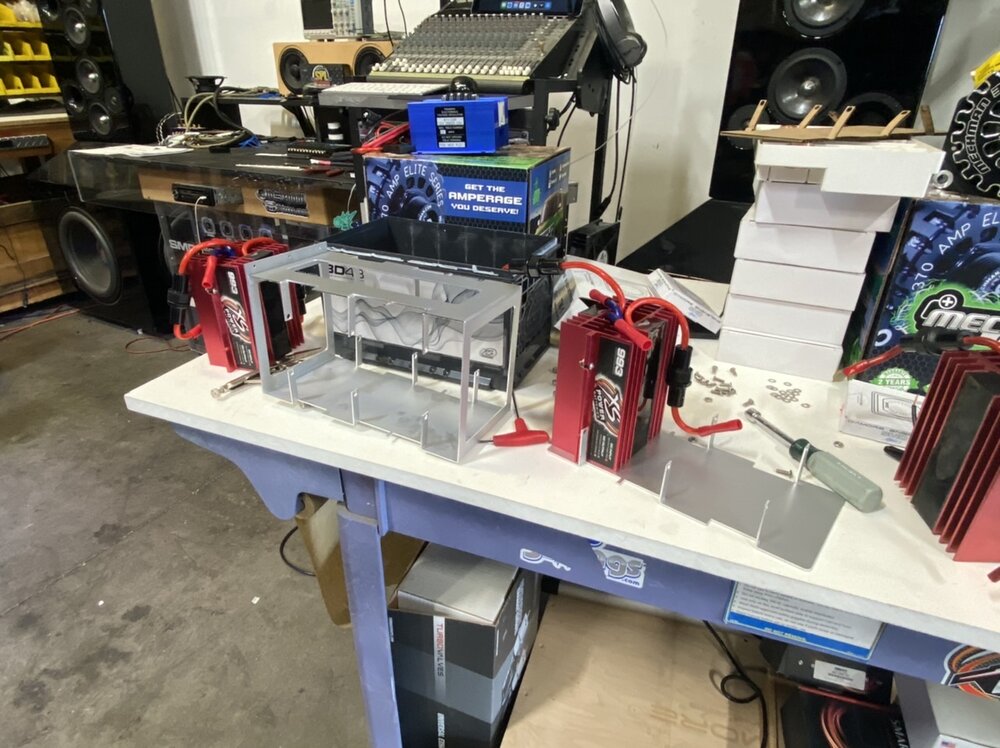

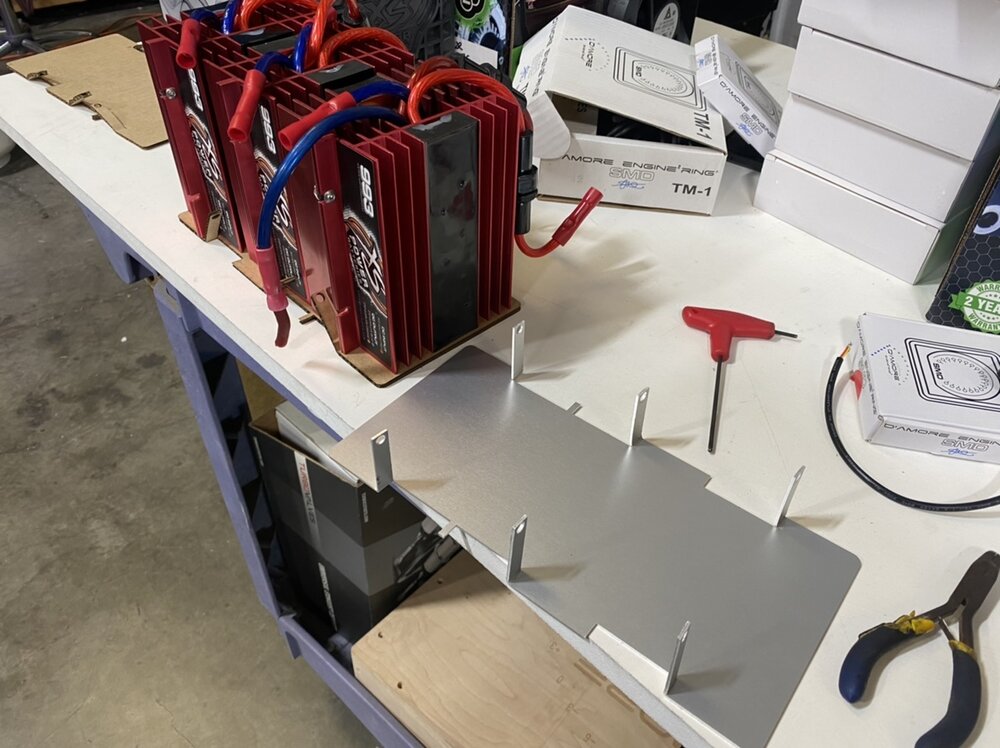

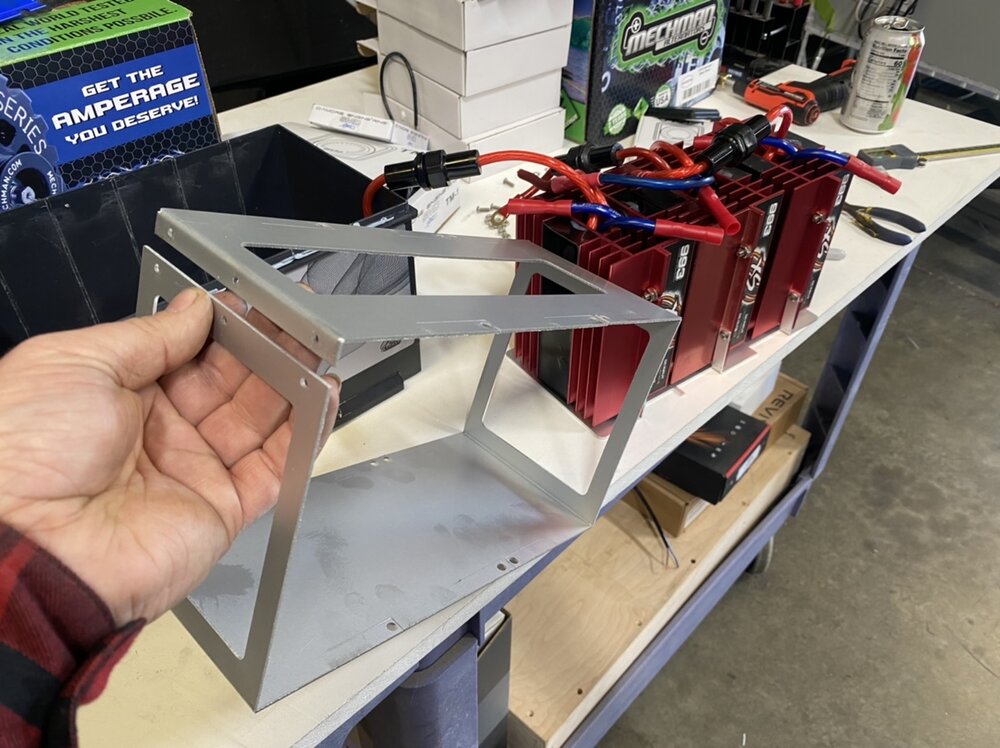

Once i see that it MIGHT work, i start making the next one out of metal. This is aluminum.  I didn't measure how thick it is, it is just some stuff i had on the shelf.  If i had to guess it is probably .060.

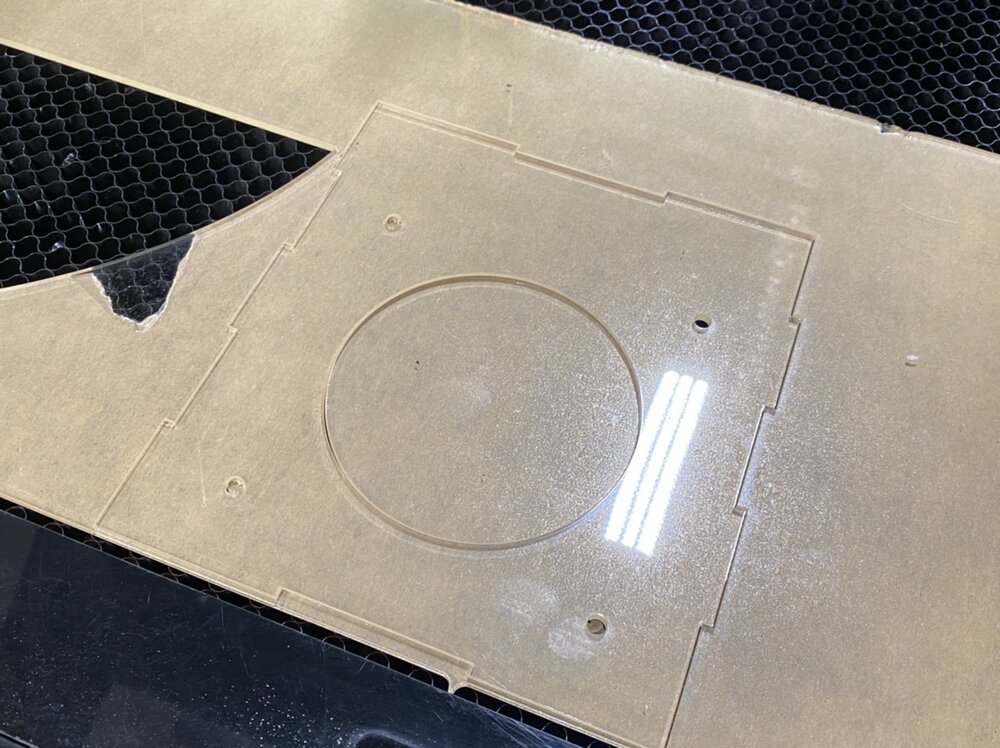

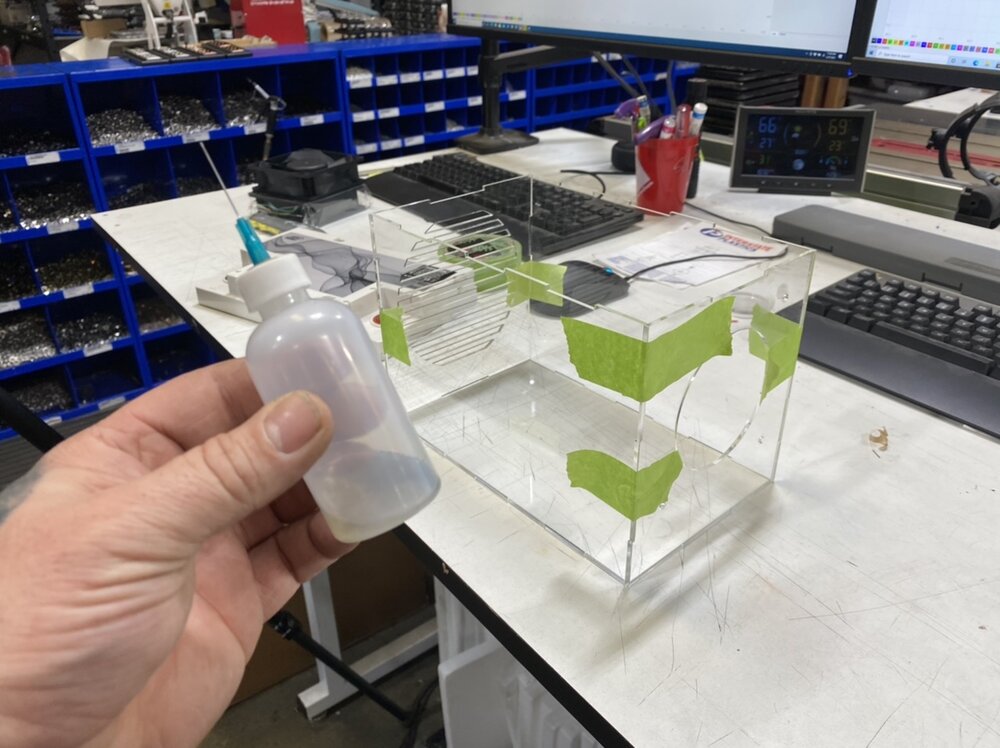

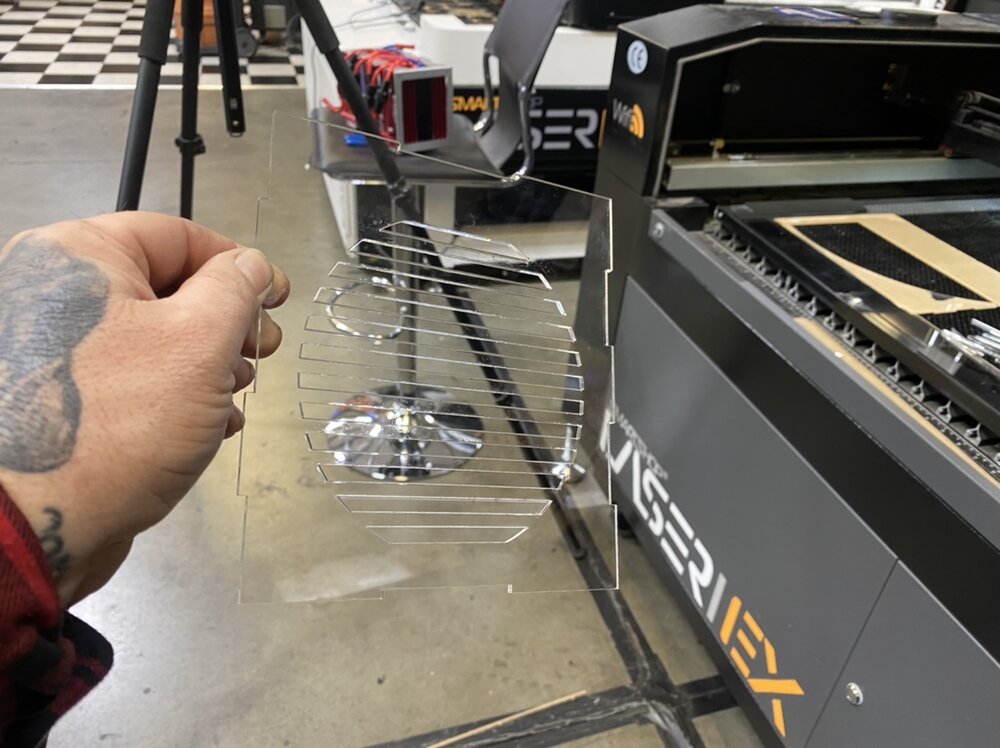

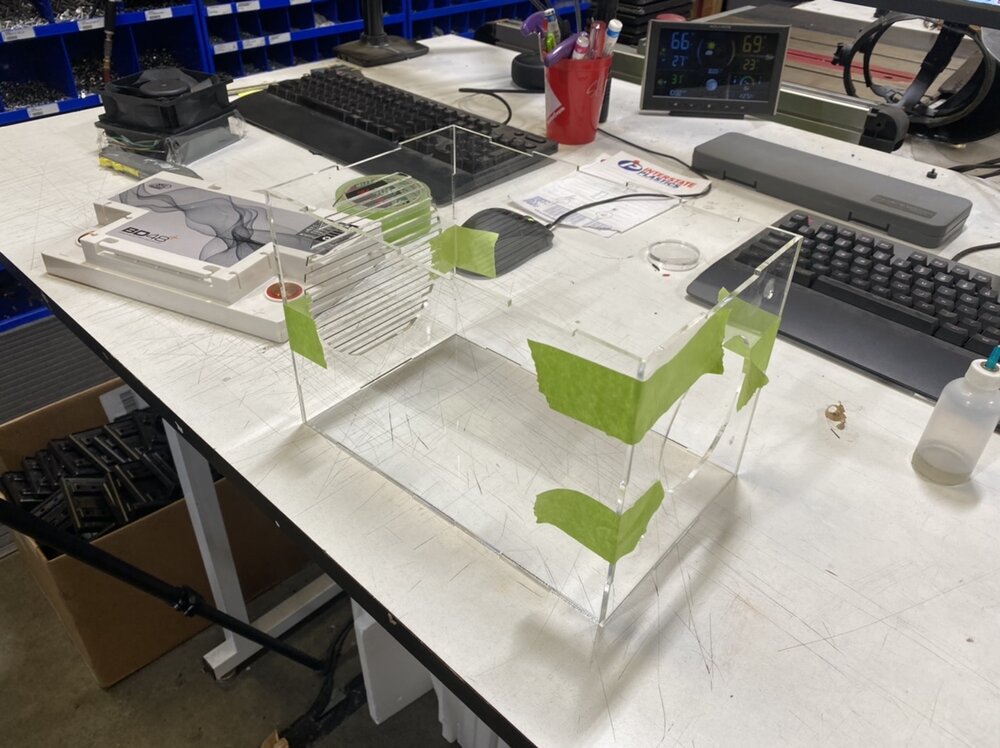

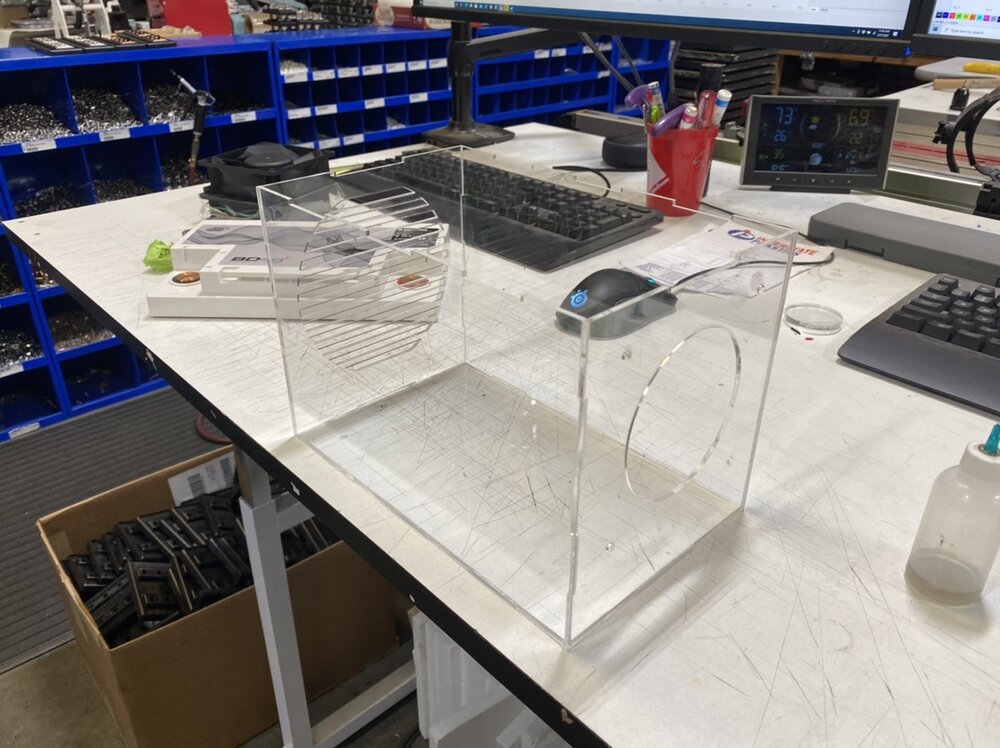

I blasted it pretty fast with my laser.













































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

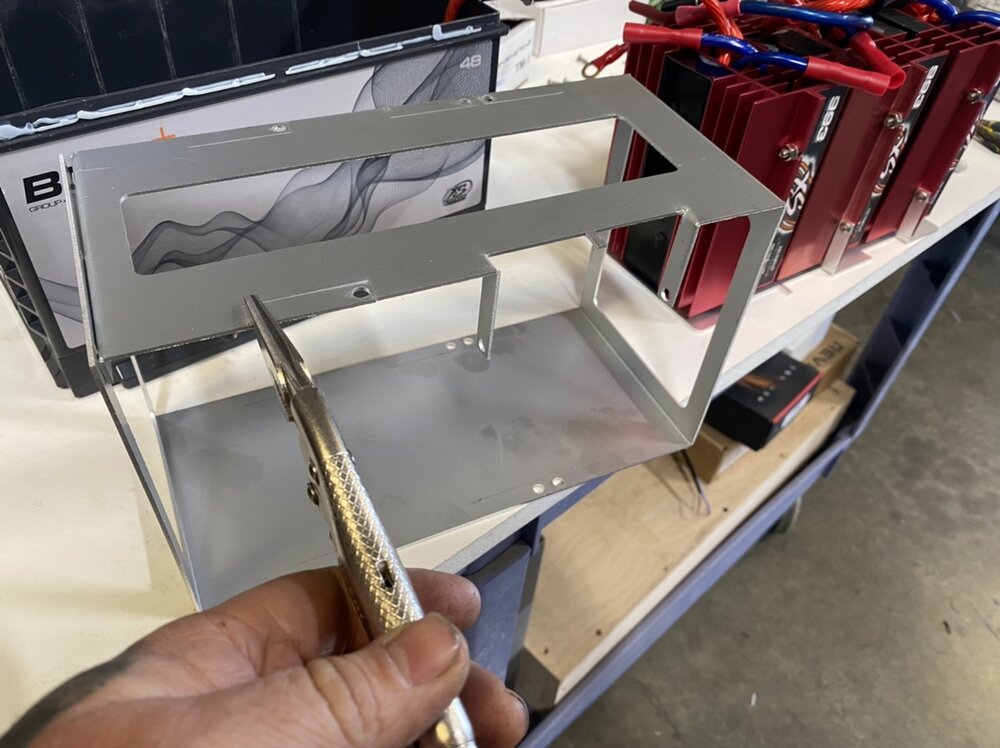

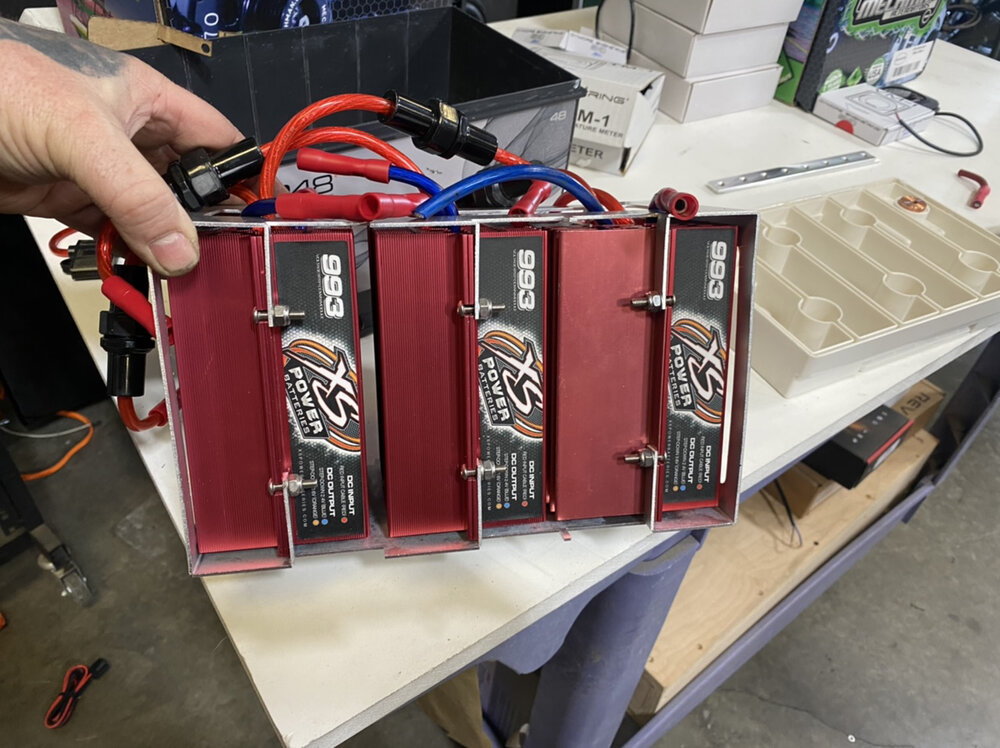

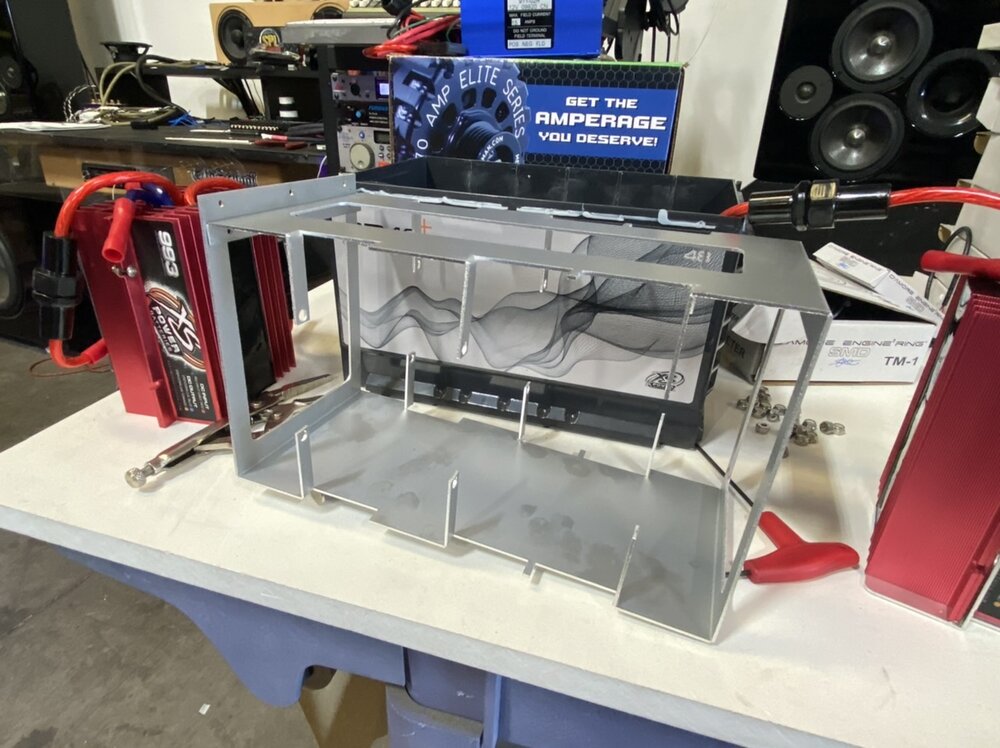

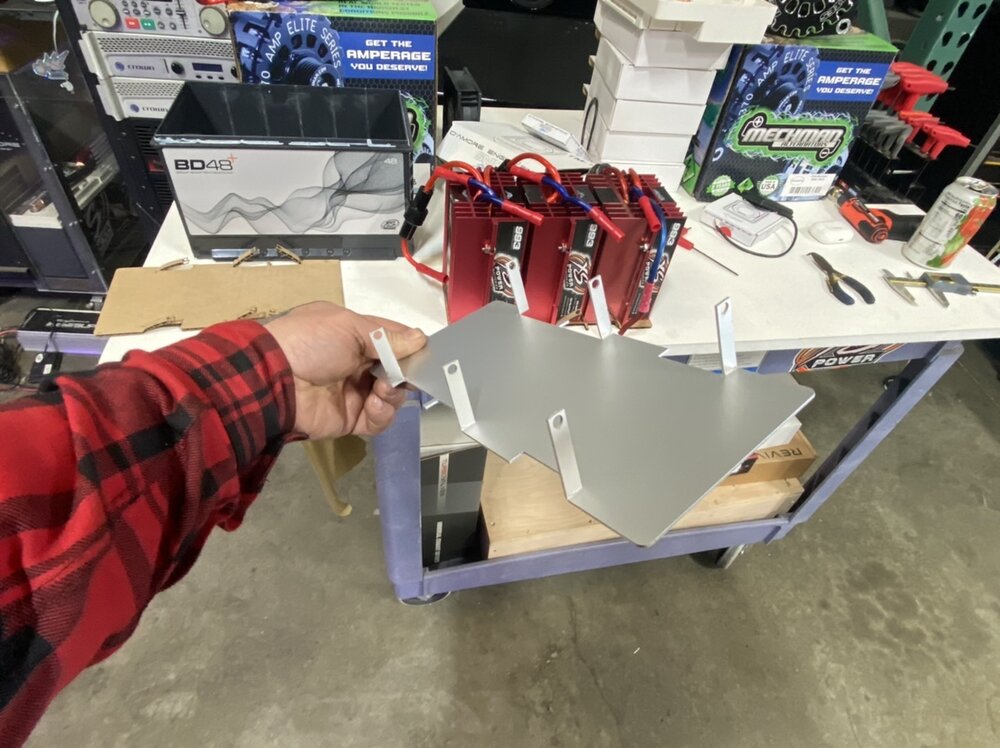

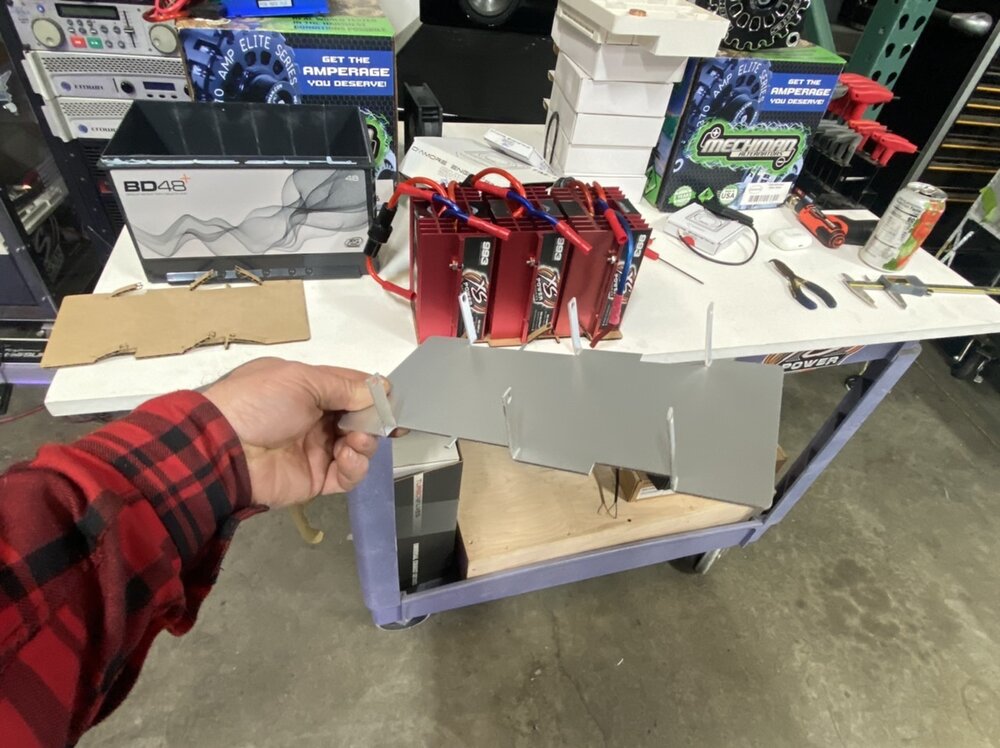

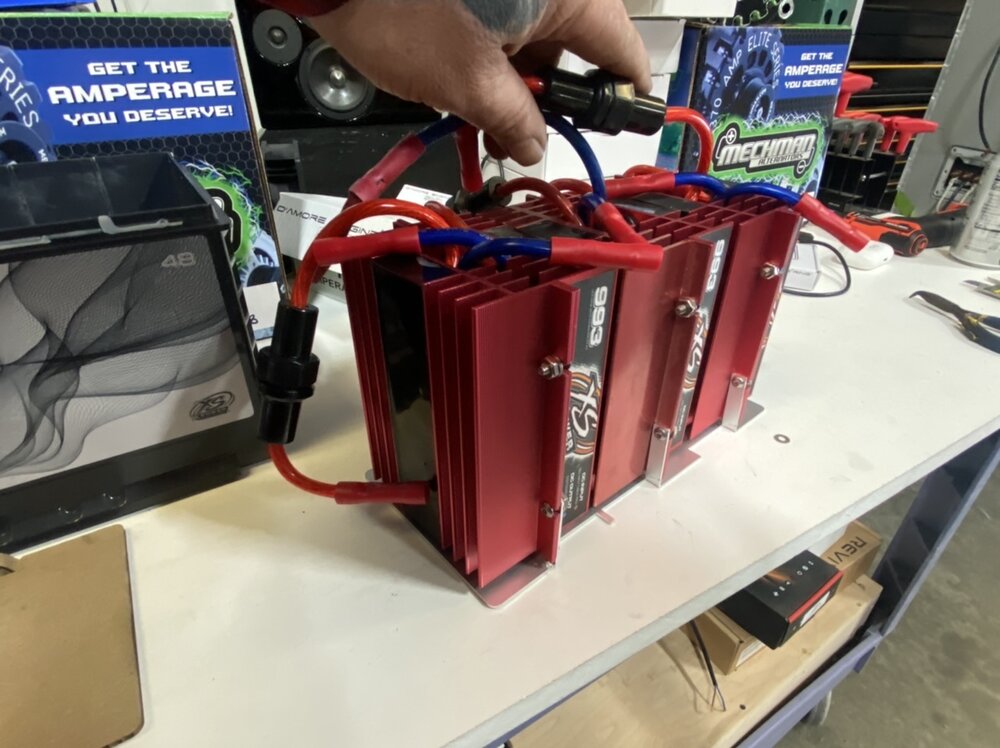

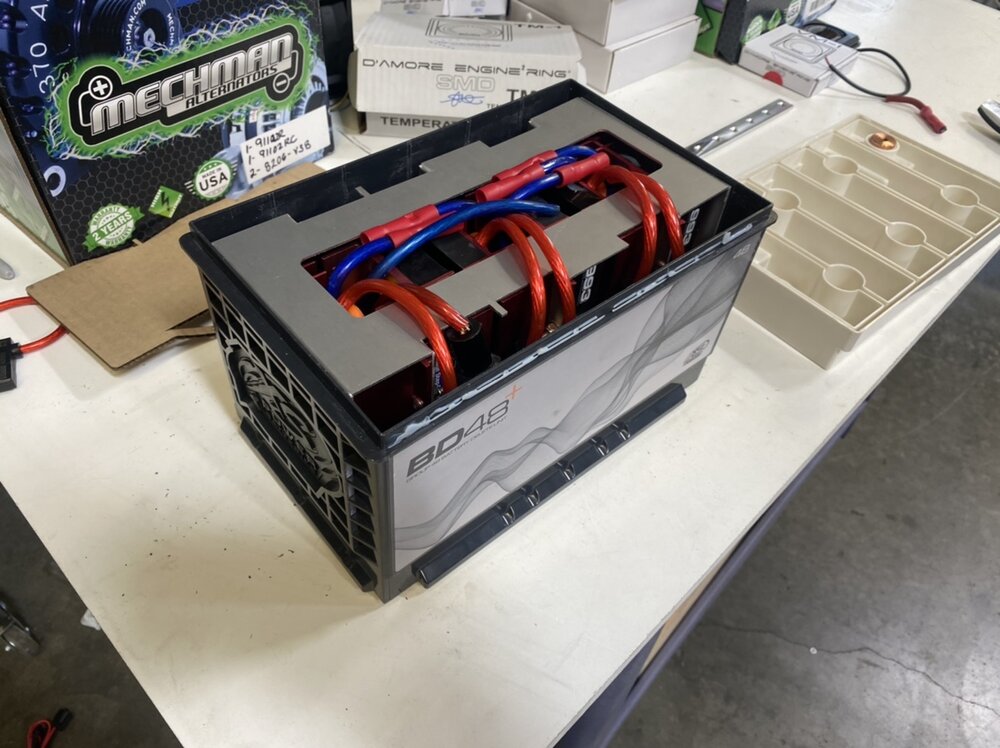

Now that i know that works, it is time to go the extra mile and do a complete 1 piece wrap around with laser cut and bent tabs.












I will pop-rivet it together once they are all in place.

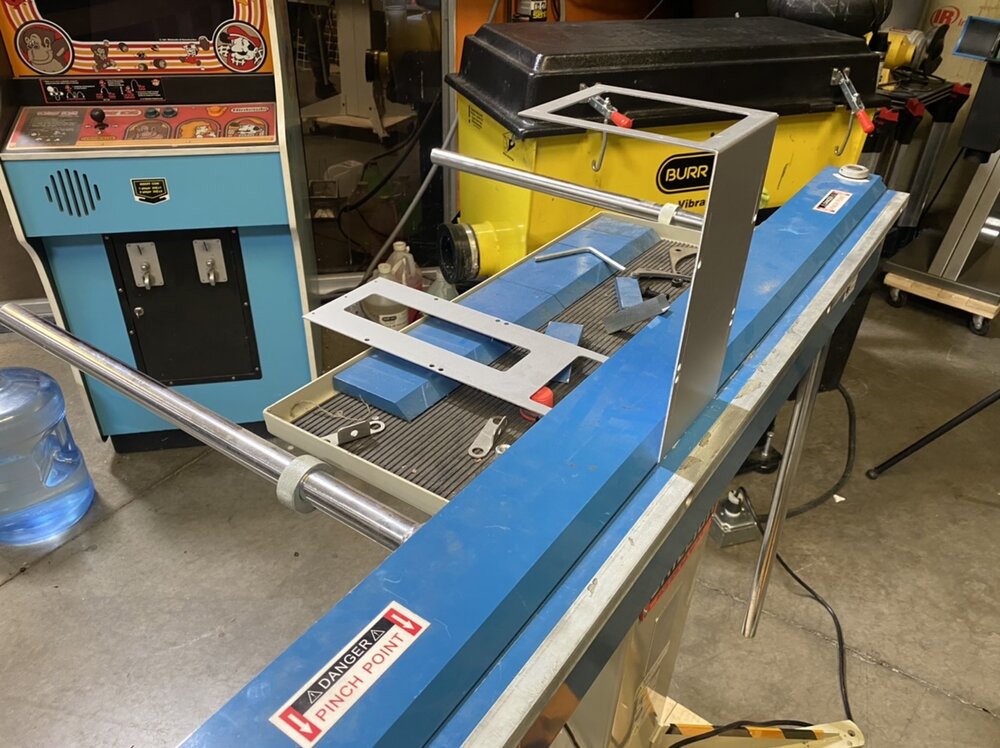

a nice little 90 on all the tabs.

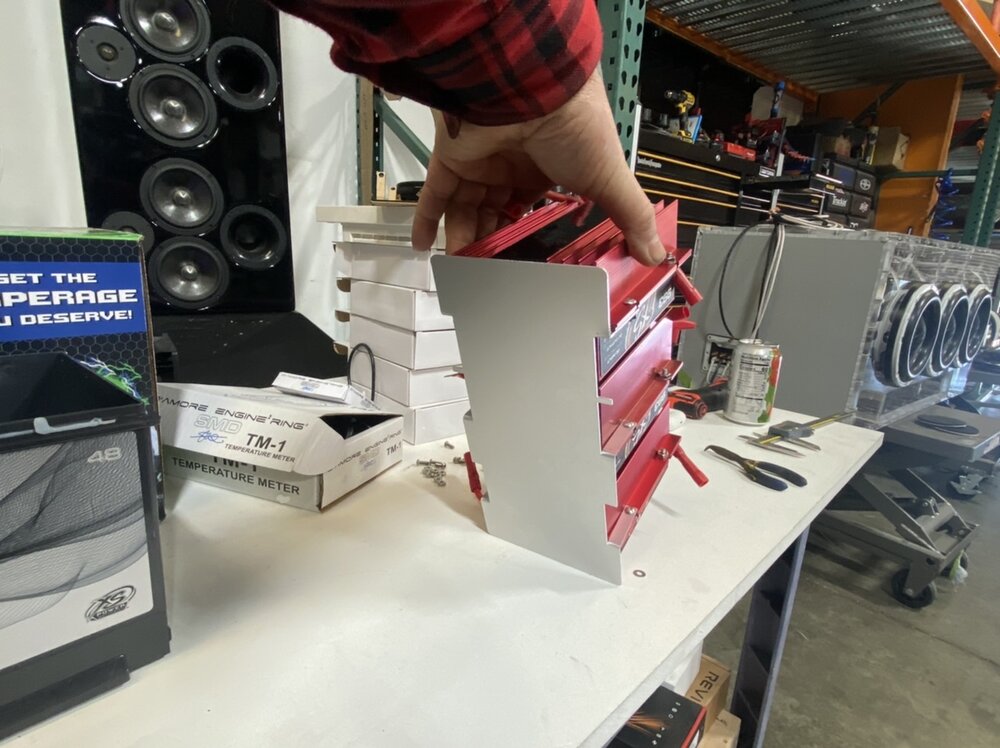

Not gonna lie. It was kinda a bitch to get them in there. At least the first set. It got easier as i got to the more open area.

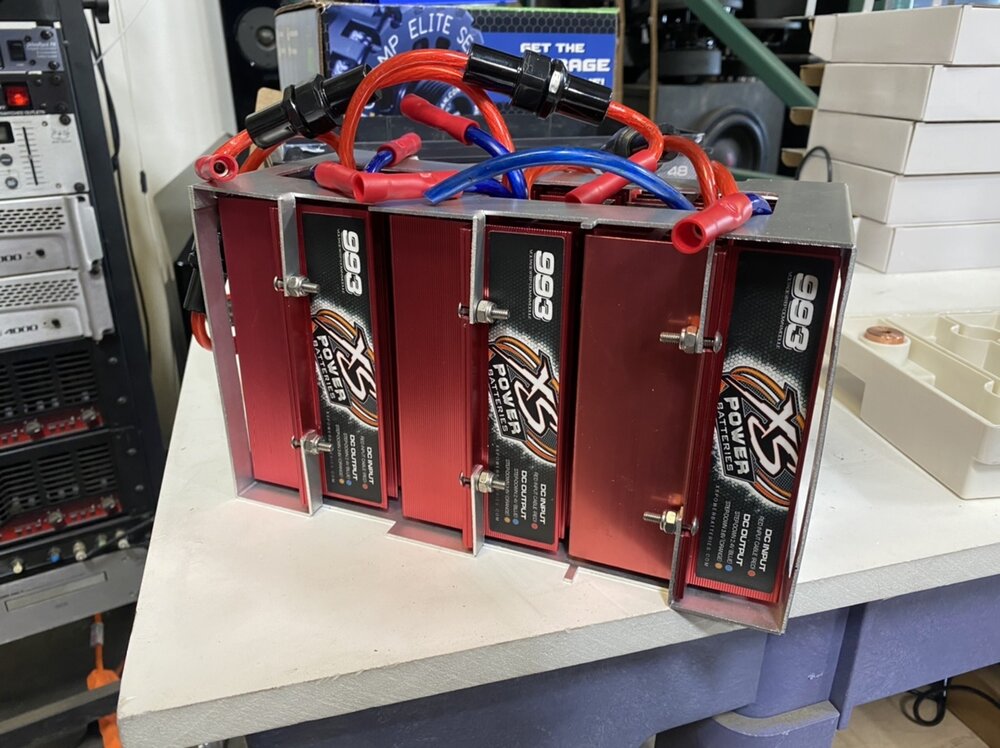

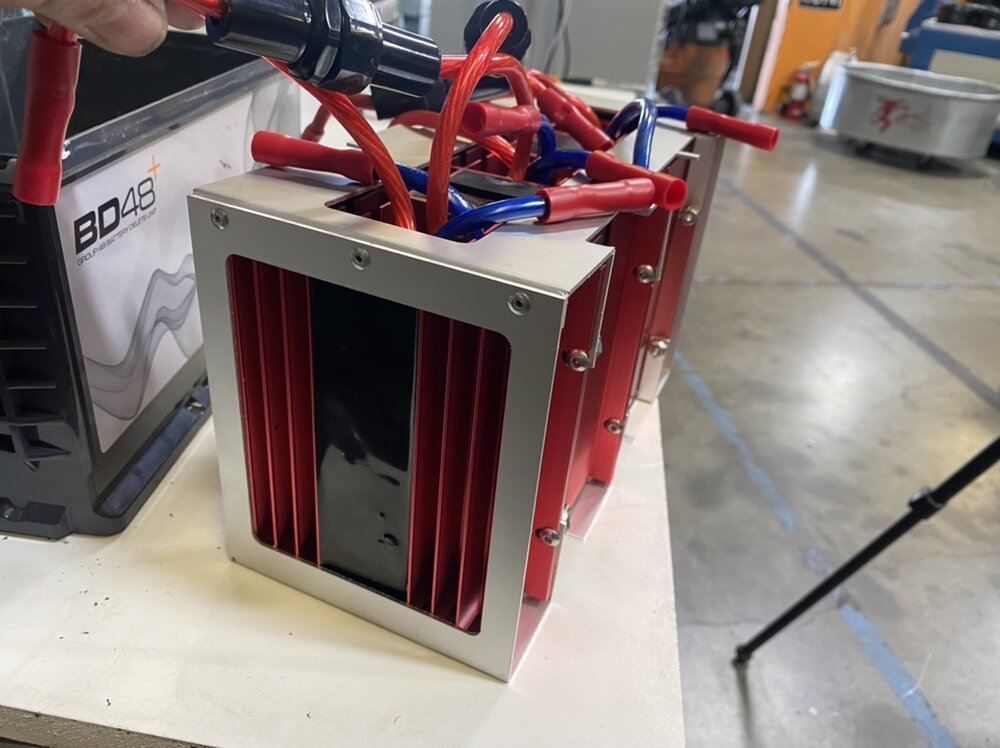

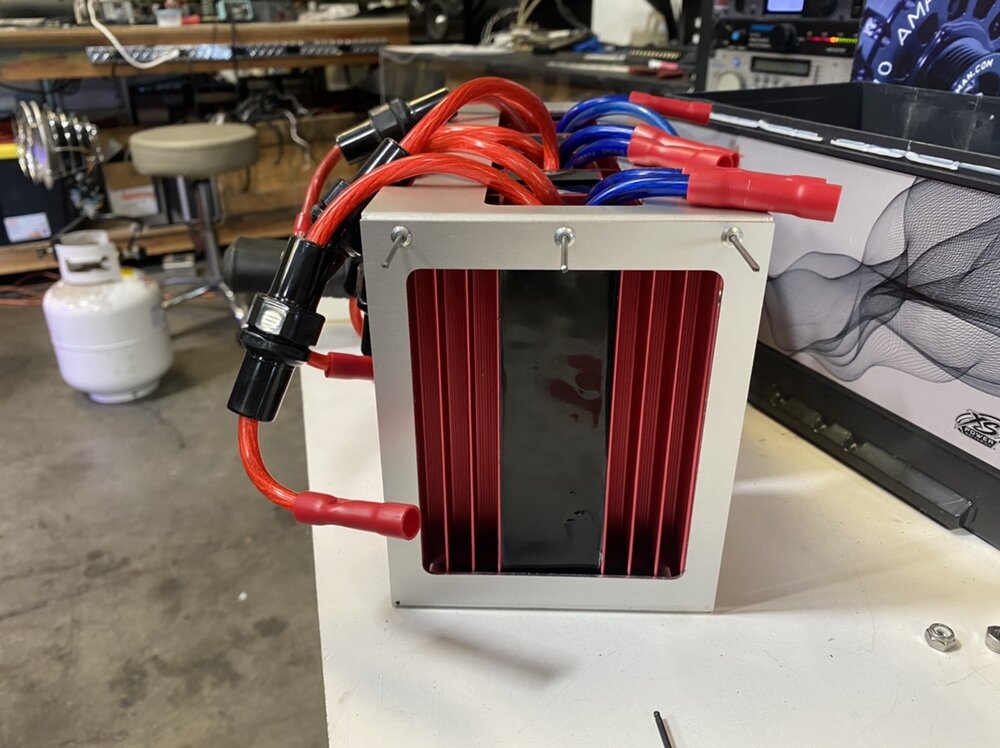

Aluminum pop-rivets to close the deal.

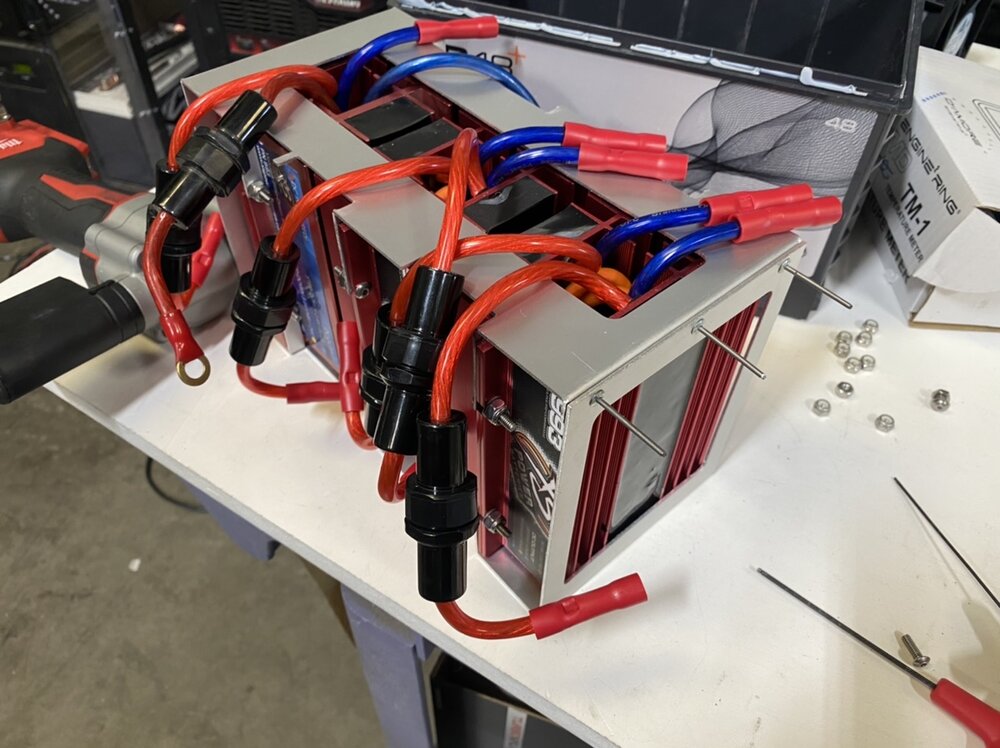

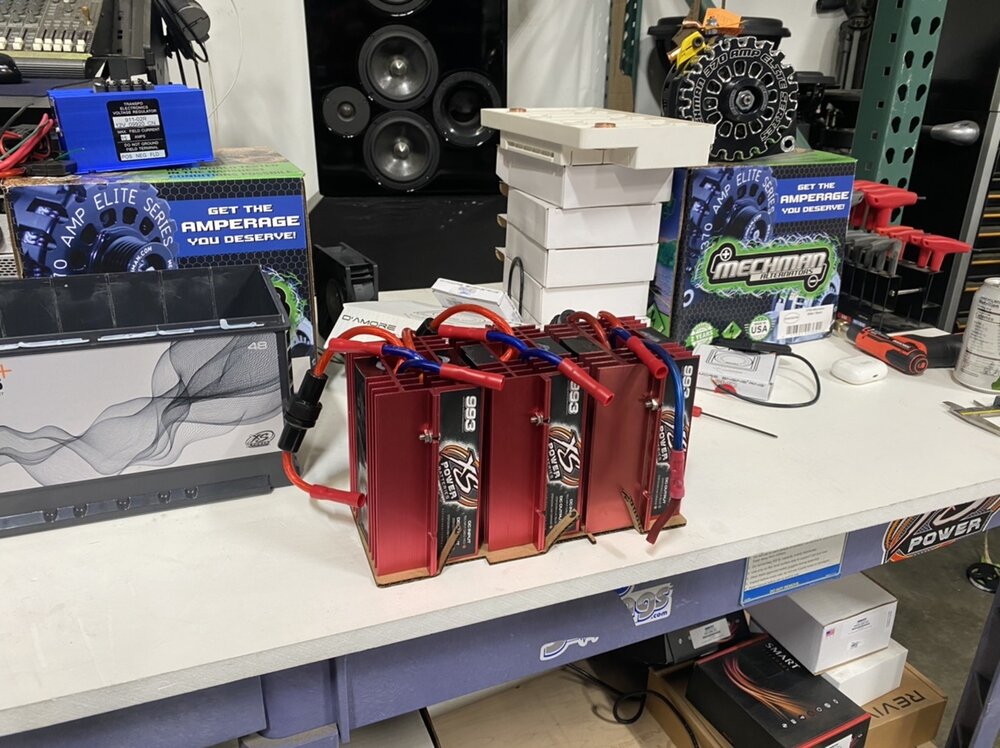

8x32 Stainless allen head fasteners with nylock nuts and a little washer.
































  • Like (+1 Rep) 1


All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

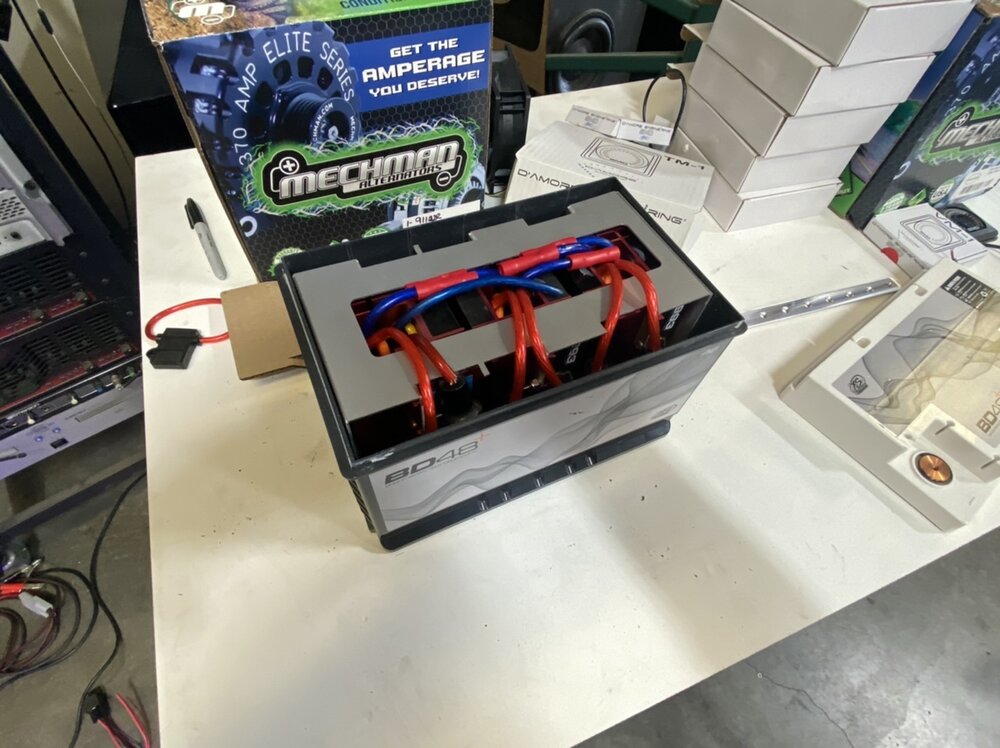

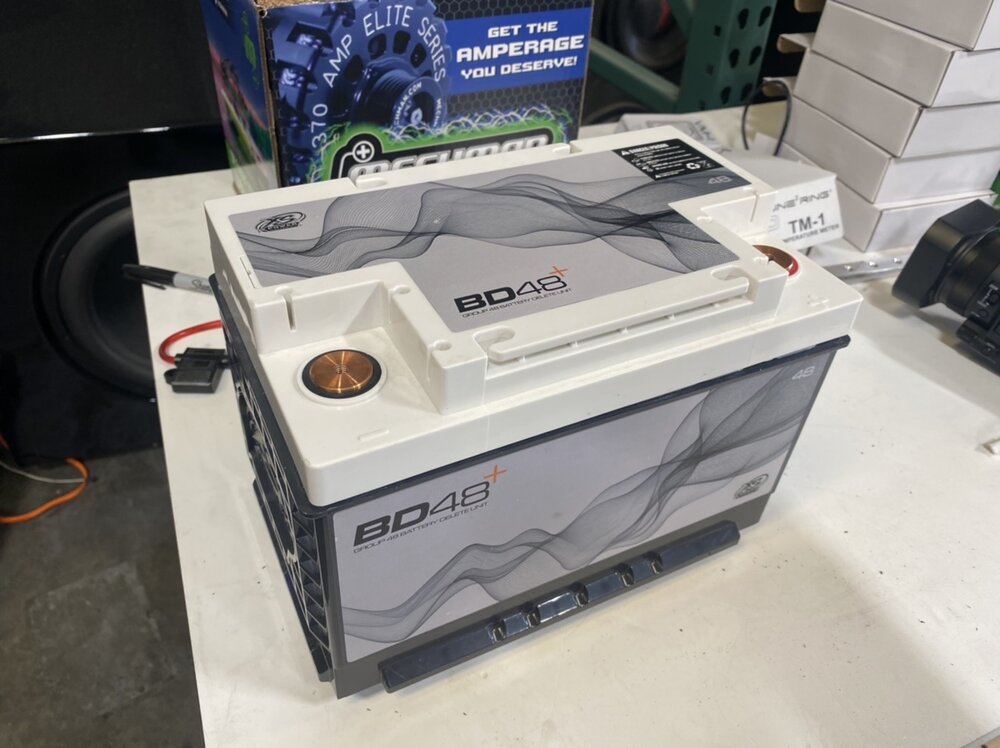

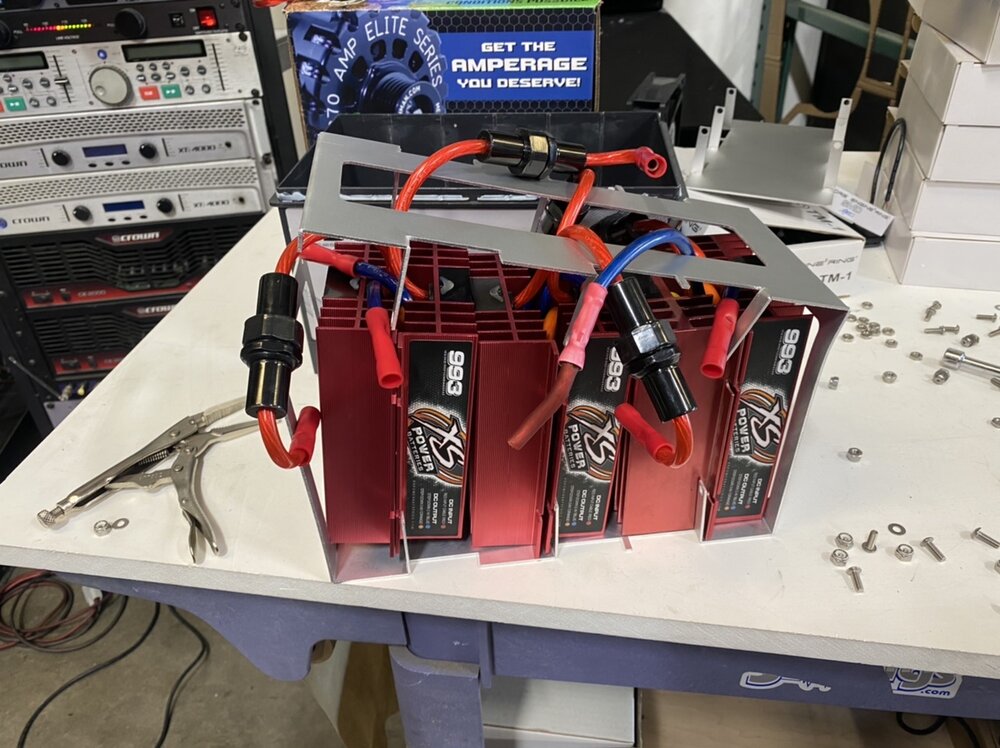

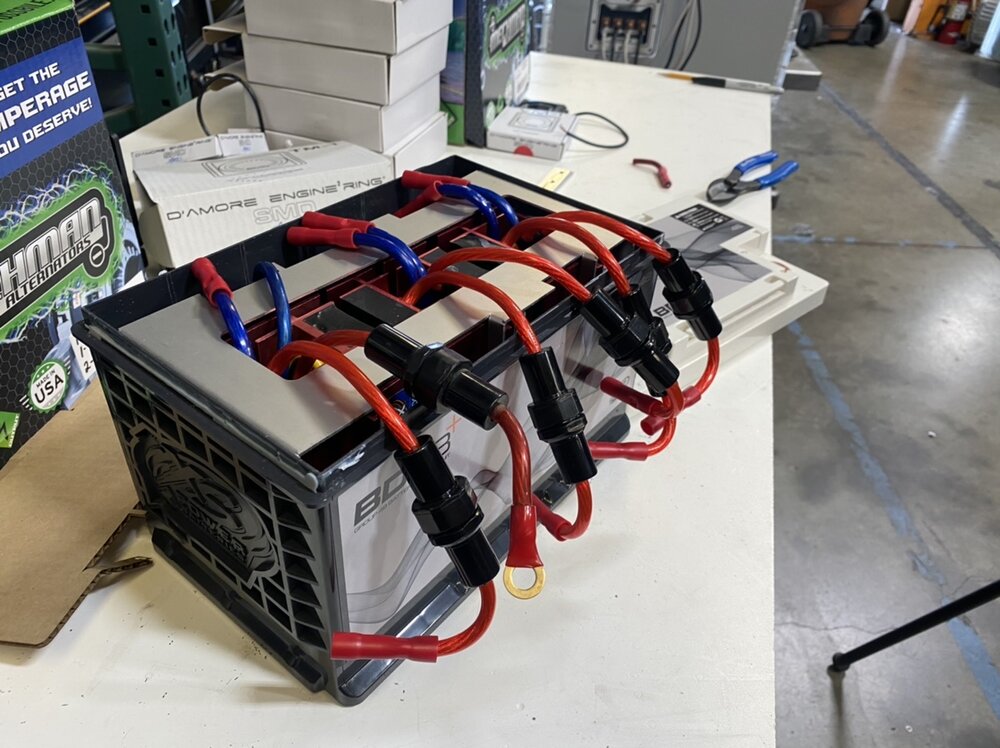

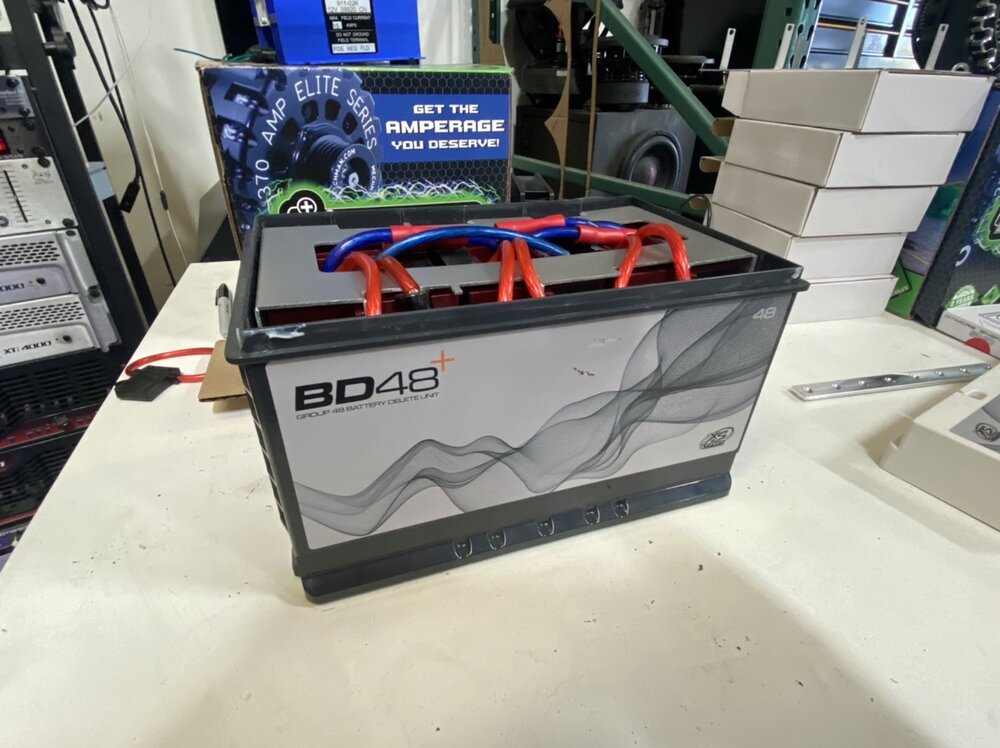

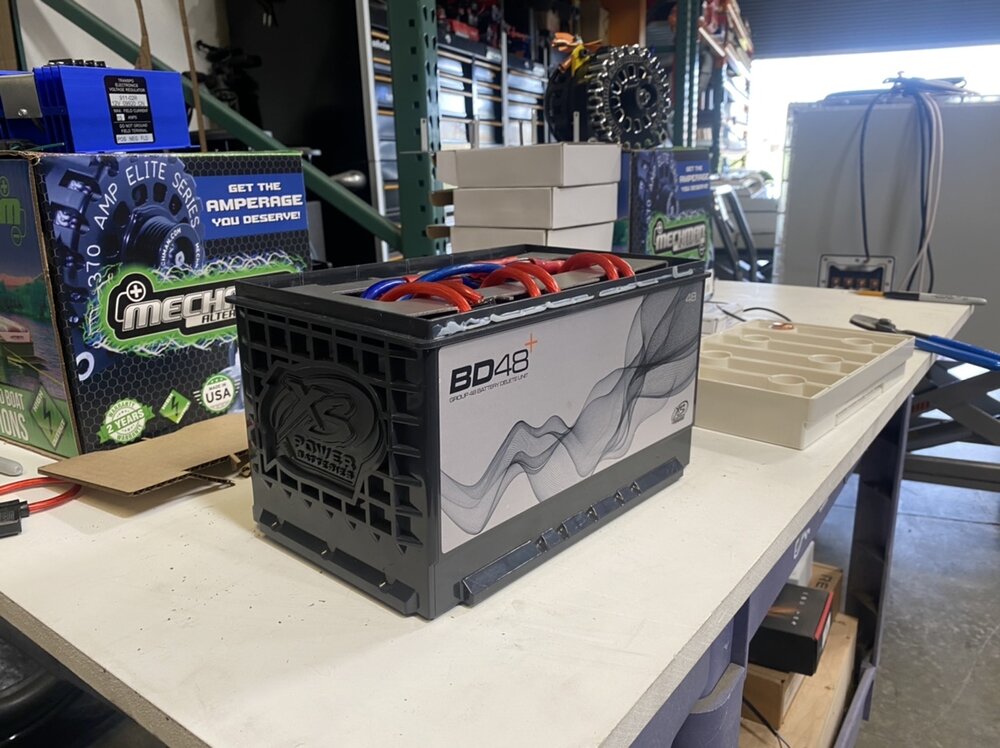

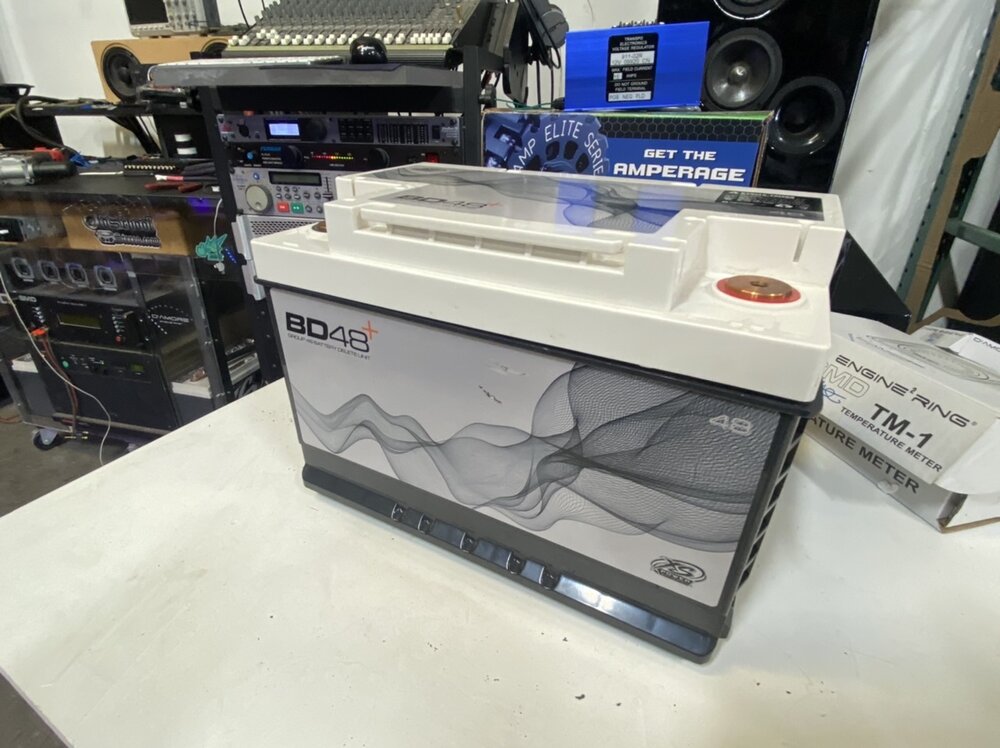

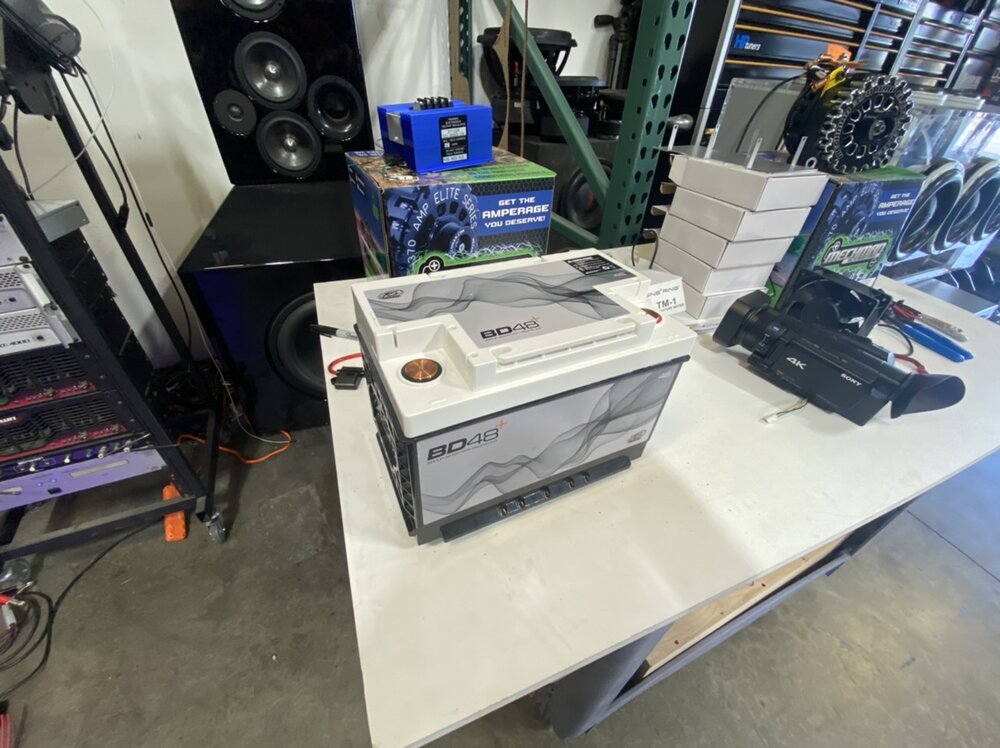

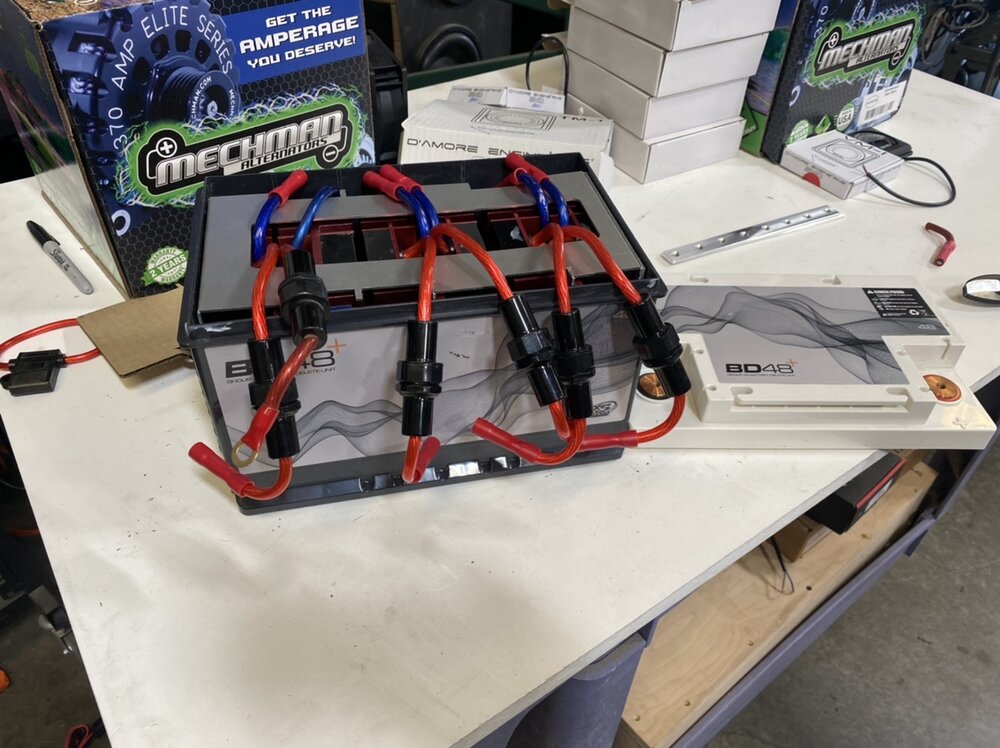

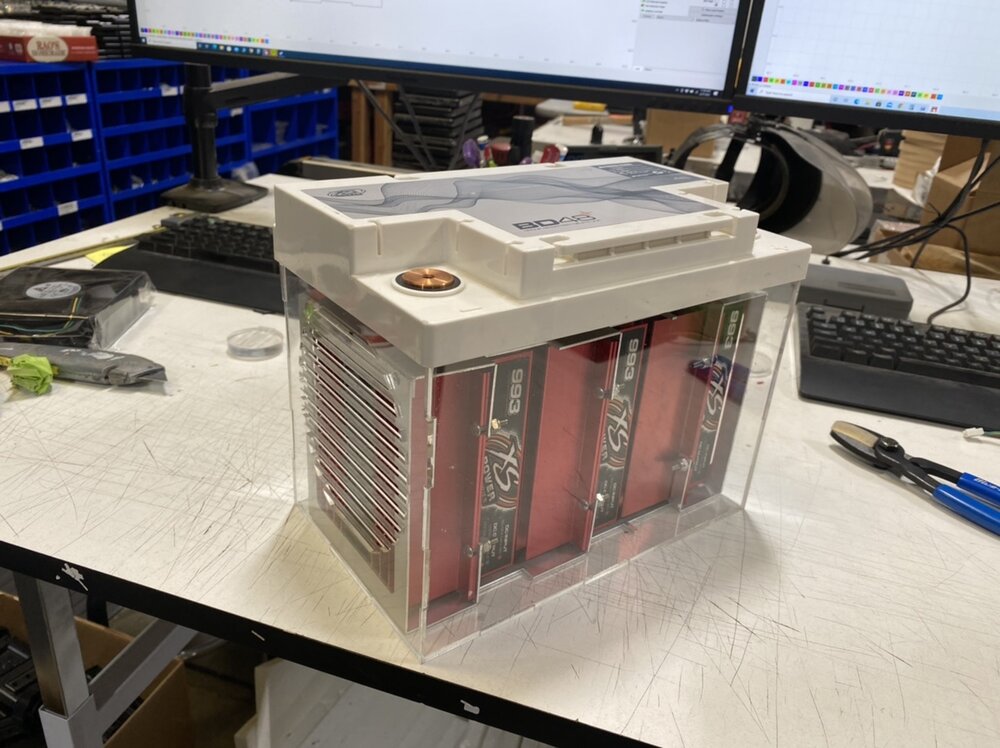

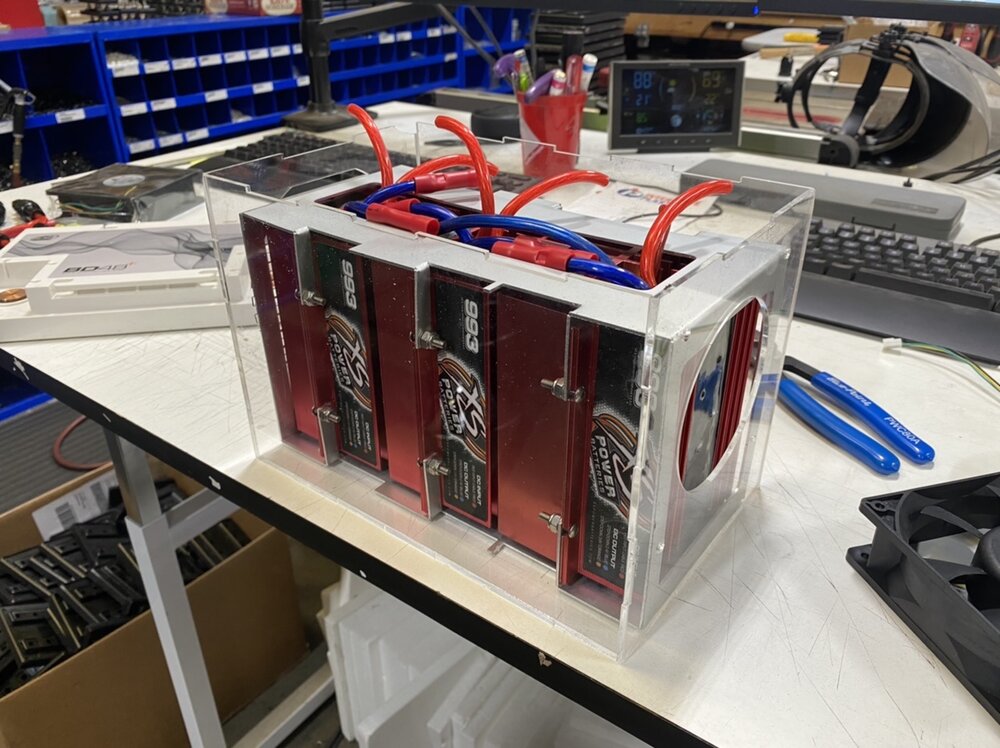

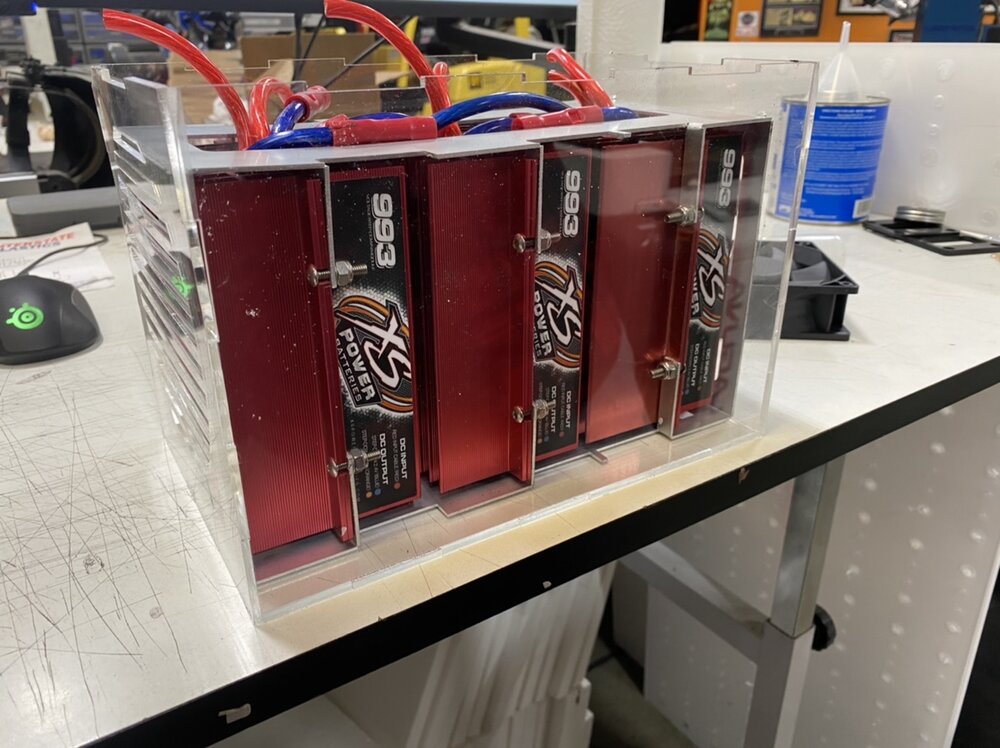

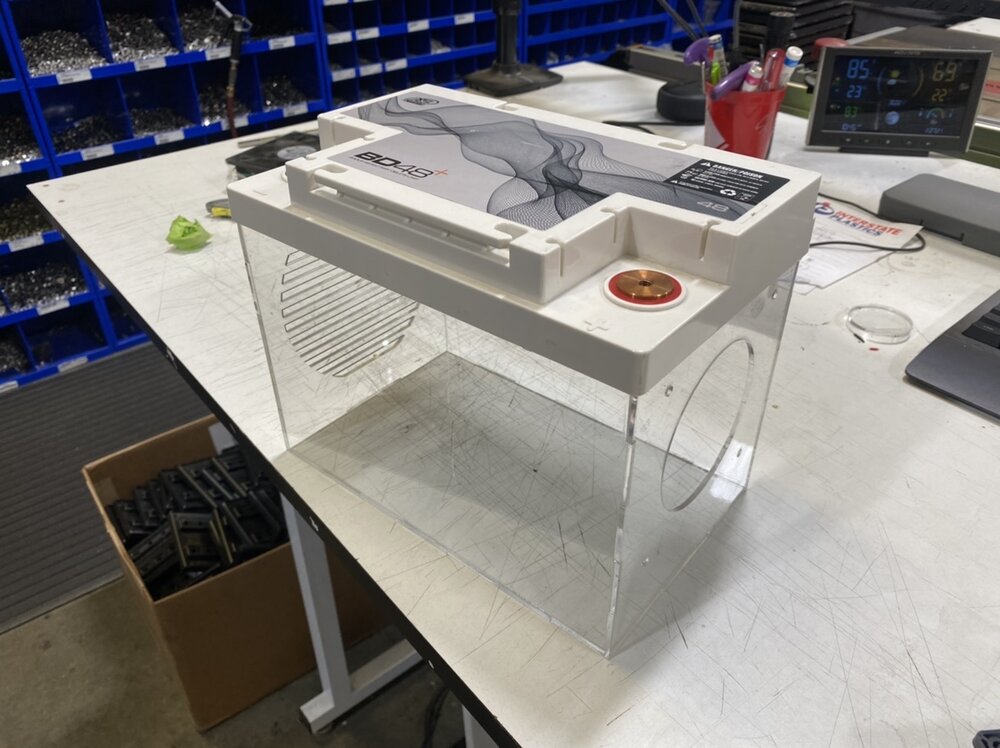

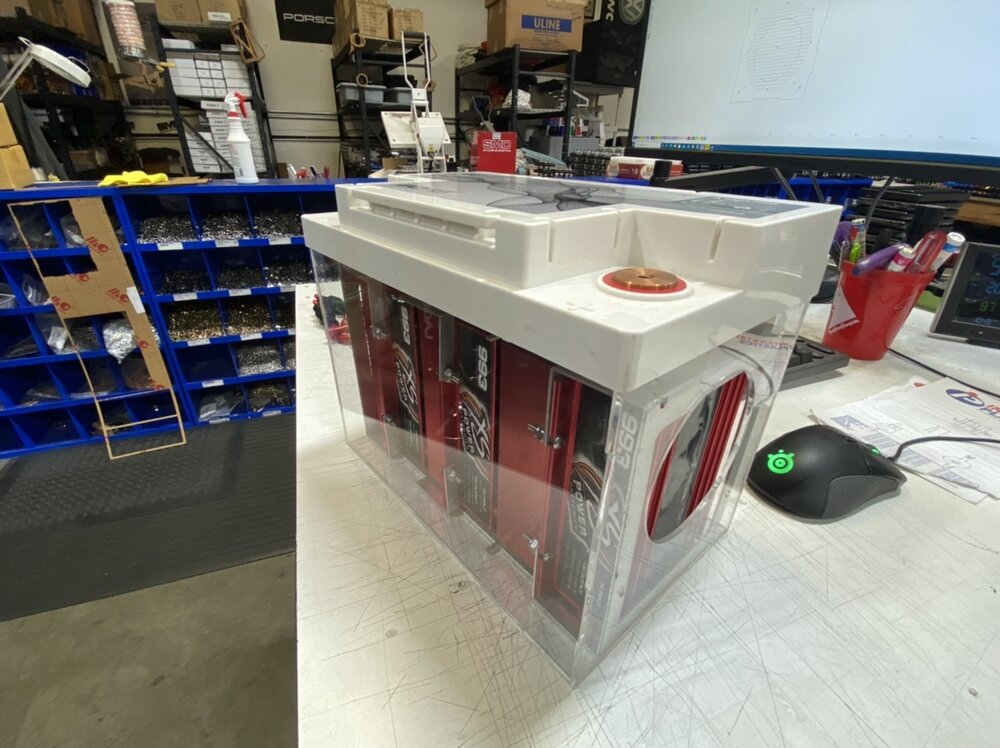

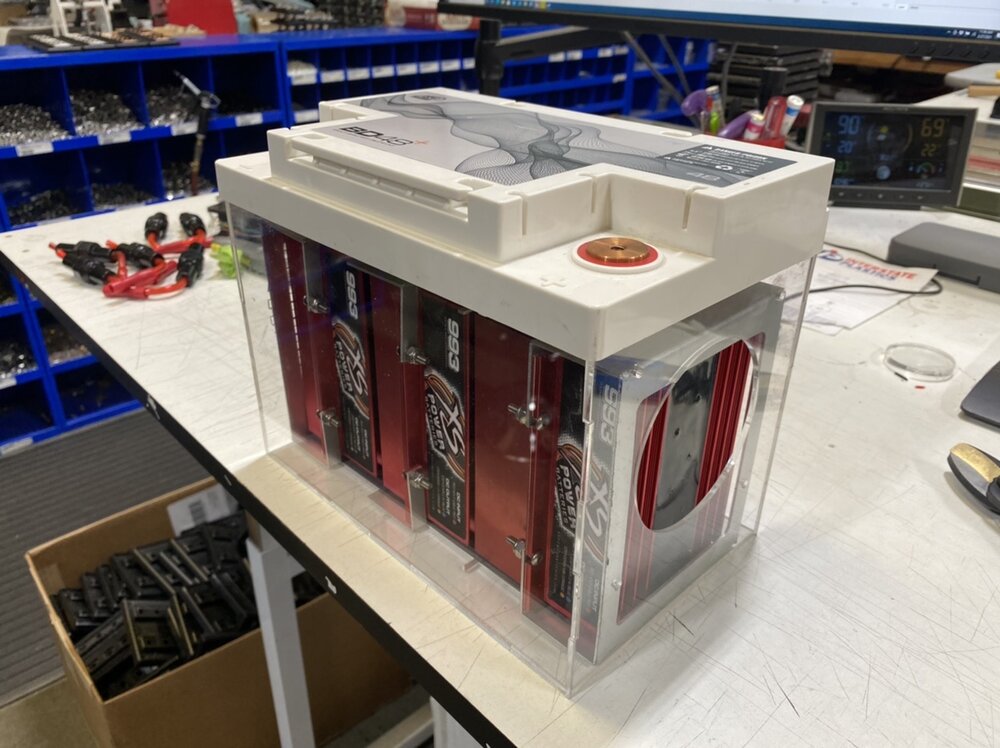

it fits pretty nicely into this empty battery (it is the stock group 48 size).  I just have to start wiring it up. Maybe tomorrow.



In case you are confused...there will be a bolt on the side and all the red wires will connect to it.  This bolt will take the 16.5v from the alternator (that is also hooked up to my 5 Lithium batteries) and convert it down to 14.5ish.  The blue wires are stepped down and will go to the bottom of the copper terminal on the battery lid.  Once i put it all back together it will be just one big fat dummy step down block.  So the TRUCK (my Escalade) will THINK it is seeing normal voltage while the amps and rear battery bank enjoys the un-interrupted juice in the back.



























































































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

Very impressed with how it turned out, but why know SMD on that empty battery box from XS, that’s your design put your name on it. LOL , great work you deserve more credit for that design.

3 DD SL 10’s D4 ohm Sealed box 2.6ohms   Amp Sundown SFB 3000K

Mids all Alpine type R 's 1 set of 6.5 components and 1 set of 6.5 coaxial

2 Rockford PBR's 300x2

1 Kinetic battery  under rear seat , Big 3

Ford F150 2018 Crewcab
