the $140 Dollar Install - Jaybirds 2004 Honda Accord Box Platform and Amp Rack UPDATES 12/18/19


Recommended Posts

























































  • Like (+1 Rep) 4


All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

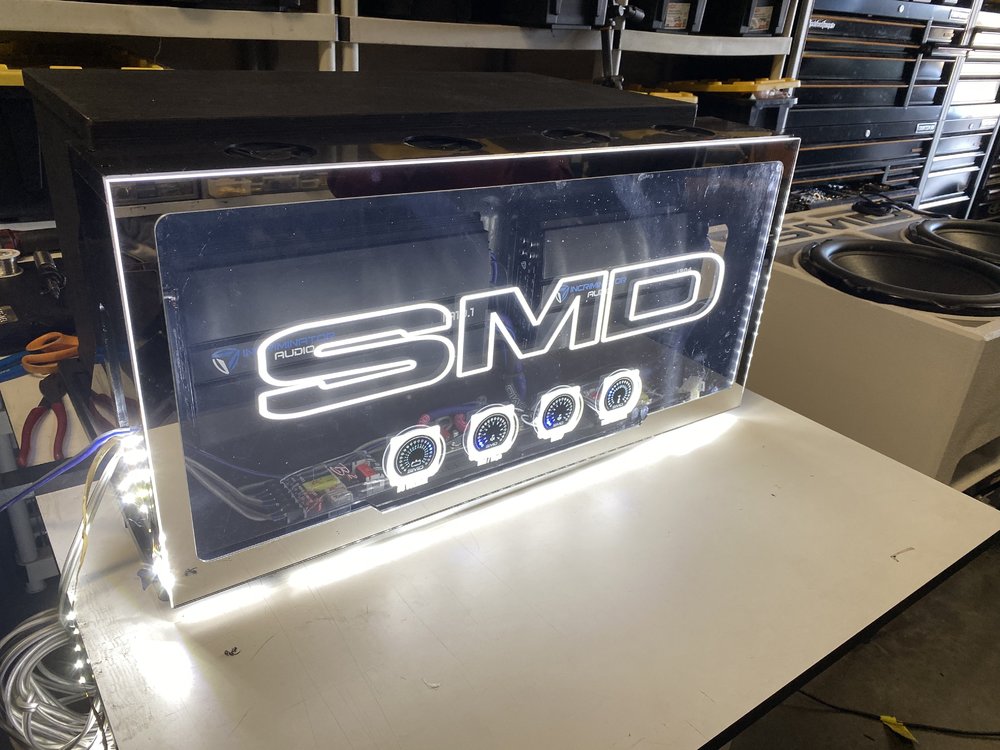

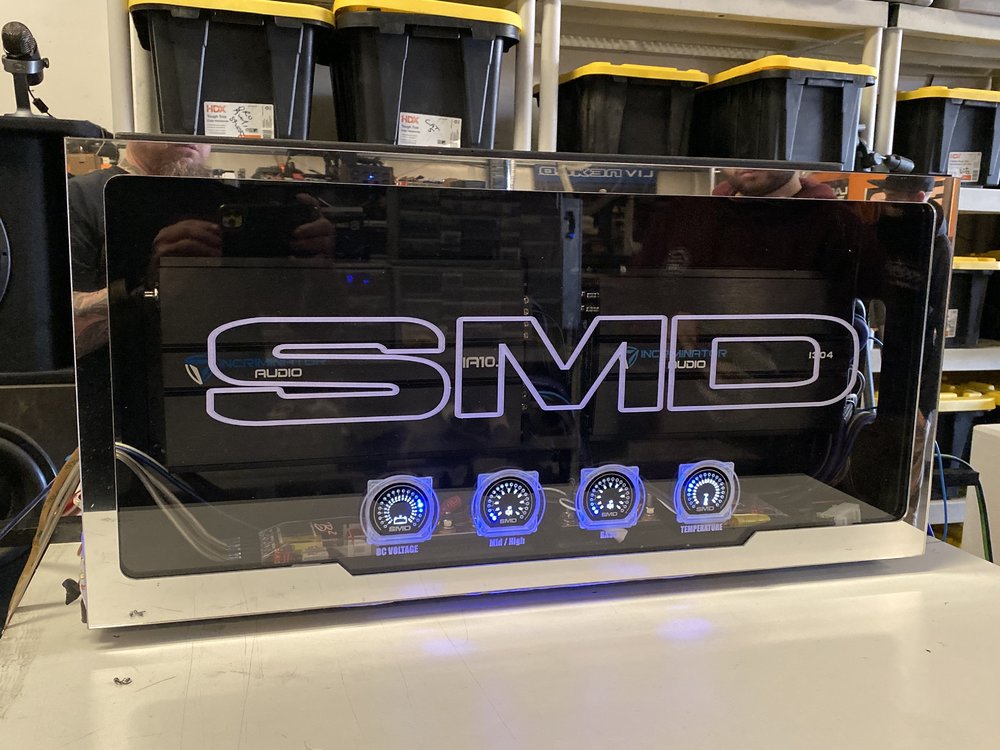

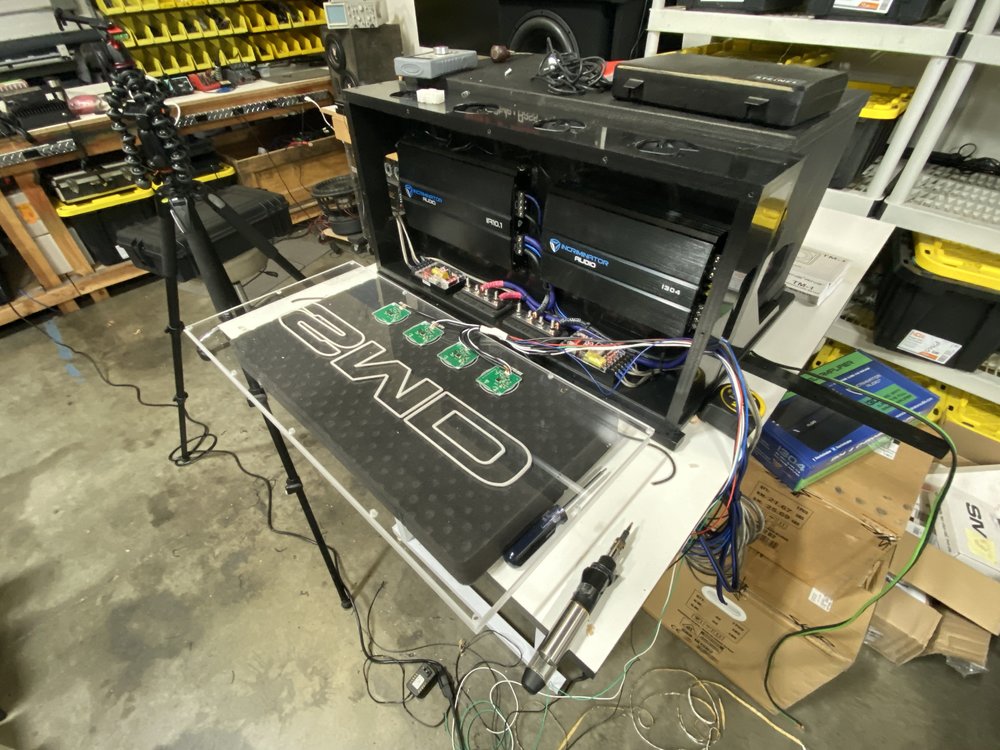

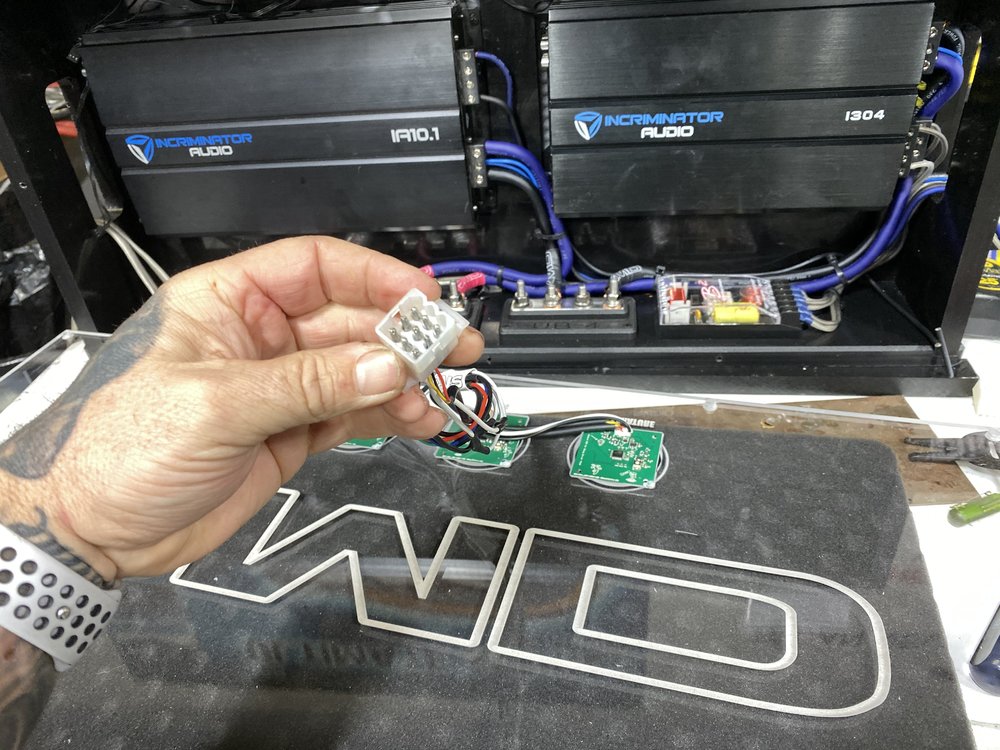

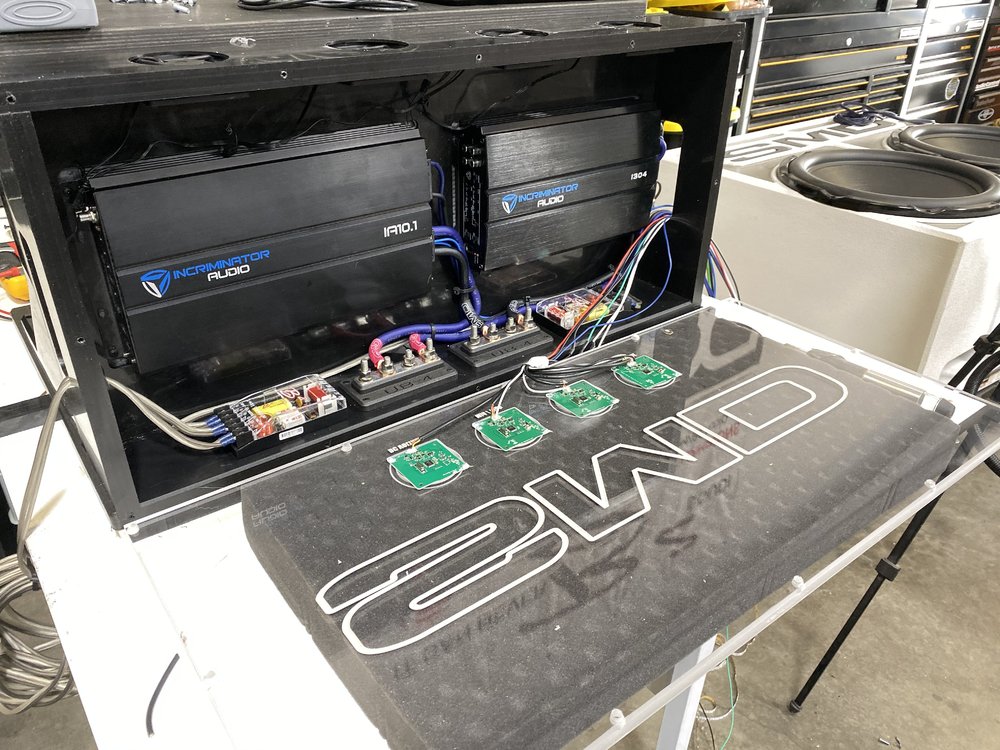

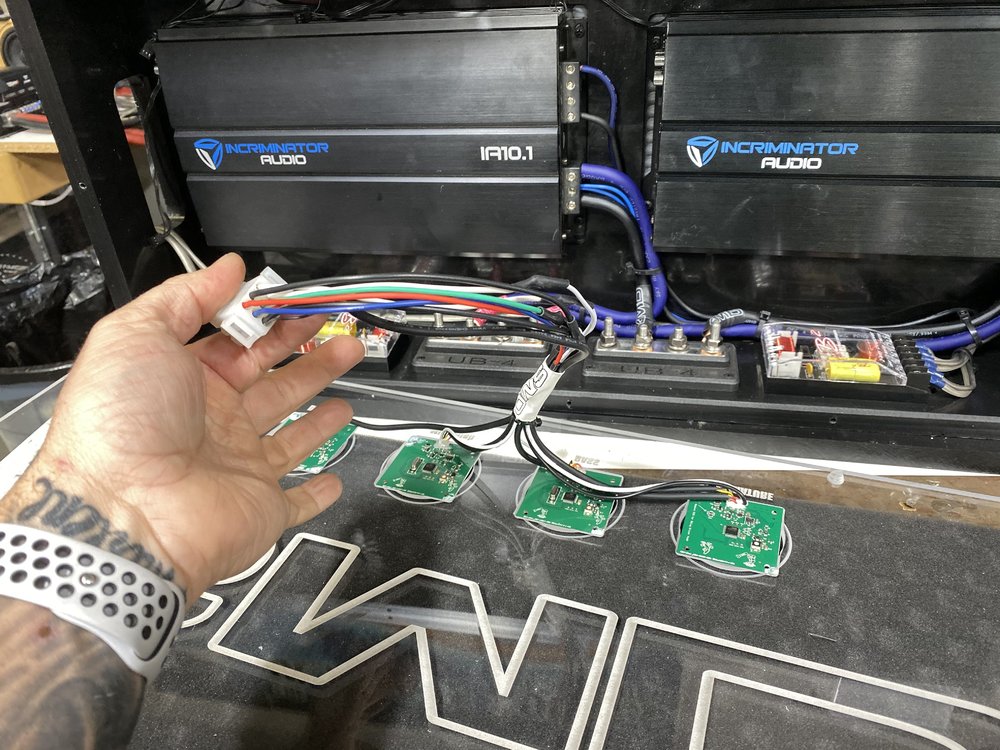

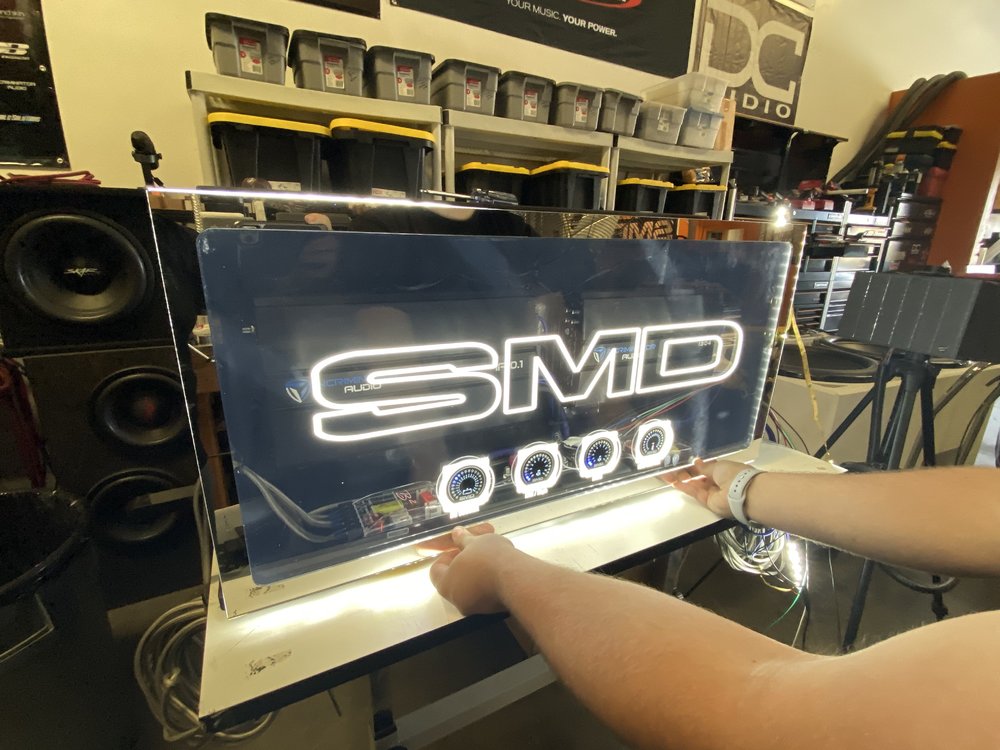

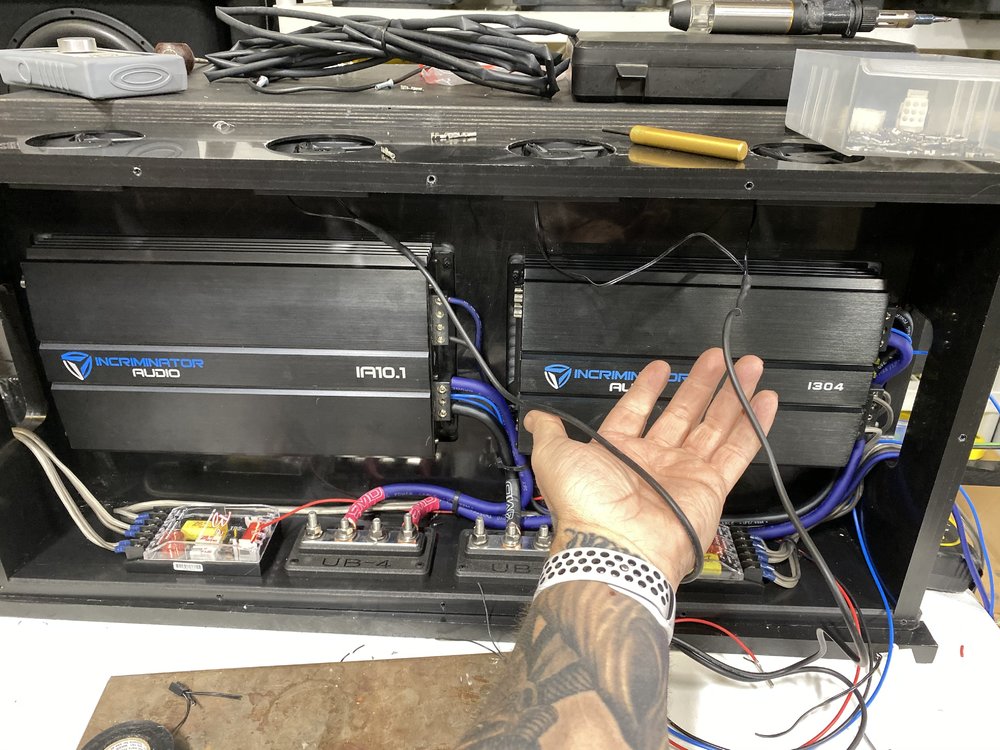

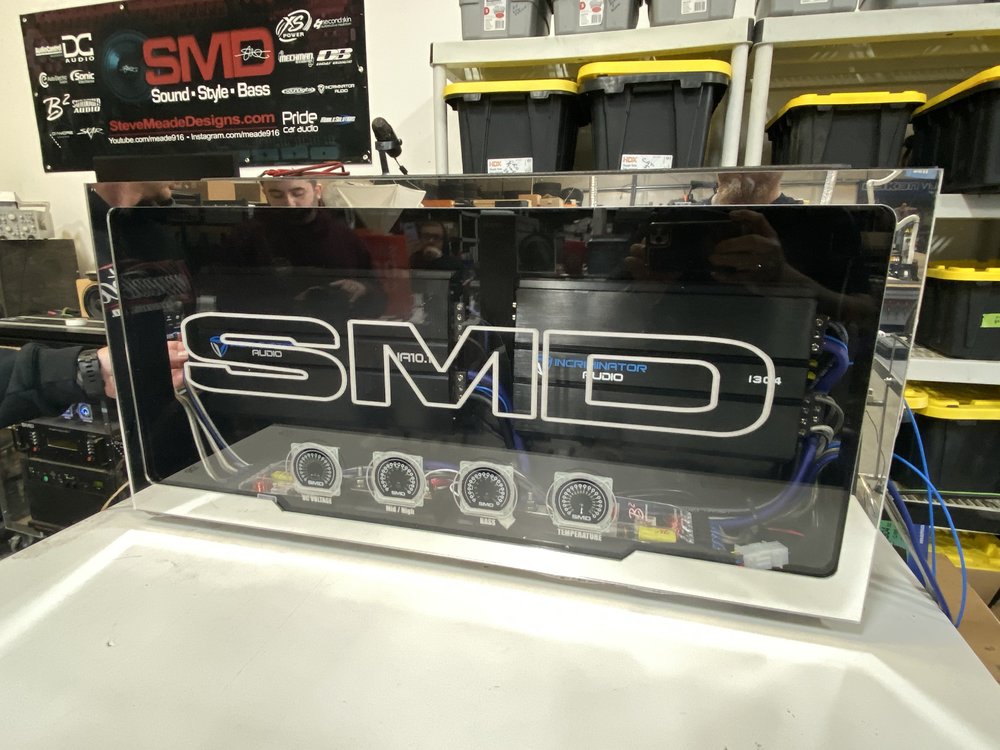

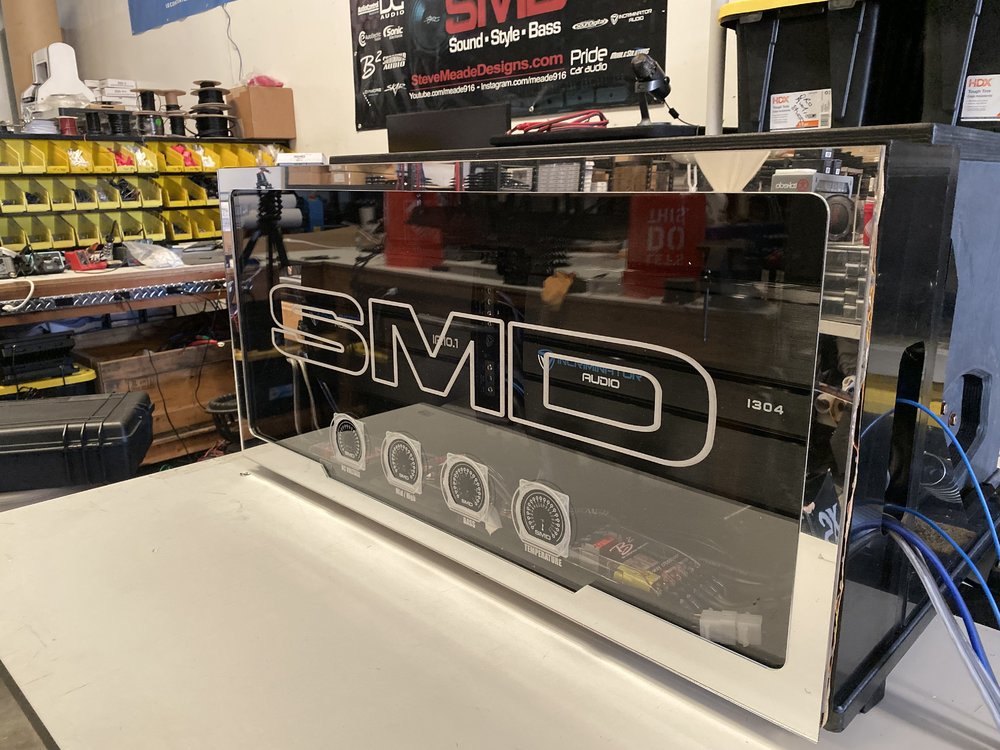

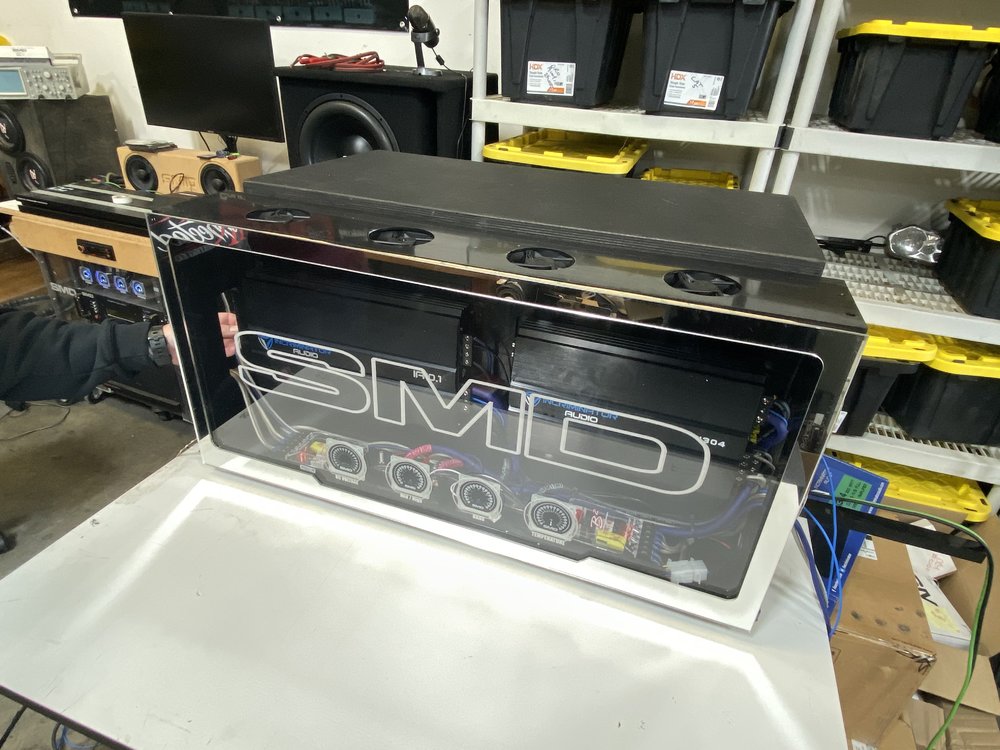

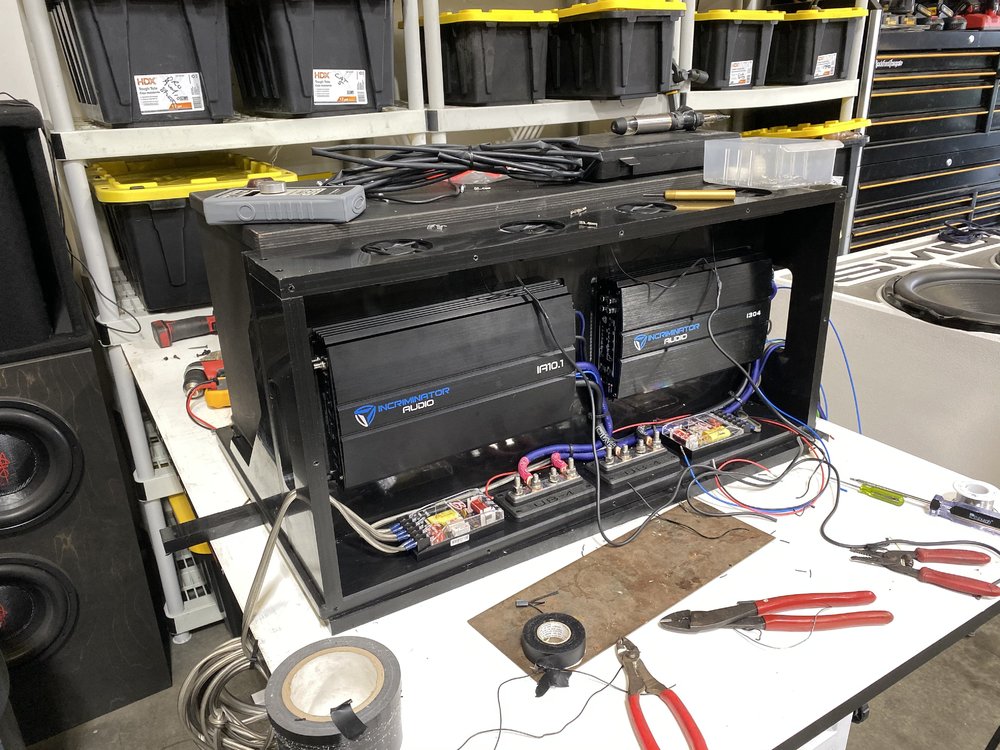

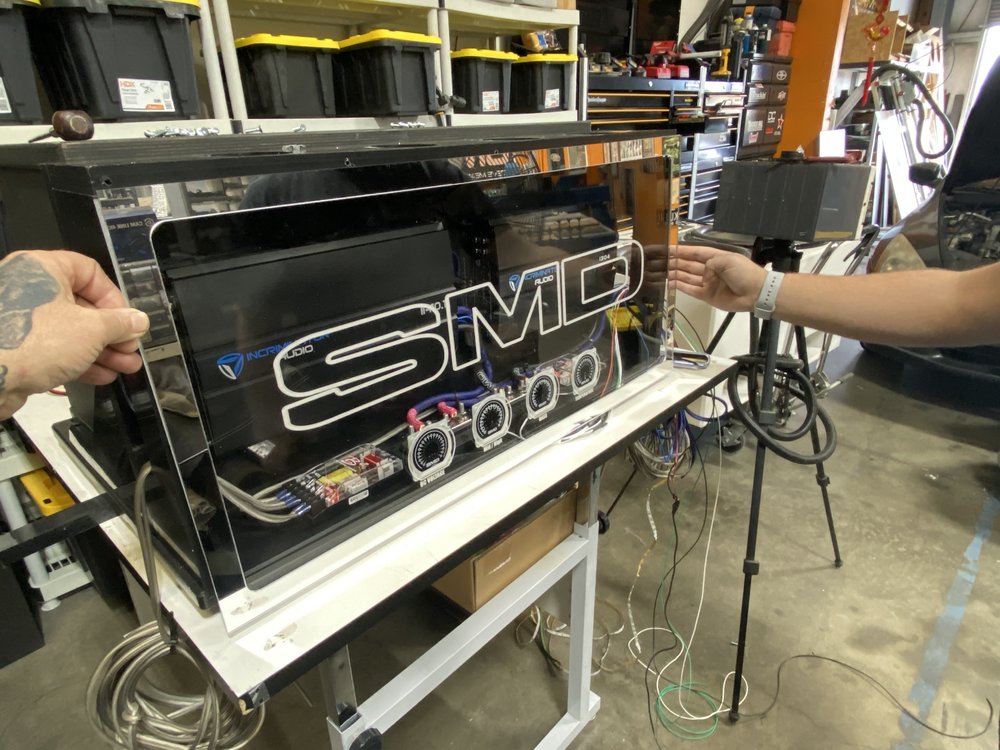

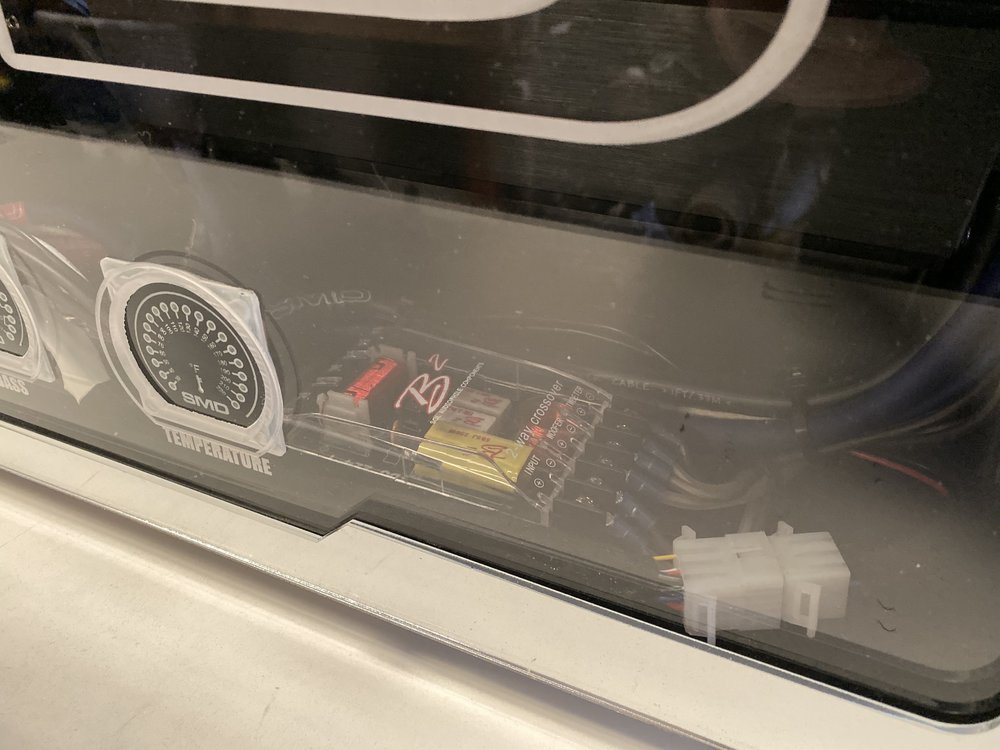

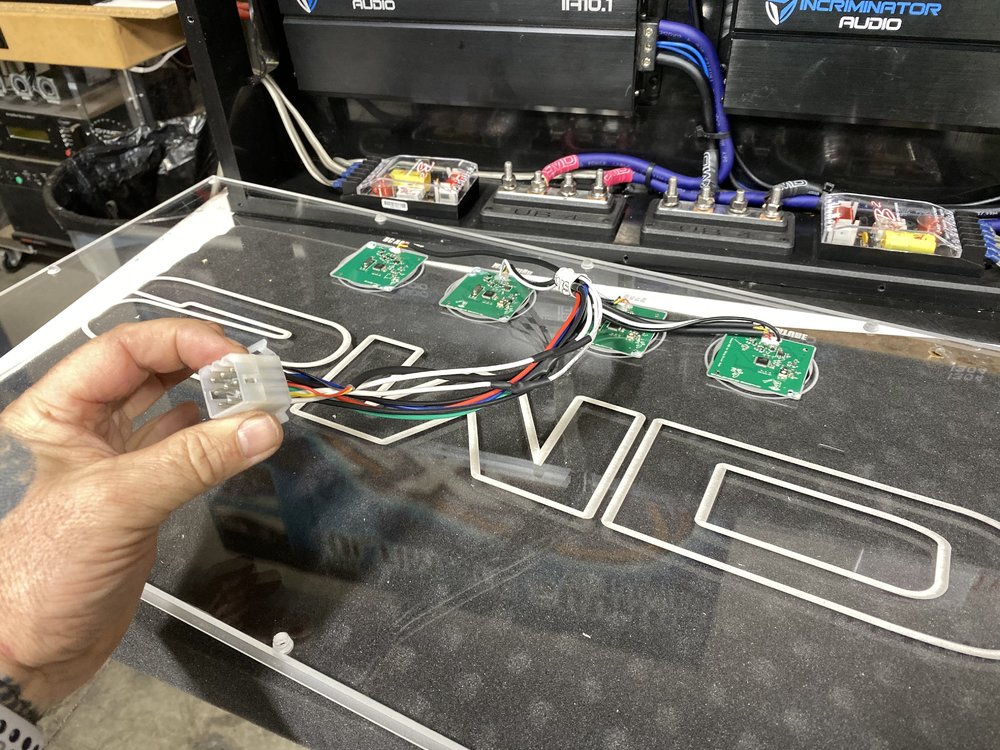

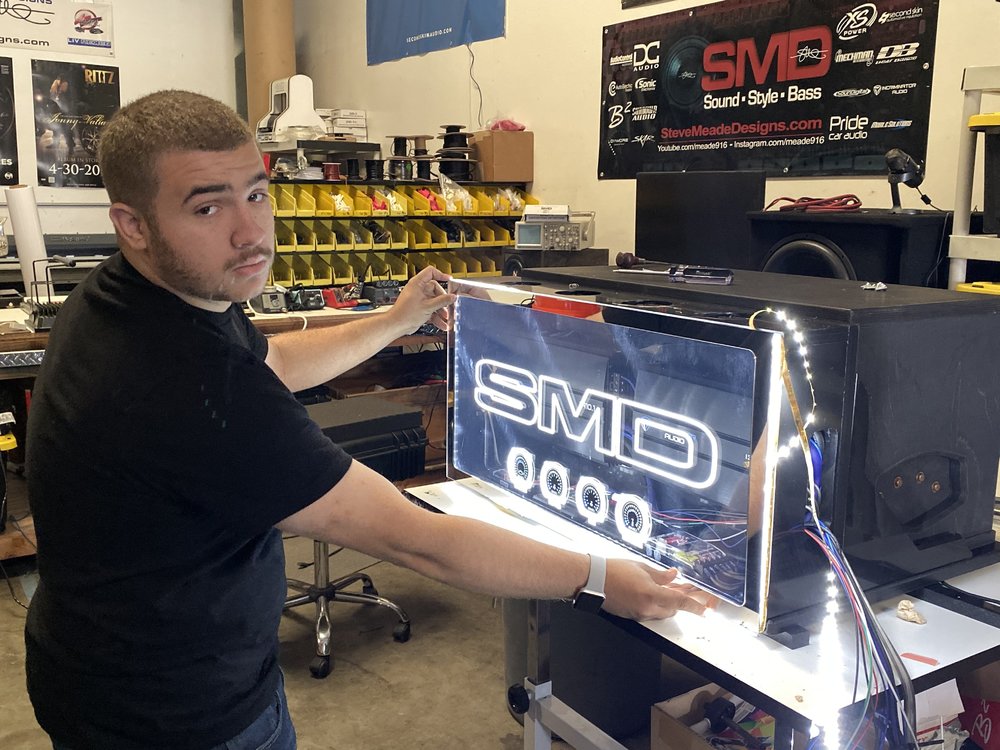

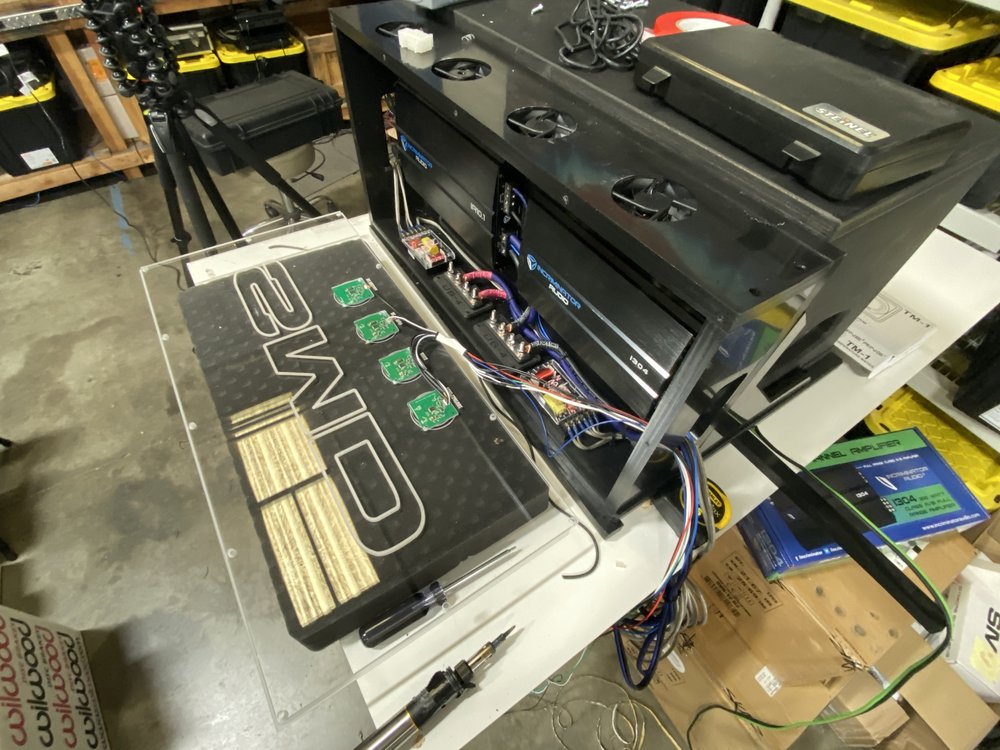

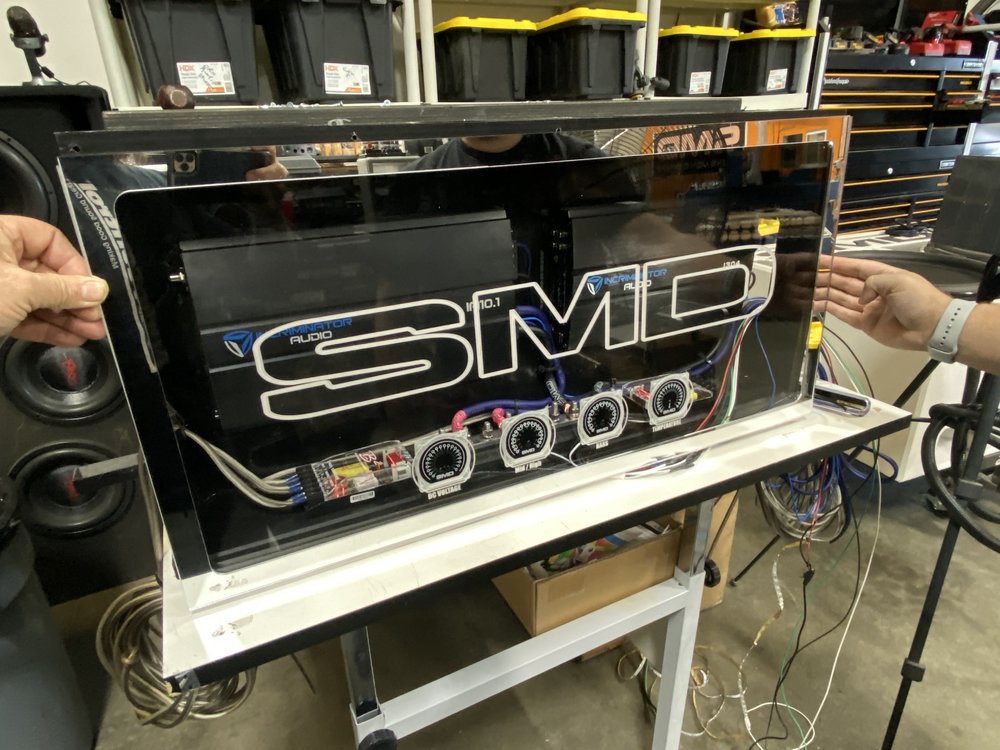

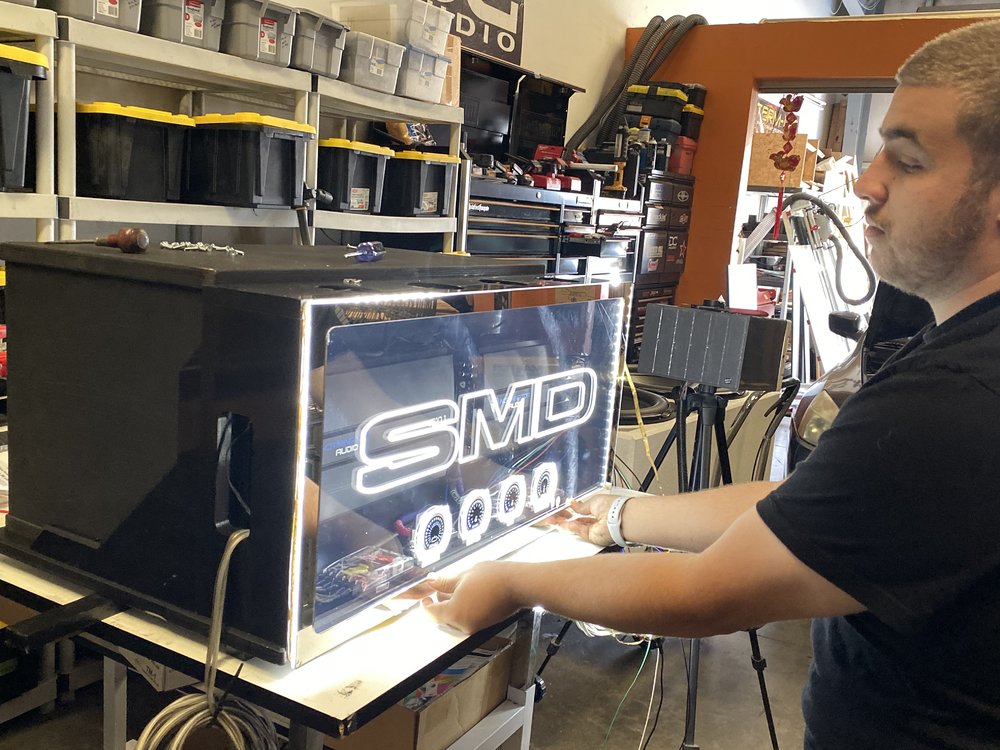

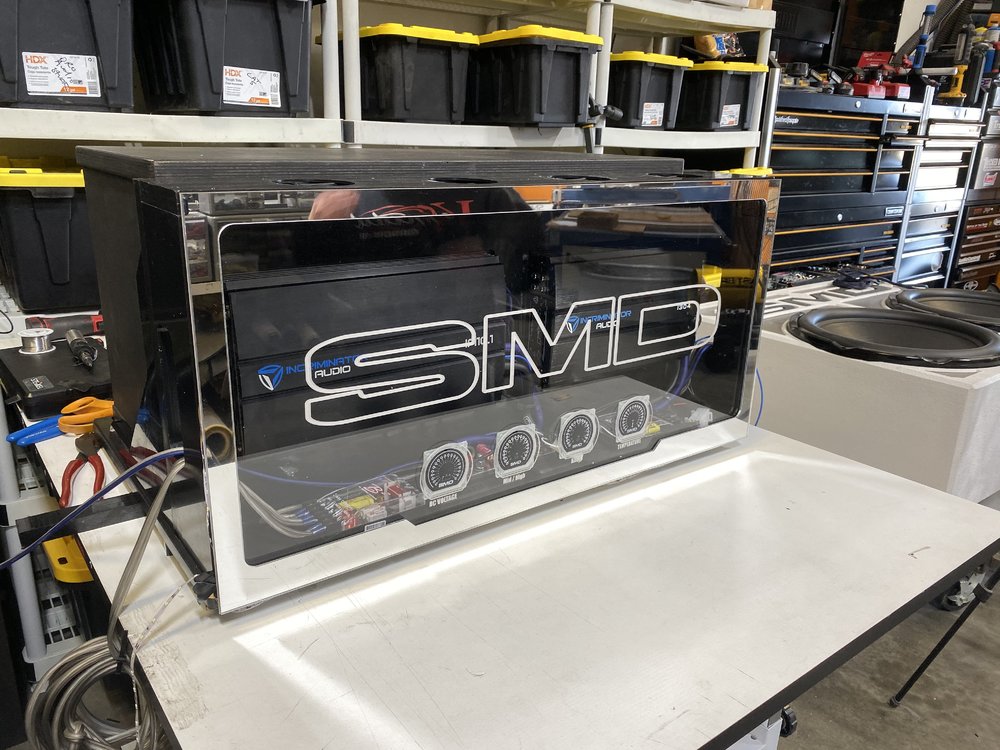

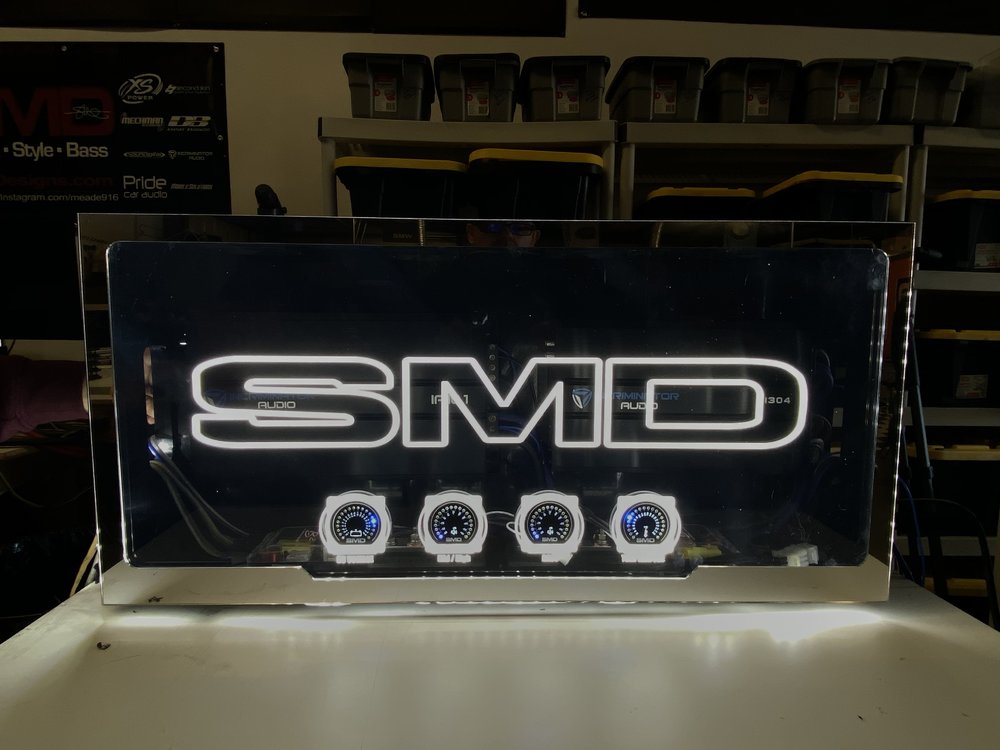

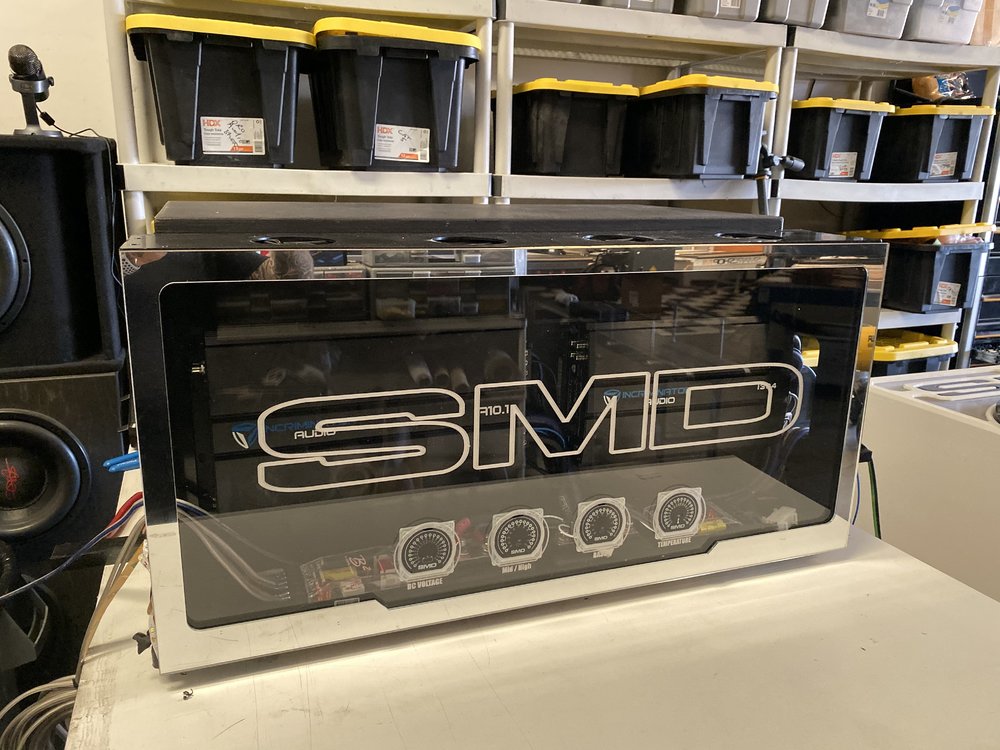

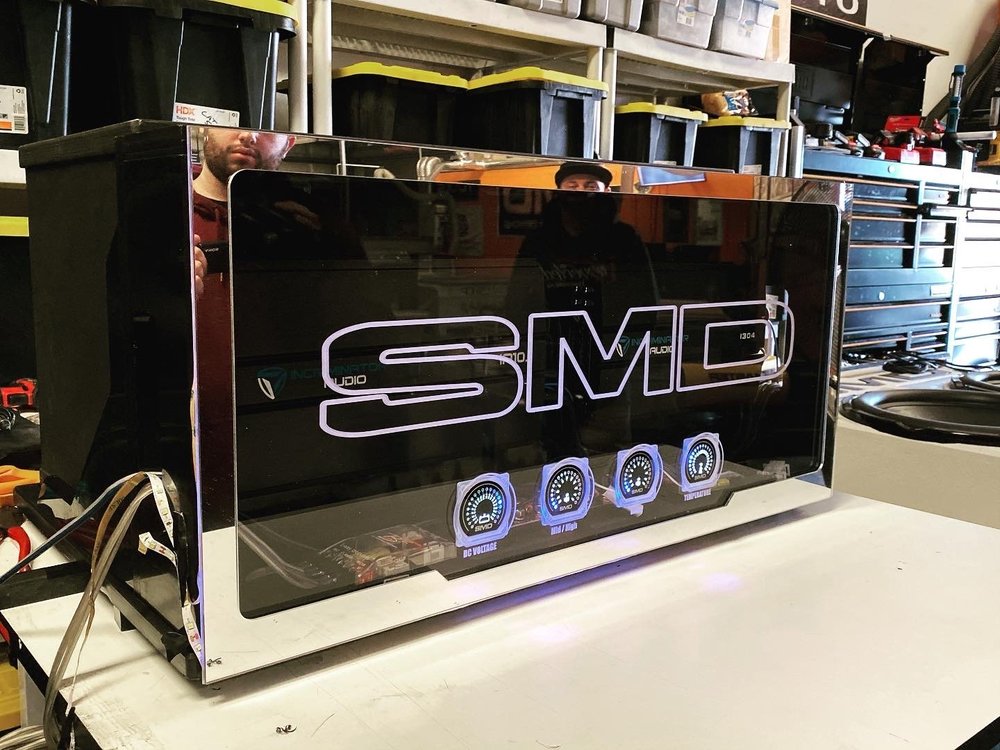

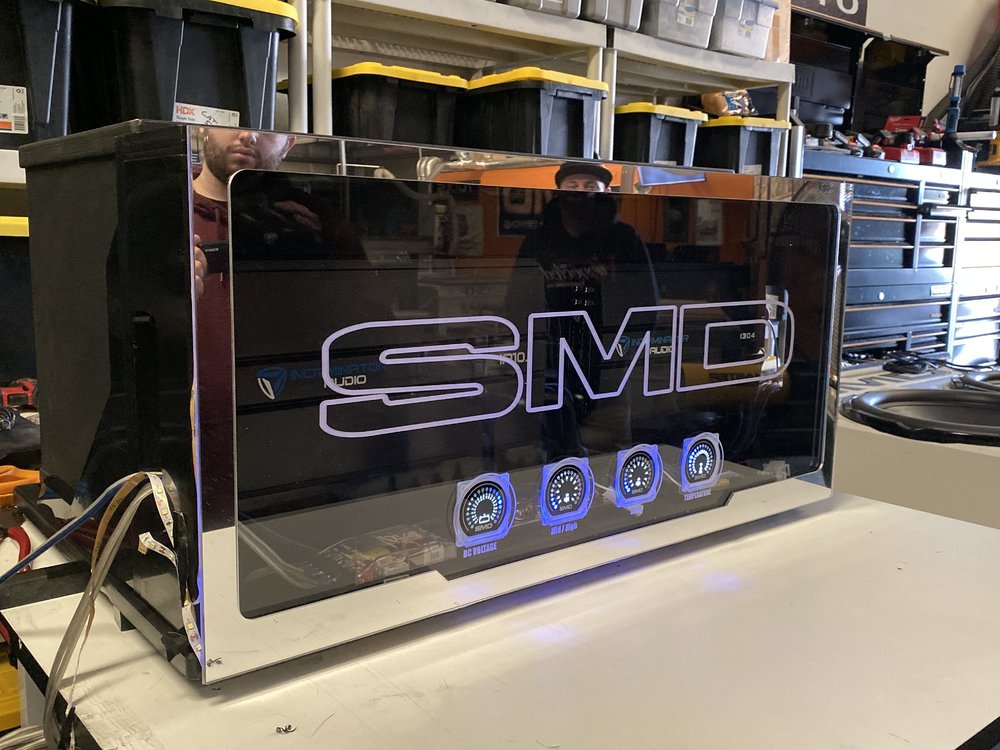

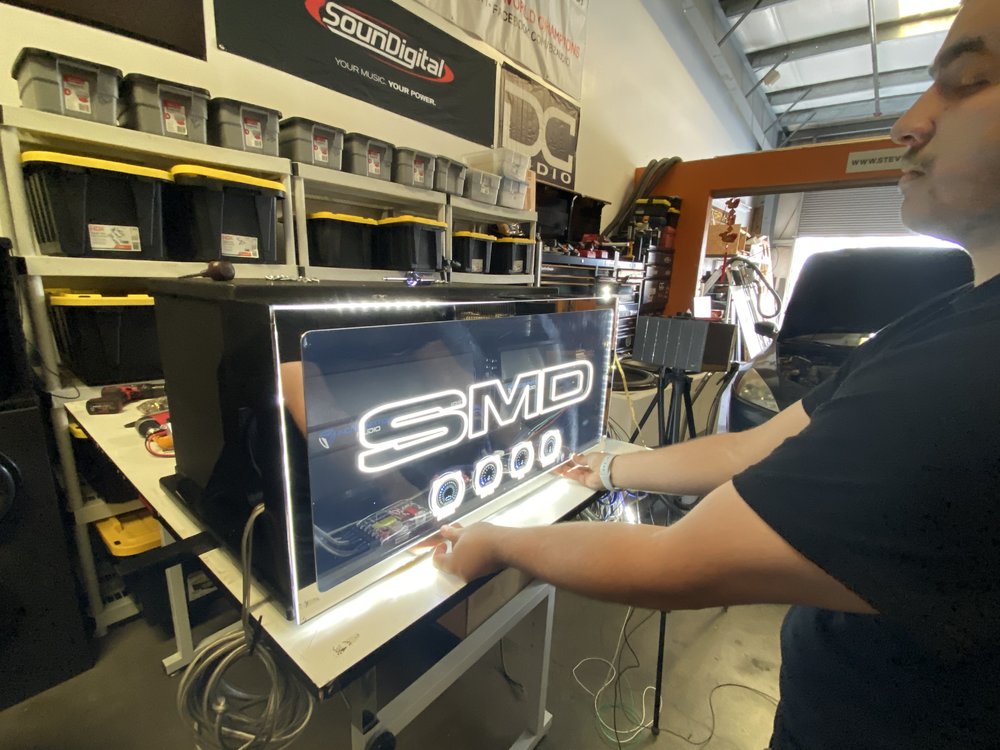

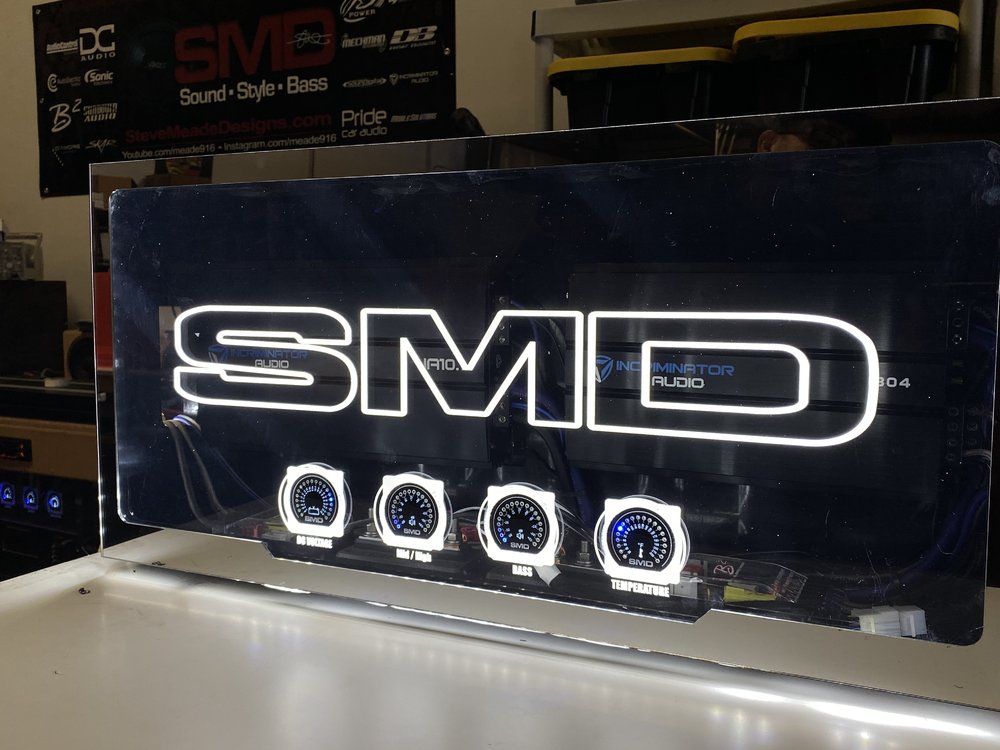

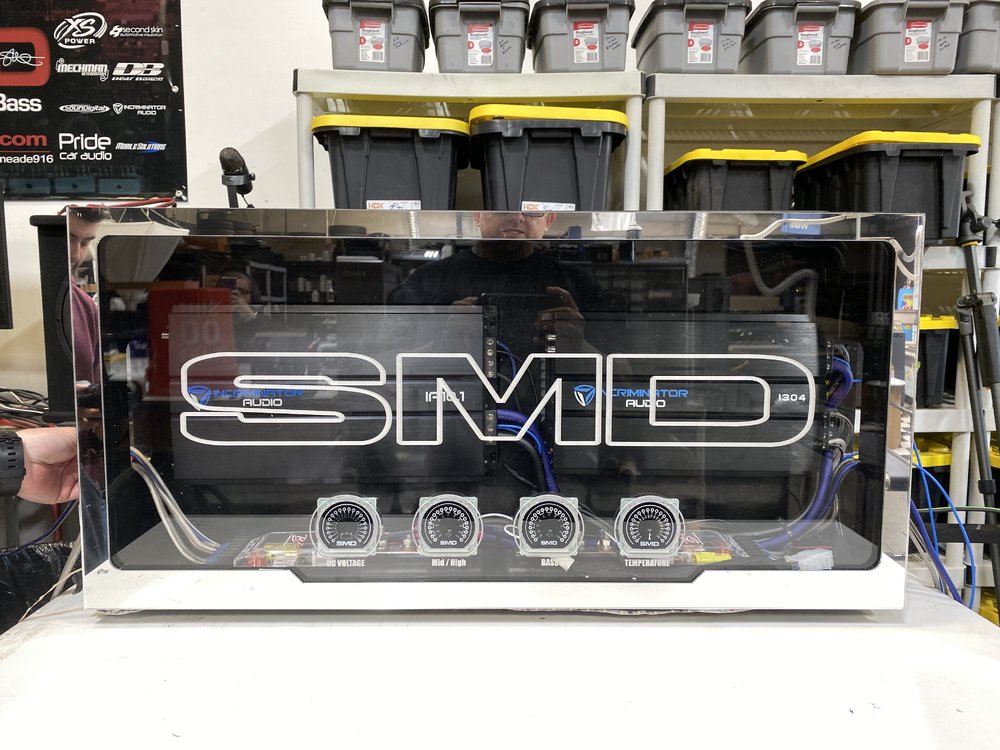

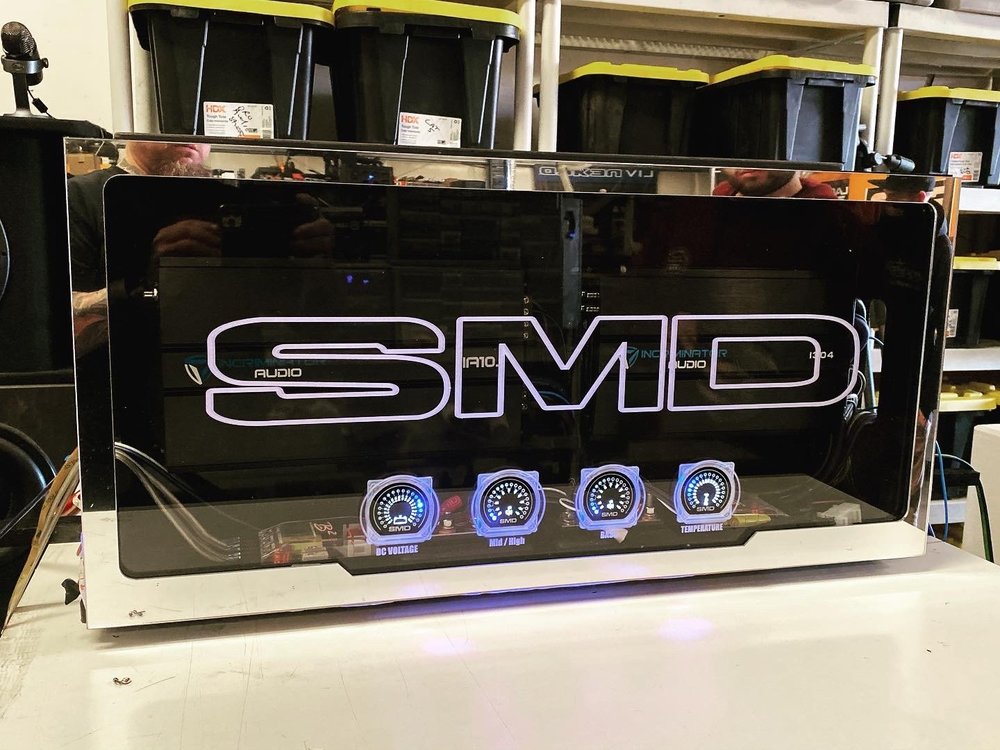

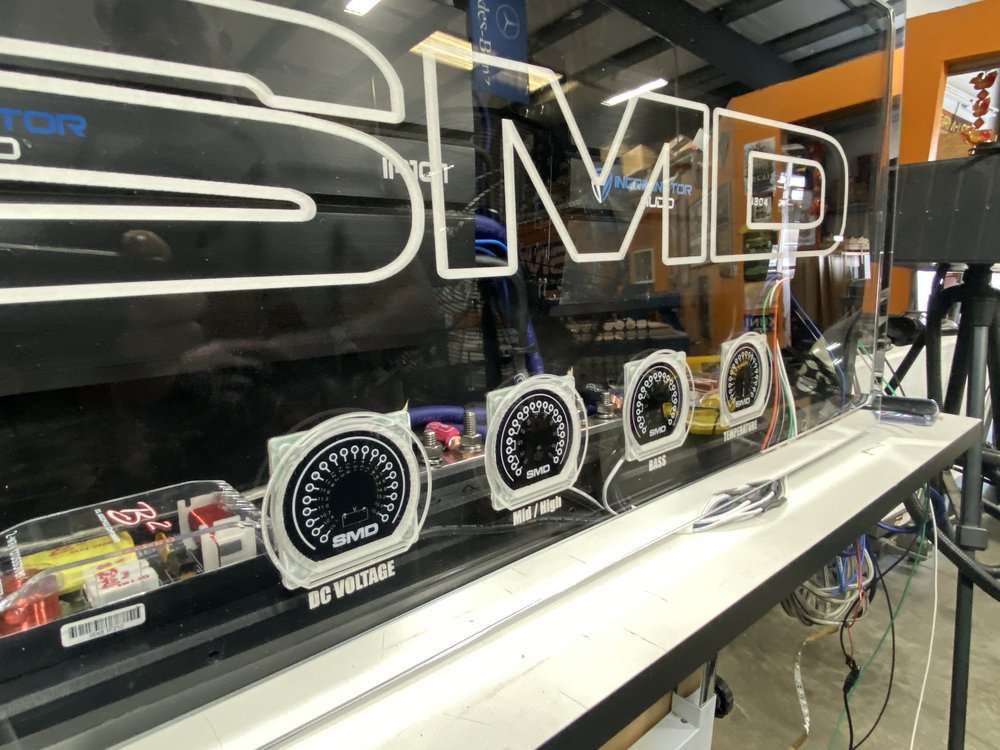

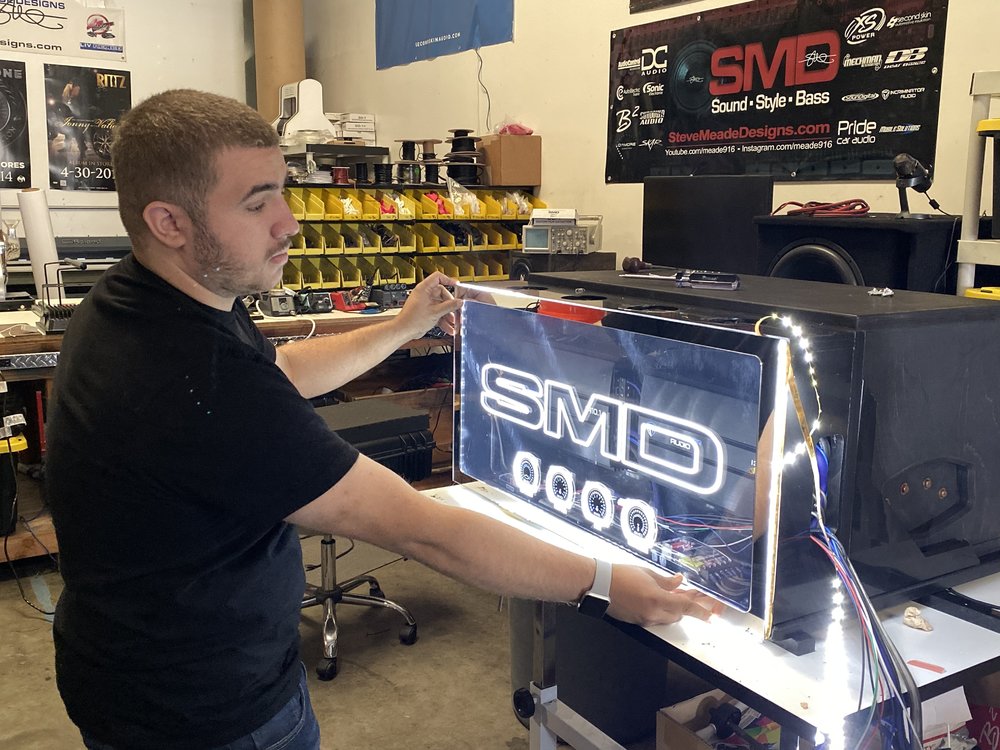

more progress today including a 9 pin molex plug so the front face can be removed instead of dangling in the way when i make amp adjustments. Video tomorrow!

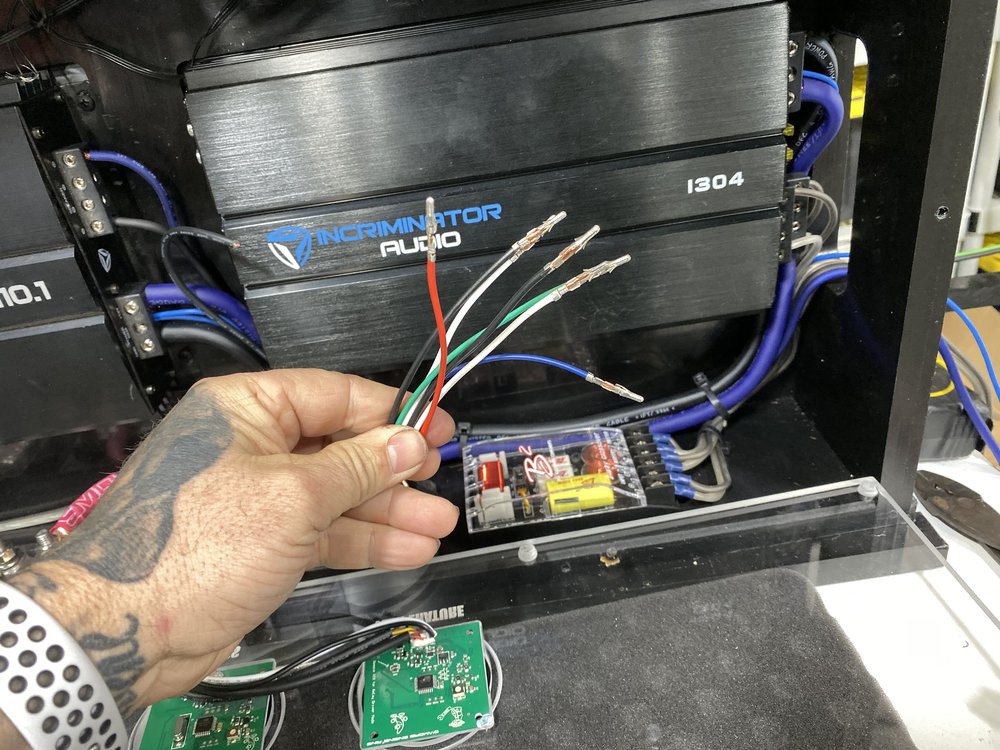

these pins were soldered...you will see in the video. Actually they are crimped AND soldered....










































































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

















































































  • Like (+1 Rep) 3


All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites


All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

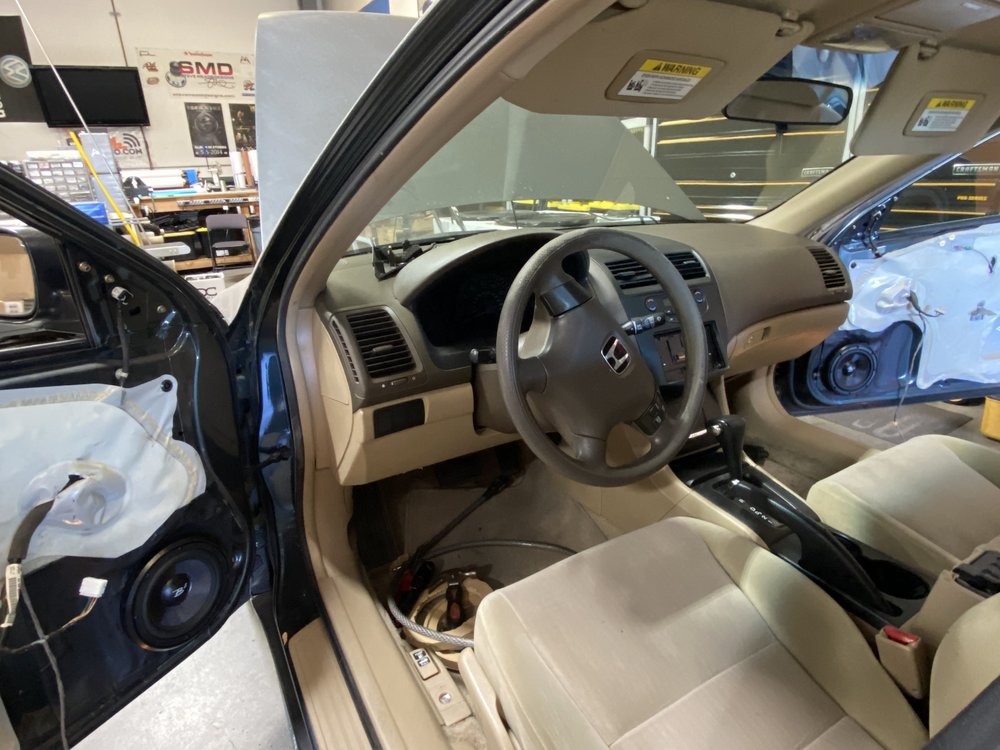

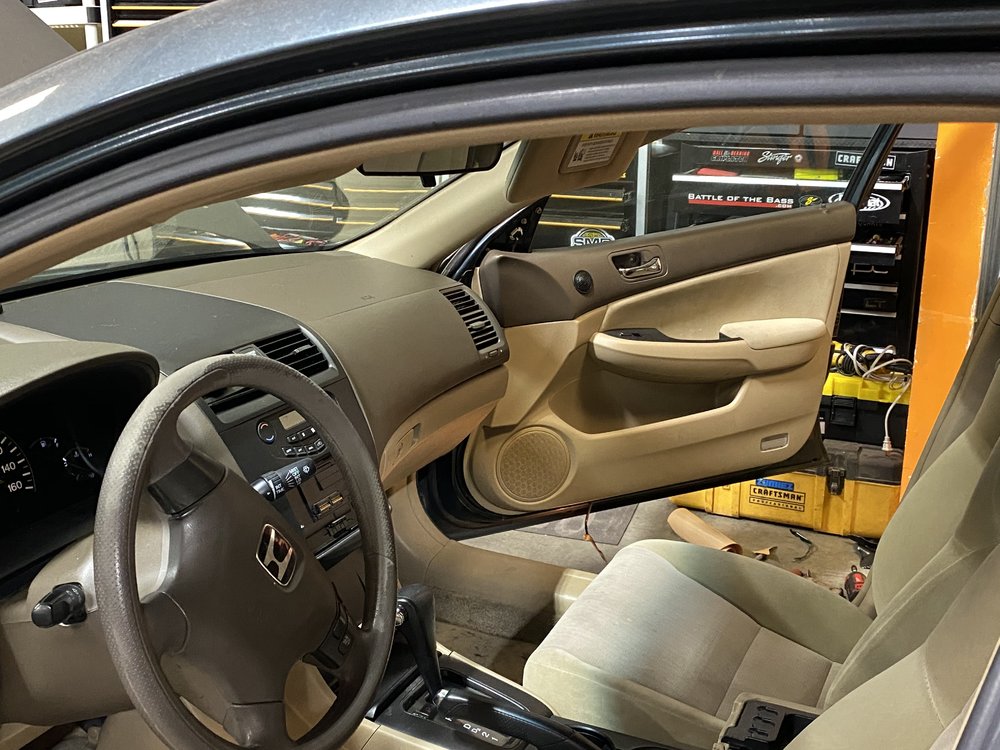

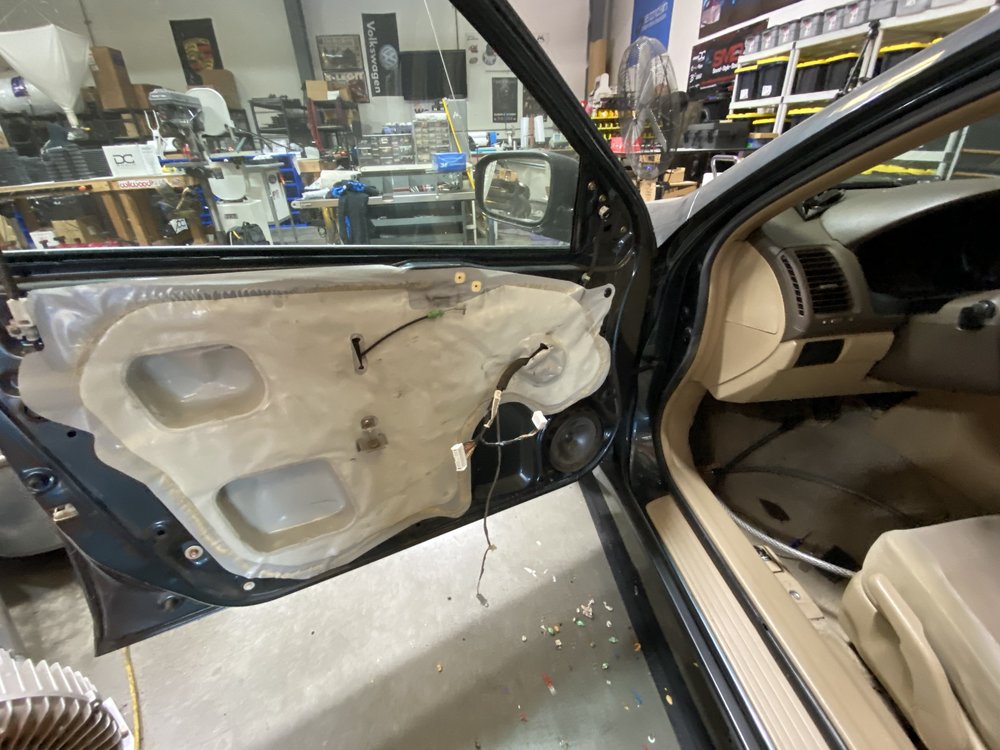

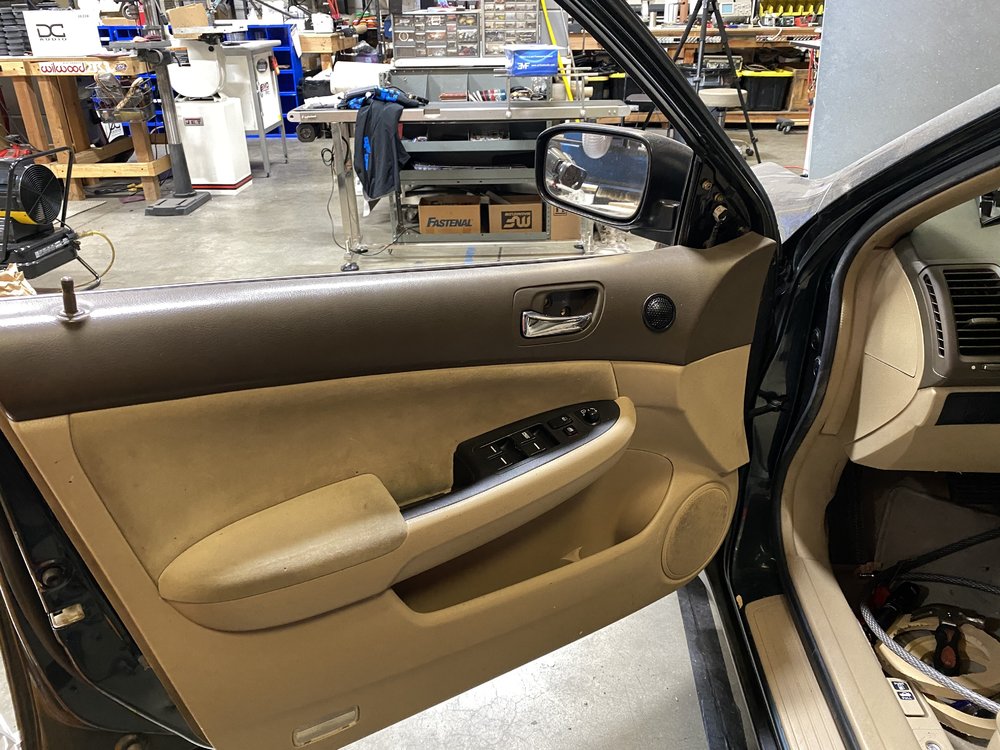

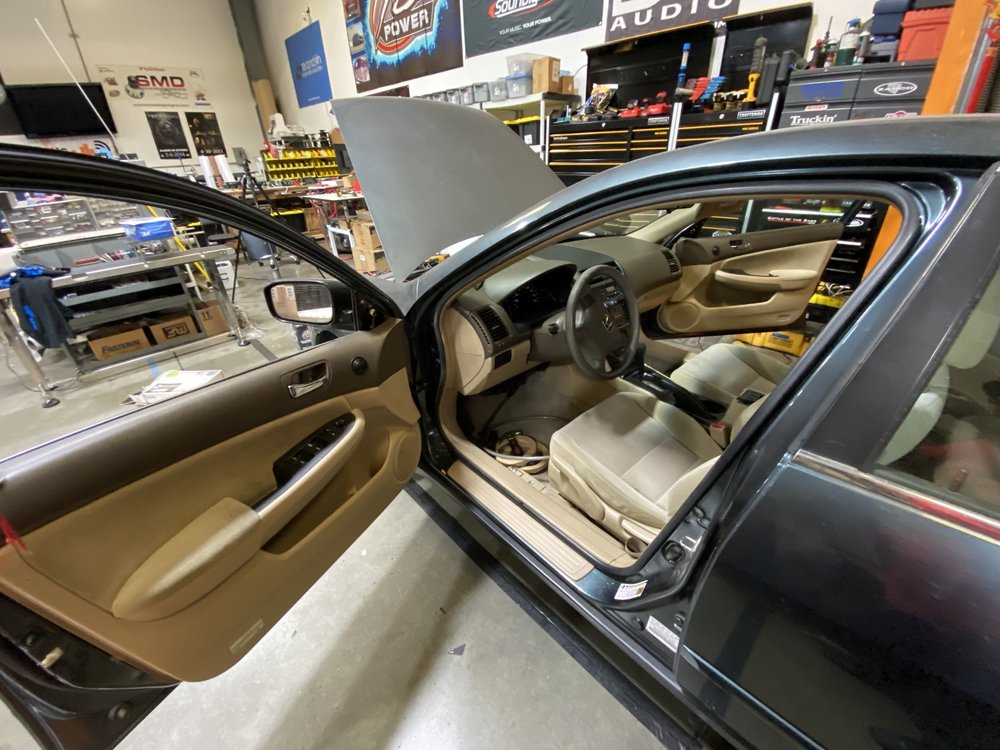

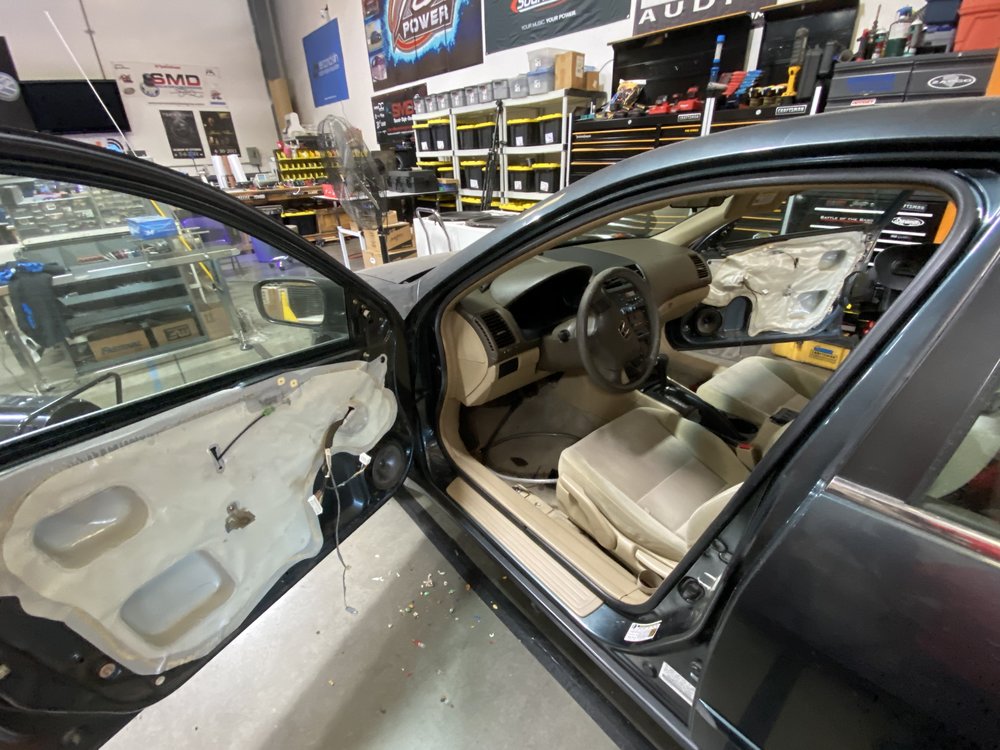

started the doors today. Will get them actually wired up tomorrow.

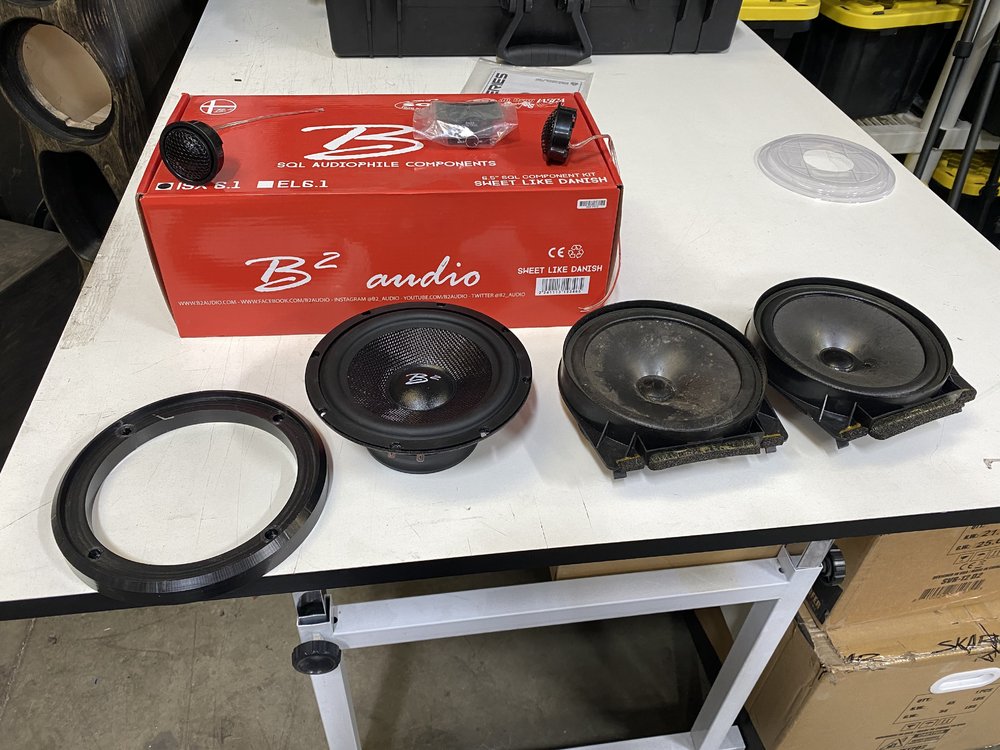

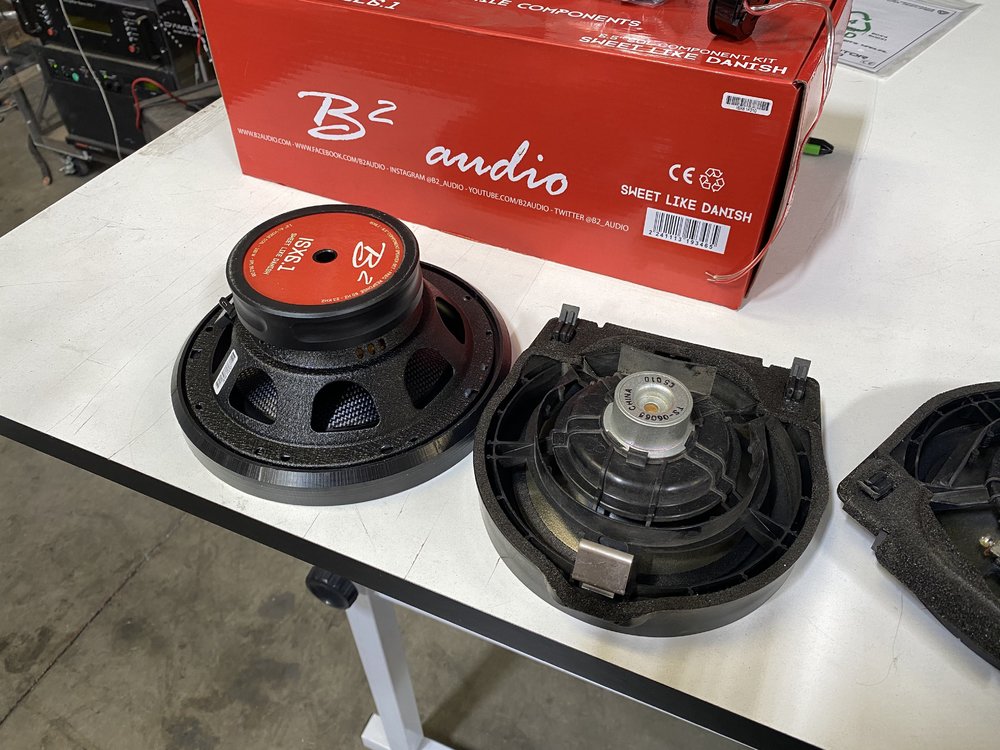

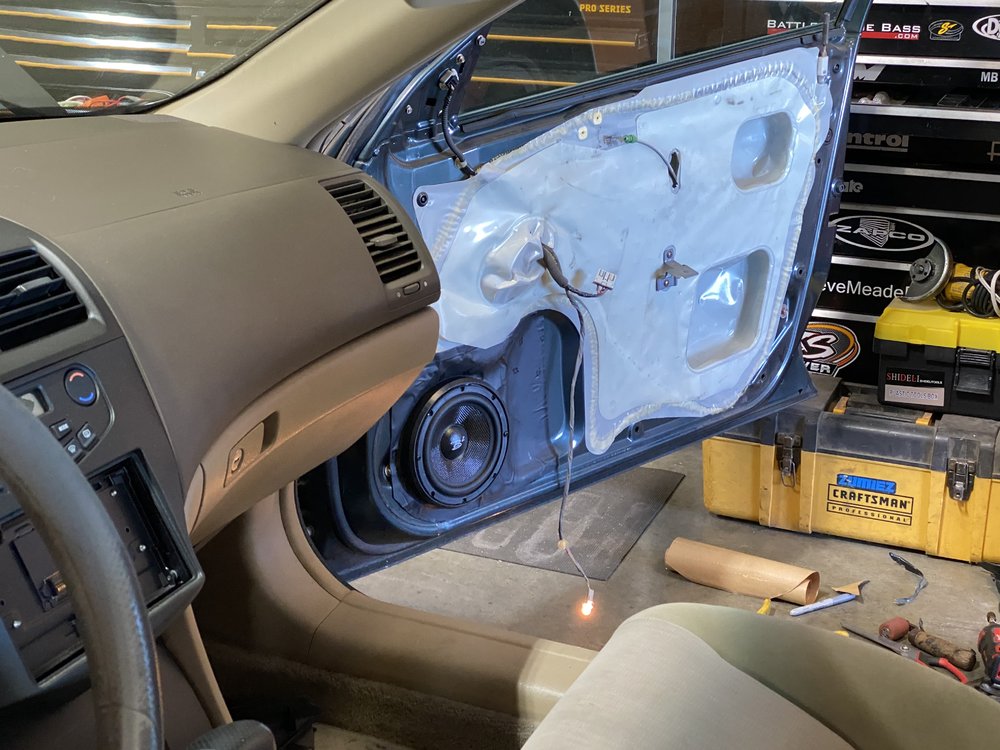

Ok the first thing i was faced with was the door speakers don't have any screws...i had to look up how to take it out LOL! Oh it just clips in! Well so much for me just swapping out the speaker. Time to remove it and make a proper ring for it.

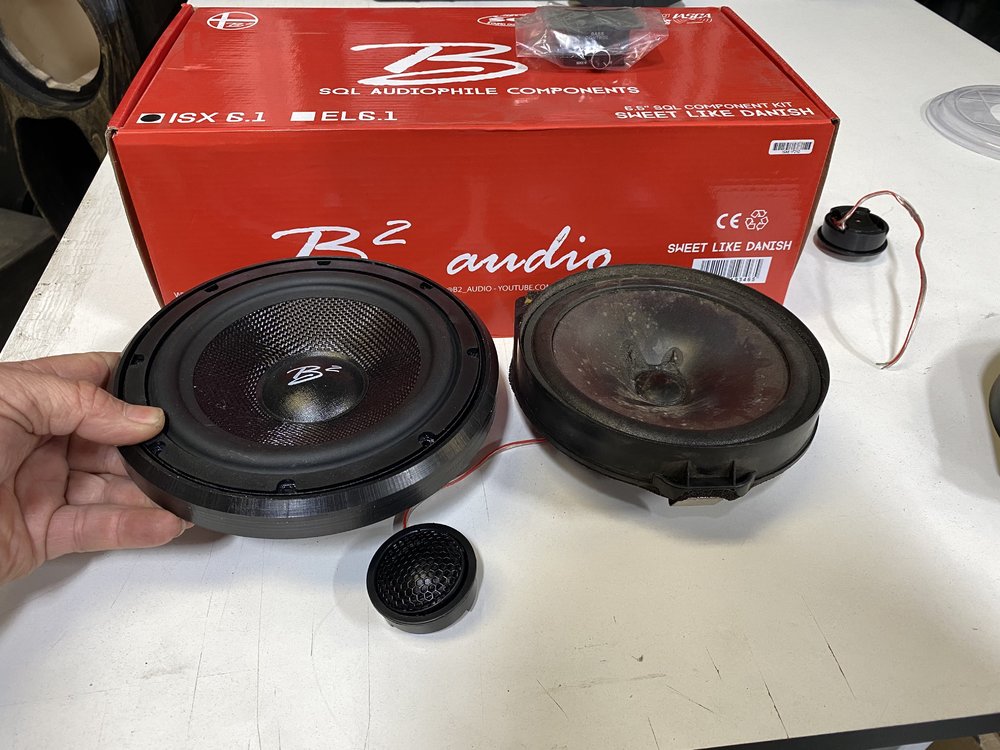

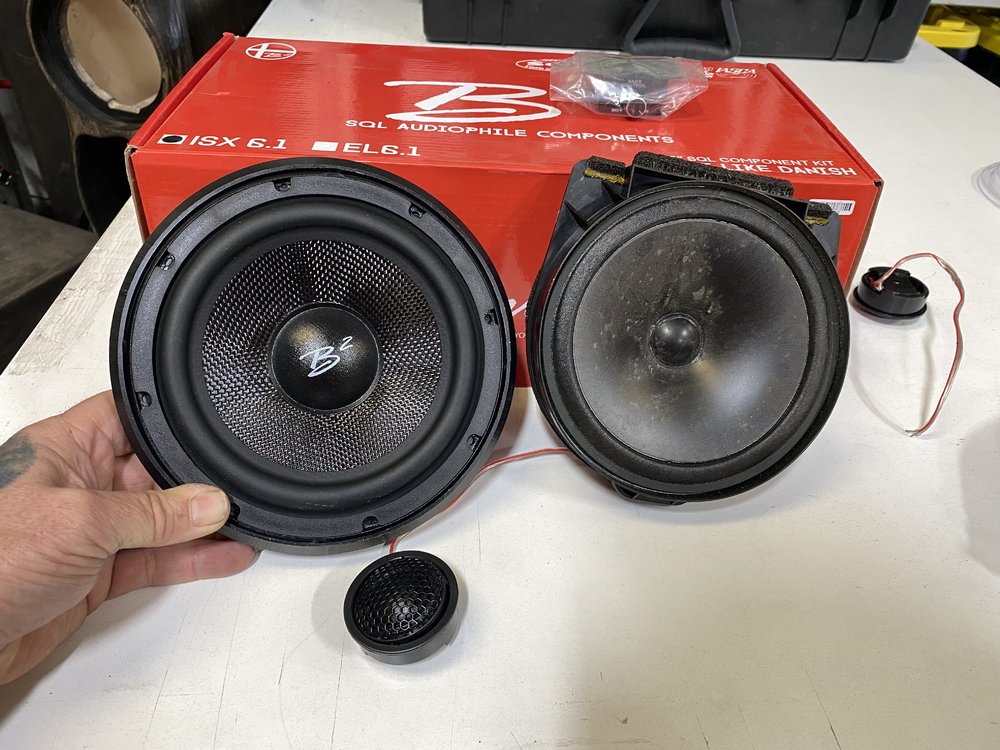

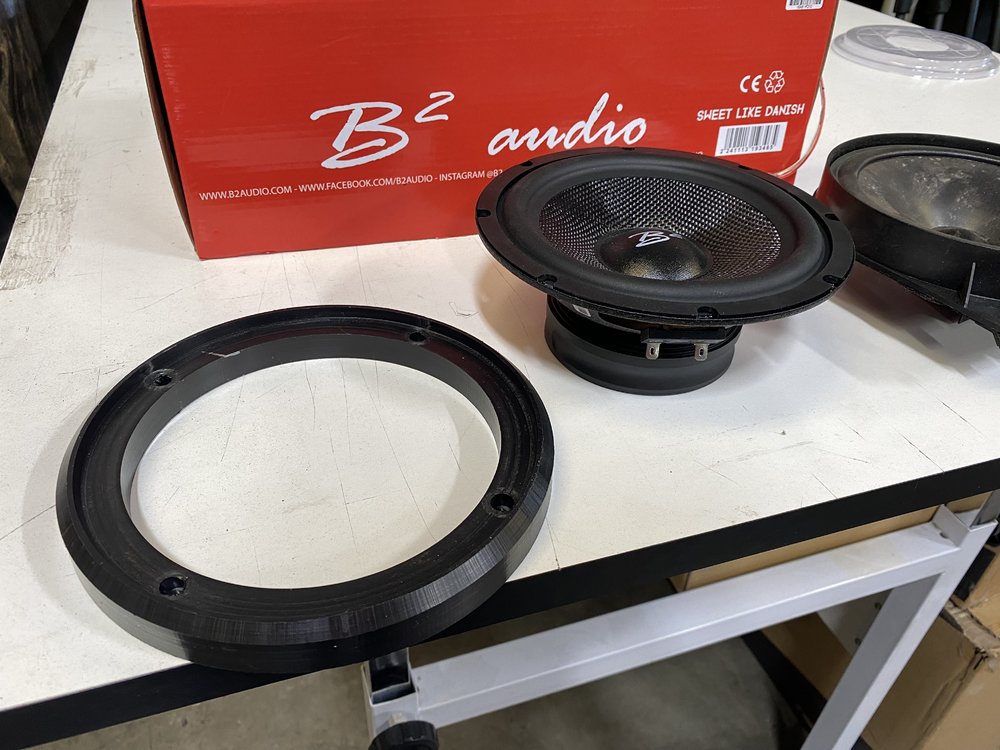

of course i had to make some new rings. I used black 3/4" HDPE.  I taught Brandon how to make these from scratch...from cad to finished product. A simple little beginner project. But it came out great!  Look at those garbage ass stock speakers.

















































































  • Like (+1 Rep) 3


All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

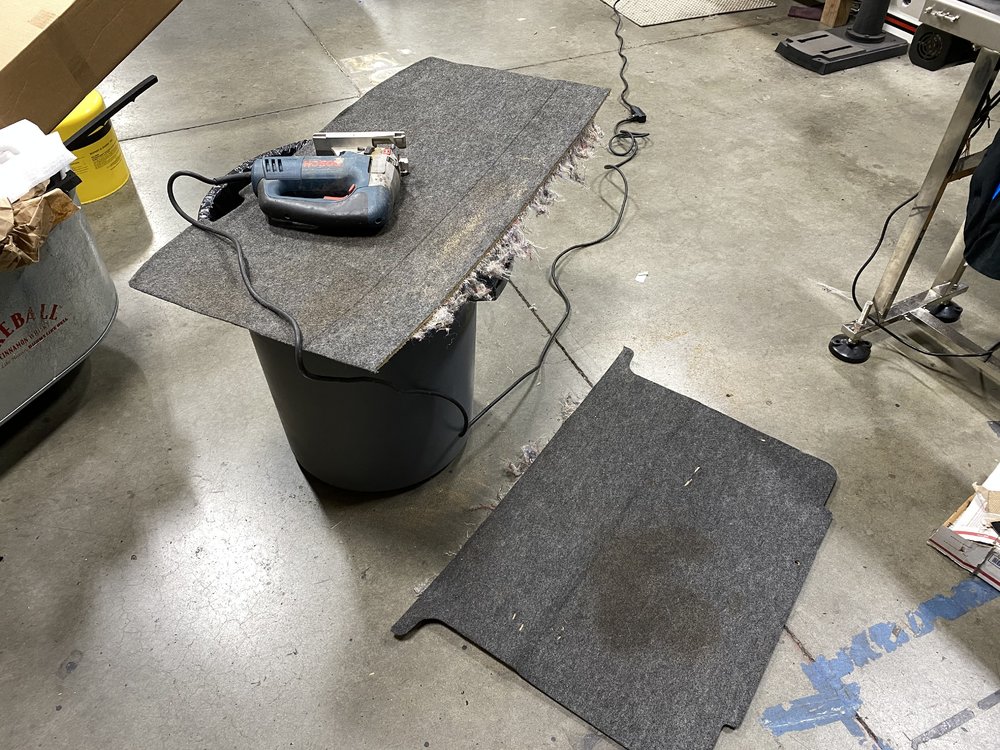

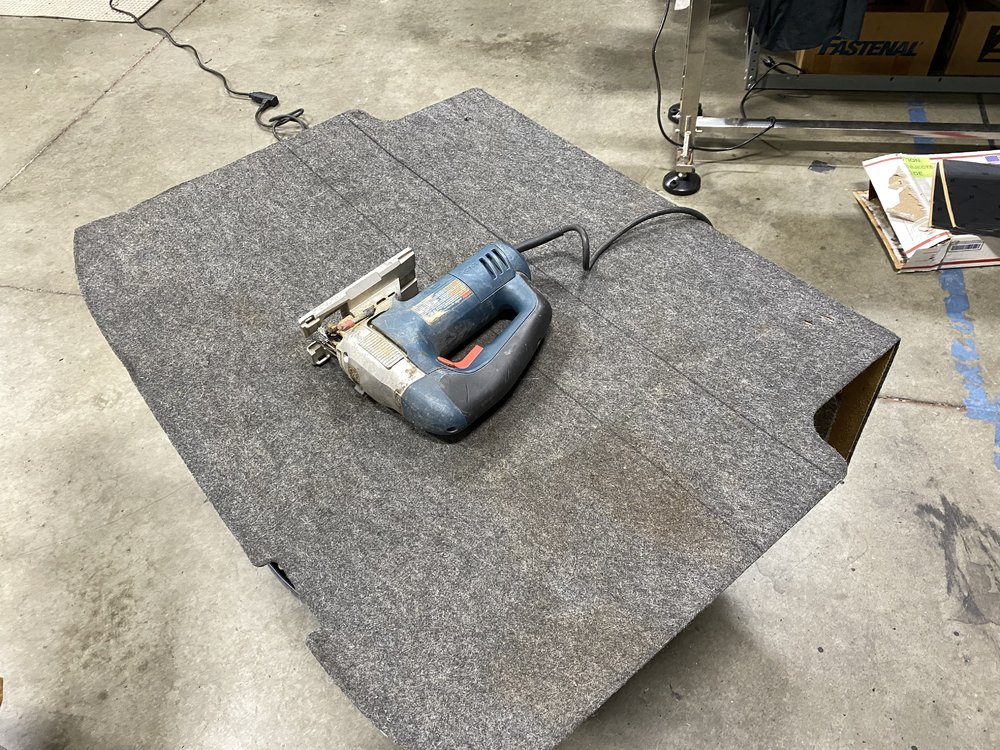

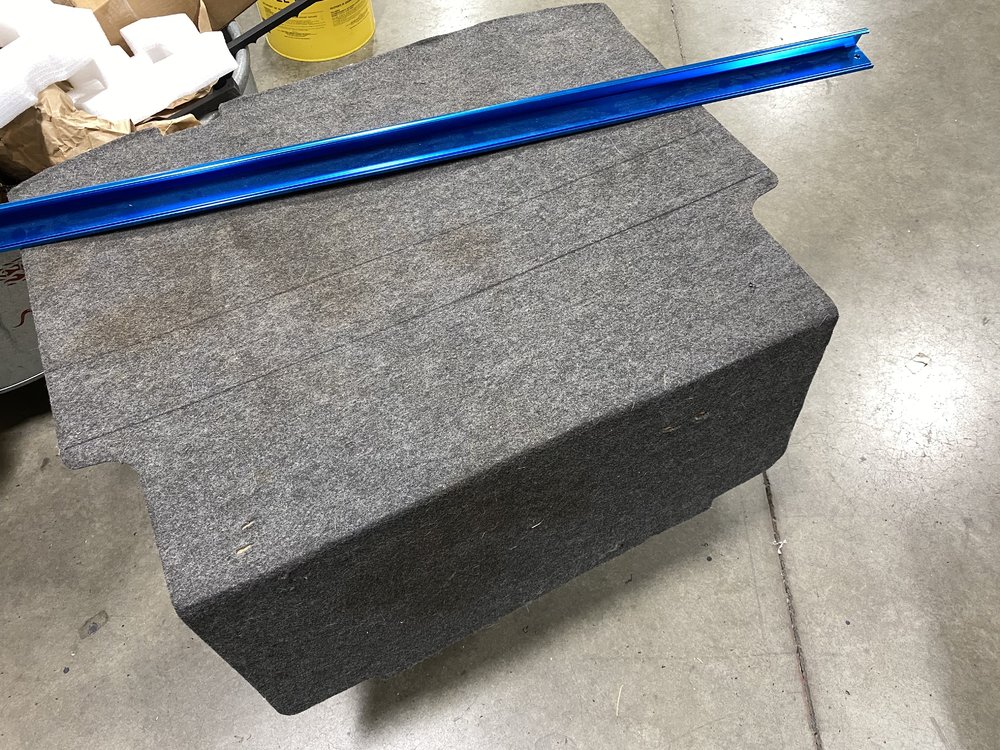

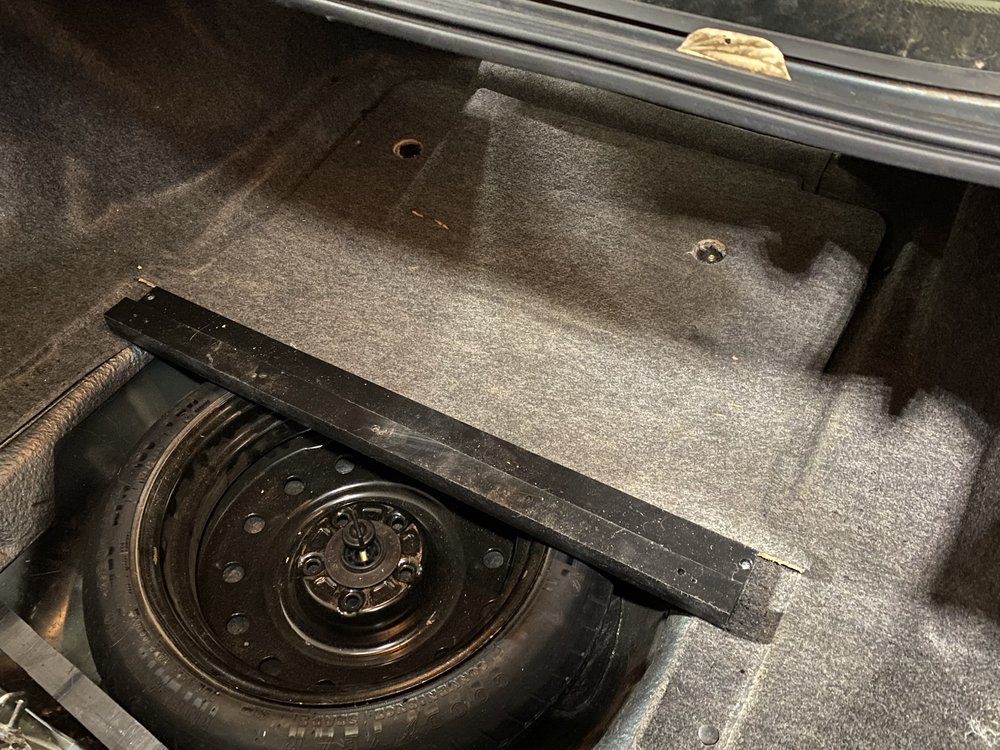

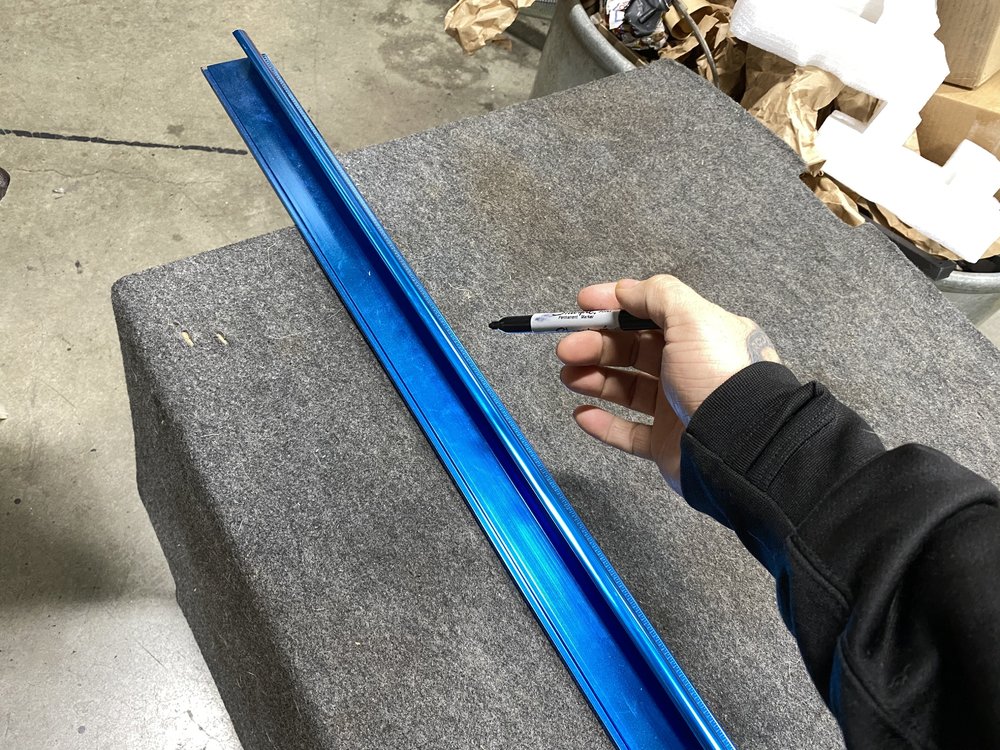

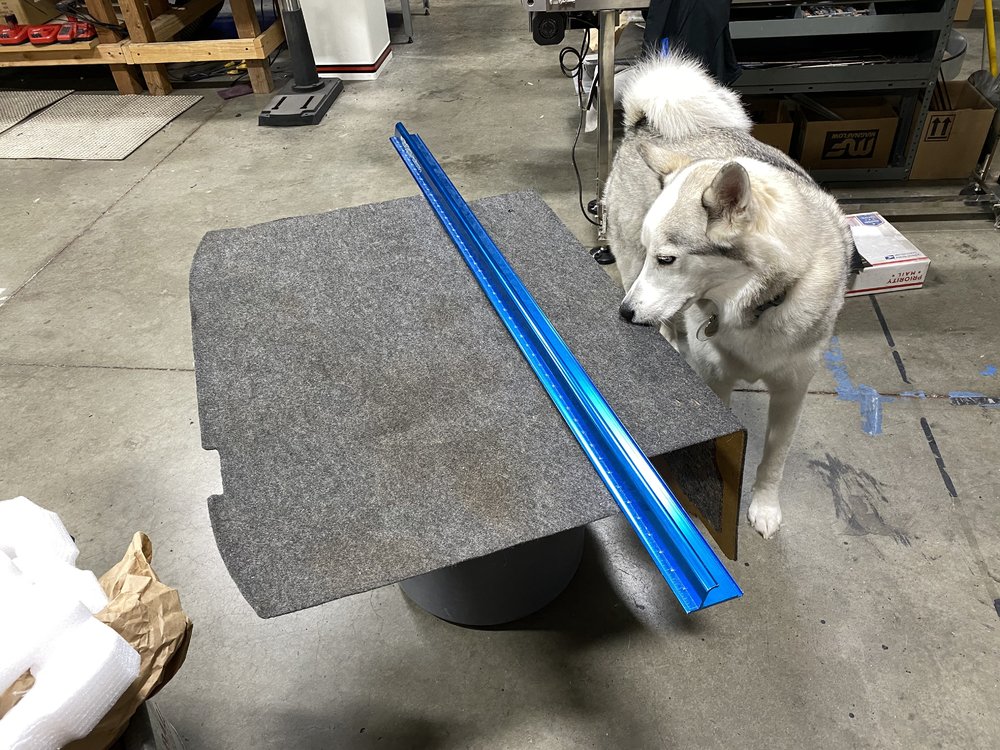

modding the stock spare tire cover to fit the support bracket. Ya i know it is stained but its under the box, with the exception of the very front and outer edges.







































Yes, the spare tire still slides in and out! I spent time making sure of that!















All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

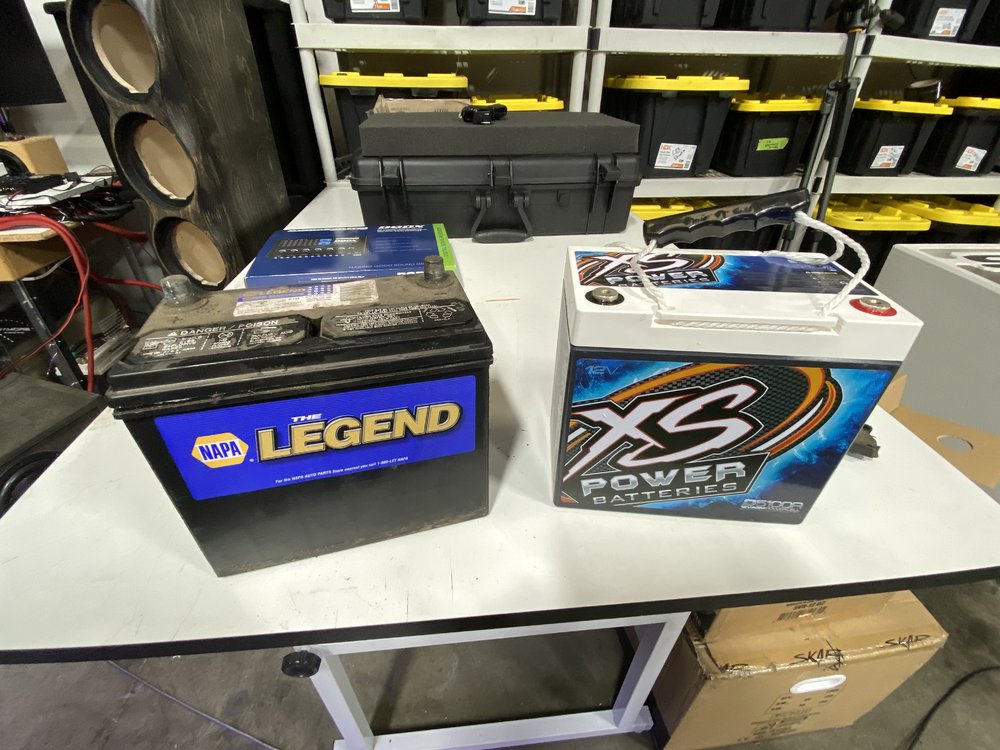

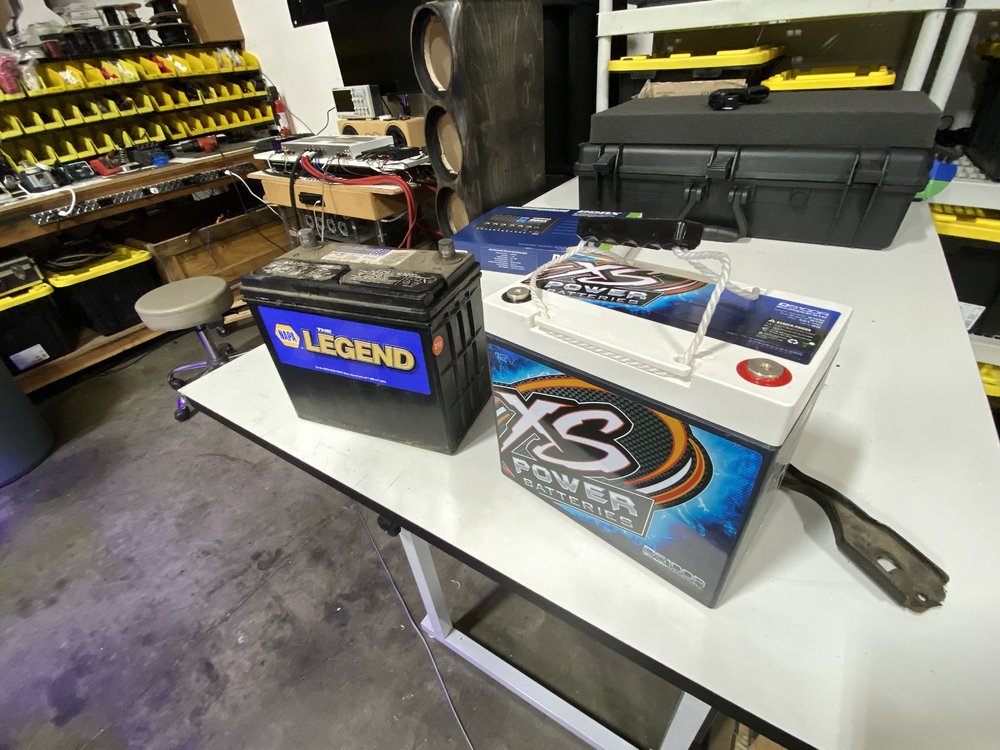

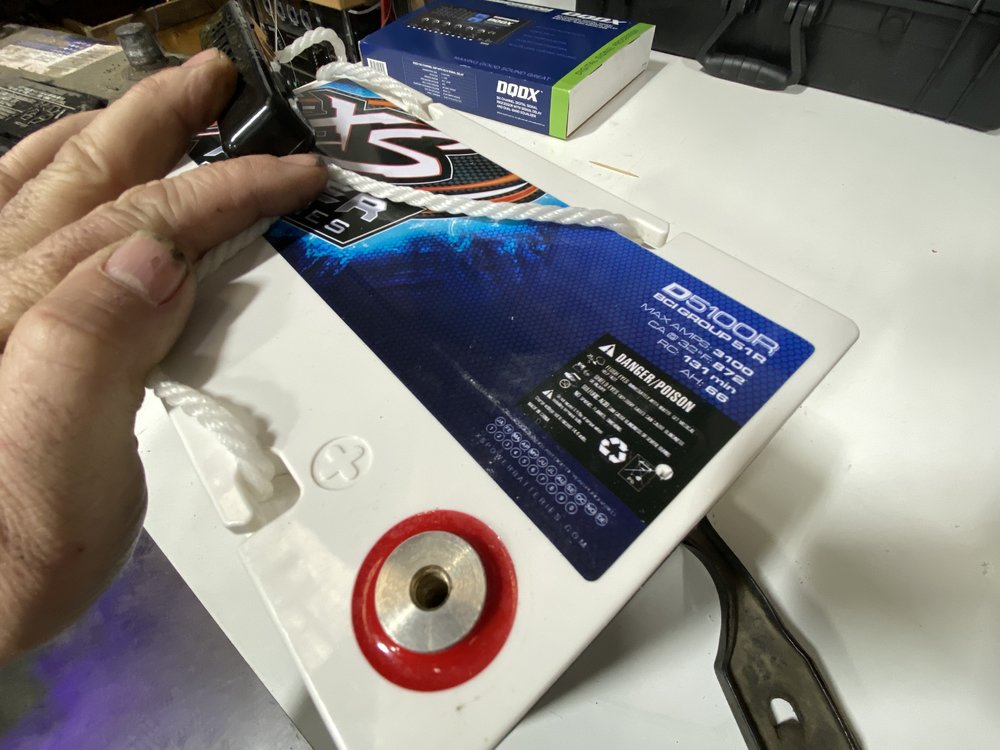

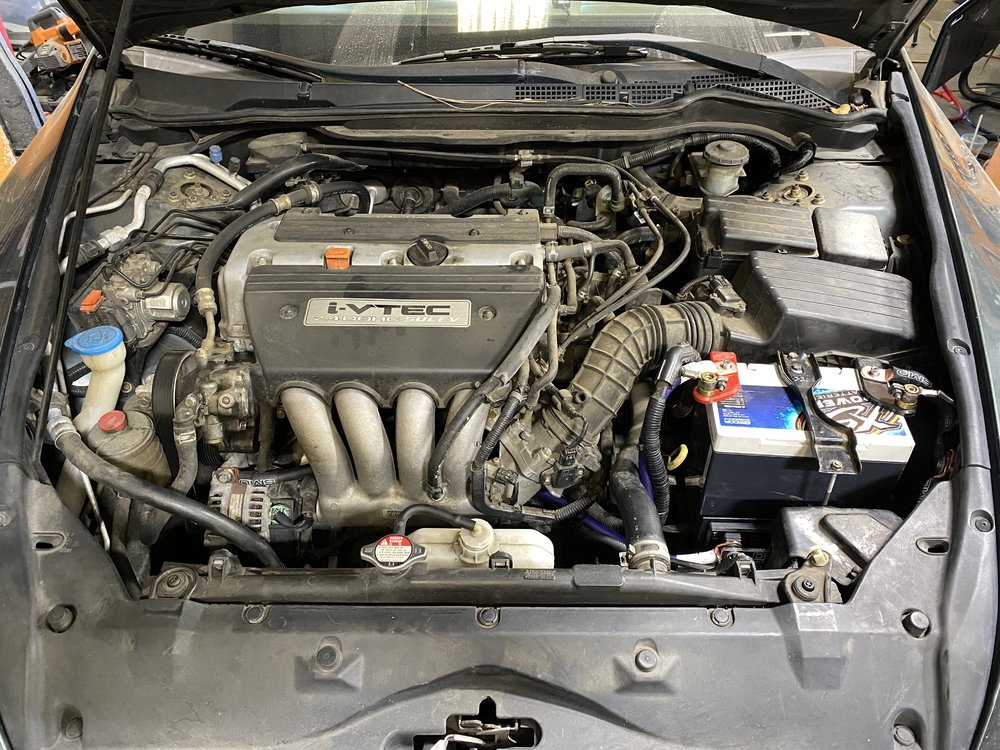

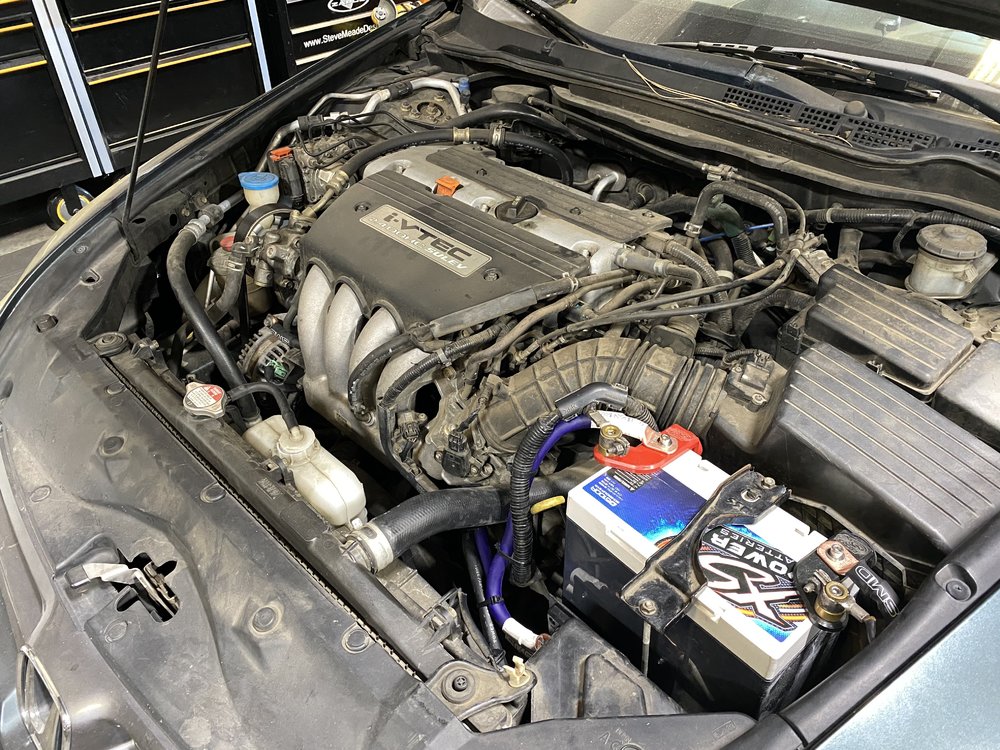

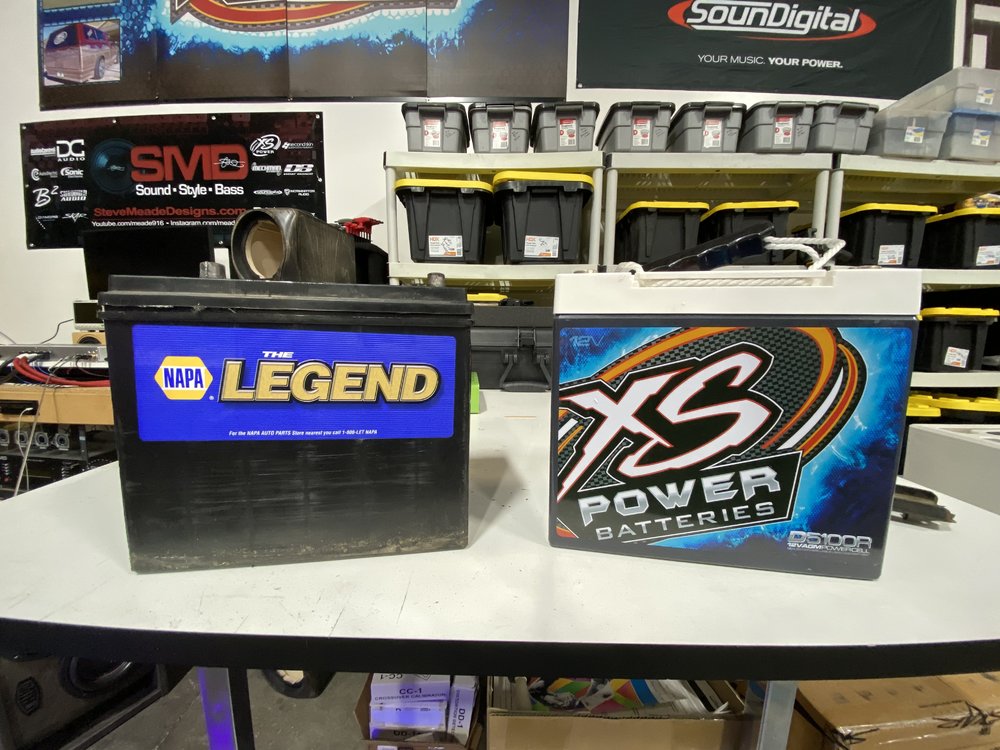

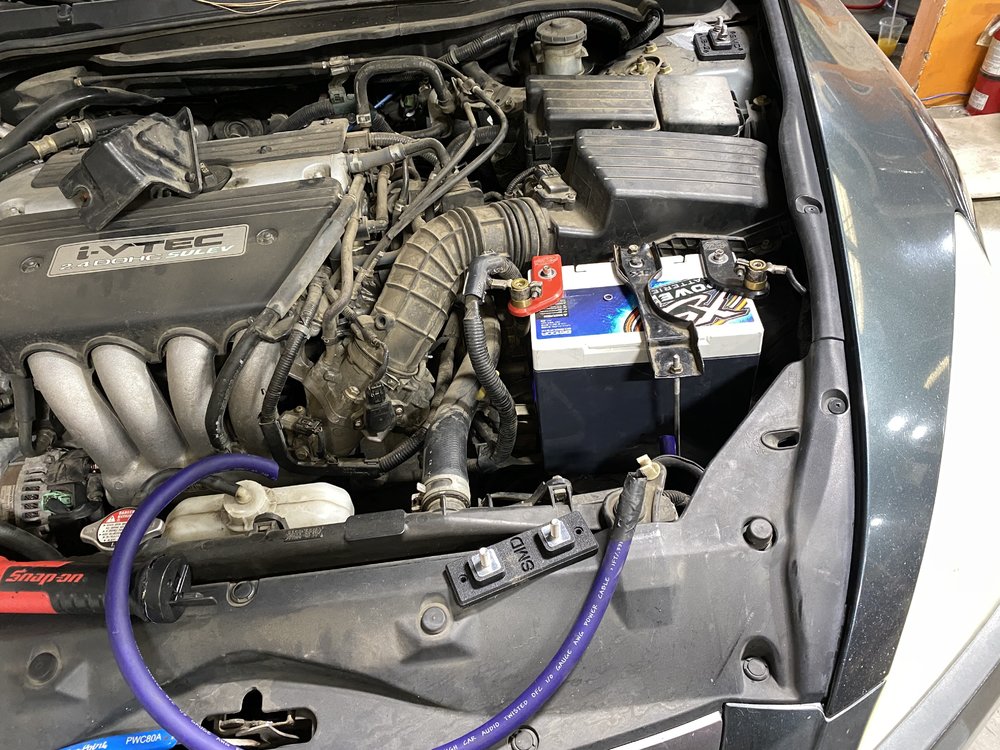

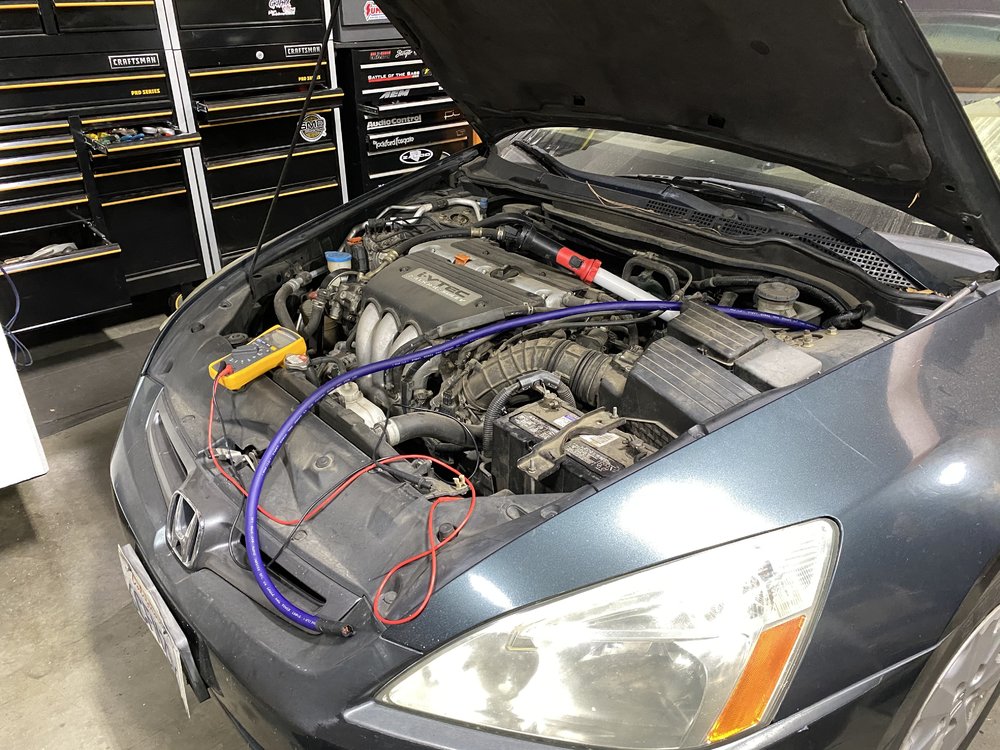

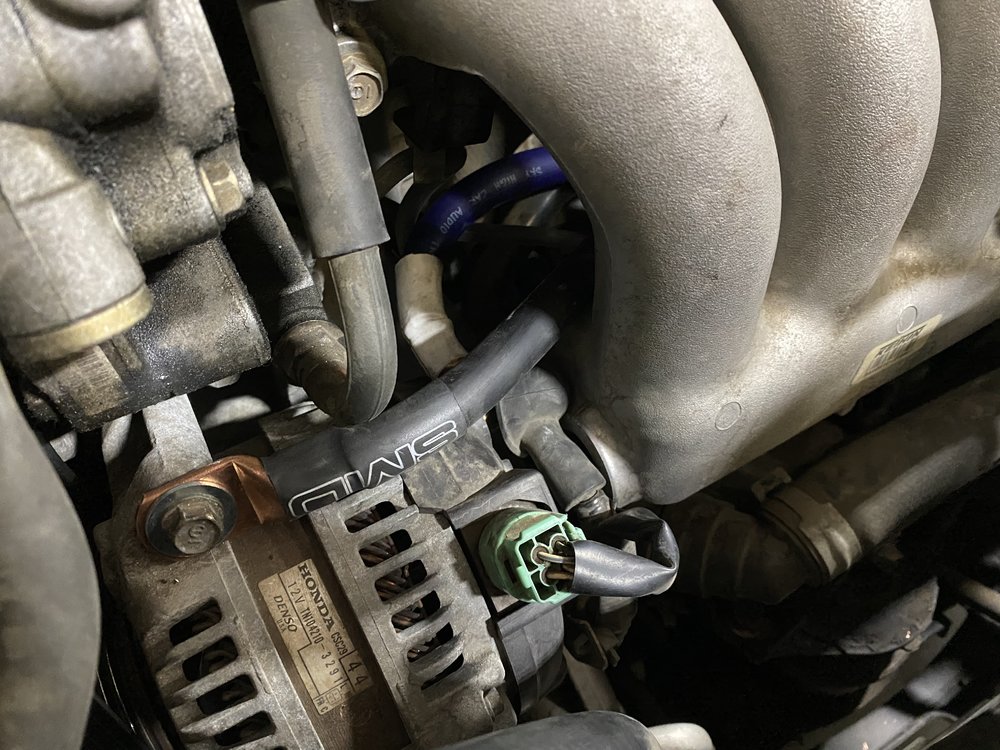

today i added an XS Power battery, did the “big three” , and ran some SkyHigh 1/0 power wire into the cabin.













































































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Link to comment
Share on other sites

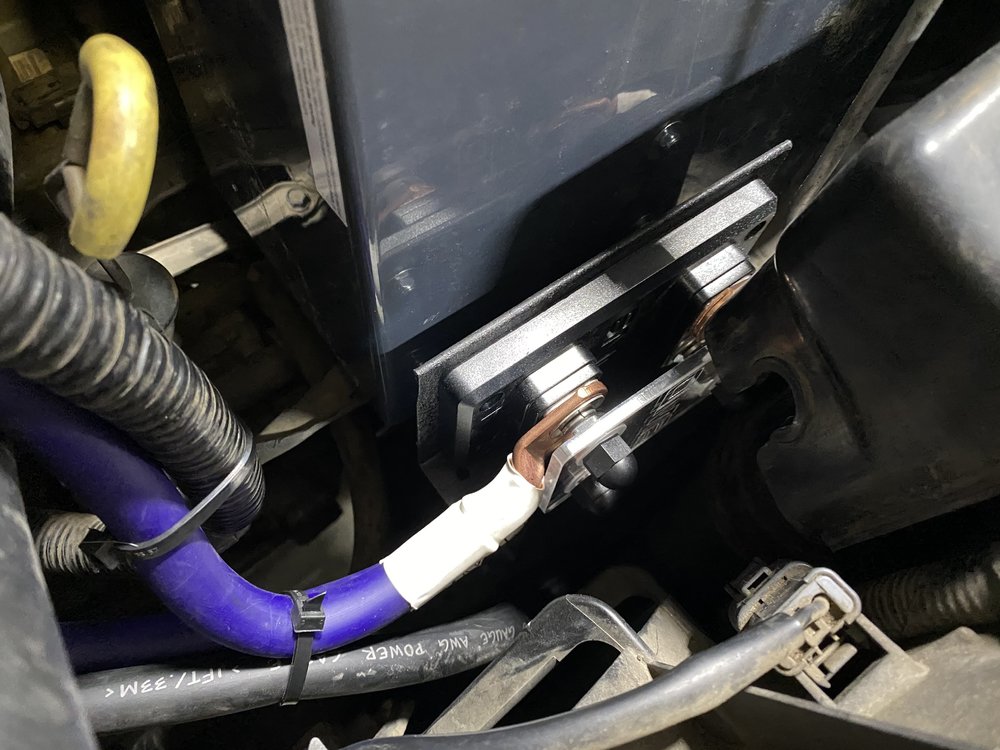

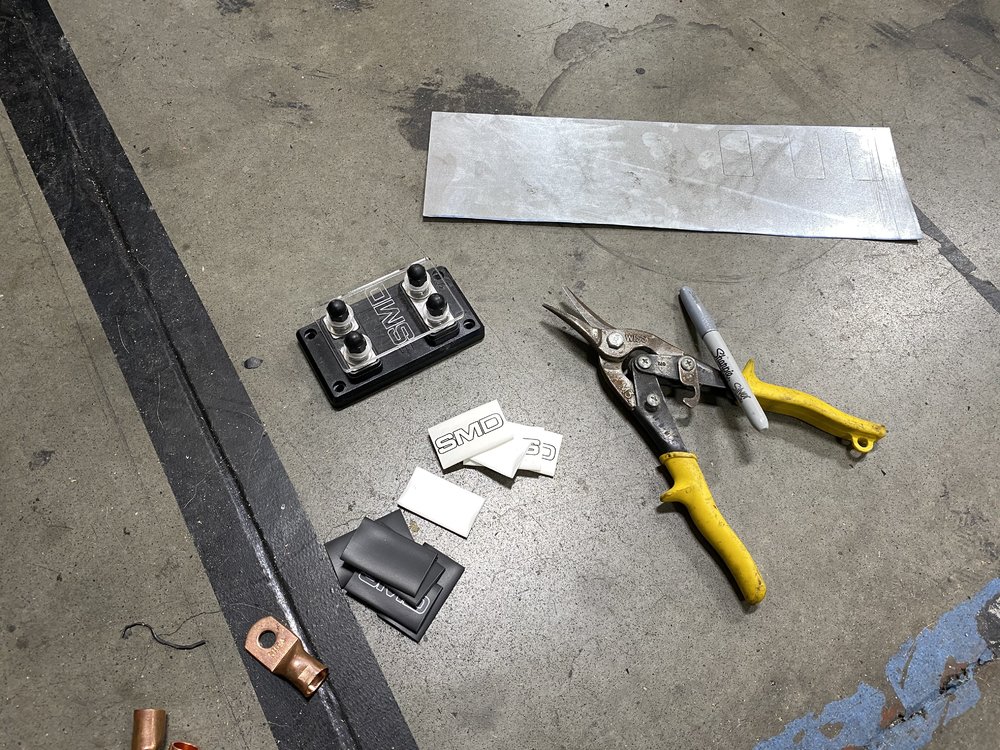

I didn't just want to screw the fuse holder to the first piece of plastic in the car.  There really wasn't many places to put a fuse holder.  I only needed a single fuse block for this system but i chose a double (SMD FB2 https://www.wccaraudio.com/smd-double-anl-fuse-block-injection-mold.html ) fuse holder for the bus-bar on the battery side. This way i could do the big three a lot easier. I made a bracket out of sheet metal.  I bent a hem into it on my sheet metal brake, and bent it into a bracket.  I shot it with bedliner and drilled some holes into it.  I don't know why i don't have many pics of that but i have it ALL on video which i will be uploading soon.

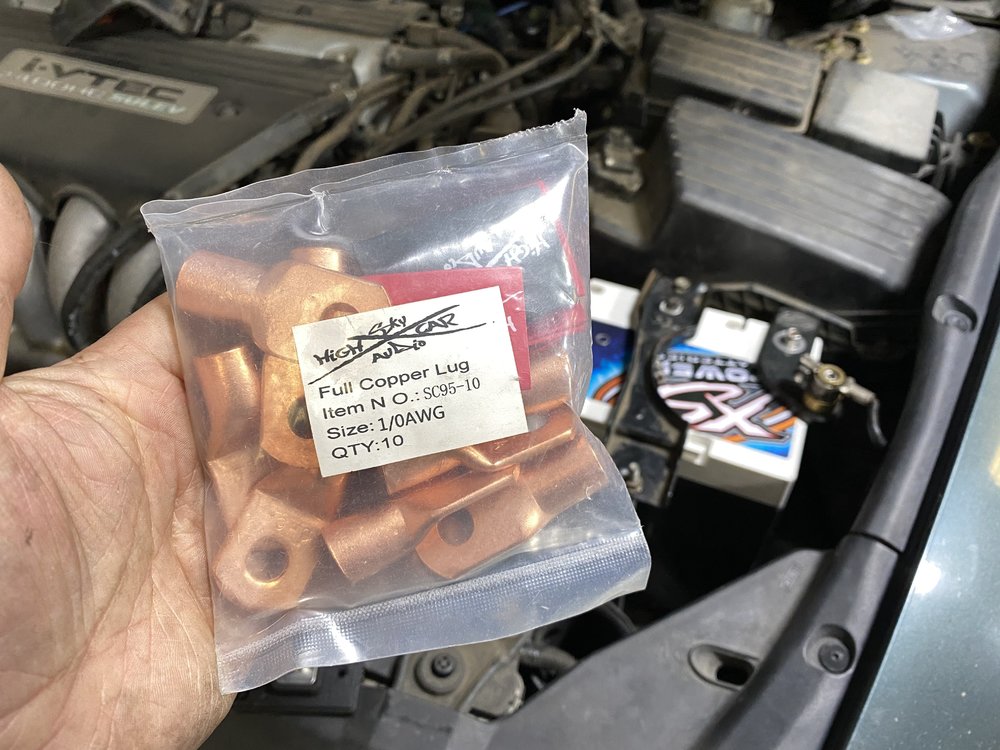

I always use Skyhigh lugs!

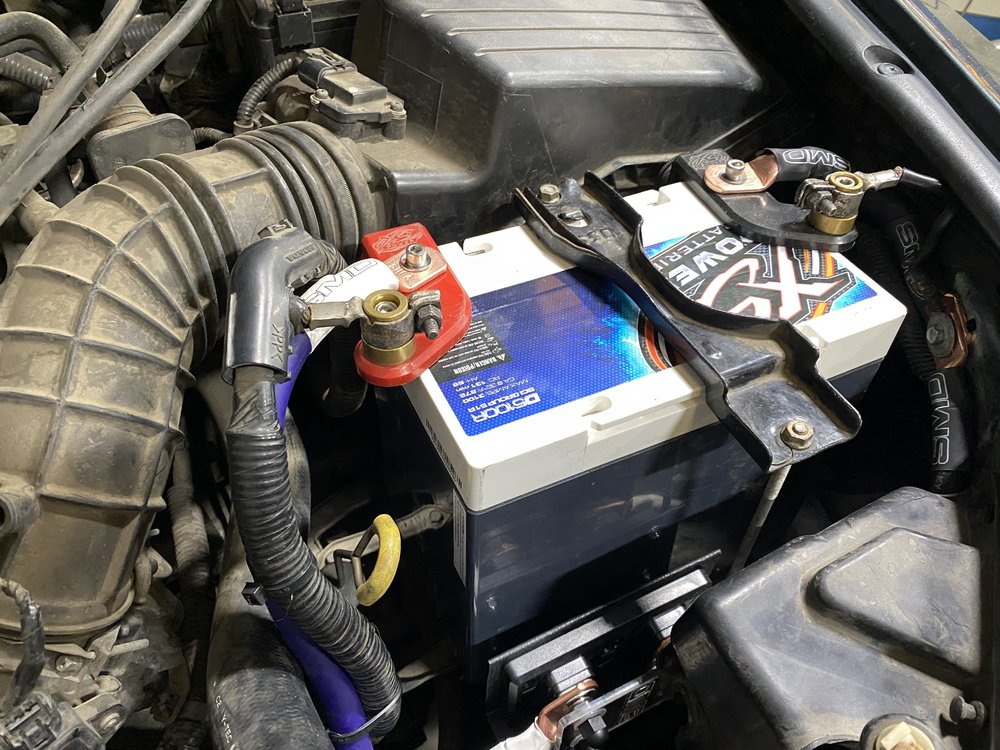

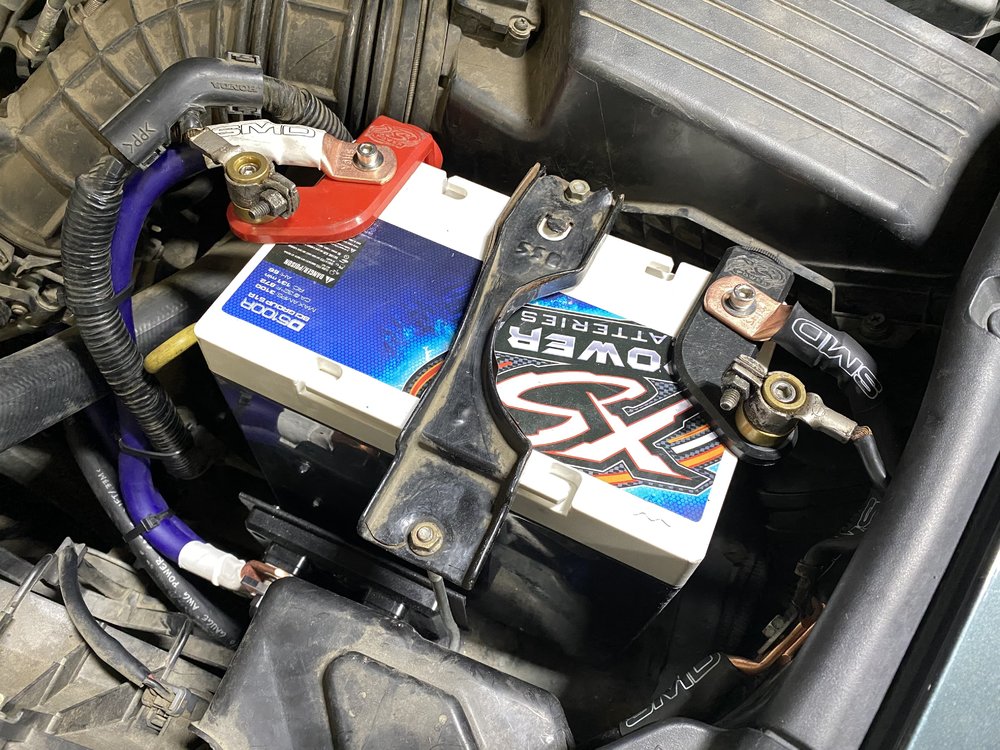

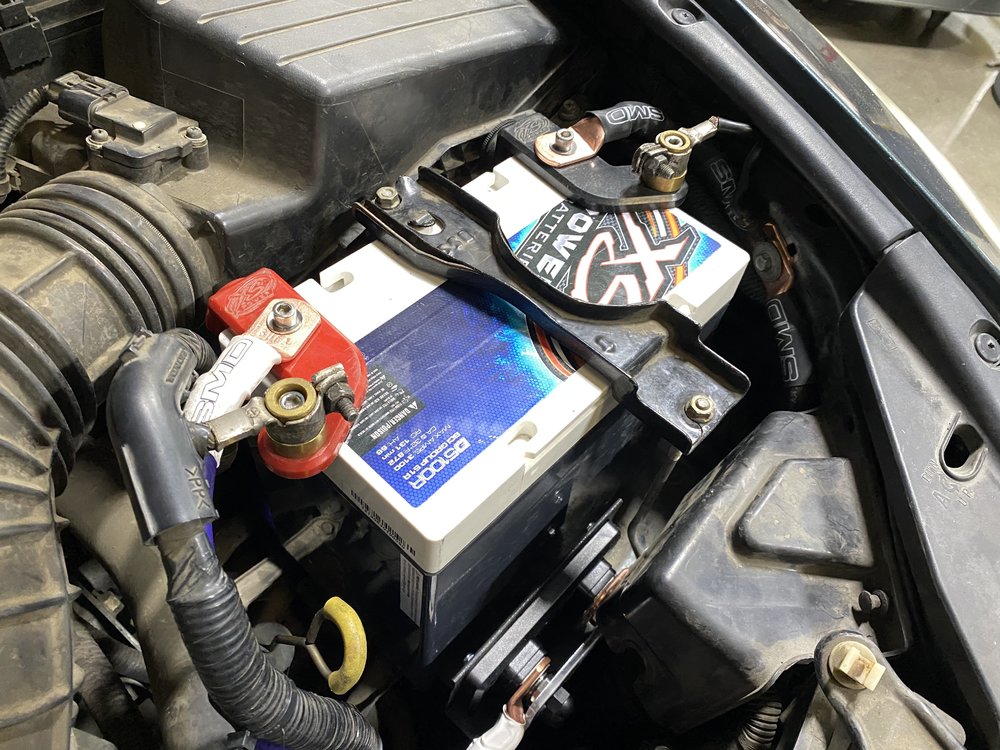

I really wanted to retain the factory power wires (not cut them) so i found these old adapters i had laying around.  They worked great! I got his stock stuff hooked up like nothing happened...but i also got the SkyHigh 1/0 in it's own dedicated spot.  I modded the battery hold down and bars to fit this battery. It's a pretty simple mod.

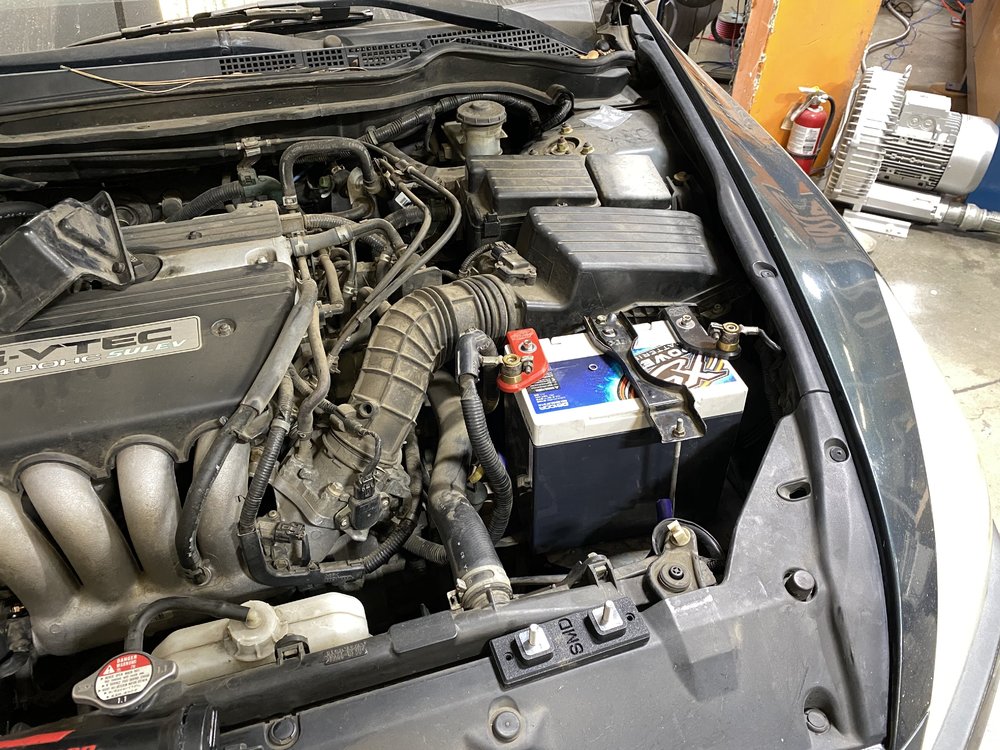

You can sort of see the bracket here. The fuse is not in place until i am ready to fire up the system.
