Paid subwoofer box designs?

[XplosiveAudio]

Hi SMD Forum. I am a long time lurker first time poster! So here's the deal, I'm currently working on building out a Mazdaspeed 6 that i recently acquired at auction. My current equipment is in my signature and i know, its a mess. Basically the trunk is set for equipment as the only things i carry for work are a small tool box and customer purchased equipment. I have a cut out of peg board on the back wall of the trunk for my amps. What im shooting for is a box for maximum SPL but also SQ for 2 Skar ZVX-8" (maybe 3, havnt decided if i want to purchase the 3rd one yet).



ANYWAY I am good with woodworking and have all of the required tools so im looking to see if anyone out there can make me plans for the perfect box blueprint/plans for my application. I am willing to pay via Paypal, Cash app or other available option. Please let me know if this is against the rules, if it is i apologize in advanmce.



Sub Specs:

• 8-inch Dual 2 Ohm Voice Coil Configuration
• Peak Power: 1,100 Watts
• RMS Power: 900 Watts
• Competition Grade Pressed Paper Cone
• Stitched High Roll Foam Surround
• Massive Triple-Stacked Magnet
• 2.5" High Temperature Copper Voice Coil
• Motor Weight: 156 oz
• Frequency Response: 40 - 500 Hz
• Sensitivity: 80.4 dB
• Fs: 41.8 Hz
• Re: Dual 2 Ω
• Qms: 3.60
• Qes: 1.25
• Qts: 0.76
• Mms: 132.0 gr
• Nref: 0.07%
• Cms: 0.02 mm/N
• Bl: 15.5 n/a
• Vas: 14.2 L
• Sd: 188.0 cm²
• Xmax: 14 mm



RECOMMENDED ENCLOSURE SPECIFICATIONS

• Recommended Sealed Volume: 0.65 ft³
• Recommended Ported Volume: 1.25 ft³
• Recommended Port Area: 14.45 in²
• Recommended Tuning Frequency: 36 Hz
• Enclosure recommendations above do not include subwoofer, bracing, and port displacement

SUBWOOFER MEASUREMENTS

Cut-out Diameter	7.50"
Mounting Depth	6.50"
Total Height	7.63"
Outside Diameter	8.65"
Magnet Diameter	6.50"



[deafboncemarquis]

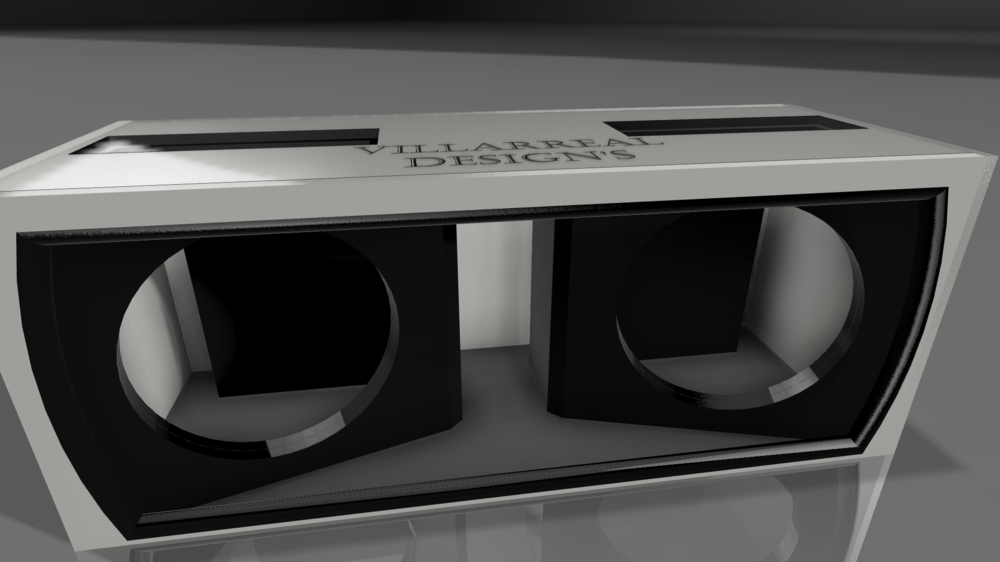

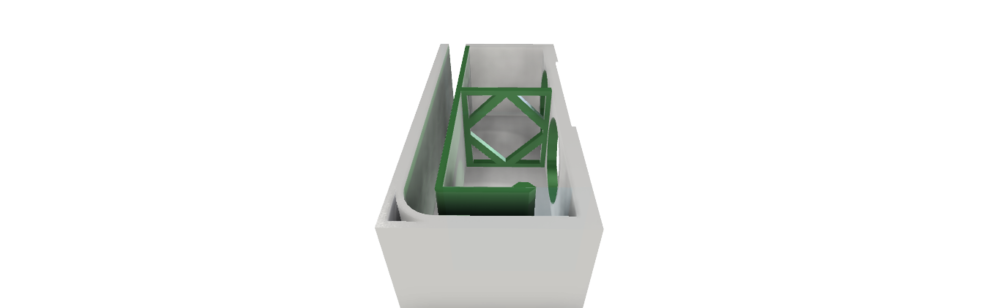

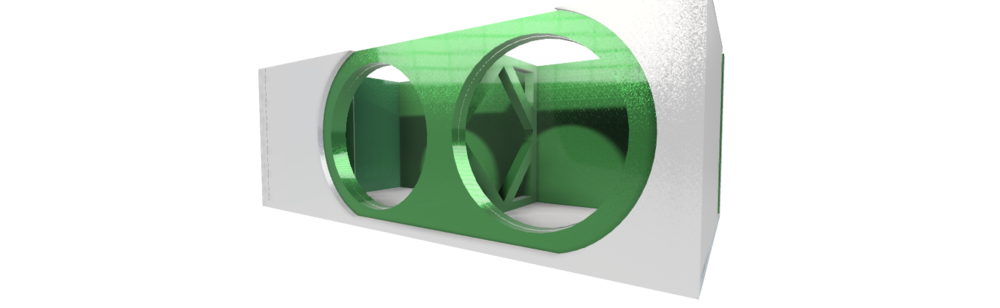

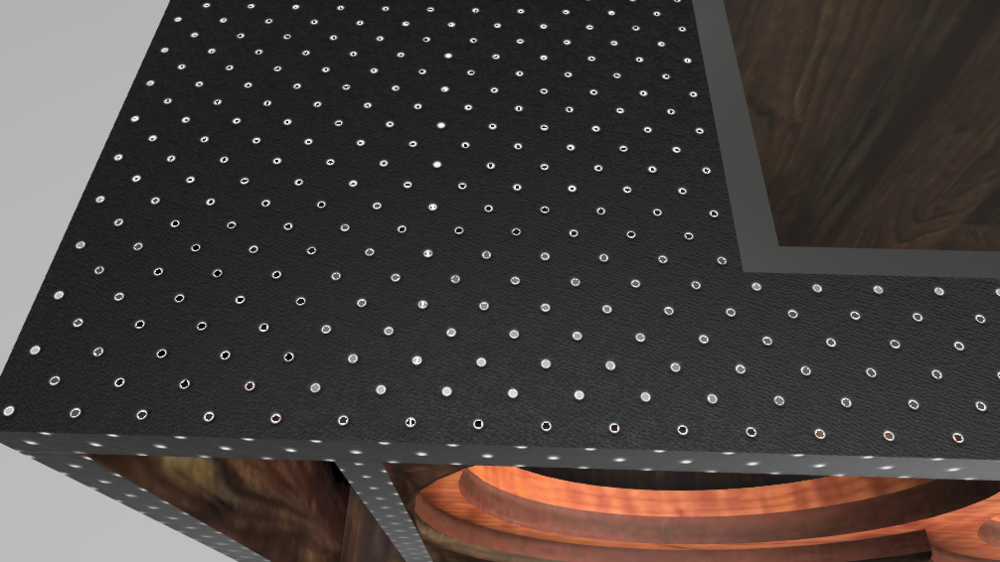

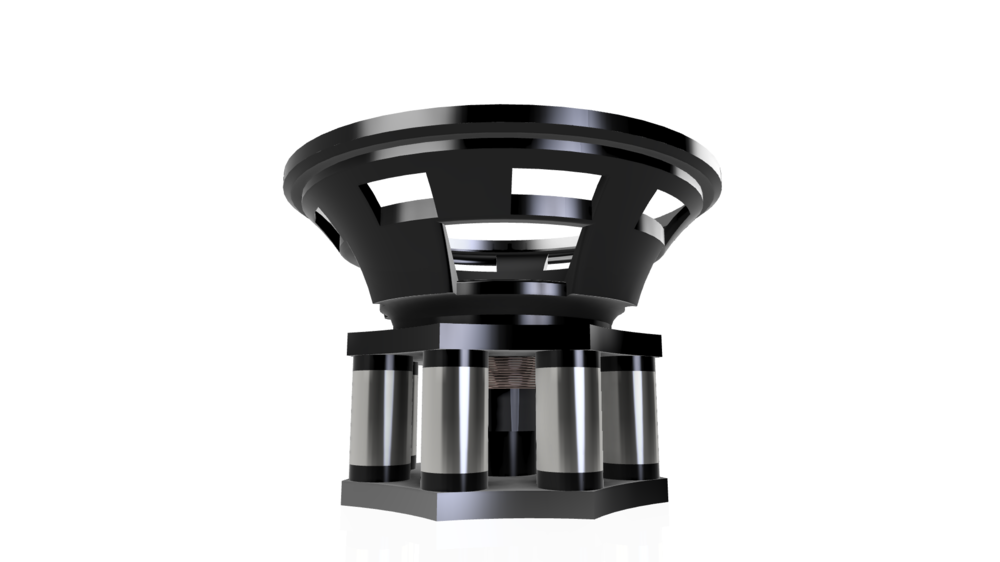

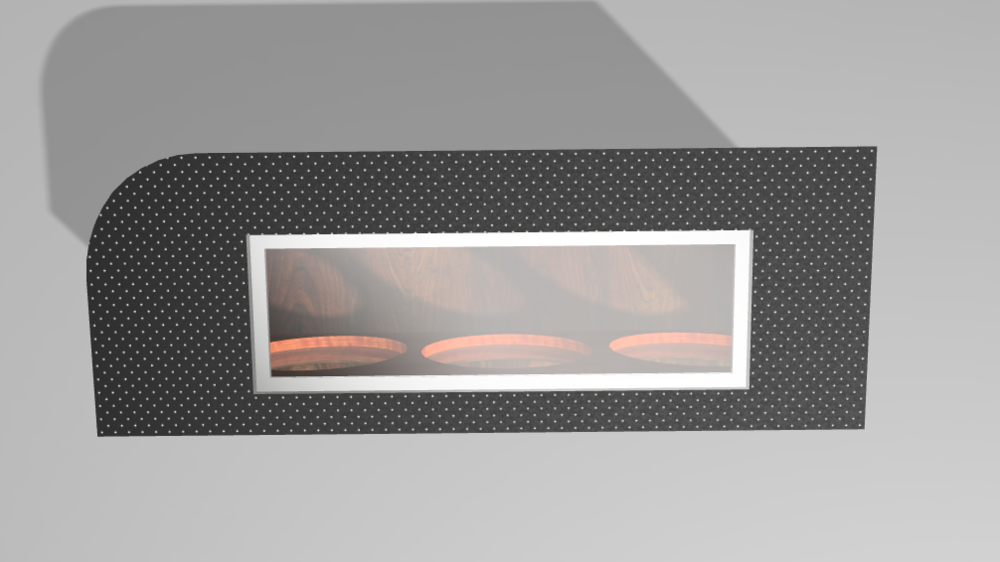

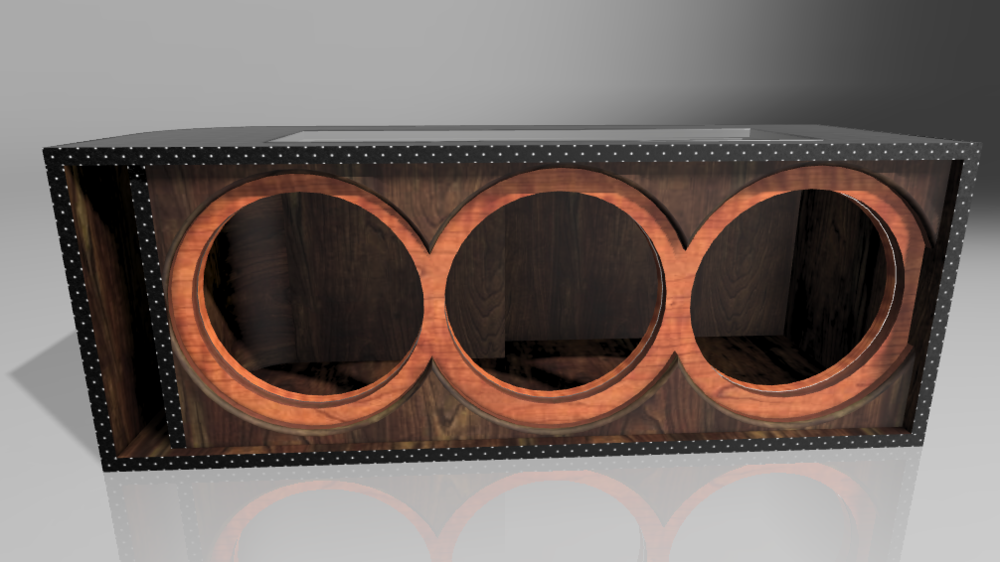

i can help you out bud here's some of my work
