DC XL 12D2 - Fun with WinISD Simulation


Recommended Posts

Here are some winISD simulations for a DC XL 12 (dual 2 ohm) subwoofer in a 1.75 cubic foot box tuned to 31hz (square port) at 2200rms at 1 meter accounting for coil inductance.

If anything, I'm posting this for the amusement of anyone who has bought or is thinking about buying a DC XL 12 as I just did.

How accurate to you think these simulations actually are (other than not accounting for cabin gain)?

Any thought provoking comments or questions?

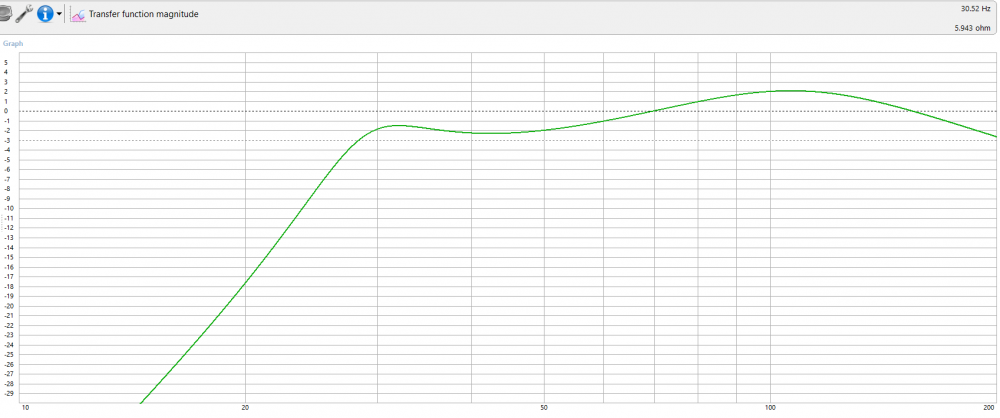

5a0ffb5172864_1transferfunctionmagnitude.thumb.png.2fce32f7cba063028990d33e7c384f4e.png

Transfer Function Magnitude^

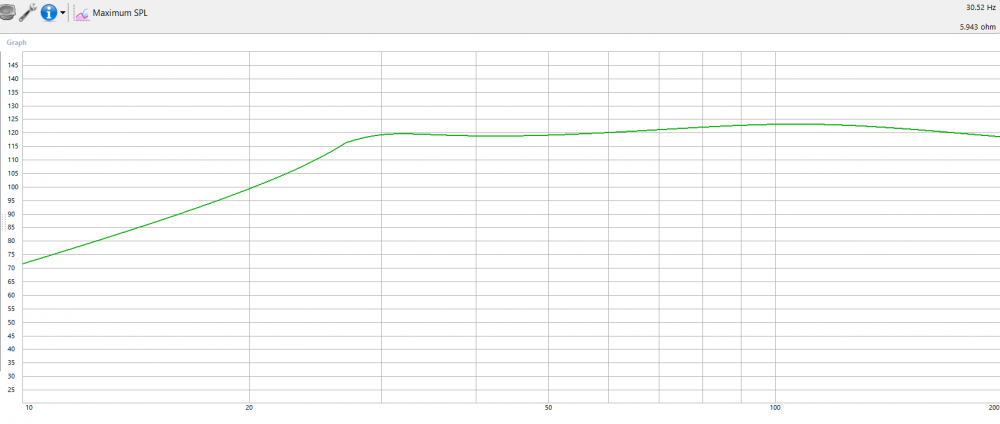

Maximum SPL^

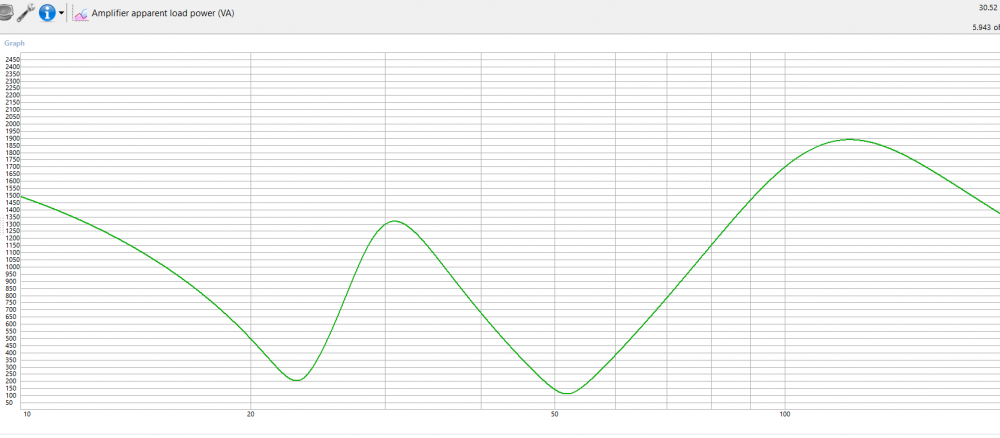

5a0ffb3524616_3amplifierapparentloadpower.thumb.png.d07813ce4f9ca91124fd163a7e8eecf0.png

Amplifier Apparent Load Power^

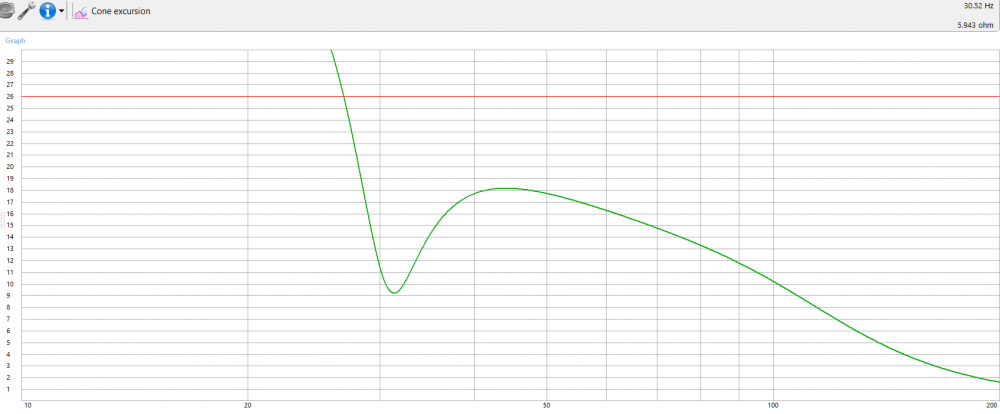

Cone Excursion^

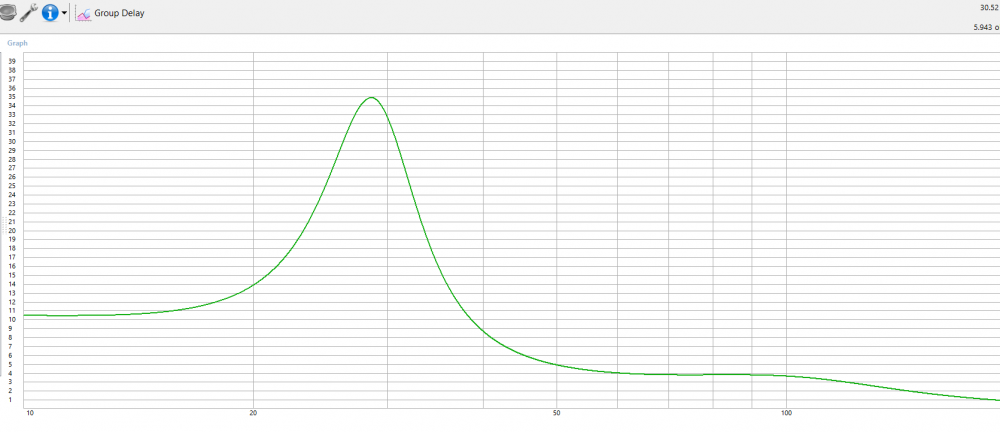

Group Delay^

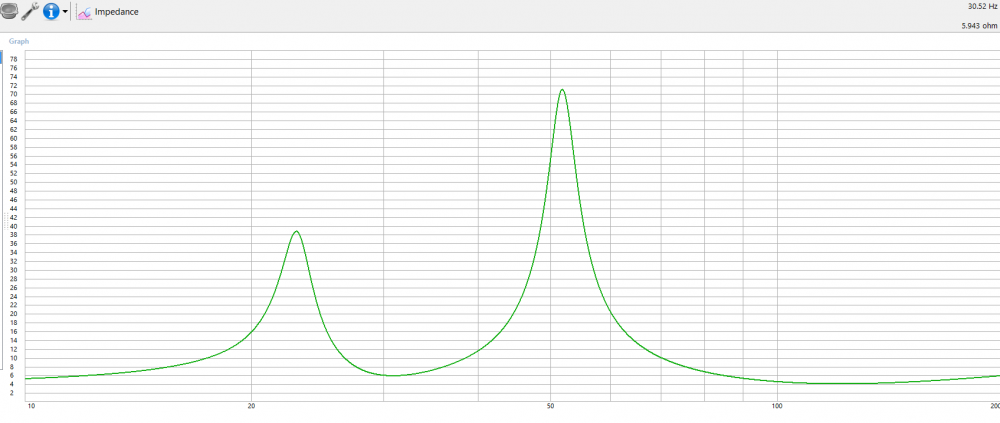

Impedance^

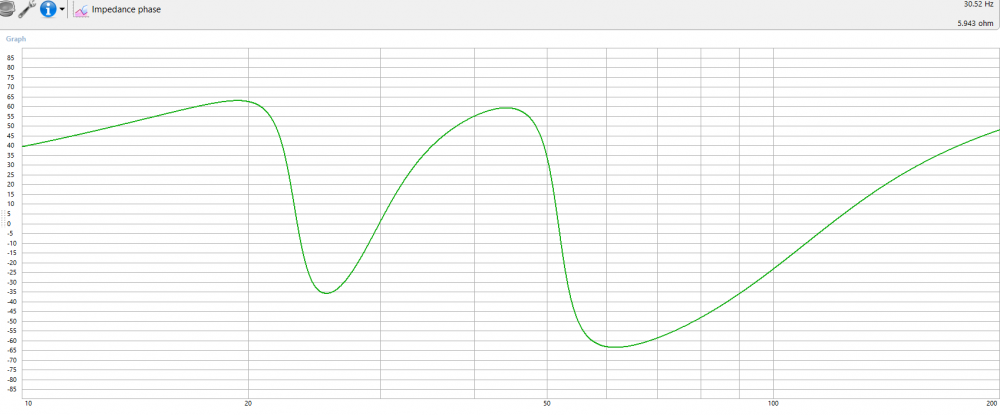

Impedance Phase^

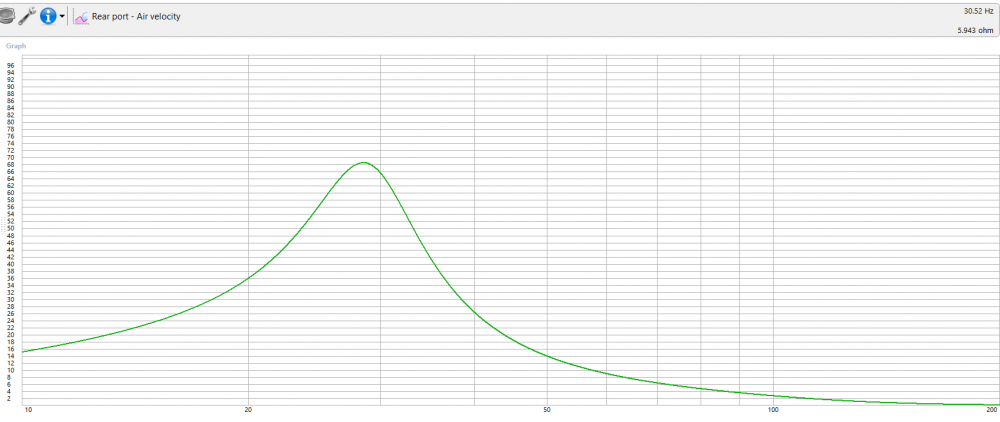

Rear Port Velocity^

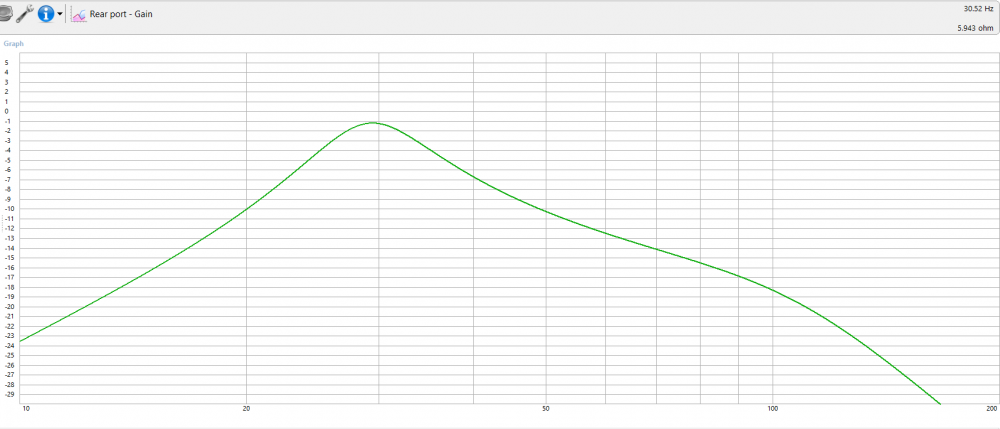

Rear Port Gain^
