December 2017 SOTM Nominations - Prizes from Mechman, CE Auto Electric, and XS Power!!


Recommended Posts

Posted

I would like to nominate myself.

2010 Mazda 3 Hatchback 2.5L

Designed to be a daily budget setup but definitely in need of better electrical for the next upgrade.

Pioneer Tsw3003d4 Subwoofer

Pioneer GM-D9601 Amp

Knukonceptz 4 gauge amp kit

Custom built box 1.9 cubic feet tuned to 31hz

Build Log:







40jnZgf.jpgAXPiBwj.jpgNFDrJEZ.jpgu2qeQvN.jpgHScjPyE.jpgnm0MkbG.jpgu5XhIAq.jpgwWyBhus.jpgFQPtNWE.jpgq9QGb4z.jpgXprXPpF.jpg



Posted

I nominate myself

https://www.stevemeadedesigns.com/board/topic/201488-the-pajero/

1989 Mitsubishi Pajero

Headunit: Pioneer DEX-P99RS

Tweeters: 2x Vifa XT25 Midrange: 2x Tang Band W4-1320SJ 4" Bamboo Cone

Midwoofers: 3x Digital Designs W6.5

Subwoofers: 8x Shok Industries Triton 15" D4

Amps: Taramp's T20.2KW, Digital Designs S2B, Arc Audio KS300.4

Alternator: Mechman 180A B

atteries: 16x Absorbed Power GT12-75C

Box Design: Bandpass 4th order B-Pillar wall











Posted

I'm nominating myself.

2000 Chevy S10 4.3 V6  (check the build log for detailed pictures and other information)

I'm the original owner since it was new. All the work has been done by me over the course of the last 17 years. An electrical upgrade would help me so much. Good luck everyone!

Build Log




Posted

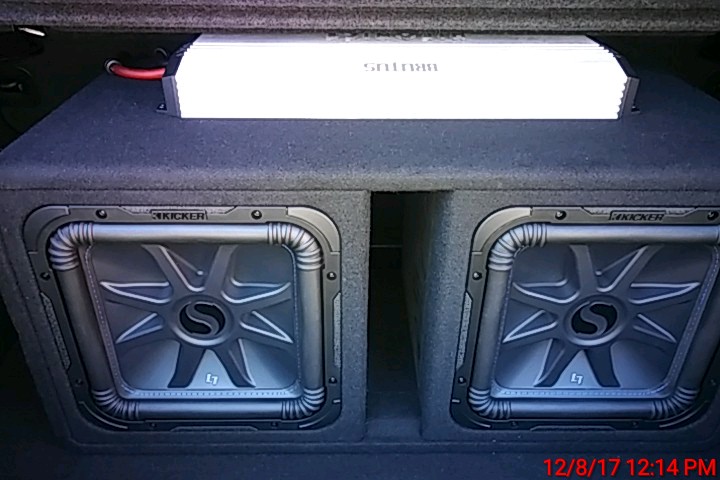

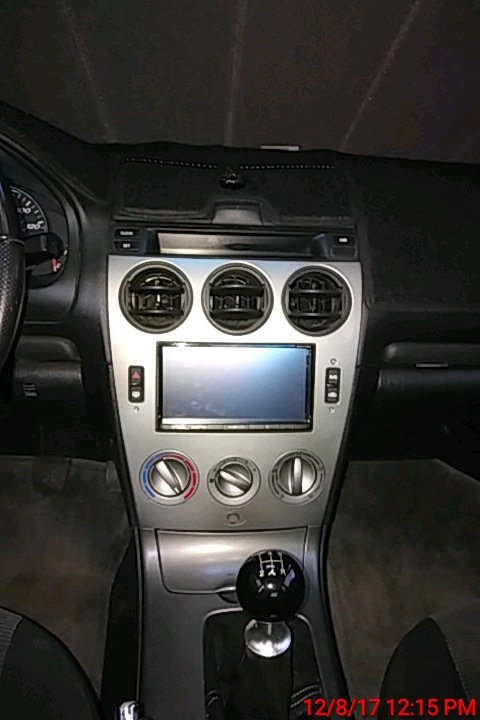

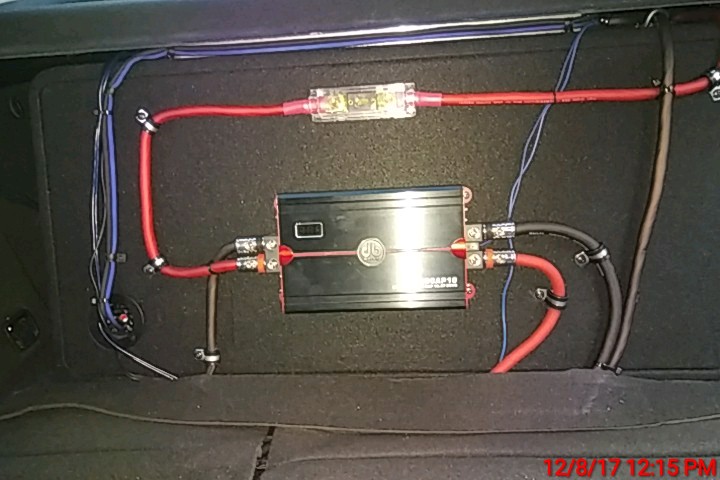

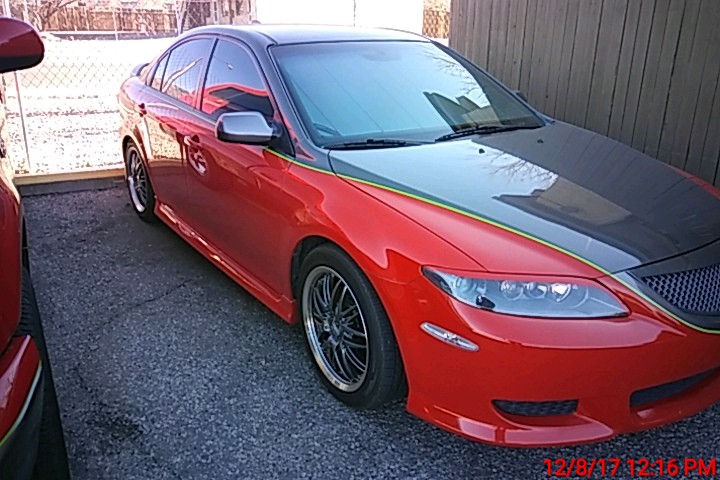

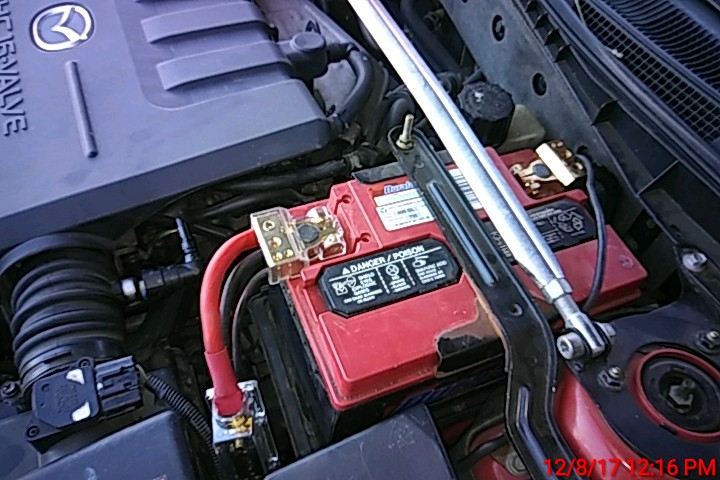

I would like to nominate myself for SOTM. I own a 2005 mazda6. I have installed a Kenwood head unit, Kenwood 5x7s in all 4 doors, 0gauge power and ground wire running to a 10 farad db custom capacitor. From there it runs into a Hiphonics Brutus 3200 pushing 2 12" kicker L7s in a kicker box. The only thing missing is and upgraded alternator, upgraded battery and the big 3 kit.






Posted

I’m nominating myself here folks. Unfortunately I don’t have  enough room to upload any photos of my sub. But I have a like new Dreadnaut 15” sub I’m running on a Sundown Audio SAX1200.1D. It’s in a 5.0 cu. ft. aeroported box tuned to 25 hz. Hits pretty low and loud.

Sadly I only have a stock alternator on the amp along with no helper battery atm either. Alt is like 110 amps only, so I can’t even run it to its full potential. Been wanting to get s bigger alt and a helper battery ever since I got into car audio honestly, but just never got the chance to, or money to. It’s a passion for me, but just wish I had the electrical support to drive my drive for car audio. I am at least running knukonceptz 0 gauge wire with 0-4 gauge reducers into the amp with a wanna-be big 3 upgrade. Good luck to everyone though. I hope someone who doesn’t already have a good electrical setup wins if I don’t. I know the struggle guys.

Posted
Quote



Just got the 10" W7 in and slapping. now i just need some power!! all the light is dimming lol carpet next to come on the box!! check out the build !

Kenwood DNX893s

Hertz HSK + HCX 165

JL 10" W7

JL XDv2 400/4

JL HD750/1

2.5cu ft 34hz

THANKS FOR VOTING!

Posted

I would like to Nominate myself!

My system:

Premier DEH-P860Mp Headunit

JL Audio XR-650 CSI    Front components

JL Audio XR-525 CXI  Rear coaxials

JL Audio 13W7 subwoofer

JBL GTO 1400.1  subwoofer Amp

Rockford Fosgate Punch 200.2   Tweeter amp (old school)

Rockford Fosgate Punch 225.2  Mids Amp (old school)

Audiocontrol    Epicenter

Phoenix Gold  Bass Cube

Big 3  with Scoche 0 gauge cable

This is my Peugeot 206Rc, install done by myself.DSC00203.jpg.26a239ce451e680b405f6d359c6814b3.jpg

DSC02220.jpg.6696daeebcb048bb8d369d61caafb6b8.jpgMy interior with sparco 3 point seatbelts.Undercar lightingDSC00046.JPG.12ab795fd3358cd27d2cfd0260f8b681.JPGThis was the most difficult part of the install.  Observe the different angles used and round ports curving on the inside. Space inside the trunk was really small, so I had to take advantage of as much space as I could. 2.35 ft3, tuned to 34 Hz.DSC_0252.jpg.de672bbac9e8b4b982d7eee0b8ab699d.jpgBox, amps, procesors, distribution blocks, all in a tight space!DSC_0254.jpg.ee854835f5d624a934b7ba62289aab41.jpgDSC_0255.jpg.4bb659c693d74090fde948bbf96e3ce1.jpgDSC_0237.jpg.980cc80eae29e9a8dd1ab852f6434e6a.jpgBig 3 done, and double 0 gauge - wires.DSC02262.jpg.51bf3793693d13b0959399ad87eda7ed.jpgEFX fuse box with 200 amp fuse.DSC_0248.jpg.d7f642974f34462201d33cca9762278d.jpgPremier DEH-P860MP, voltmeter and knobs for epicenter, PG bass cube.DSC_0250.jpg.9563f8834836919bb1f0ad78956ff882.jpgFront tweetersDSC_0251.jpg.7319c5084bcb0a2f55706fe9a9d34fd4.jpgFront crossoversDSC02240.jpg.257eb54dc354f629e5450af2862d7d16.jpgRear crossovers, the rest is consealed inside doors.DSC_0259.jpg.b4edffa11d0f566855965c4221bff976.jpgIpod classic 160 GB inside Glove box
