meade916

SMD 4 and 8 channel copper "Terminal X" - QUICK switch to series - UPDATE: new Laser Cut gaskets!

Recommended Posts

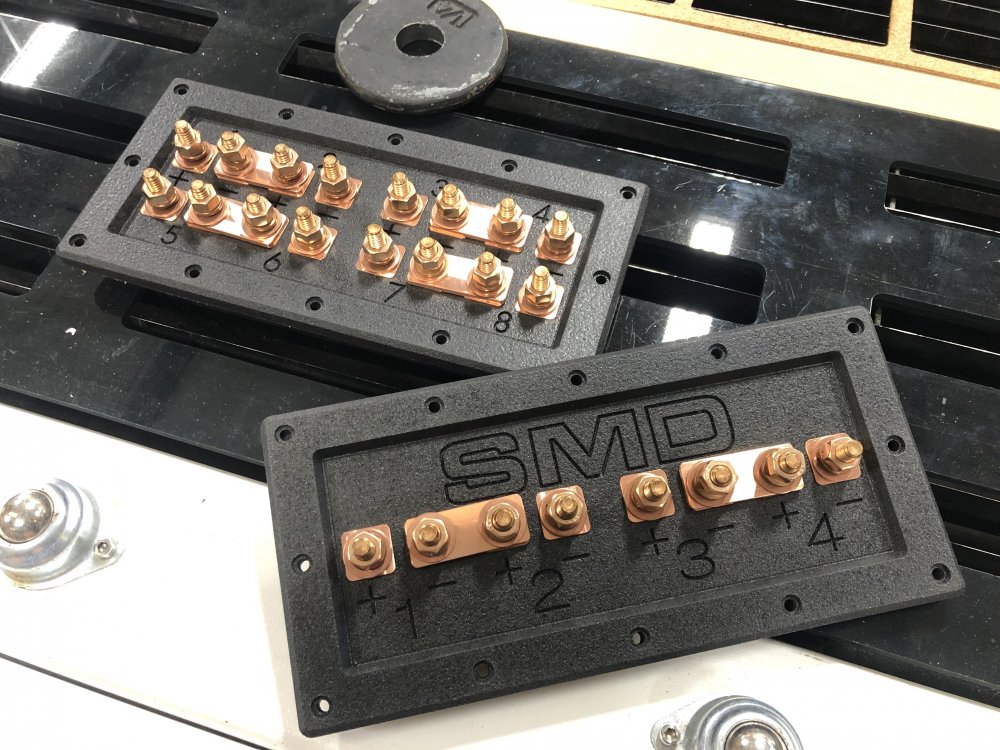

I haven't posted a lot about the new terminal cups we have been making at the shop. But the new "Terminal X" is awesome!  These are NOT just the equivalent to your basic "run a bolt through a box". These actually have threaded landings. This means after you tighten up the bolt with a wire on it from the inside, the outside stays tight and becomes a stud which you can easily put a wire on and remove it without the inside coming loose.  I will make a fresh post showing the single and 2 channel but for now, here is an example of how to take the 4 and 8 channel and quickly run your subs in series (from parallel).  I still make the originals and they have all been re-done across the board.  All models are labeled front and rear as well as a flange that WAS .25 and is now .375.  Available in Copper or Aluminum.  The copper 8 channel is SO HEAVY it feels like a lead brick :D





  • Like (+1 Rep) 1




Subscribe to My Youtube Channel!
http://www.youtube.com/meade916

The Official SMD Facebook Page
http://www.facebook.com/pages/SMD-Steve-Meade-Designs-OFFICIAL-Fan-Page/207890963429

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916

My Instagram
http://www.instagram.com/meade916

Highest OFFICIAL SPL scores (at shows, on the TermLab)

DBDRAG - 156.5

Usaci - 157.4

Usaci Streetbeat - 155.2





Share this post


Link to post
Share on other sites

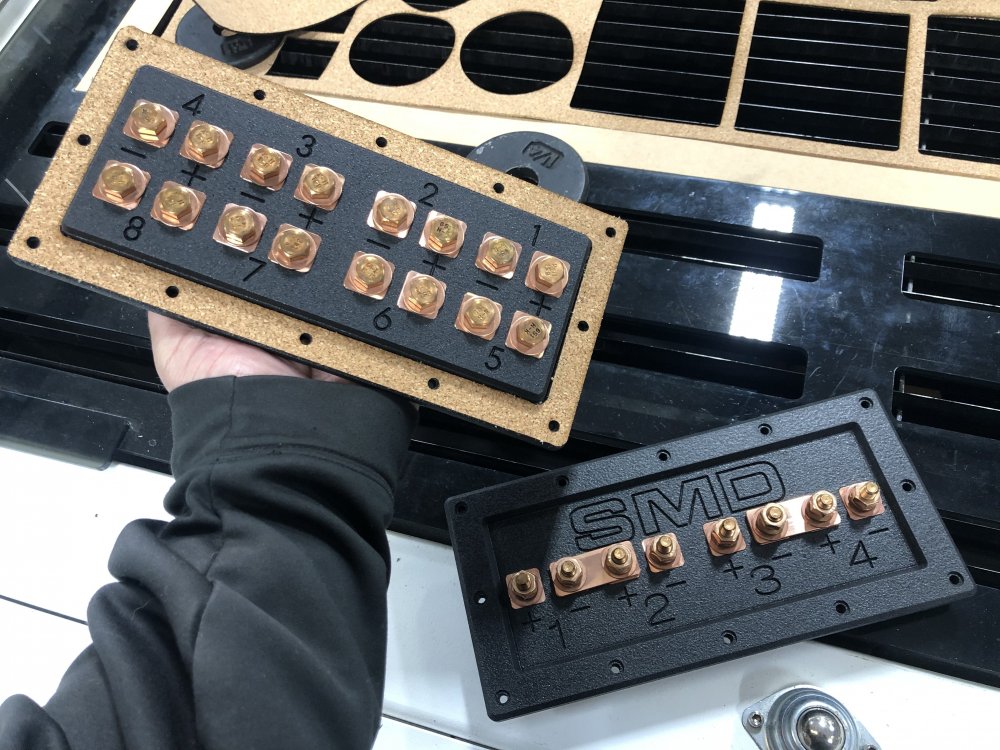

new laser cut cork gaskets work great!
