Need blueprints for simple Wedge Box Dual 12

[Dragonware]

Can someone help me or point me to someone who can get me some blueprints to build my box.

Subs firing into the cabin. 2008 Ford Focus



2 x RE audio SEX reconned with PSI drop in kits. I was told a 27mm Xmax and potential to handle up to 1500rms dual 1ohm coils.

Powered by Hifonics Brx 2000.1D

Max width 38 height 14.5 using 3/4" wood

Please ask as im not sure what info you need to calculate the angle

I need a sealed box please  based on original speaker specs compact should be 1.75 cubes or 2 cubes optimal can i have both  plans ?
My original box was doubled baffled front and back. but thats because i had plexi glass windows on the back which I wont be having this time so not sure double back baffle is necessary.

Retention of trunk space is my main goal. Baby on the way Stroller please help guys cant loose my bass to a bugga-boo

[Dragonware]

also does a sealed box have to be double ballfed and use 3/4 inch mdf or will half inch be ok ?

[Joe X]

So here is something 2 cubes net, I wouldn't recommend something smaller, the figure shows a double layer baffle, you could just do a single layer and add front to back bracing. if you need something smaller / slanted baffle it could be done but I think this is simpler to build see if works for you like this.

NOTE: If building outside you need to build a cardboard dummy box to test fit in it's way inside.







[Dragonware]

2 hours ago, Joe X said:

So here is something 2 cubes net, I wouldn't recommend something smaller, the figure shows a double layer baffle, you could just do a single layer and add front to back bracing. if you need something smaller / slanted baffle it could be done but I think this is simpler to build see if works for you like this.

NOTE: If building outside you need to build a cardboard dummy box to test fit in it's way inside.

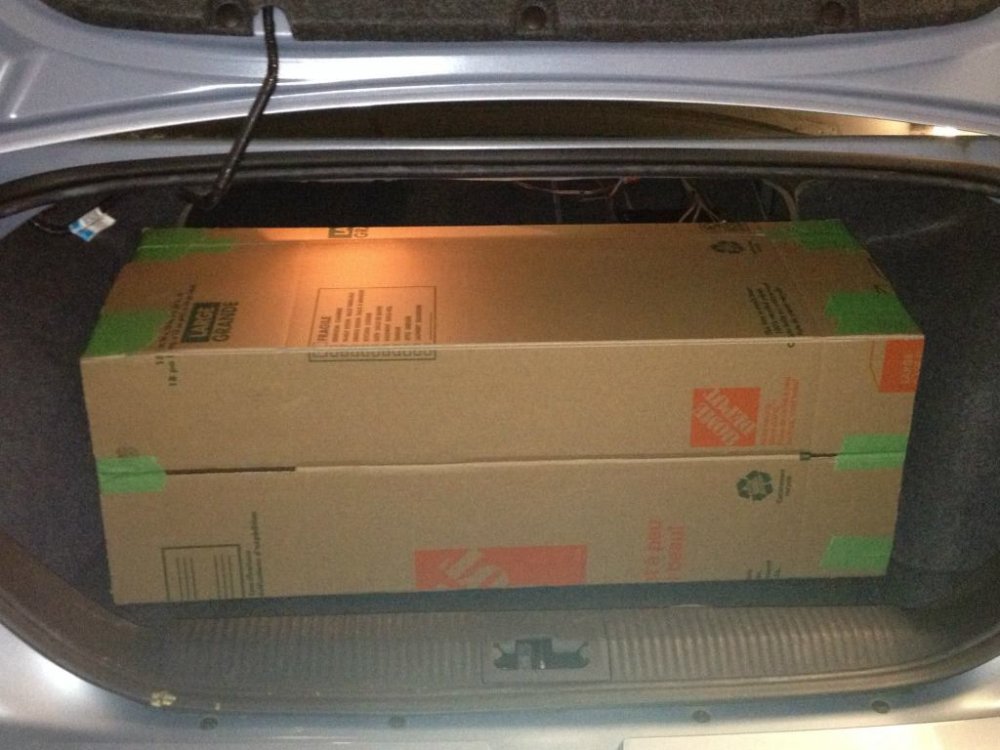

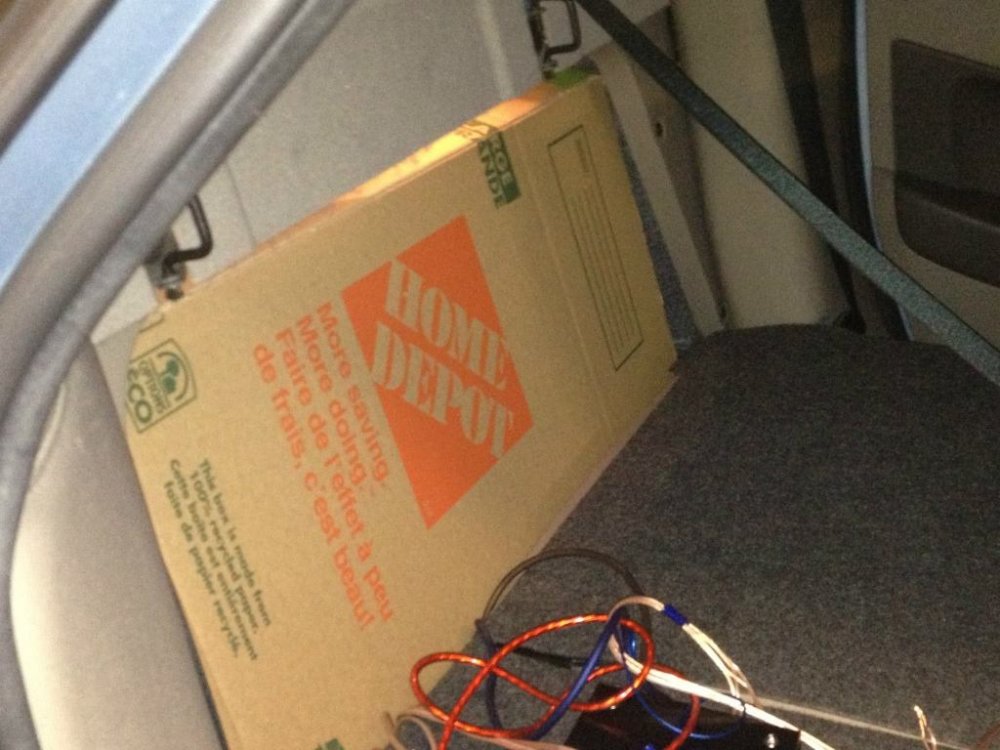

I really appreciate this bro , below is the original box its  flush to my back seat  so i thought this would give me a little more vol internally. but you are right its much easier to construct. Speaker displacement is 0.15 if this matters.

[Dragonware]

2 hours ago, Joe X said:

NOTE: If building outside you need to build a cardboard dummy box to test fit in it's way inside.



Thats how i did it the last time. . If you wouldnt mind sending me a cut sheet and diagram for a slanted box also i would not mind give you something for your time.

[Joe X]

So here is the slanted version:

Enclosure Specifications:

Vb = 2 ft^3

External Height = 14.5 in
External Width = 38 in
External Depth = 13.75 in   66.7 deg.
External Depth2 = 7.5 in  66.7 deg.

* All Dimensions in Inches.
* Wood Thickness is  3/4 for all Parts.



[Dragonware]

Correct me if im wrong but thank you so much bro.

Top: 38 x 5.25  23.3 degrees

bottom : 38 x 11.5 23.3 degrees

back: 38 x 14.5

sides : 13 x 5.25 x11.5  (h x top- d1 x base d2 )

front 1 & 2 : 38 x 15 3/16  66.7 degrees

2 hours ago, Joe X said:

So here is the slanted version:

Enclosure Specifications:

Vb = 2 ft^3

External Height = 14.5 in
External Width = 38 in
External Depth = 13.75 in   66.7 deg.
External Depth2 = 7.5 in  66.7 deg.

* All Dimensions in Inches.
* Wood Thickness is  3/4 for all Parts.



[Joe X]

Here's a little more detail:





Of course every part except for the sides are 38" wide.

[Dragonware]

On 05/11/2017 at 5:42 PM, Joe X said:

Here's a little more detail:





Of course every part except for the sides are 38" wide.

Thanks joe . Should i add a 3rd side panel to the middle to make this 2 separate chambers would this affect internal volume ? I have scrap 1/2"  wood

[Dragonware]

On 11/5/2017 at 5:42 PM, Joe X said:

Here's a little more detail:





Of course every part except for the sides are 38" wide.

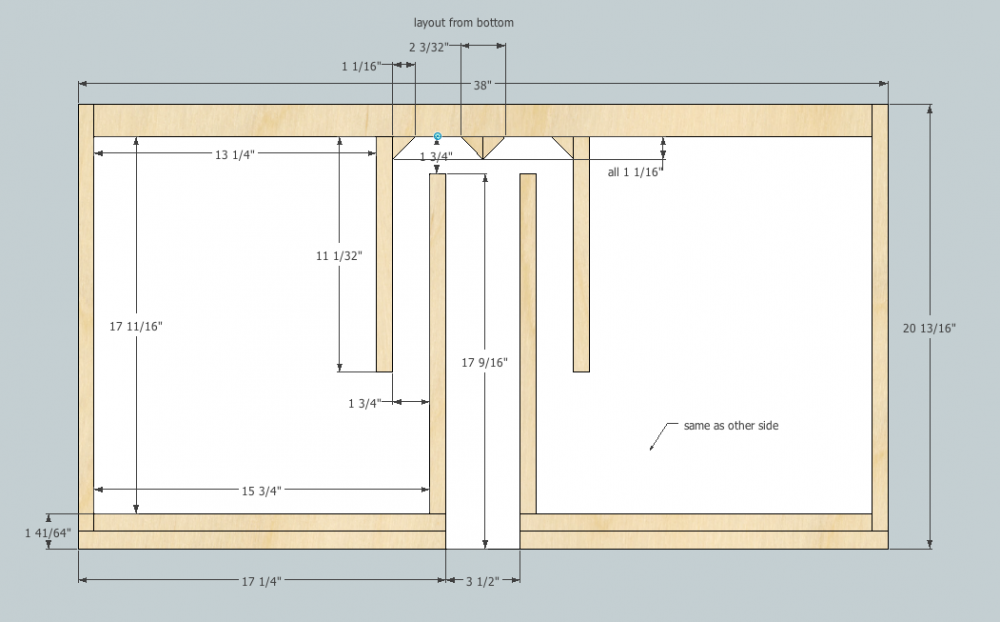

Hey Joe would you be willing to help me out with another design similar to this one just to fit under a seat down fire. ported  ?

 Possibly having the port external to save on internal displacement.
