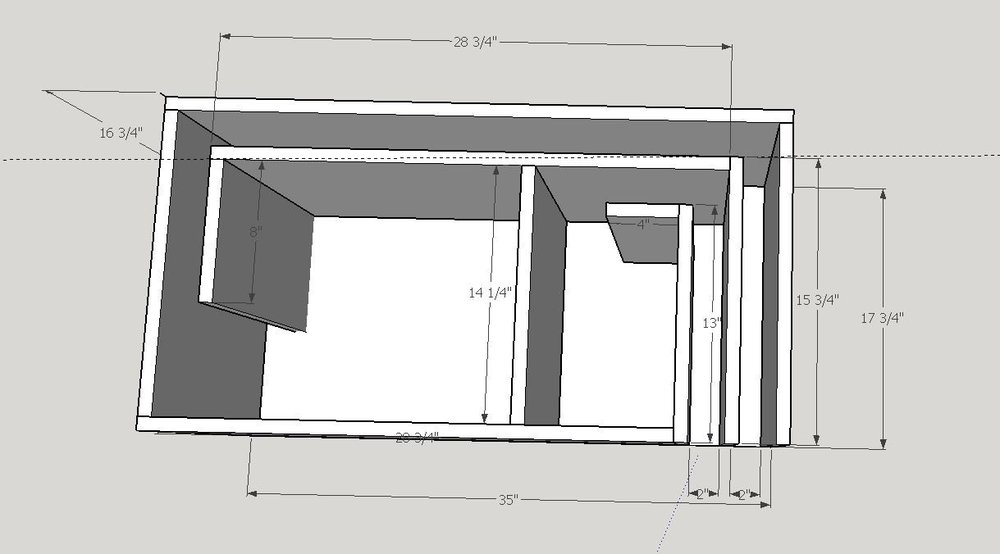

Izzy Posted August 11, 2019 Report Posted August 11, 2019 Hey guys, I've been doing alot of research here and other websites and can't really seem to find a single parallel 6th order design for a ZV4 10" Sundown Subwoofer. I did some reading and ended up making a design and would like to get your input on it. The program i used is WINISD. I did a 2:1 ratio with the lower chamber being tuned to 30Hz and the upper chamber to 60Hz. The available space in my vehicle is Width: 35" Depth18.5 Height: 16.75". I have attached a snapshot of the build from sketchup with the dimensions. I would really like to know if this would work or if adjustments needs to be made. Cheers!
White Lightning Posted August 11, 2019 Report Posted August 11, 2019 Where do you think this will benefit you over simple ported and tuned ??? Kenwood / HELIX / Linear Power (For The Love Of Music) / Brutal Sounds / OverKill Electric Co Questions About Sound Quality ?? Try Here ... Sound Quality, What does it REALLY mean ?? SMD SOTM Winner "White Lightning" 1997 GMT400 Chevy Silverado "The Green Dickle" 1994 GMT400 Chevy "Phantom Dually" Randal's 2007 Chevy Avalanche (we haven't named this one yet) Dylan's "Brutal" 17 Chevy Cruze RS Hatch
Izzy Posted August 11, 2019 Author Report Posted August 11, 2019 Want to try something new. I've heard bandpass enclosures, and they sound really good.
White Lightning Posted August 11, 2019 Report Posted August 11, 2019 1 minute ago, Izzy said: Want to try something new. I've heard bandpass enclosures, and they sound really good. Build it and try it out. Come back and give us a review. Kenwood / HELIX / Linear Power (For The Love Of Music) / Brutal Sounds / OverKill Electric Co Questions About Sound Quality ?? Try Here ... Sound Quality, What does it REALLY mean ?? SMD SOTM Winner "White Lightning" 1997 GMT400 Chevy Silverado "The Green Dickle" 1994 GMT400 Chevy "Phantom Dually" Randal's 2007 Chevy Avalanche (we haven't named this one yet) Dylan's "Brutal" 17 Chevy Cruze RS Hatch
Izzy Posted August 11, 2019 Author Report Posted August 11, 2019 I would like to build it and try it, but on a budget as well, so before i do, i would like to know if i should be aware of anything or if i missed anything with this.
Triticum Agricolam Posted August 11, 2019 Report Posted August 11, 2019 Looks like you did a pretty good job, especially on your first try. Laying out 6th order bandpass boxes is a lot more hassle than just a ported box. Here are a couple things to think about. What were you getting in WinISD for port velocity numbers with the amount of power you are going to be running? I assume the plan is to mount the sub from the low chamber side? If so, keep in mind this will increase the volume on your high chamber side, not only because of the cutout in the baffle, but because of the volume inside the cone of the subwoofer, its more than you would think. The inside end of the high chamber port looks to be close enough to the baffle that it may shift tuning slightly. "Nothing prevents people from knowing the truth more than the belief they already know it.""Making bass is easy, making music is the hard part."Builds:

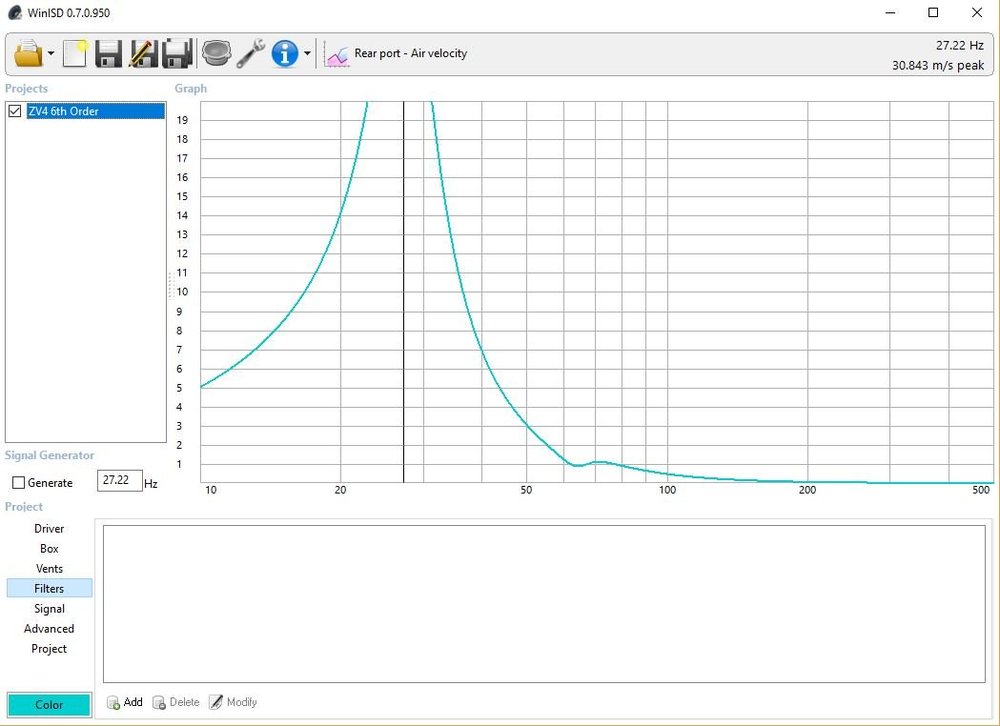

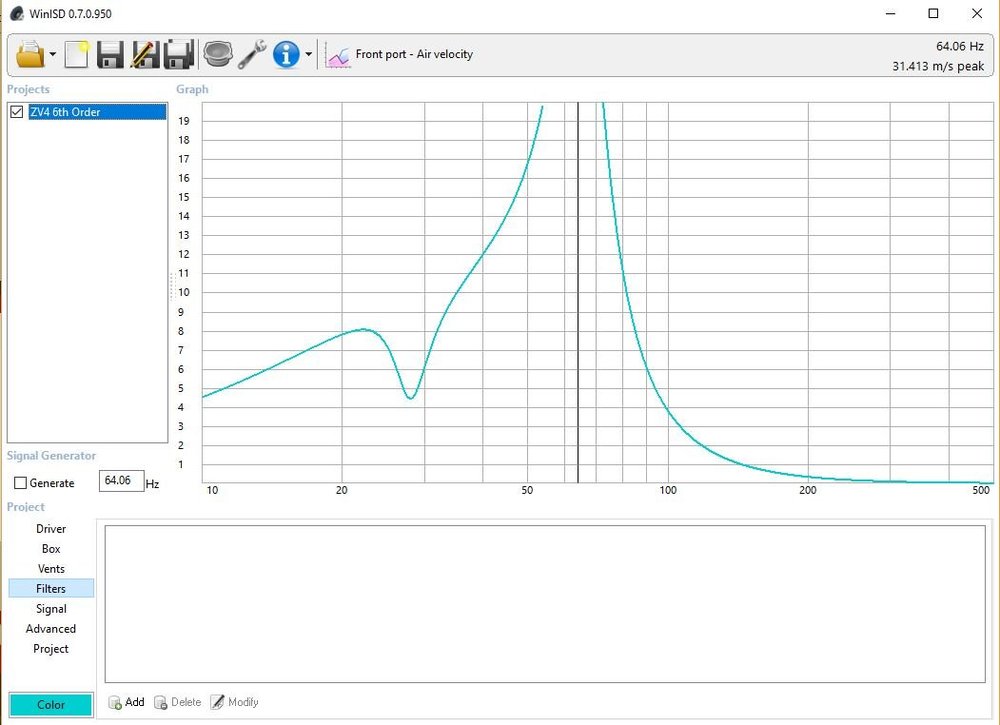

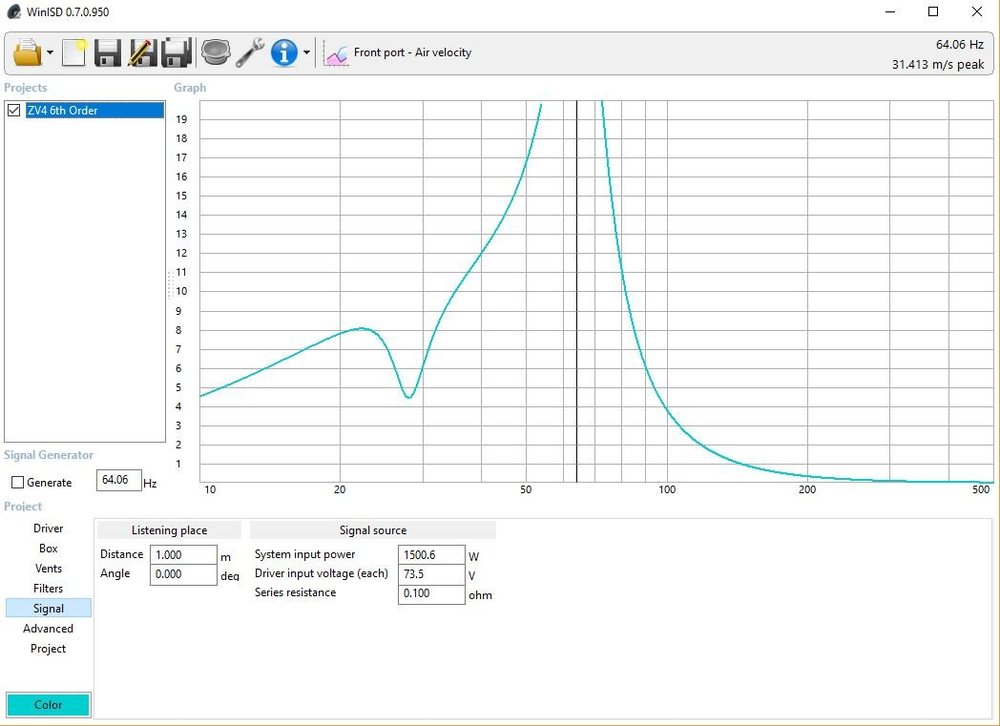

Izzy Posted August 11, 2019 Author Report Posted August 11, 2019 I have attached what i was getting for port velocity with WINISD with around 1500w. I have 4 inches from the baffle to the end of the port on the high chamber. I wanted to decrease this but i'm not sure how far these high roll surround will get without hitting the end of the port. Sub will be mounted from the rear side.
Izzy Posted August 14, 2019 Author Report Posted August 14, 2019 guys, what kind of space would i need to mount this subwoofer ? should i mount it from the front or from the top ?
