So i have an older Python alarm / remote start I think its a 5906 or 5606P ? Anyway had a bad mishappy the wiring harness got caught in the steering intermediet shaft cutting wires

I have been rewiring the left side of the dash sure to the puff of smokes that that puffed up. anyway i got everything working but the remote start.

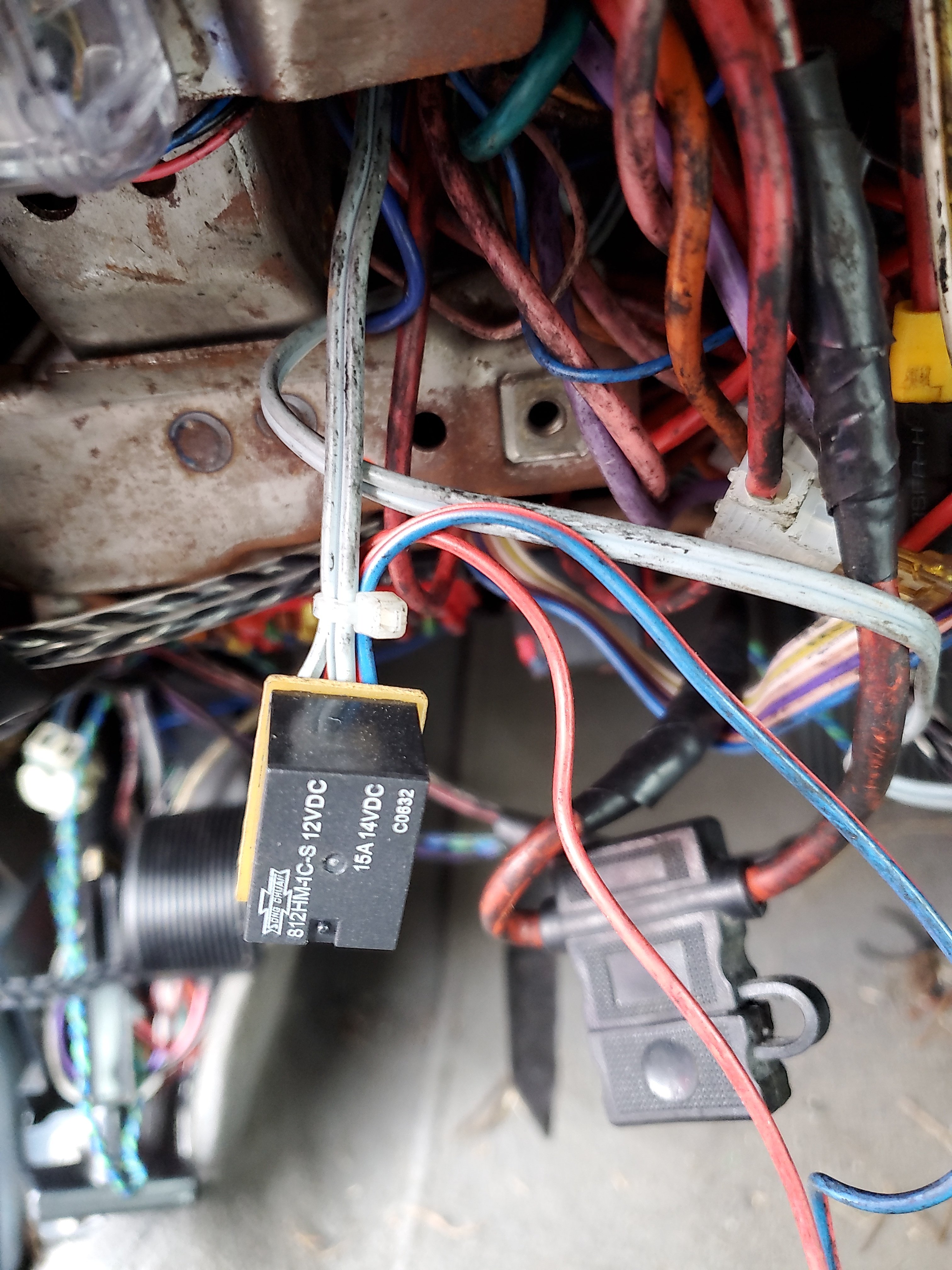

so it will crank but wont stay running, till i find this  board level soldered relay ? I have attached the picturee so after figuring out that this was the wires that is placed around the Key cylinder what i cant figure out is what do  you connect the red and the red/blue wire. I am guessing that the red +12/batt and the red/blue is +12 ignition on??

can anyone help me with this.

the Vehicle is a 2001 Lincoln Town car.

thanks for the help in advance.



Ric



starter relay.jpg

Link to comment
Share on other sites

15 hours ago, slowfkncar said:

Red - 12v  (1A fuse)



Blue - negative (gnd) status output from alarm (grounded during remote start, usually a dark blue or blue from Brian)



thank you very much sir.

Link to comment
Share on other sites

  • 1 month later...

well finally getting time to mess with this, I cant seem to get it to  work and help stay running its a security issue, cause the PATS system on  FORScan showing a code for no key..

I am at a lost think i might have to rip it all out and start over .

Link to comment
Share on other sites

Take a read at that PDF below bro, could be a bad relay or someone might have hit the key limit (4) which wipes the last known key ID, also make sure nothing moved by the immobilizer ring.



It's a simple system, relay clicks on during RS command and sends the programmed code to the ring on the cylinder.



n555f.pdf

Link to comment
Share on other sites

11 hours ago, slowfkncar said:

Take a read at that PDF below bro, could be a bad relay or someone might have hit the key limit (4) which wipes the last known key ID, also make sure nothing moved by the immobilizer ring.



It's a simple system, relay clicks on during RS command and sends the programmed code to the ring on the cylinder.



n555f.pdf 243.67 kB · 0 downloads

Great!
