Jeep WJ JL Audio & Hertz Mille Legend Series 3 Way

[Joseph Chambers]

So I'm just starting my build for the 4th time. How many times have you just continued to iterate on the same vehicle? Haha! So everything now is ordered. Disclaimer: I am not building this myself. The shop EliteAudio EA is doing this for me.

To give you a taste of what's to come, this is the final product and oh boy does it sound amazing.






JL Audio RD400/4
CH1-2 - ML280.3
CH3-4 - ML700.3



JL Audio RD400/4 Bridged
200w RMS for each ML1800.3

JL Audio RD400/4 Bridged
200w RMS for each coaxial MPX165.3



JL Audio RD1500/1
For the 3 12TW3



This is how it's going to be wired:

Audio Control DM-810:
CH1-2 tweeters
CH3-4 mids
CH5-6 midbass
CH7-8 coaxials
CH9 (mono) - Subwoofer



Head Unit:
Pioneer DMH-Z5350BT

Front Stage:

Hertz ML 700.3 & Hertz ML 1800.3
- ML280.3, ML700.3, ML1800.3 Mille Legend Series 3 way

Mille Legend Series 3" midrange speakers and 7" woofers.

A Pillars:
Hertz ML 280.3
Mille Legend Series 1-3/8" tweeters

Rear Doors:

Hertz MPX 165.3 PRO
Mille PRO Series 6-1/2" 2-way car speakers

Amps:
JL Audio RD400/4
JL Audio RD400/4
JL Audio RD400/4
JL Audio RD1500/1

DSP:
AudioControl DM 810
- DM810

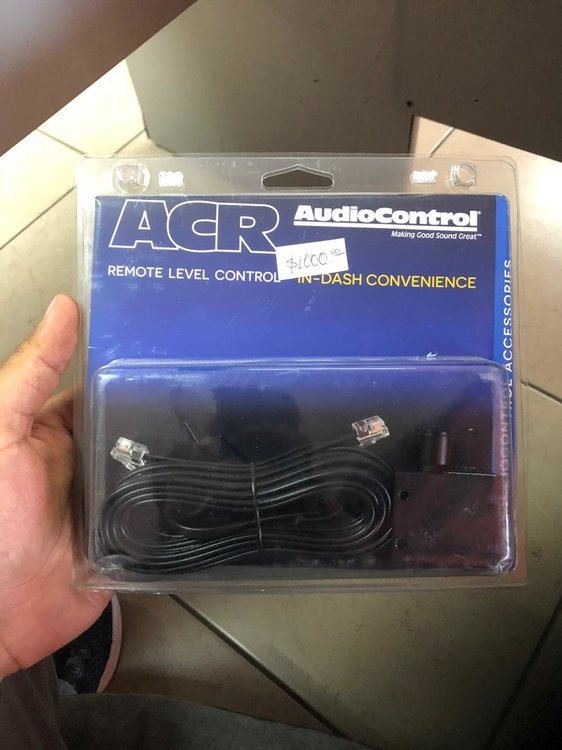

- ACR3

Rear subs:
 x3 JL Audio 12TW3



So this is going to be fun

[Joseph Chambers]

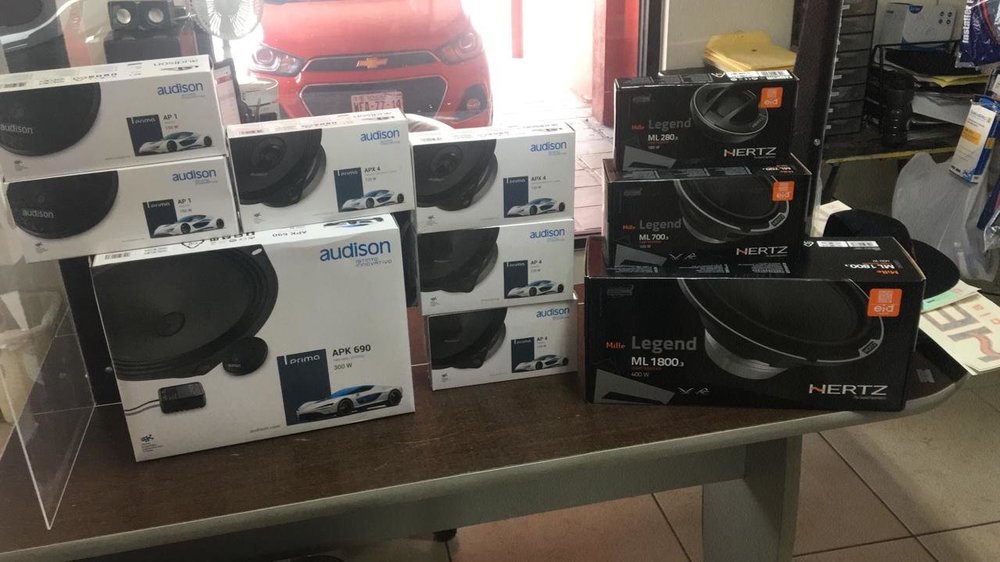

So this is the picture comment of everything as it arrives.








[BP1Fanatic]

This box is NASTY! Are you keeping it?



[Joseph Chambers]

On 7/30/2020 at 12:59 PM, BP1Fanatic said:

This box is NASTY! Are you keeping it?

Wow, that box was a beast.

tldr; I gave it away when I sold my subs.

Long story.

I remember paying $20.00 daily in gas, on my daily because of that box. I got rid of it maybe 3 or 4 years ago? I didn't keep it long. Maybe 3 months. I paid too much in gas. I wanted to go small on my, on my daily and got a some crescendo subs and amps.. but it just sit in a box. I redid my Doors and A Pillars after that box but never finished the full system, until maybe 2 months ago when I did a DSP, and sub, and amp rack.

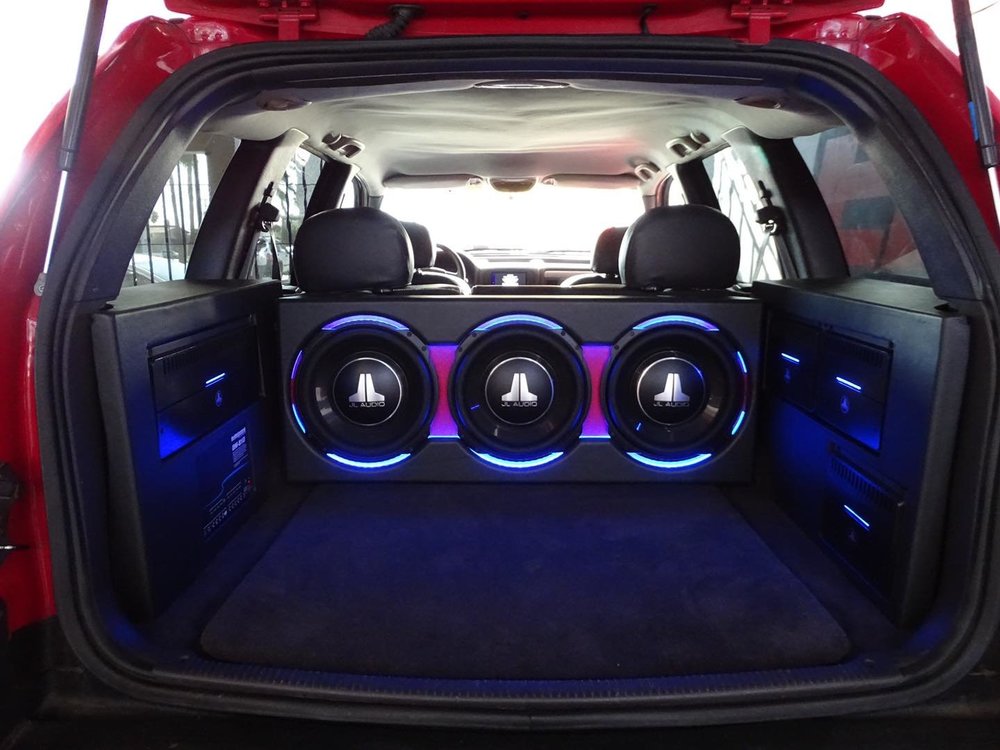

About a month ago I got a Pathfinder and kind of went all out on rebuilding my new system, on a system I just "completed" after a few years of nothing.

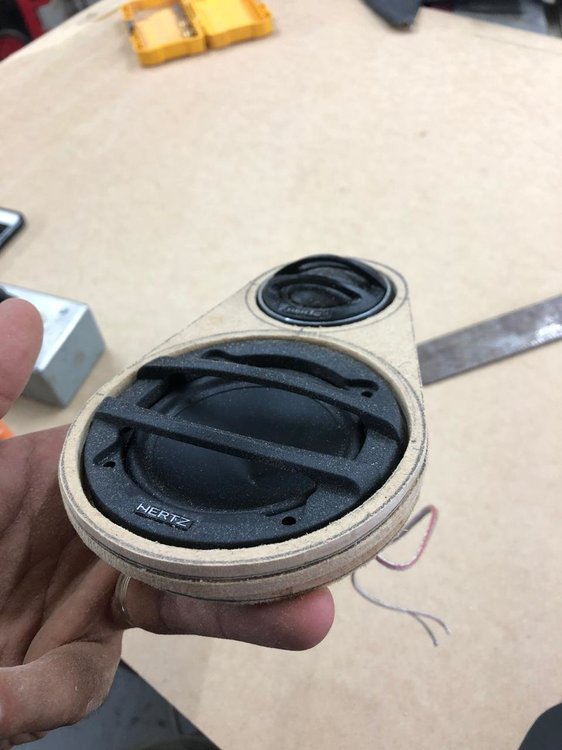

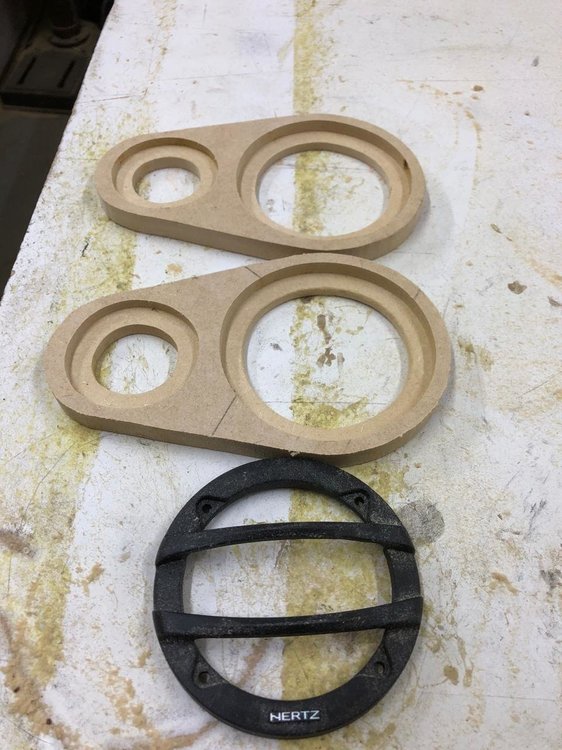

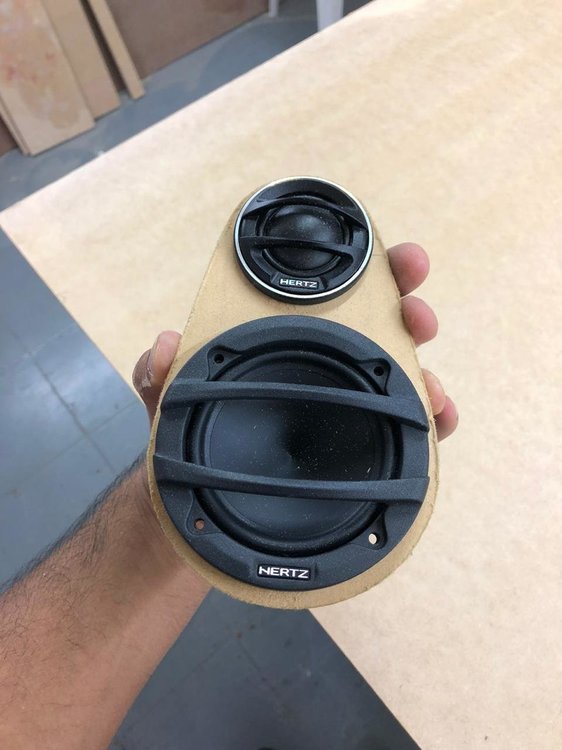

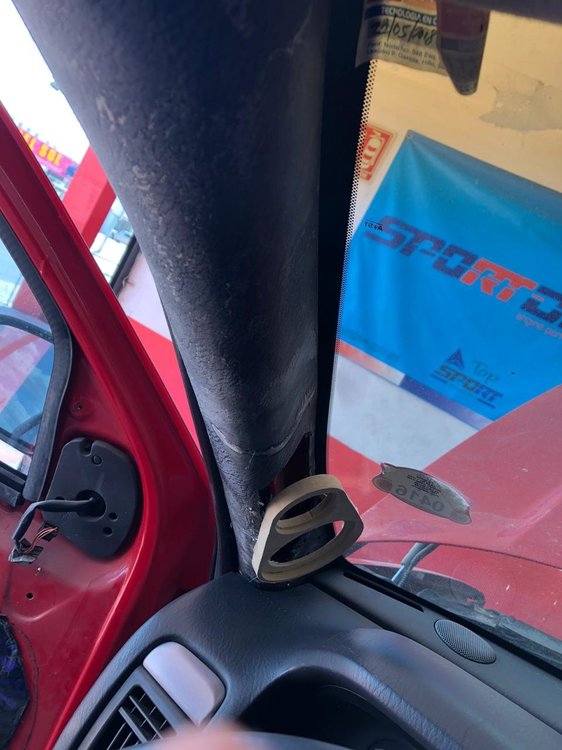

So this is where it sits today.. and here we go on this rebuild. Later, you will see pictures of everything getting removed from this. Down to the plastic and some CNC action going on.


[Joseph Chambers]

PLACEHOLDER. Somehow images got deleted from the server.

[Joseph Chambers]

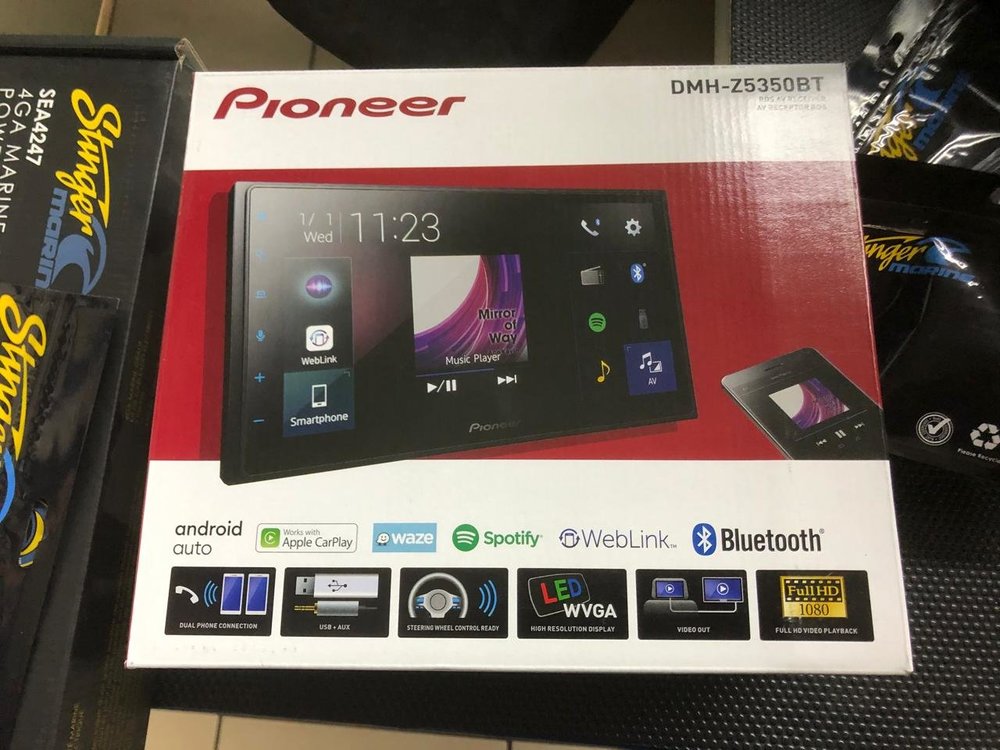

Head Unit is installed. Good bye Pioneer DEH-80PRS and hello Pioneer DMH-Z5350BT.

[MrSkippyJ]

Looking forward to seeing this done!

[Joseph Chambers]

So these are what was in it.

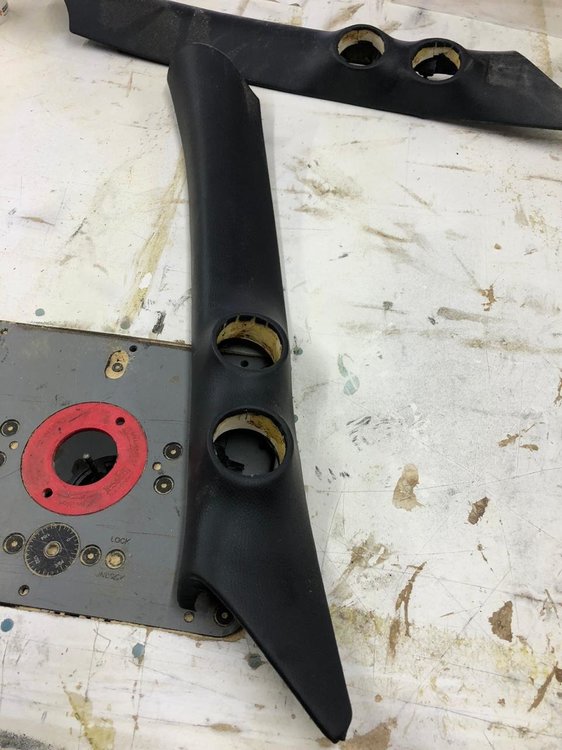

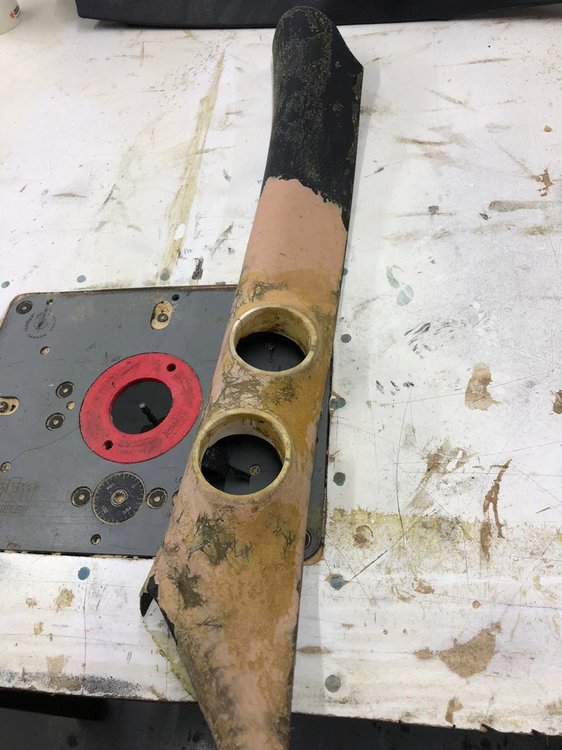

Broke it down, removing the vinyl


Let's get on with the new new.






Front to back right? haha.



[Joseph Chambers]

So the good news is that this looks good. However; there are some bad news.



Bad news:



and thats not going to work. So I guess this is the direction that's going to have to happen.



I'll keep you guys posted.

[Joseph Chambers]

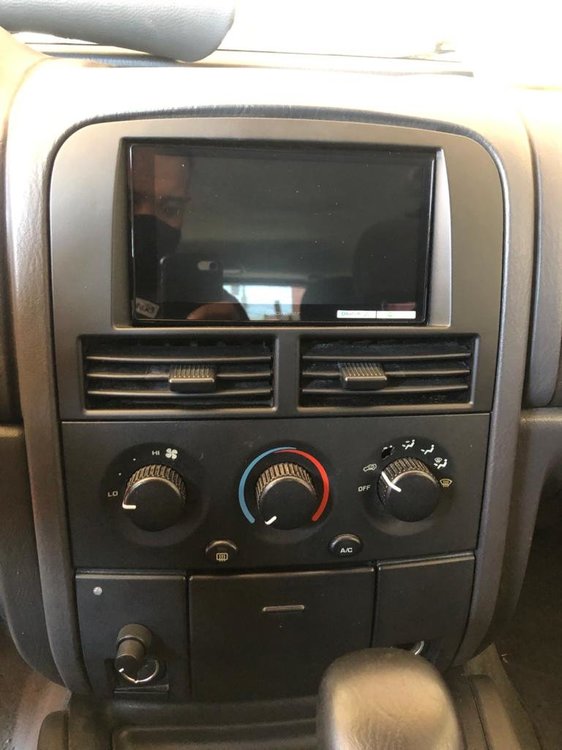

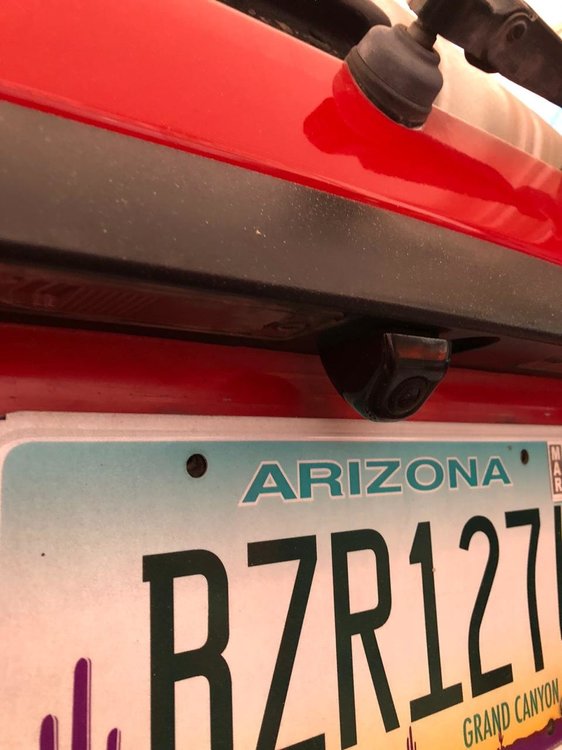

So update on some of the progress. The Double din is installed with a new reverse camera.

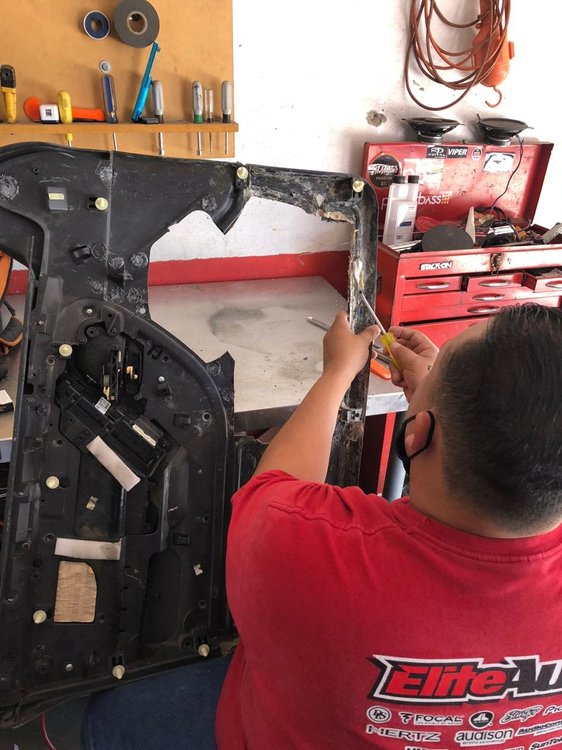

The front door panels, removed the previous work.



Working on the new amp racks, for the inside part. Not the beauty panel. While that's going on might as well do the front and rear bumber
