Seeing that this arc amp draws 470A at full tilt, I'm thinking of doing another run of 2/0. I've already got 2/0 power & dedicated 2/0 ground going all the way up front. I'm torn between switching that 2/0 ground to power & just grounding to the frame in the back. Orr buying another 2/0 power & ground to run up front... After reading a bunch, everyone's got conflicting ideas of chassis ground vs dedicated runs


Vehicle: 2002 Ford Escape

Electrical: 275A Singer, Northstar AGM220 & NSB-AGM31M

Head Unit: Apple iPad Hi-Res Passthrough

Speakers: {ACTIVE} - (4) JBL 660GTI 6.5", (2) JBL 660GTI Tweets

Sub Stage: Sundown NSV4 18" & (2) PSI PR's 18"

Amplifiers: ARC Audio 4000SE, RF T1000-4ad, RF T400-2

Processing: Helix DSP Pro W/ Dash Mounted Director

Share this post


Link to post
Share on other sites

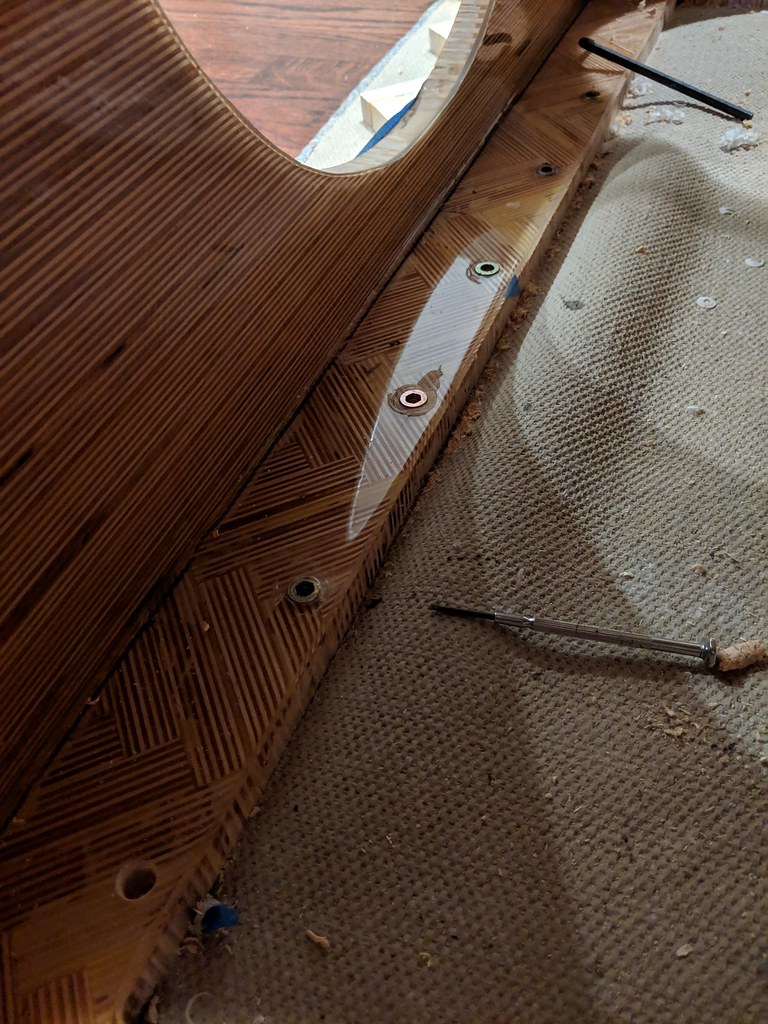

ahhh, so i had to cut the top! i really wish i was able to fit it in in one piece but no shot. Now theres 2 little 'wings' on the side, theyll eventually be leveled out and a nice coat of epoxy poured on top. I really dig the grain where the edge is routed too. also, waiting on a new flush trim bit to cut the top to match the curve of the single piece of wood, on the front
