meade916

2017 Ford F250 6.7 Superduty Build Project - Sound system, Front Doors Started - B2 Audio Reference Three Way's Custom Adapter Plate UPDATE 1/21/20 (page 6)

Recommended Posts

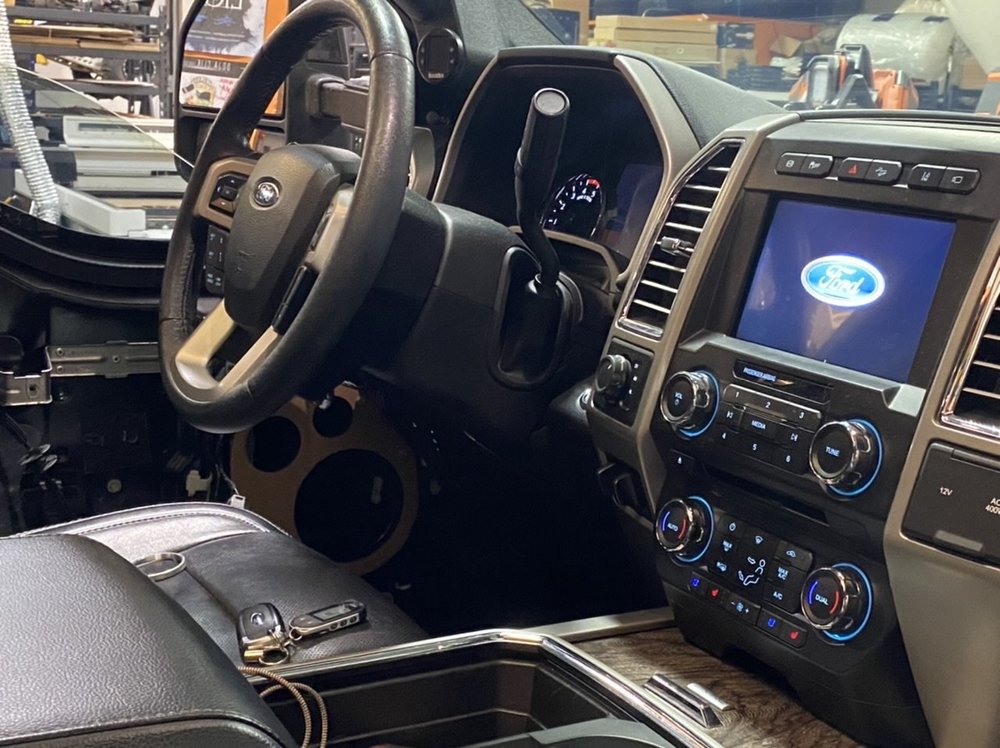

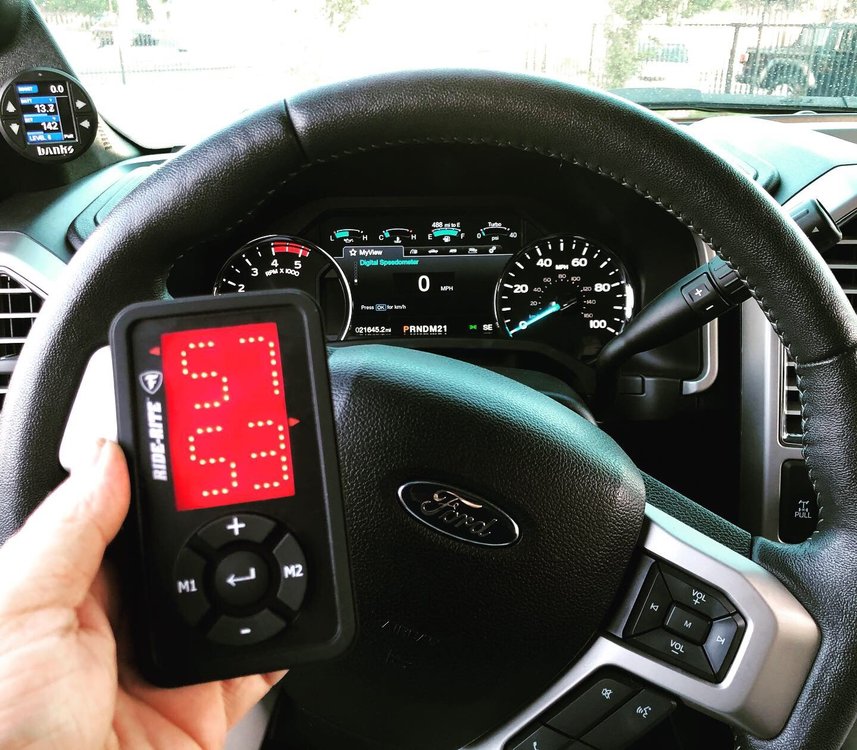

it works GREAT! look at the Banks gauge that i programmed as close as i could (no options for a 37”) I did a conversion on that one. Its just 1mph faster than the trucks cluster. Im positive the dash is the correct number 😎



All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites

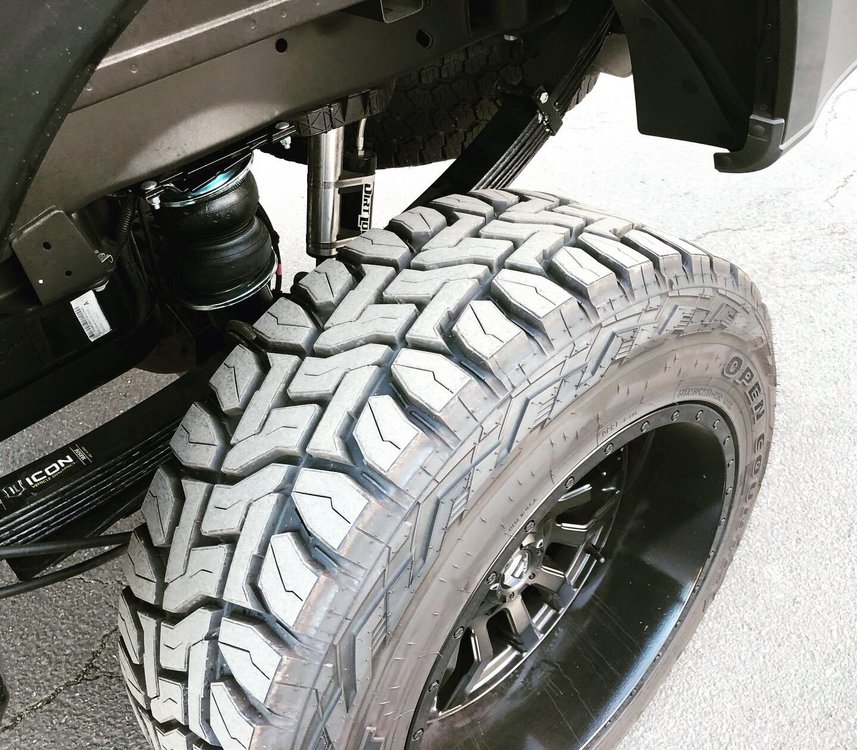

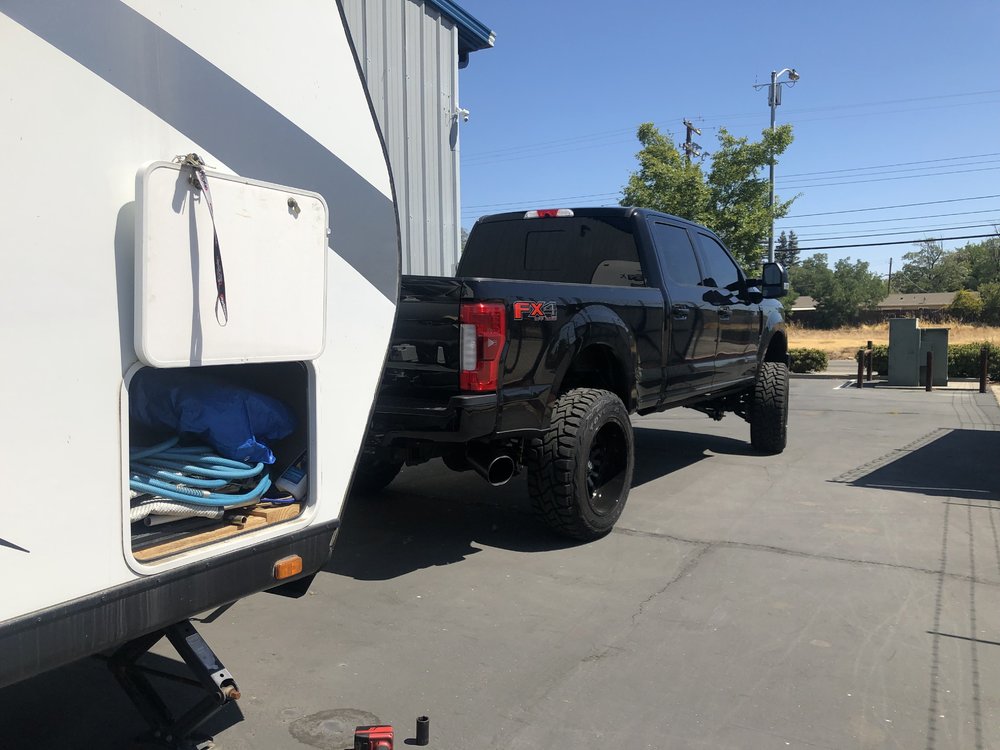

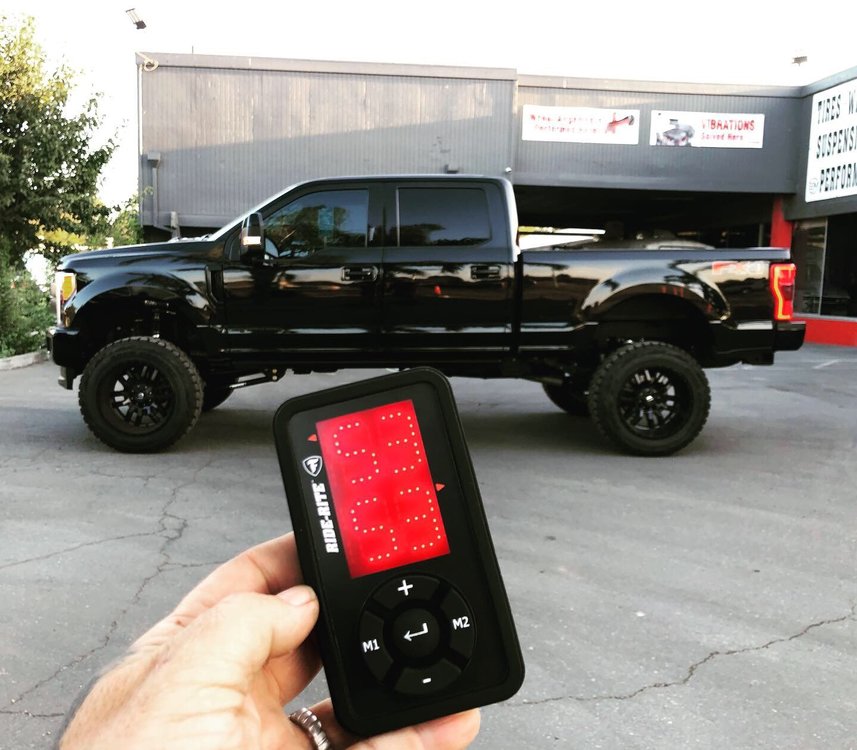

tried to drop the toy hauler on the truck and it made it sag too much. So i had to get some helper bags. I chose Firestone Ride Rite with air command remote.






All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites







All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites






All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites

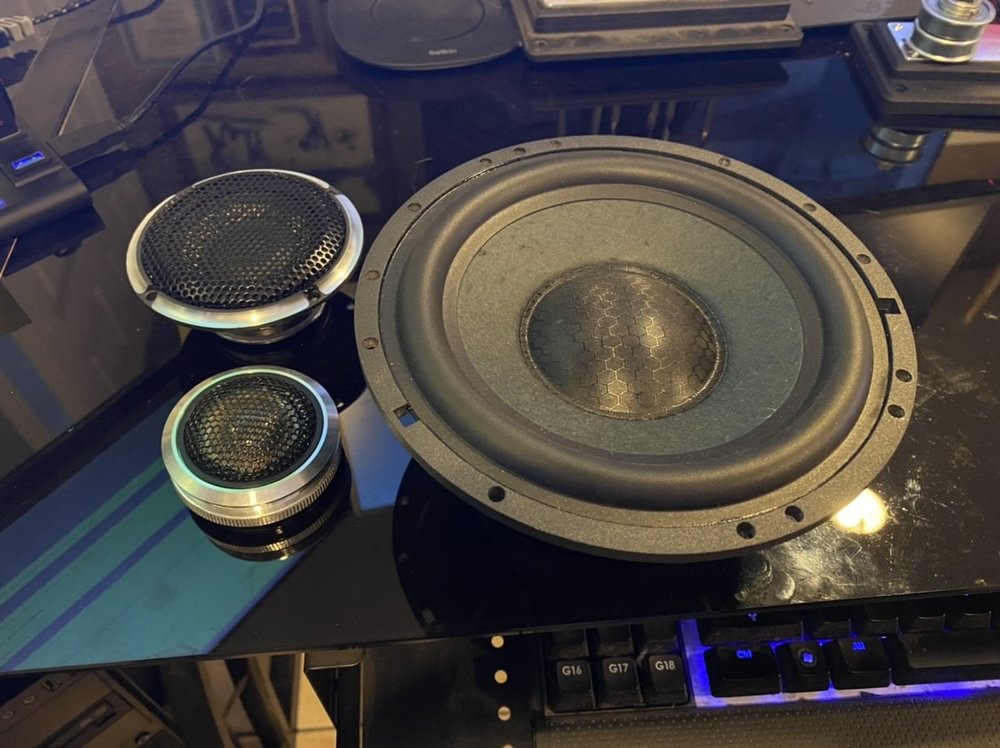

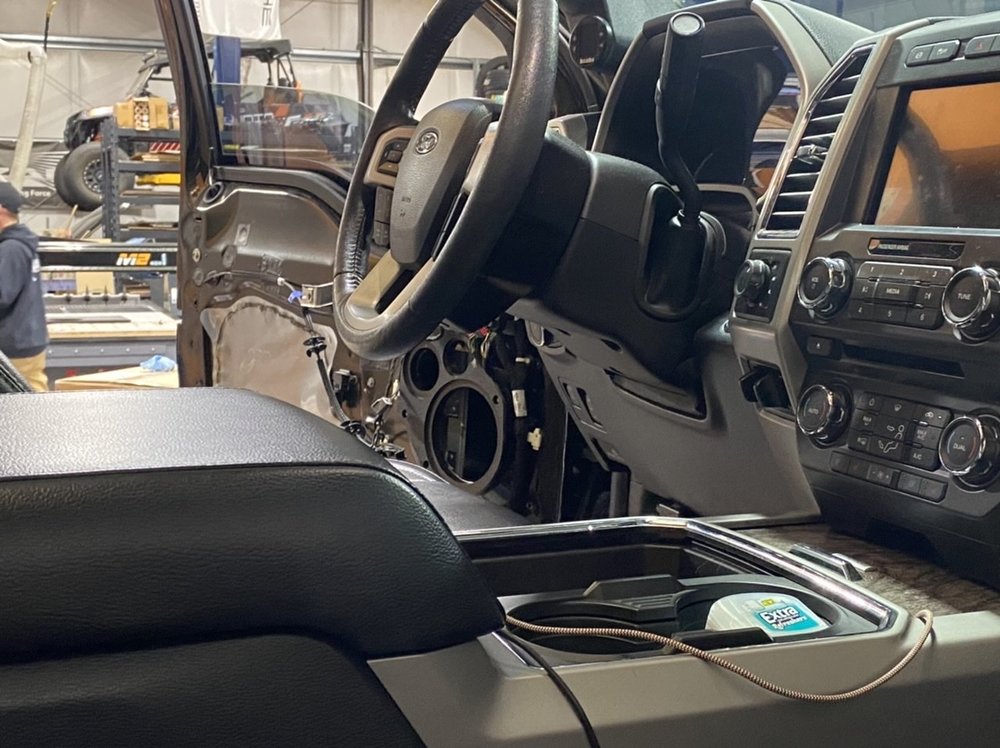

Time to start the door speakers FINALLY.

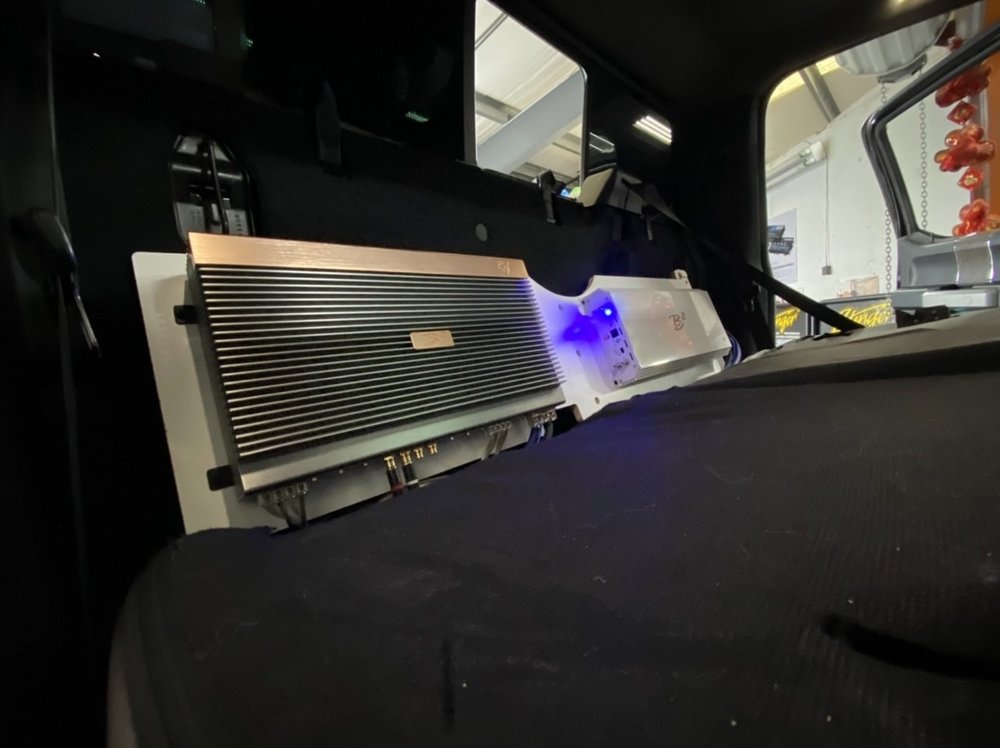

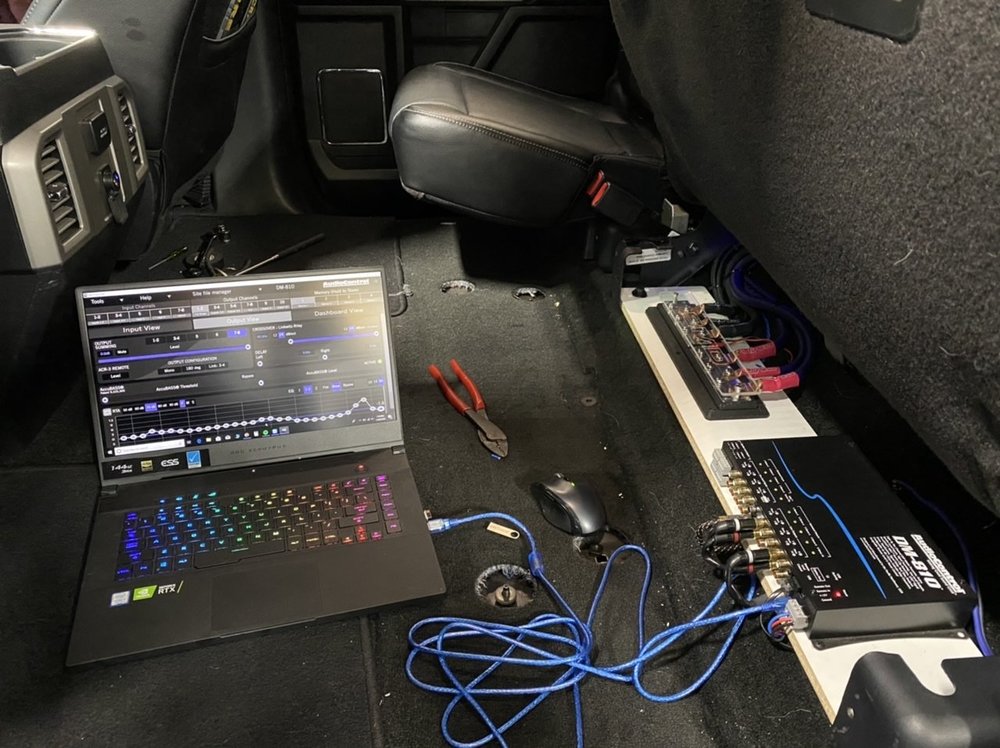

I am glad i thought ahead when i installed these amps a while back.  I made it easy to access the gains and switches etc by leaving enough slack to life the rack up and on to the seat. After i set everything up i will drop it all down in it's spot and bolt it down.

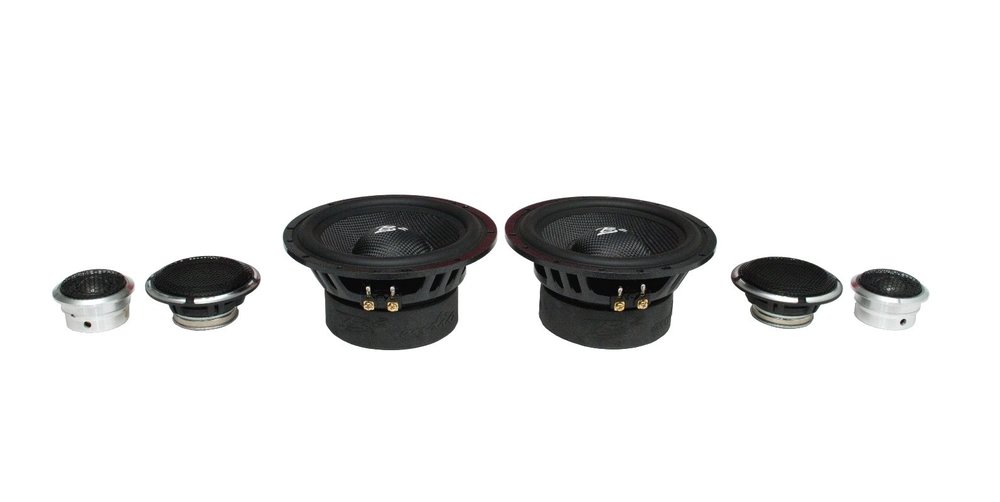

Shown: B2 Audio Reference Class A 4 Channel (Class A/B can be chosen with a switch) on the highs.

B2 Audio Rage 2500.1 on the subwoofers












just messing with the crossover settings.  No, that EQ is NOT what it is going to be. I was just moving it around to see if it made changes when i did so...and it did of course :D



Processing by: Audiocontrol DM810

Power Distribution by: SMD "Split block"

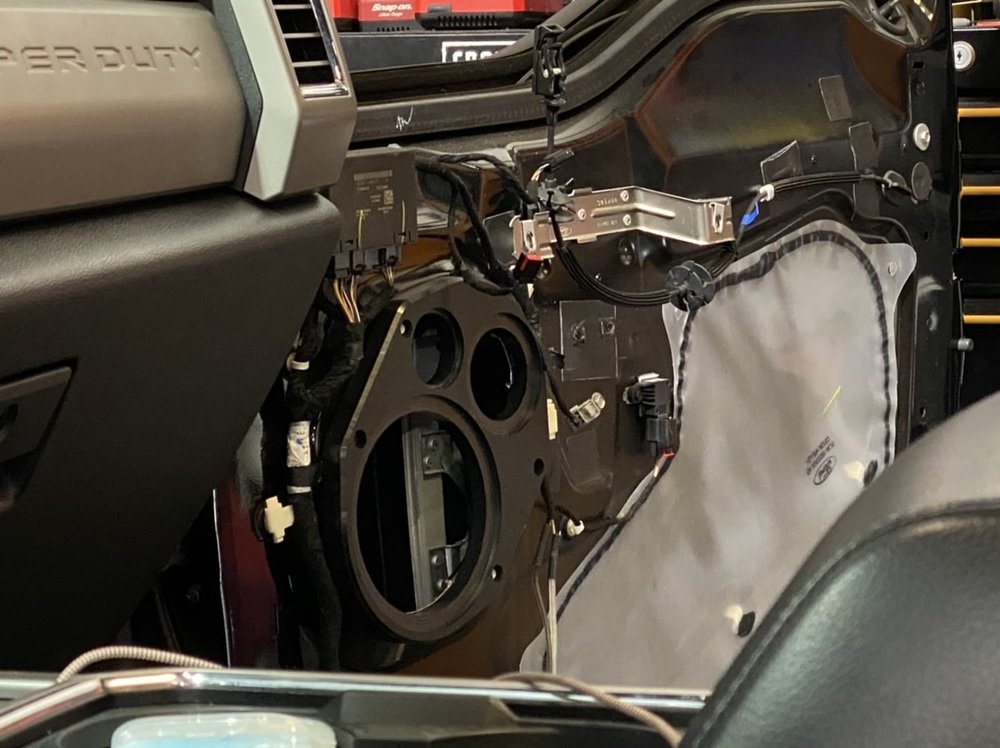

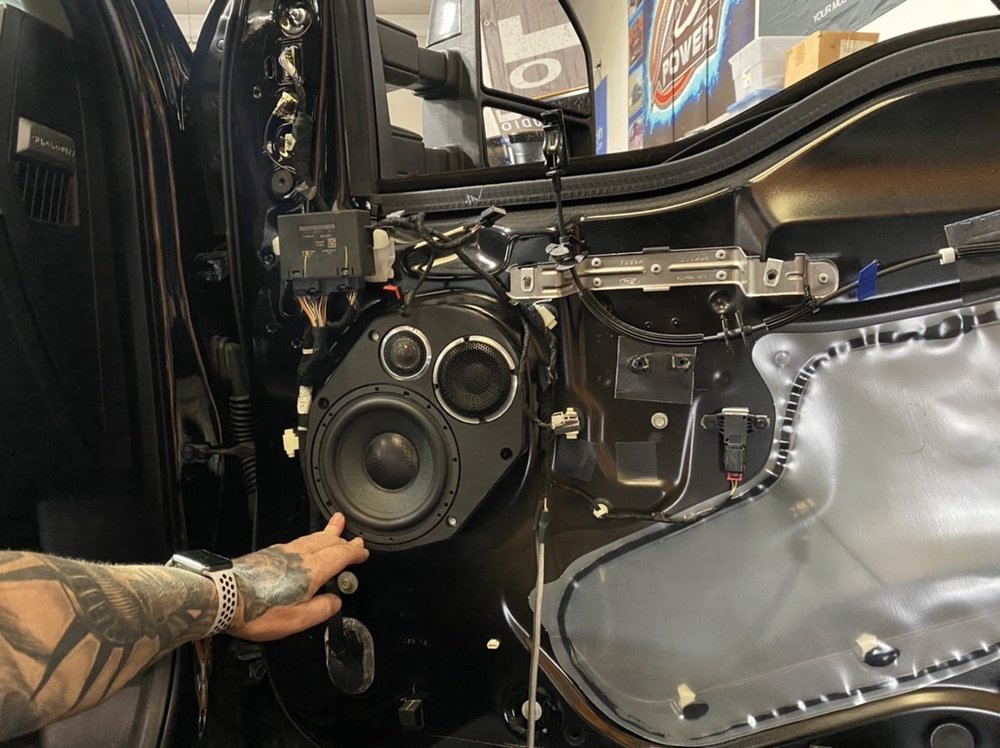

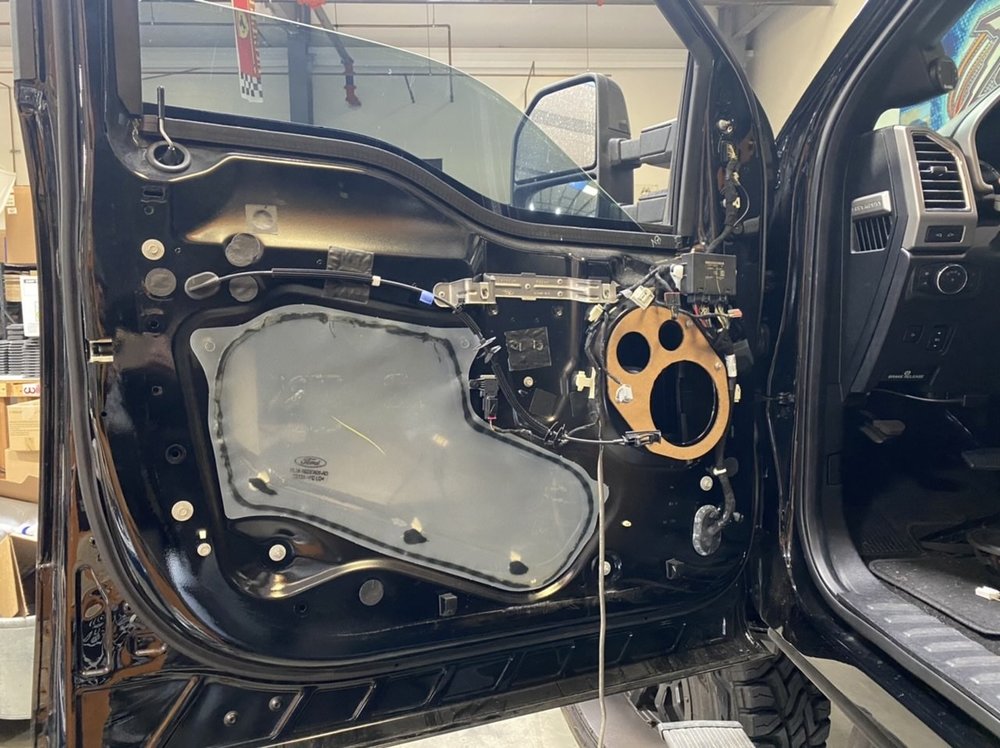

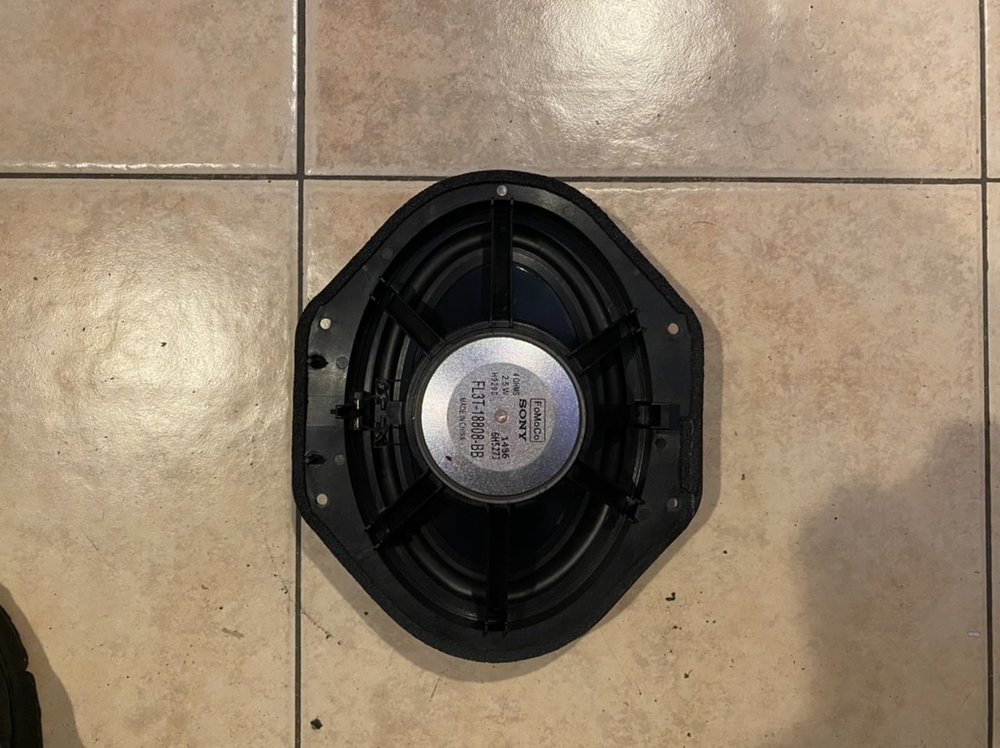

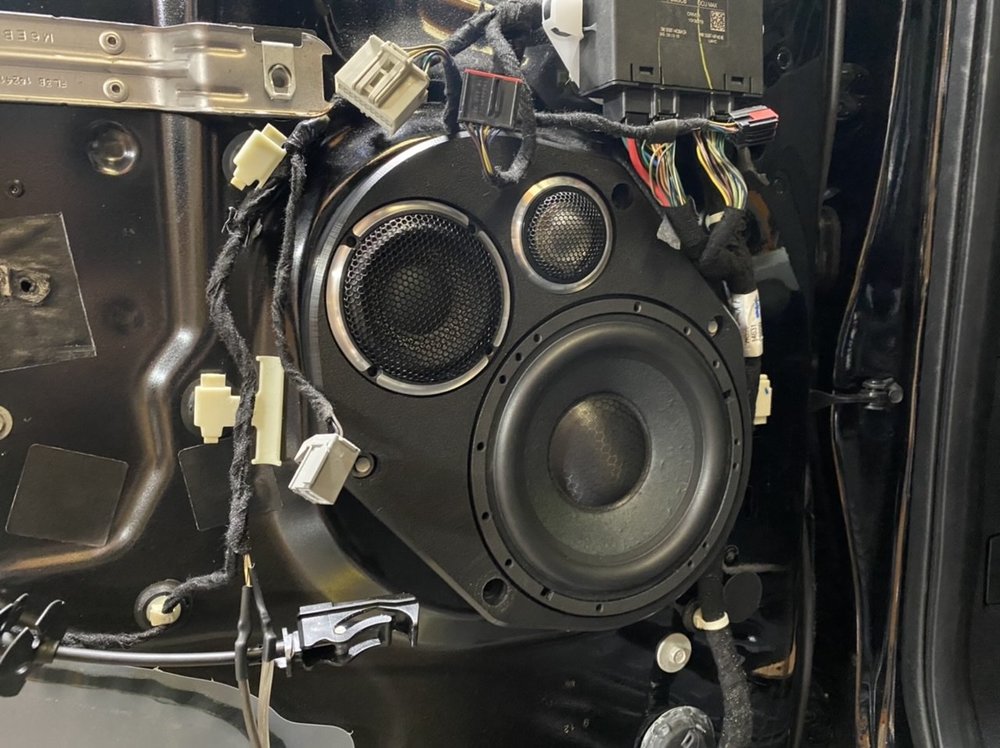

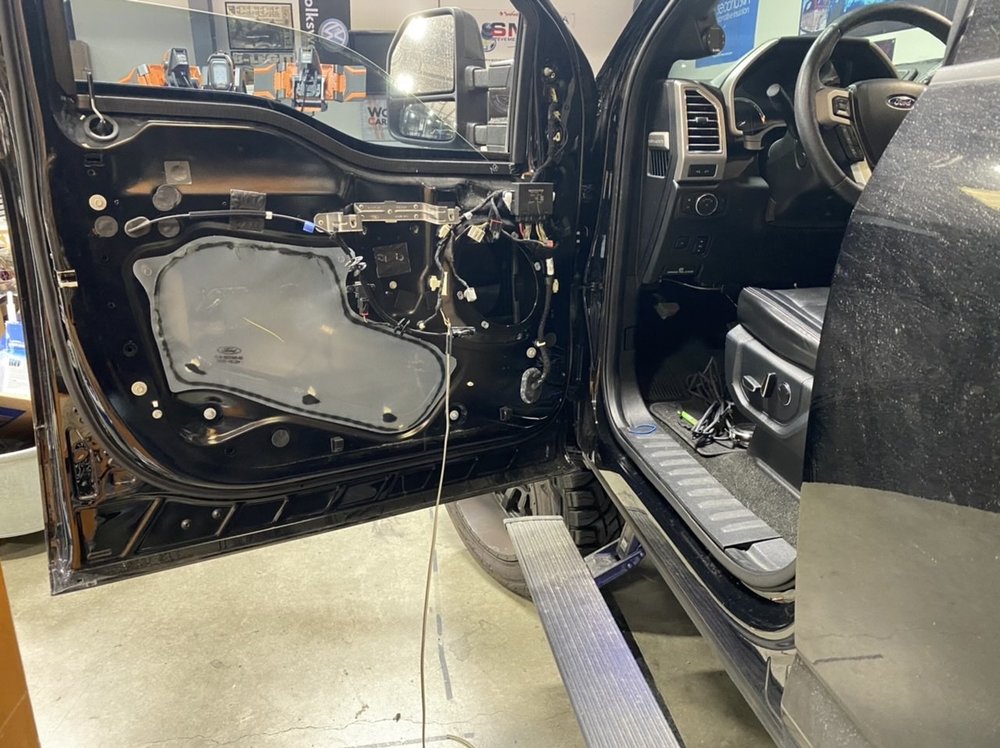

This is what was in the door.

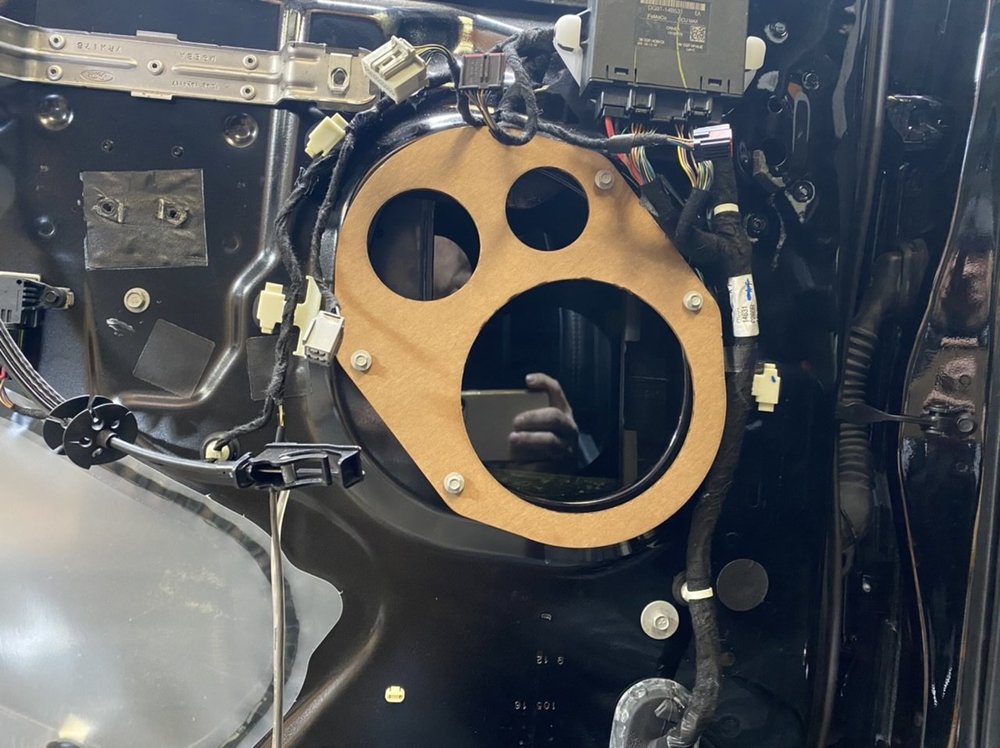

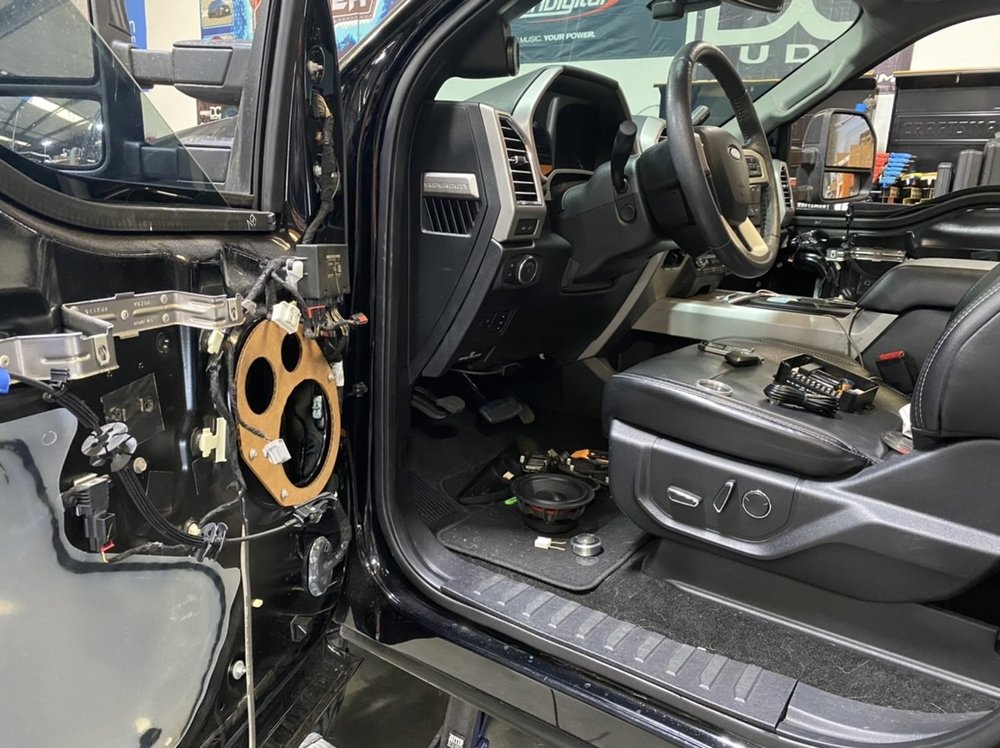

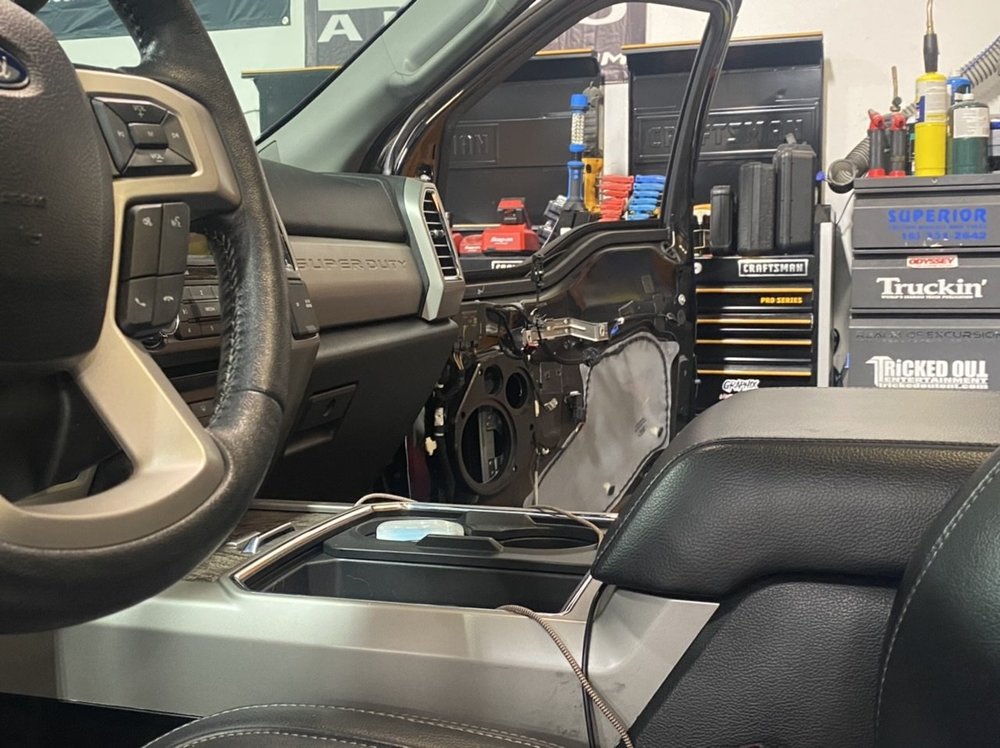

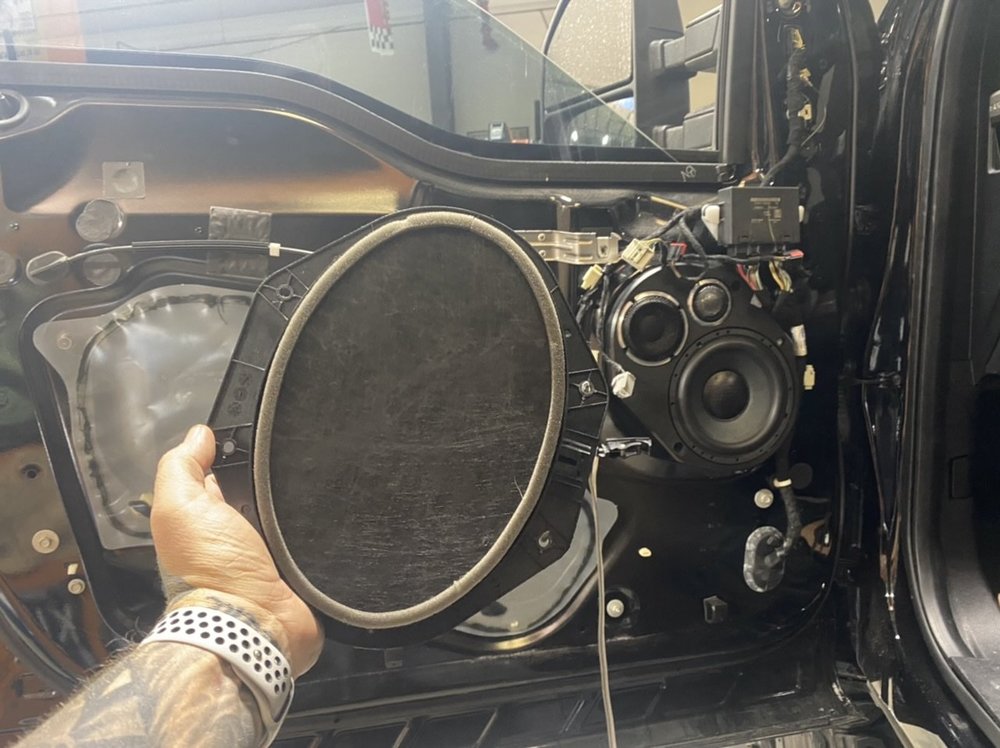

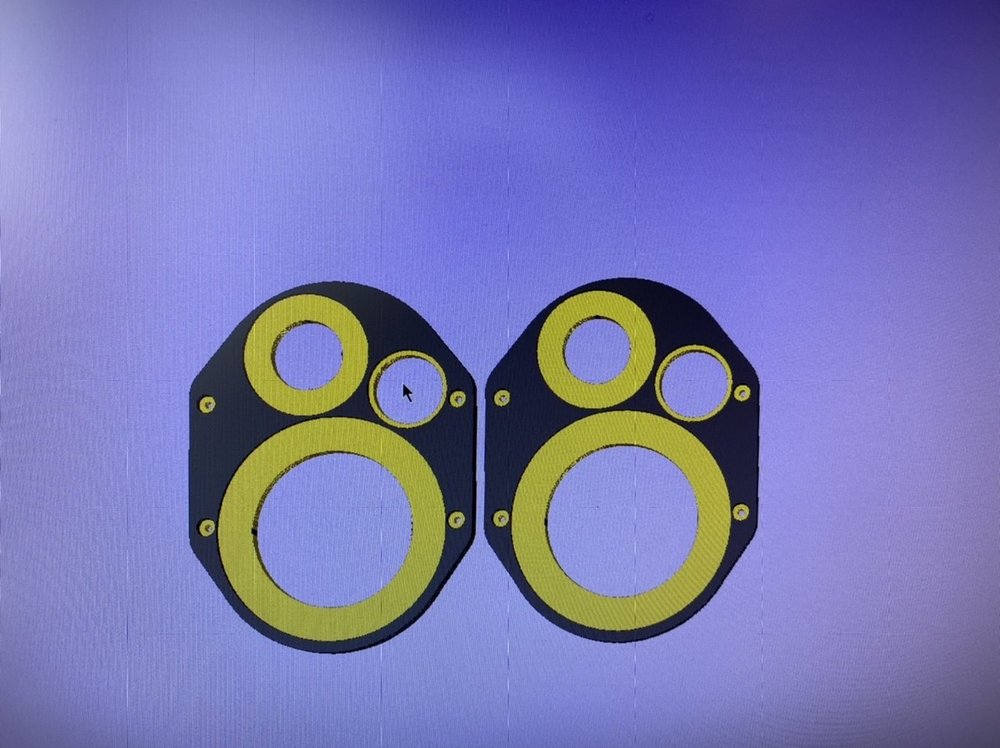

I used my laser and some cardboard to see if the basic shape and cutout holes would work. It seemed to work the first try! That's a first!





































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites

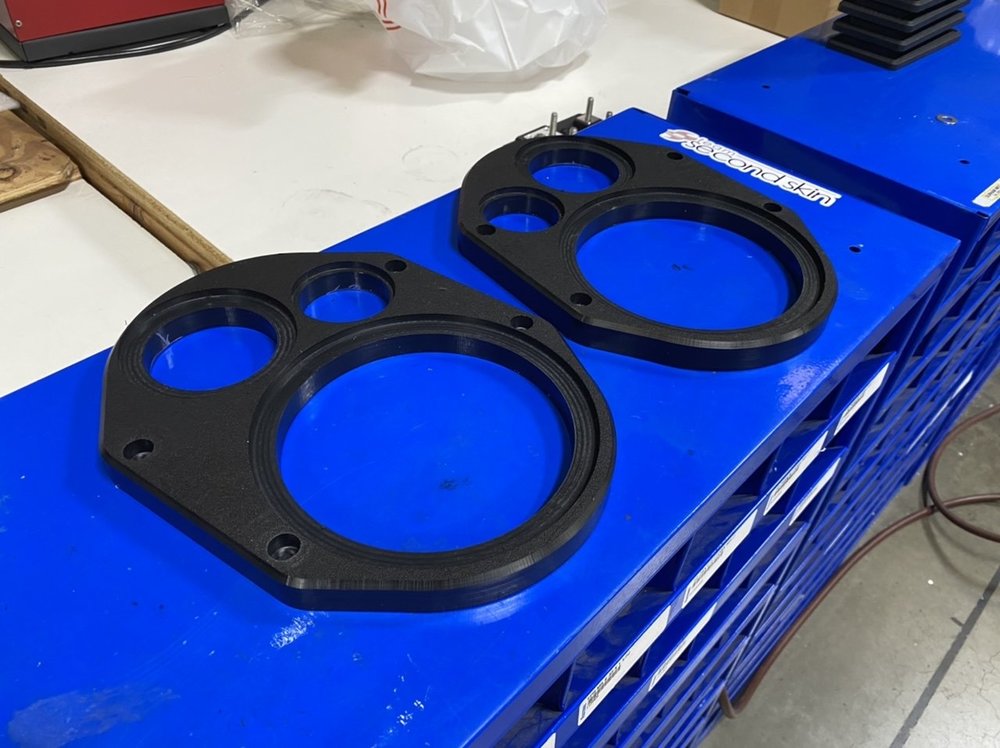

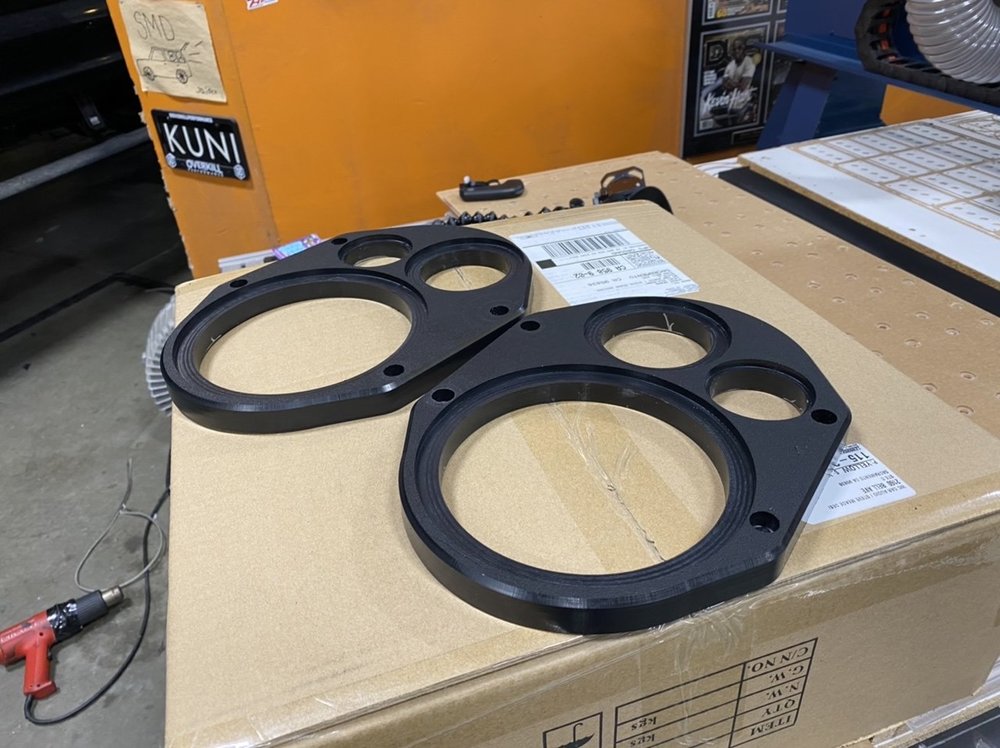

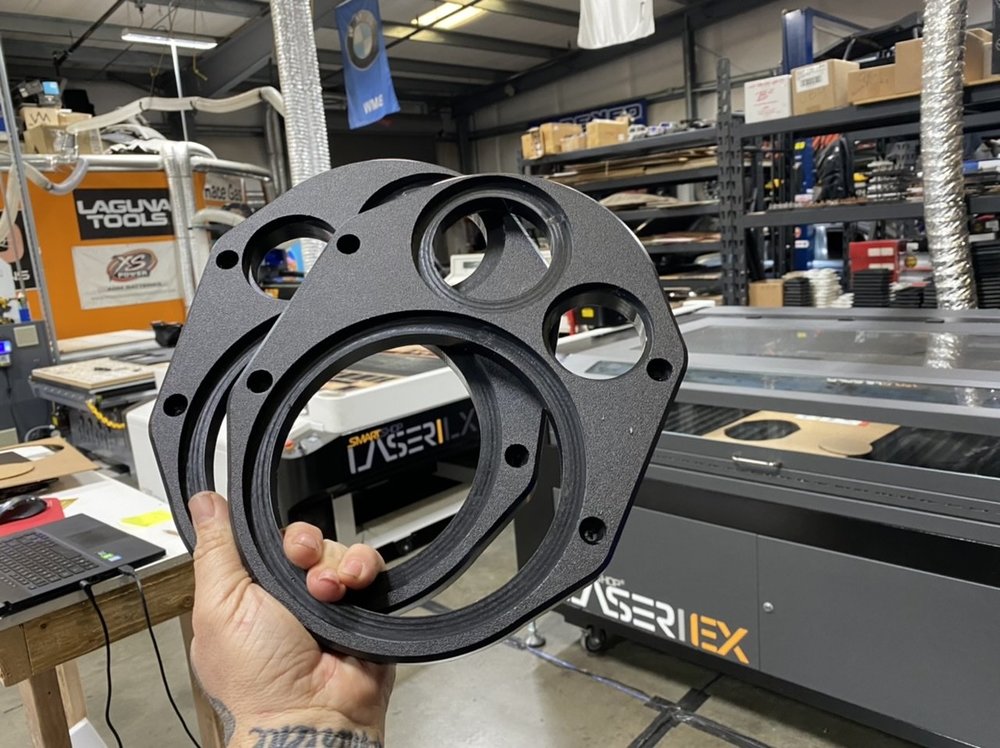

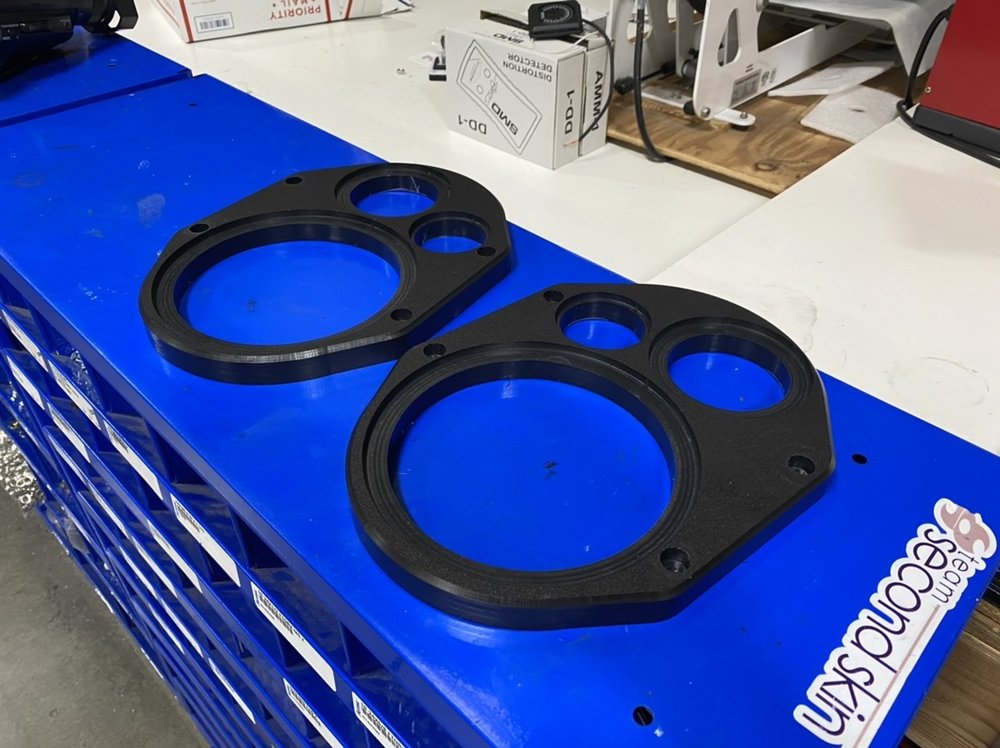

Time to take those cardboard cutouts to the next level. I used 3/4" Starboard (HDPE) for the job.























































All SMD products available here! http://www.wccaraudio.com

Subscribe to My Youtube Channel! Over 700,000 subscribers strong! Turn on your notifications!
http://www.youtube.com/meade916



Follow My Instagram! Daily live feeds from the shop, exclusive content way before it hits my Youtube channel...and little squares with photo's in them :D
http://www.instagram.com/meade916

The Official SMD Facebook fan Page
https://www.facebook.com/SteveMeadeDesigns/

Follow my Tweet (Twiiter)
http://www.Twitter.com/meade916






Share this post


Link to post
Share on other sites

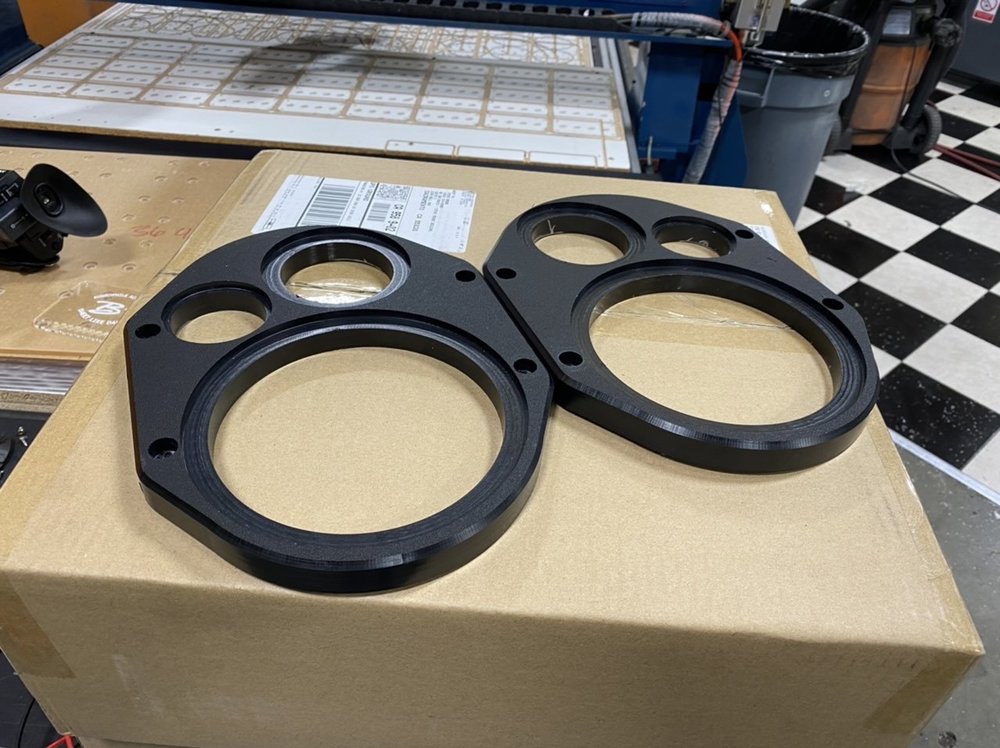

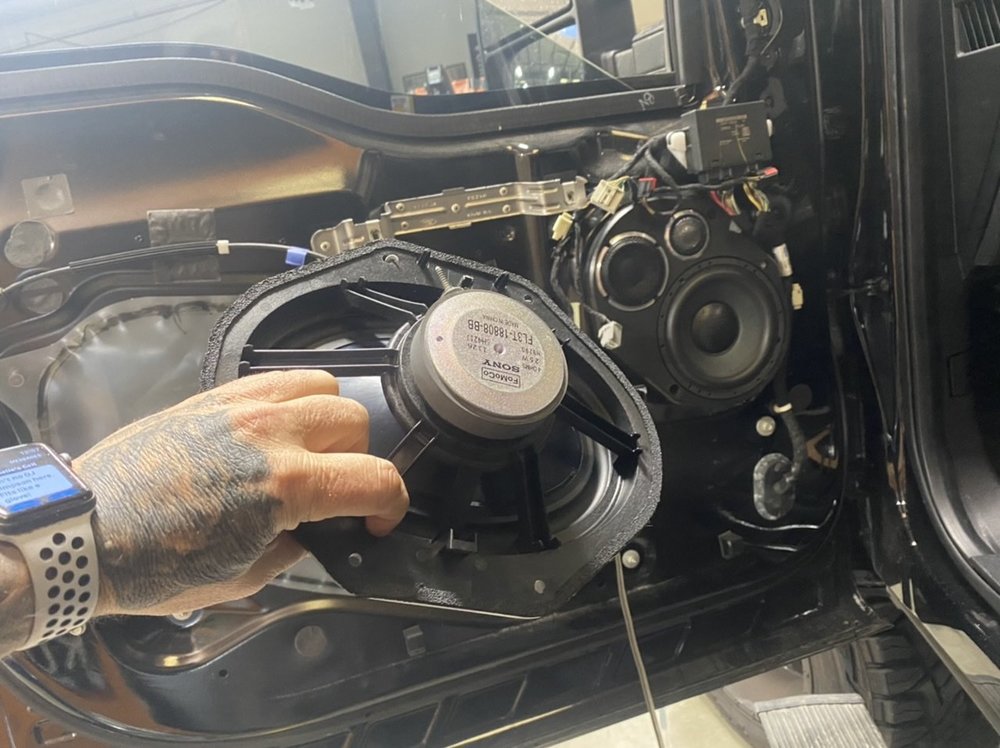

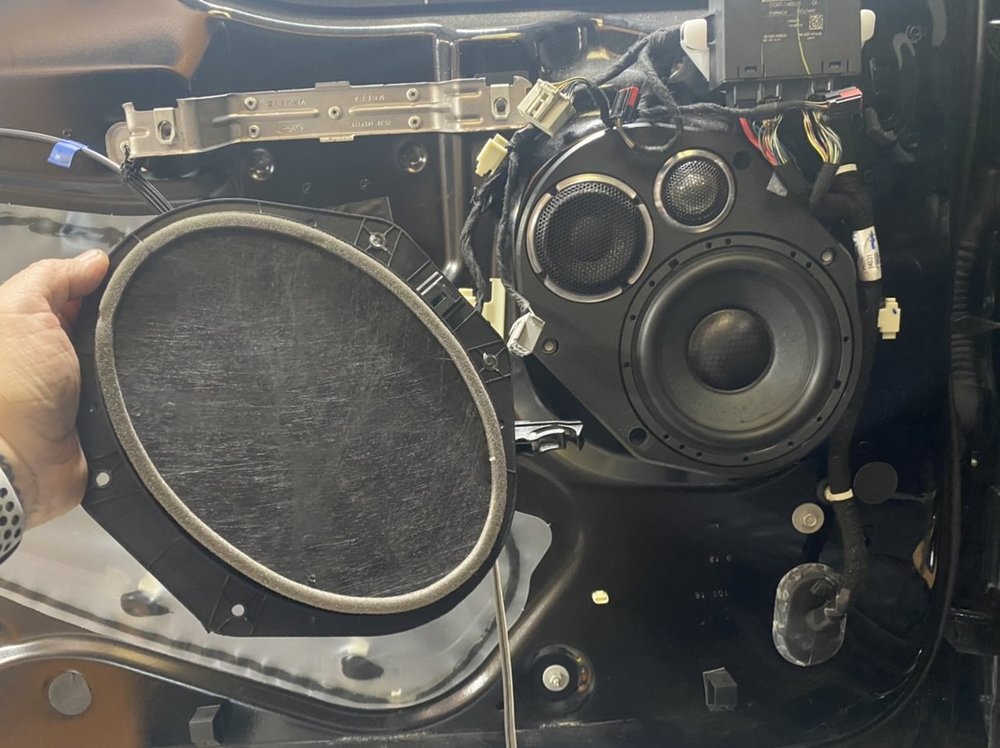

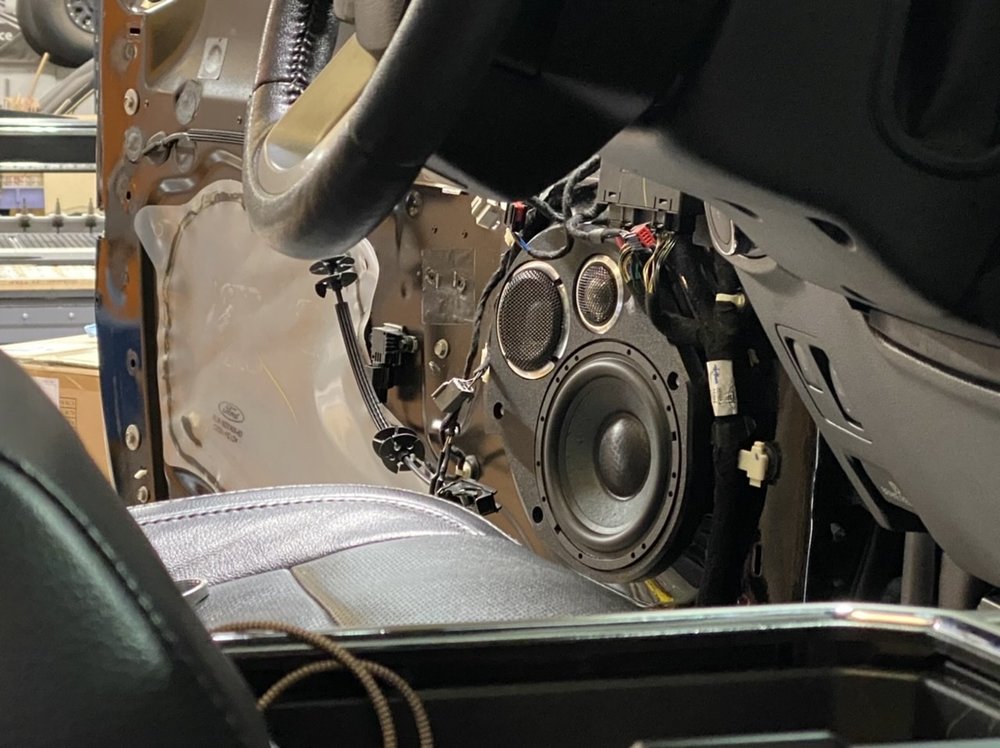

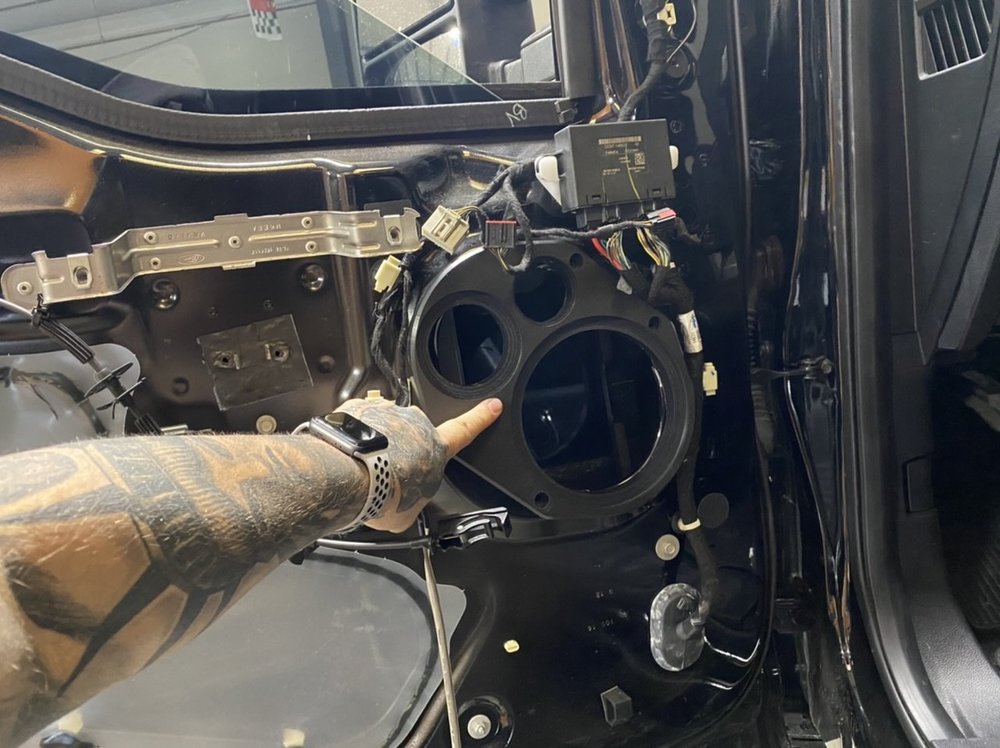

I just had to do a little bit of trimming but it was a piece of cake. Just a small bit of the 6x9 opening was in the way but i took care of it.  You will see it in the video i will upload soon.  I will also put some Second Skin @Second Skin on the panel before the ring is mounted permanently.  I am just stoked all the factory mounting holes lined up first try :D
