French Small Car big build

[Car Audio 83]

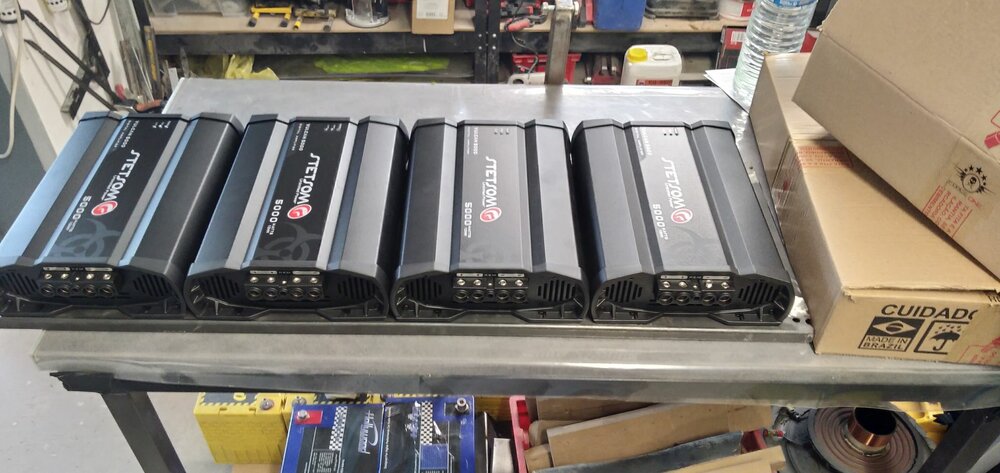

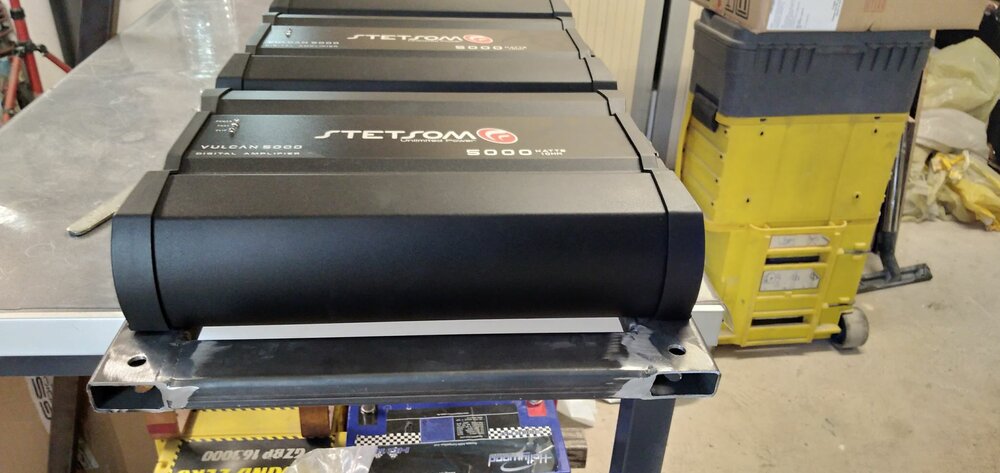

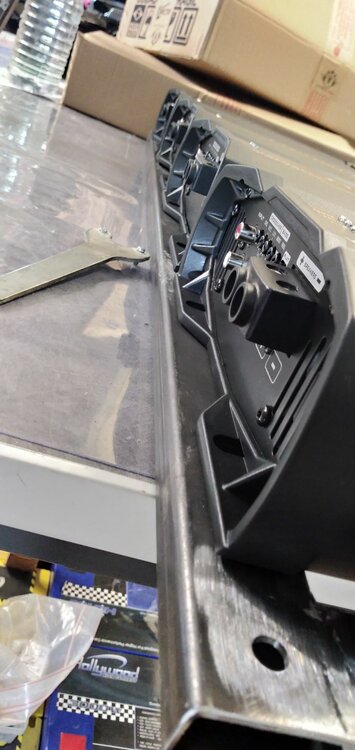

Here's the first rack of 4 amps I made, test fitting, everything is close but looking so good

[Car Audio 83]

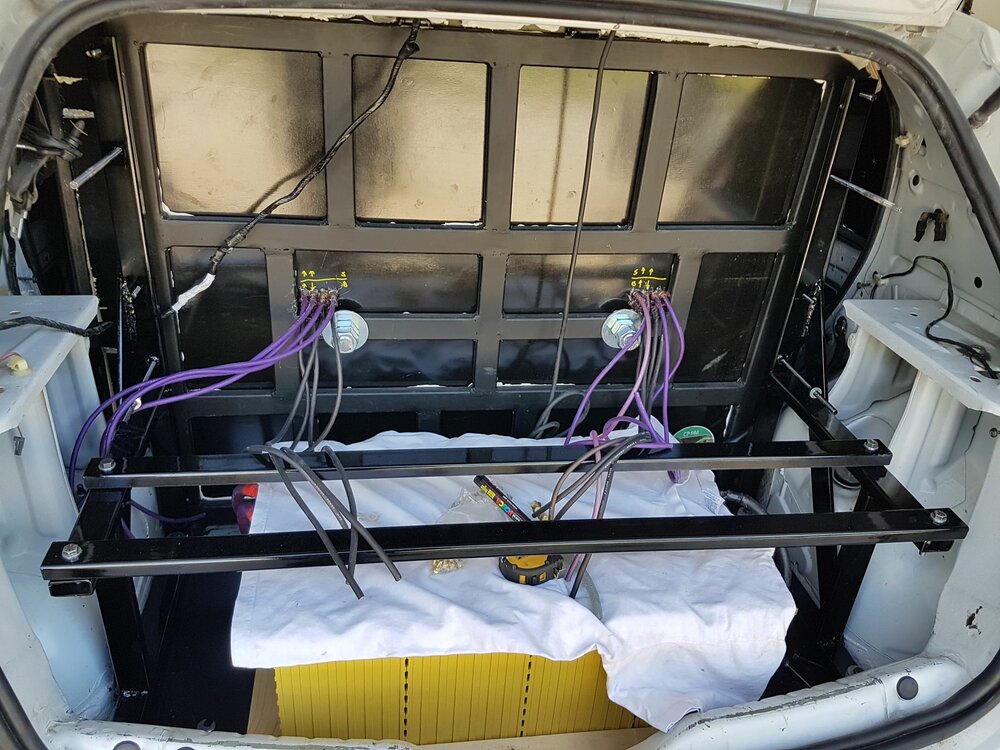

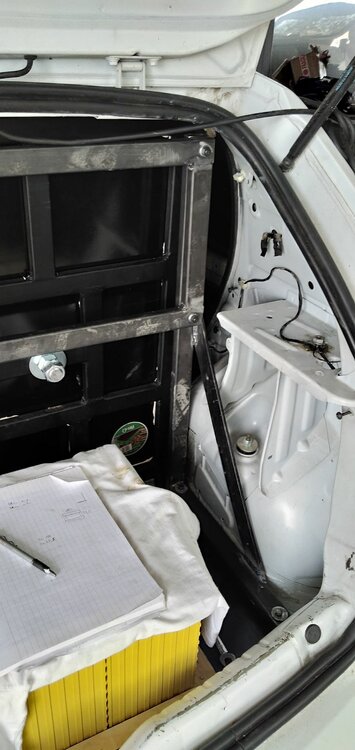

The first "L" shape part, with the first rack of 4 amps in



Then with 2nd rack added

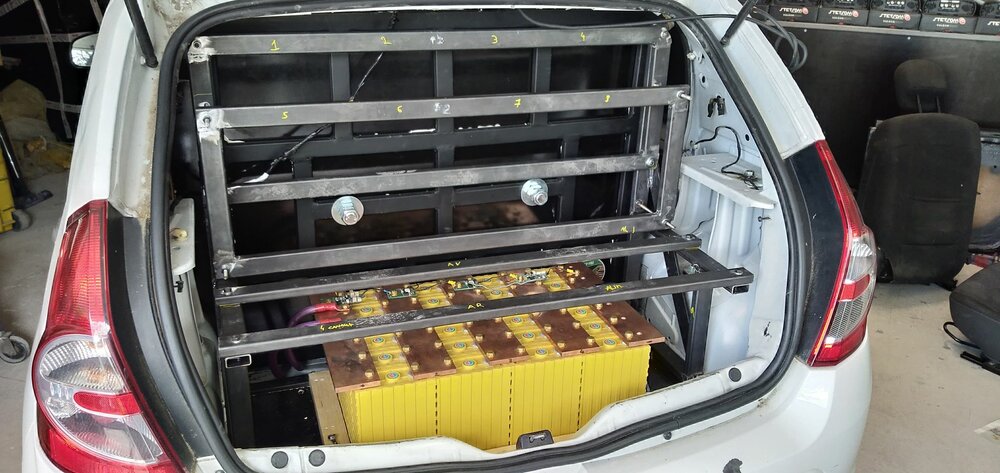

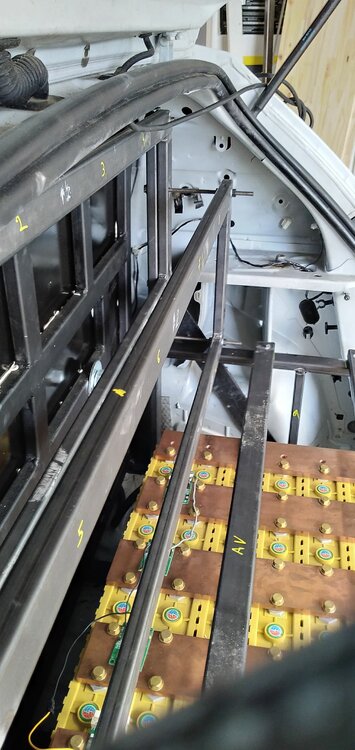

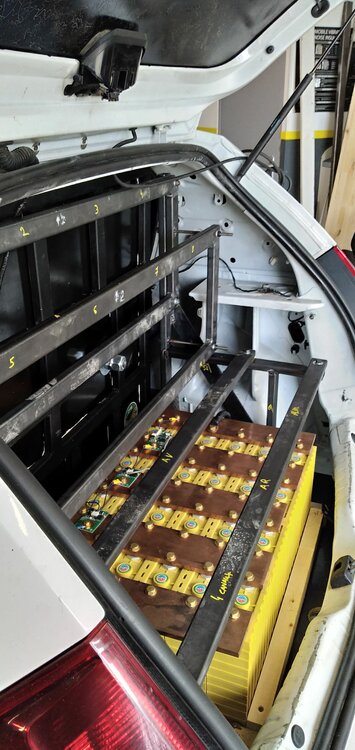

Finished L shape + 1rst and 2nd rack + the "Table" for all other things (the towel was removed from the Lithium pack only for the photo, of course I protect a bit when I work).

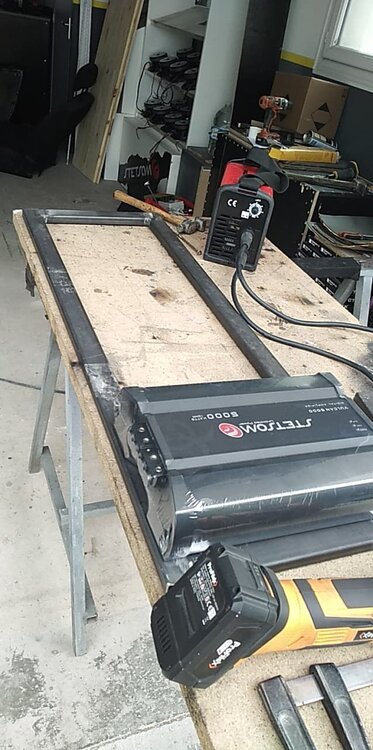

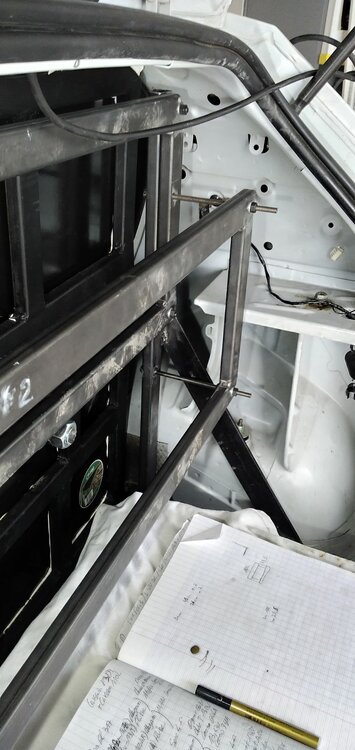

You'll maybe notice, the full rack is made of simple pieces welded, then everything is screwed together, you'll see later why I did this, it was very useful to have a dismountable rack.

[Car Audio 83]

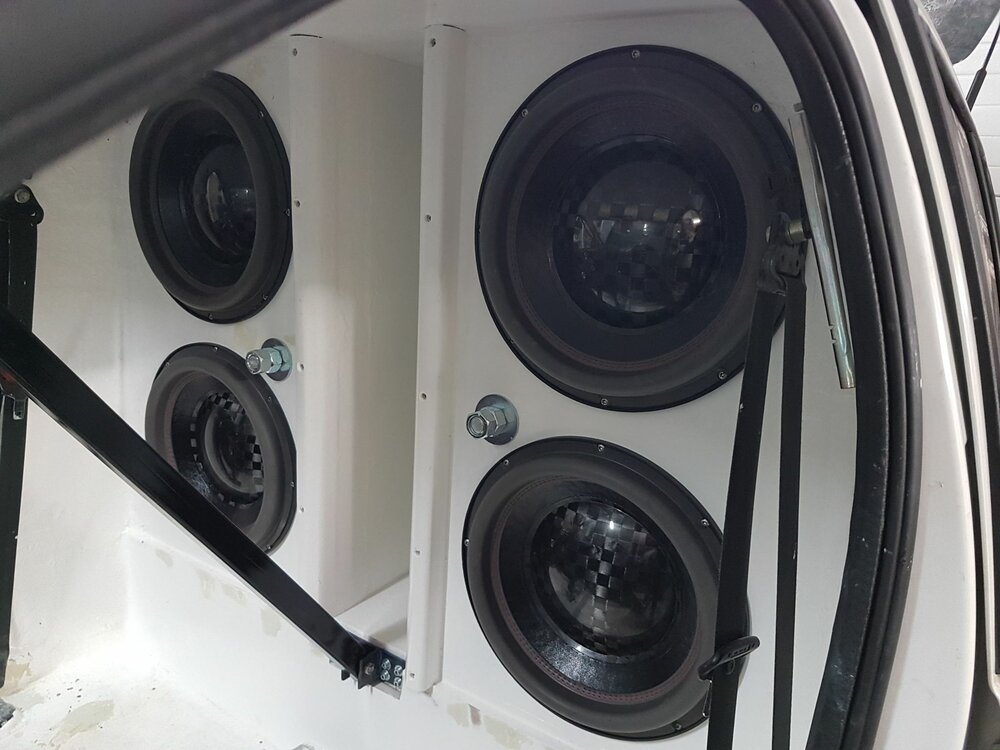

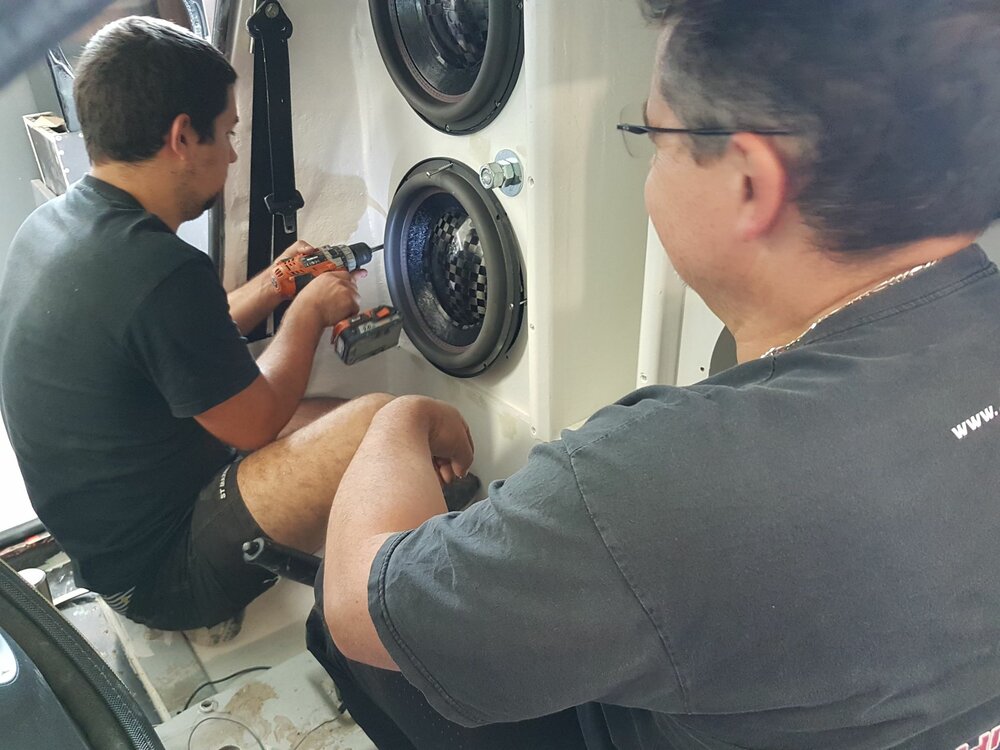

Wanted to do a bit of low power testing, so I painted my rack, put the subwoofers in.....

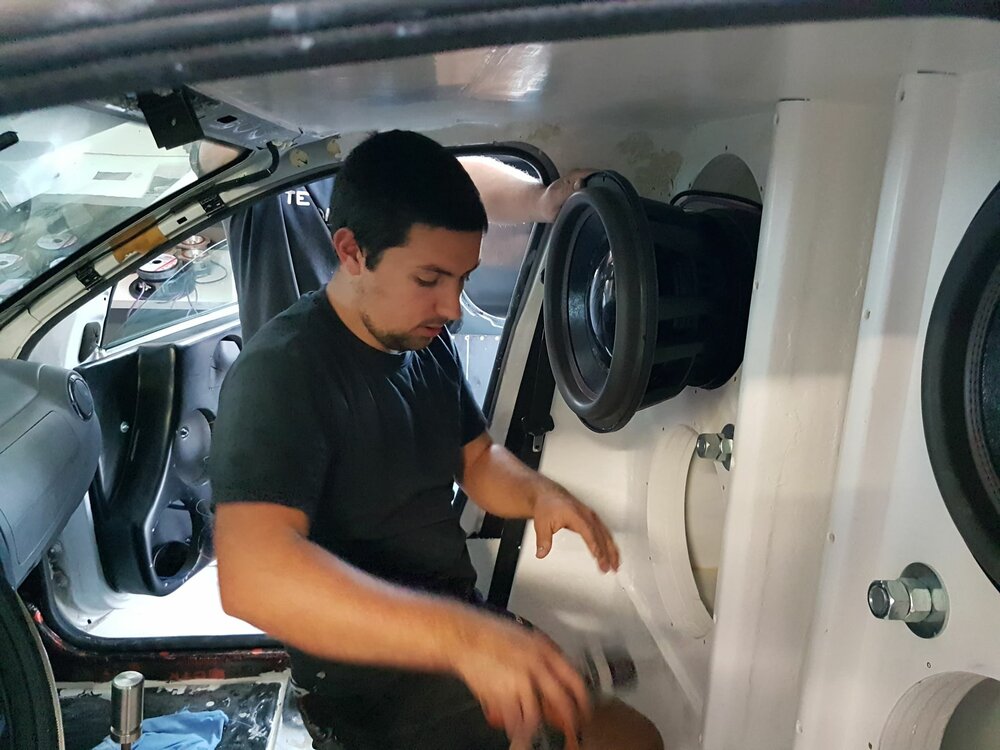

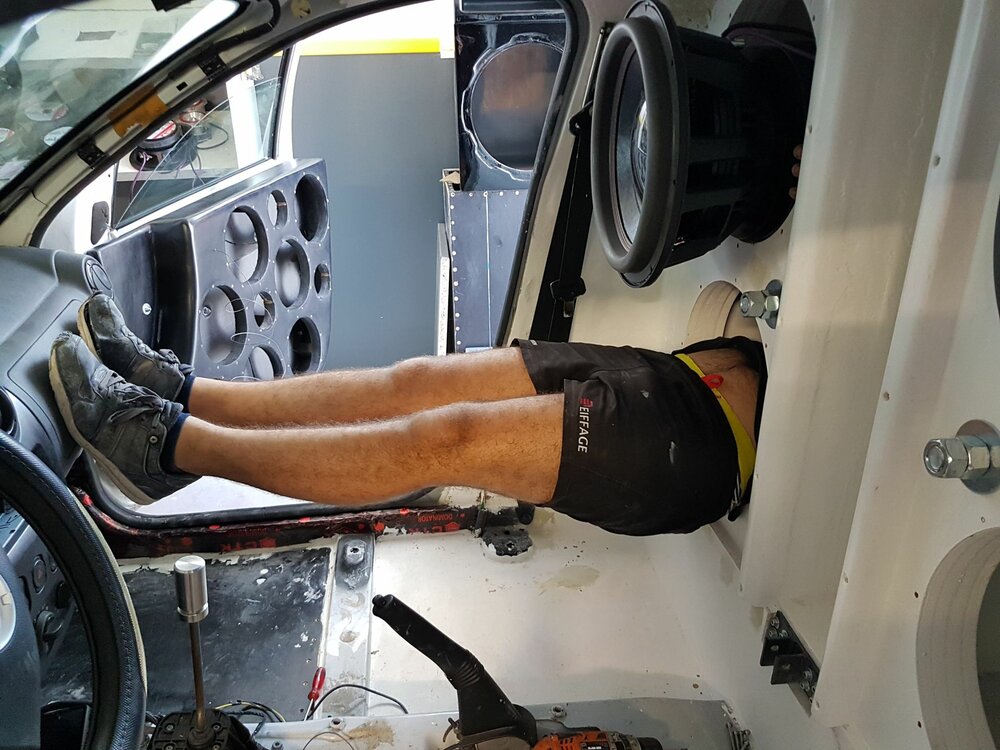

The cars we have in Europe are so small, this is a pain in the butt to get such big woofers inside...

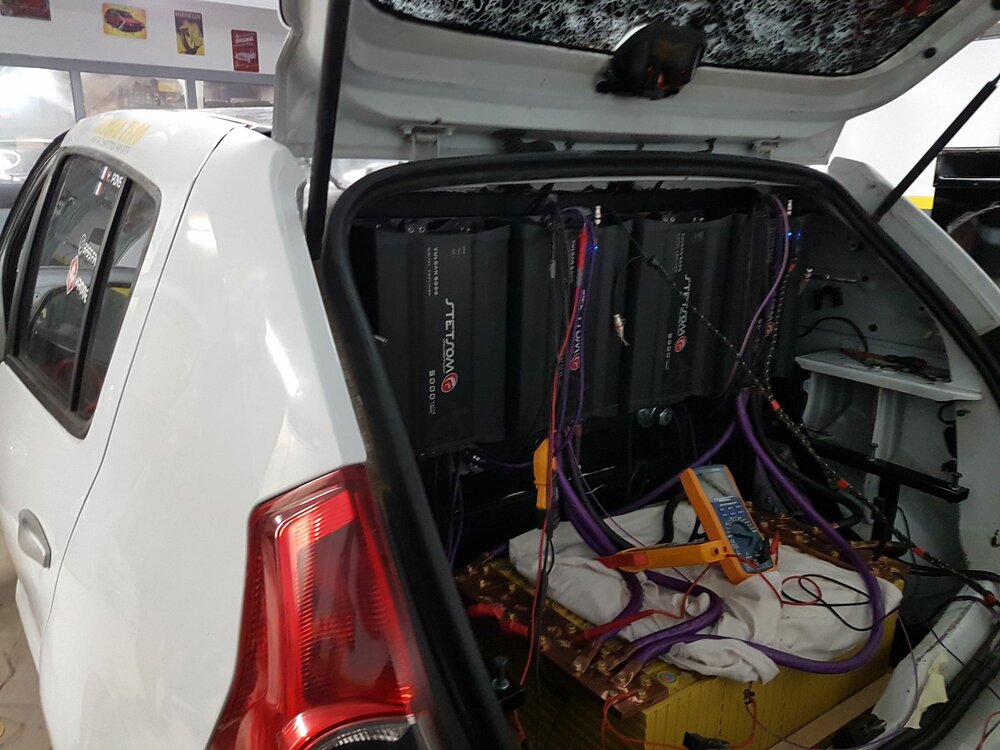

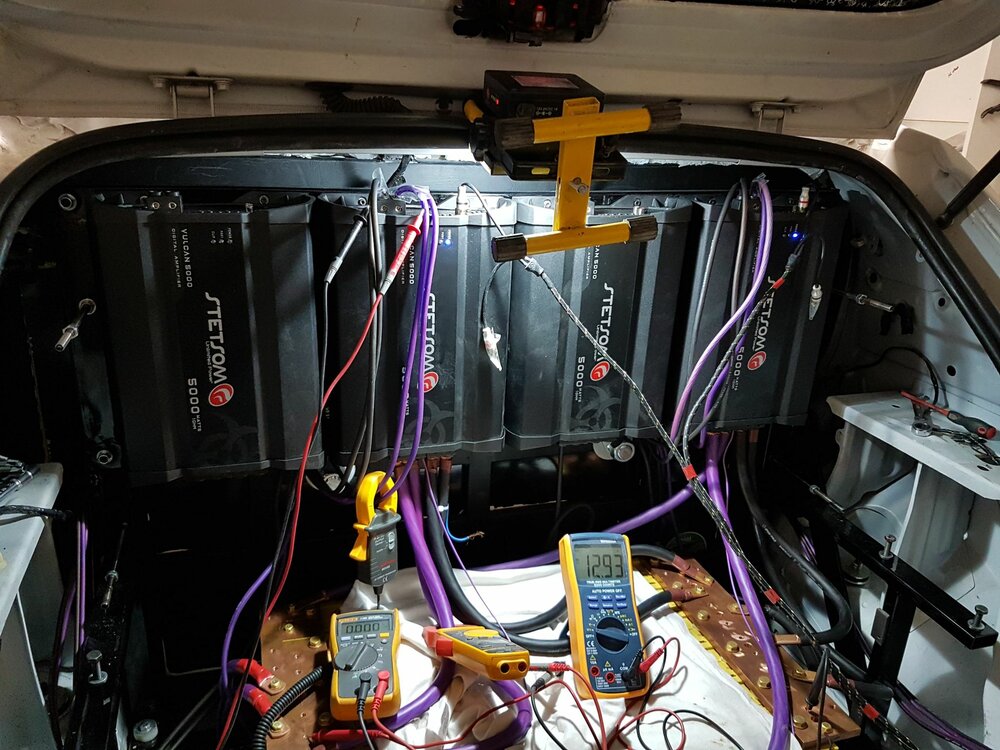

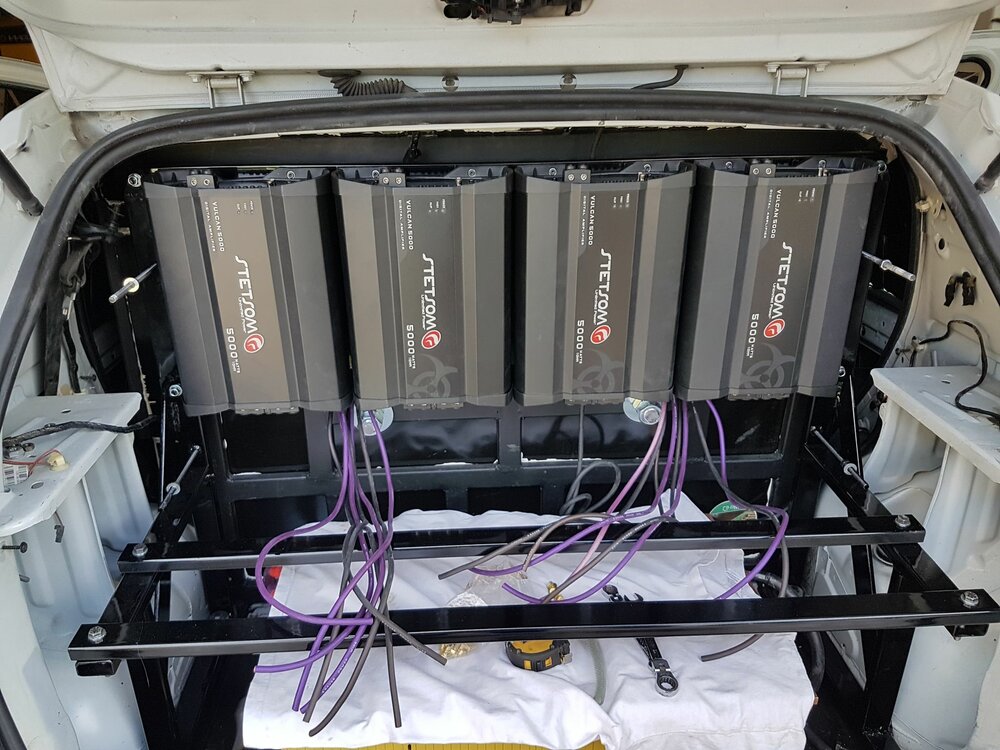

Put the first rack of ramps in (4 amps but only 2 wired).

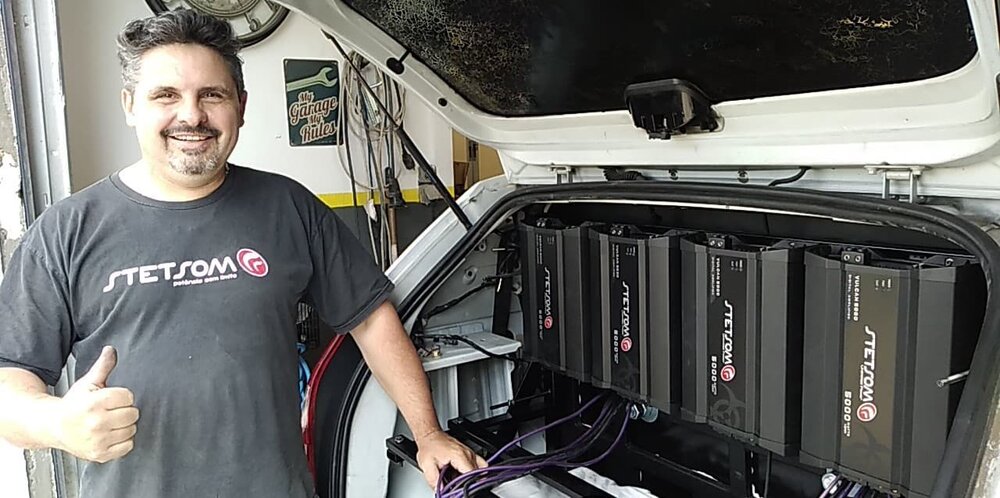

Bruno from BCH Audio (ex Extrem 5k world record holder from 2000's with Rockford)

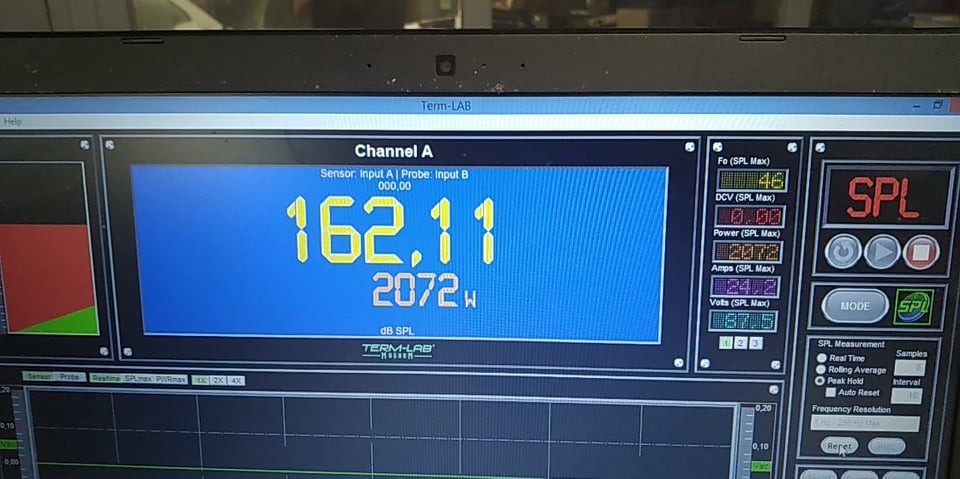

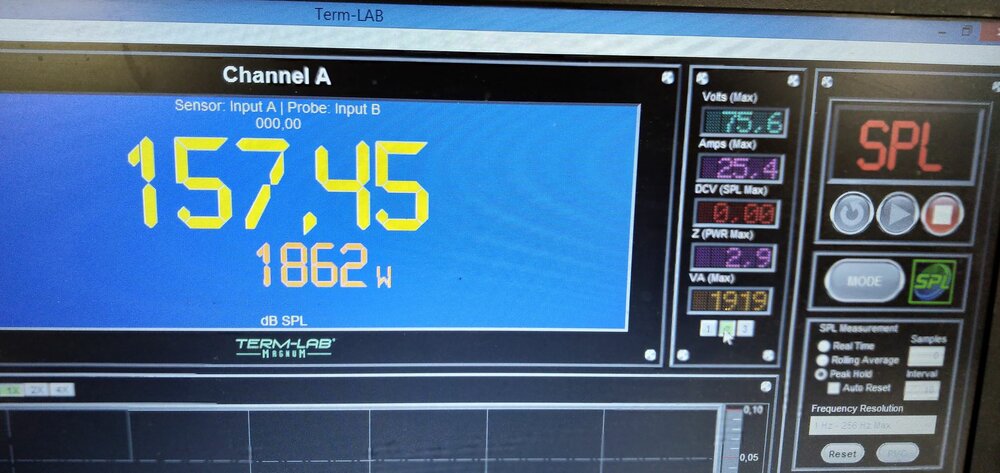

And Tadam, outlaw score, 157+ with roughtly 3600w total for all subs (Magnum metered only one amp)

[Car Audio 83]

That's all for tonight, I'll post more tomorrow, someone doesn't want me to post all night long boom boom content



[2loud4uboyz]

 I can tell this system will knock the dust out your brain. Looks really clean and loud. And I see your cat likes to get in the way on the computer too, my cat does the same thing. Man what a nice build.

[Car Audio 83]

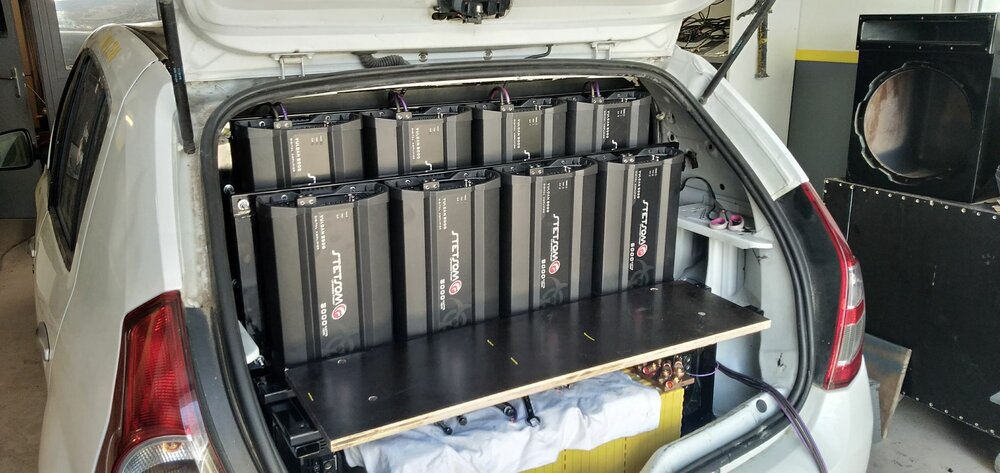

Next day was good, it toke the whole journey to put all amplifiers in.

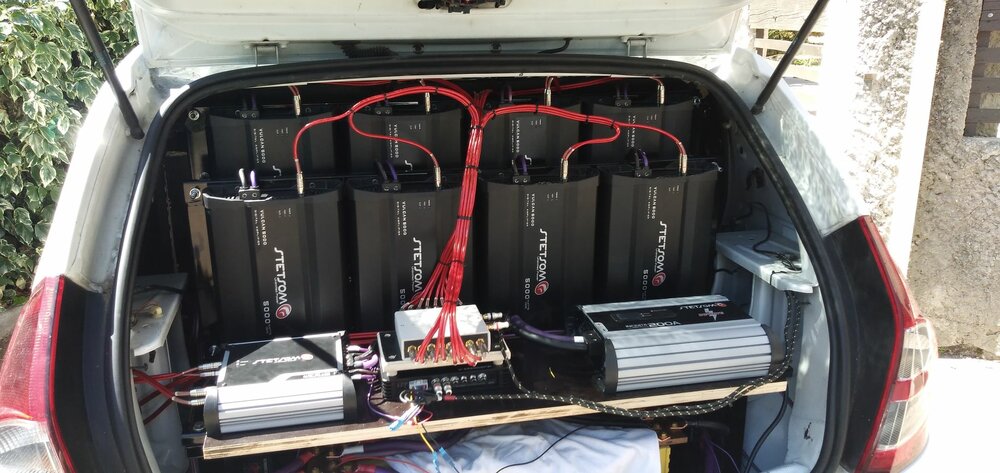

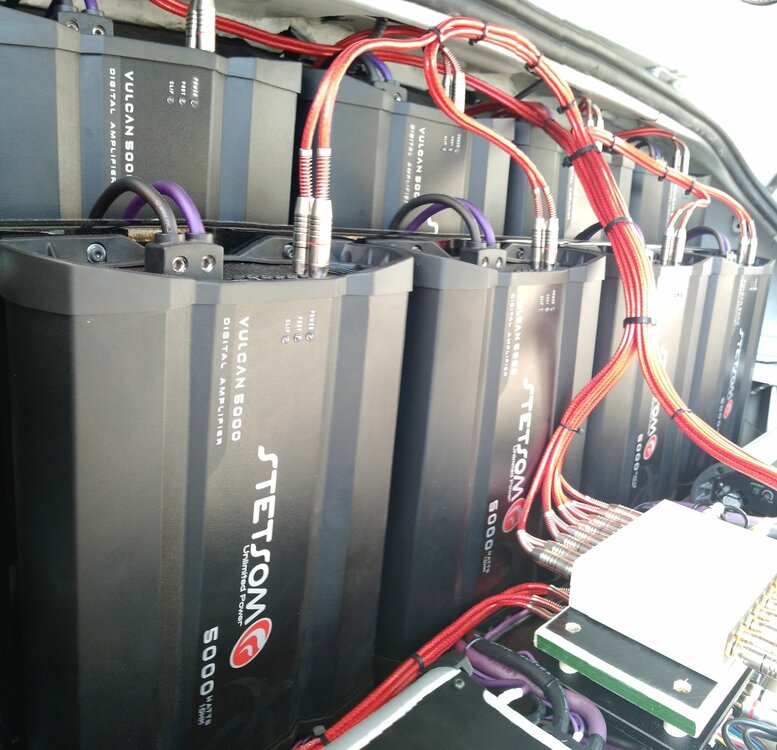

All 10 monoblocs are installed, the 2 x 4 amps racks for the subs, and the 2 amps for the mids (on the right and the left of the battery pack)

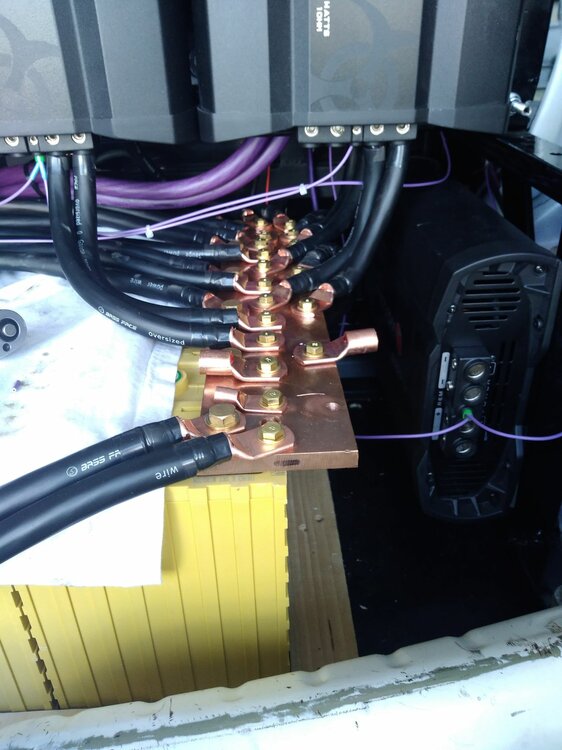

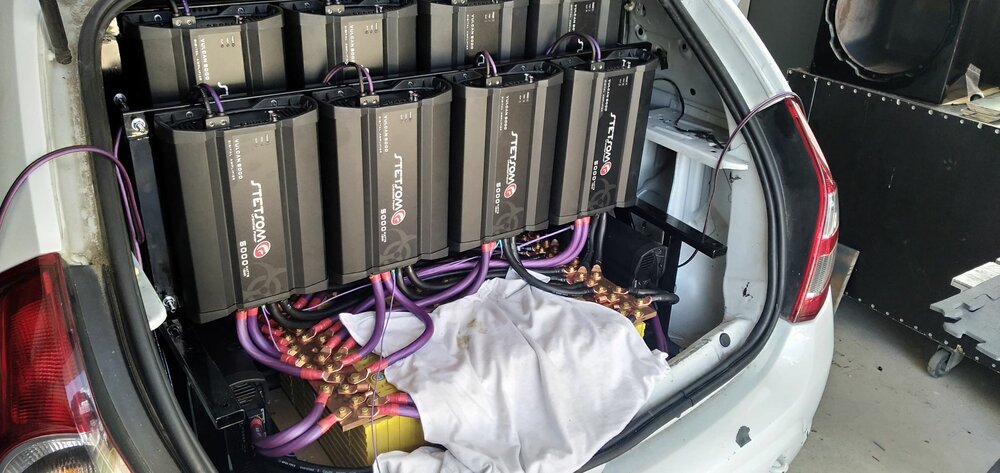

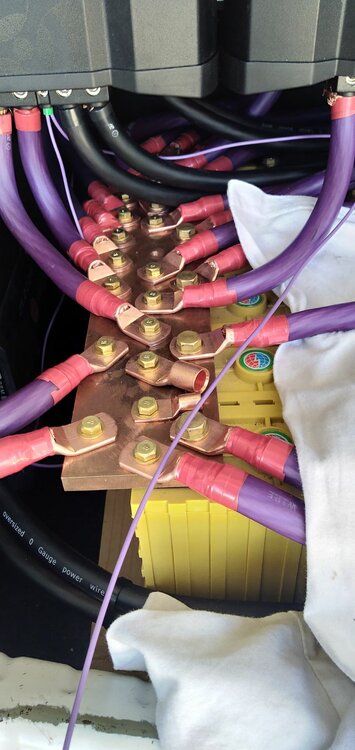

So much wiring to do, since every amp has 2 x 2/0 for positive and for negative inputs (that's about 20 positive and 20 negative wires total only for the mono amps).



[Car Audio 83]

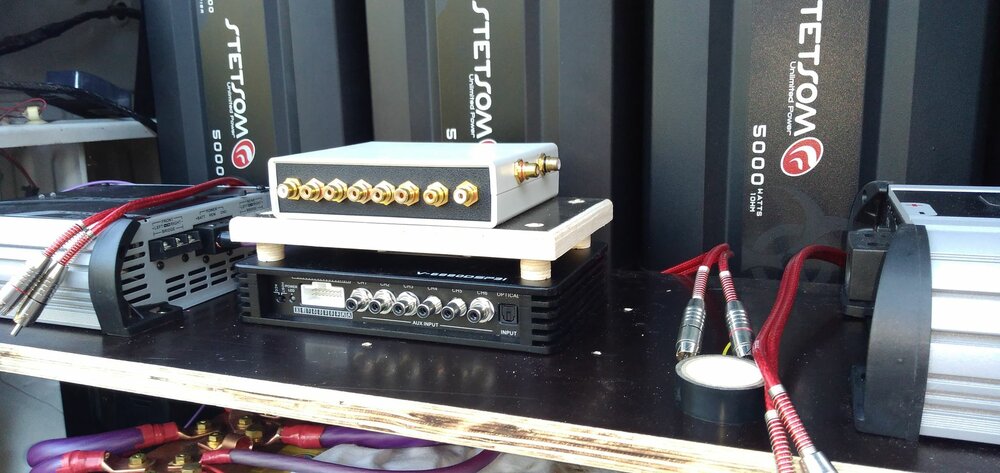

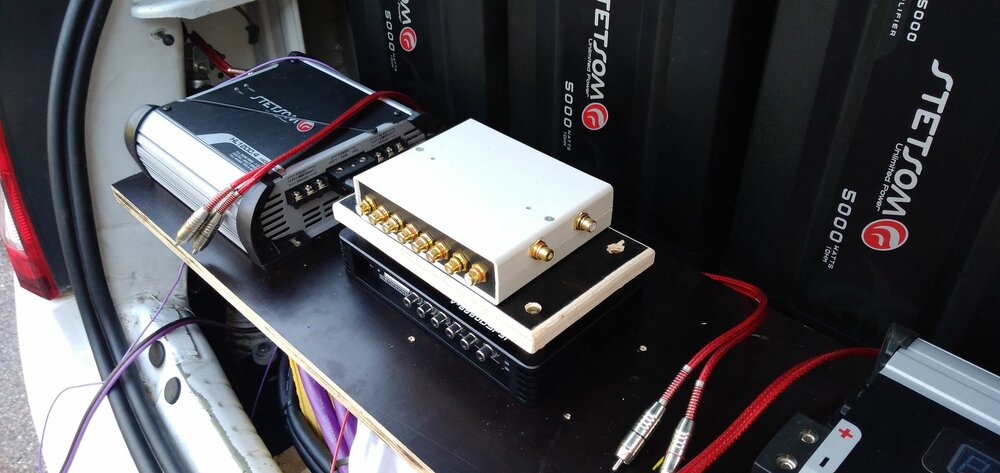

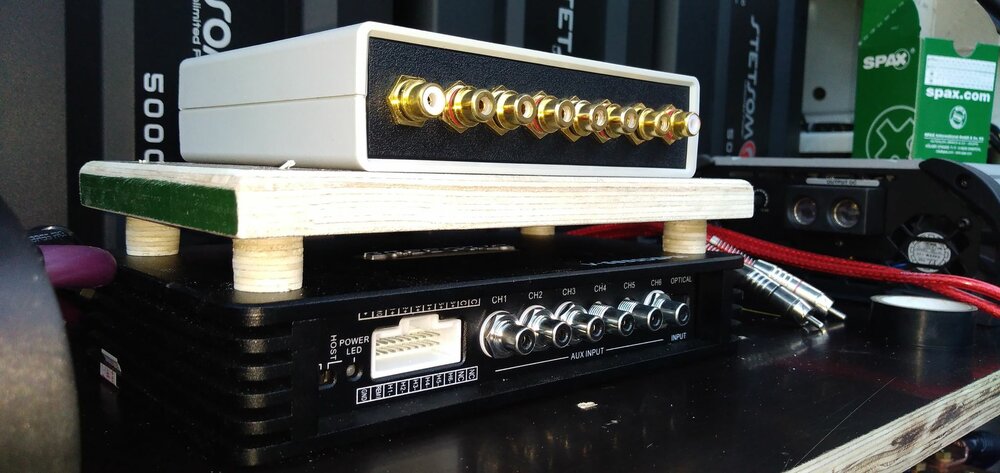

And then the "table" for the missing amp, DPS and charger, everything looks cleaner with it as it hides the wires.



Now we can test with all 8 amplifiers on the subs.

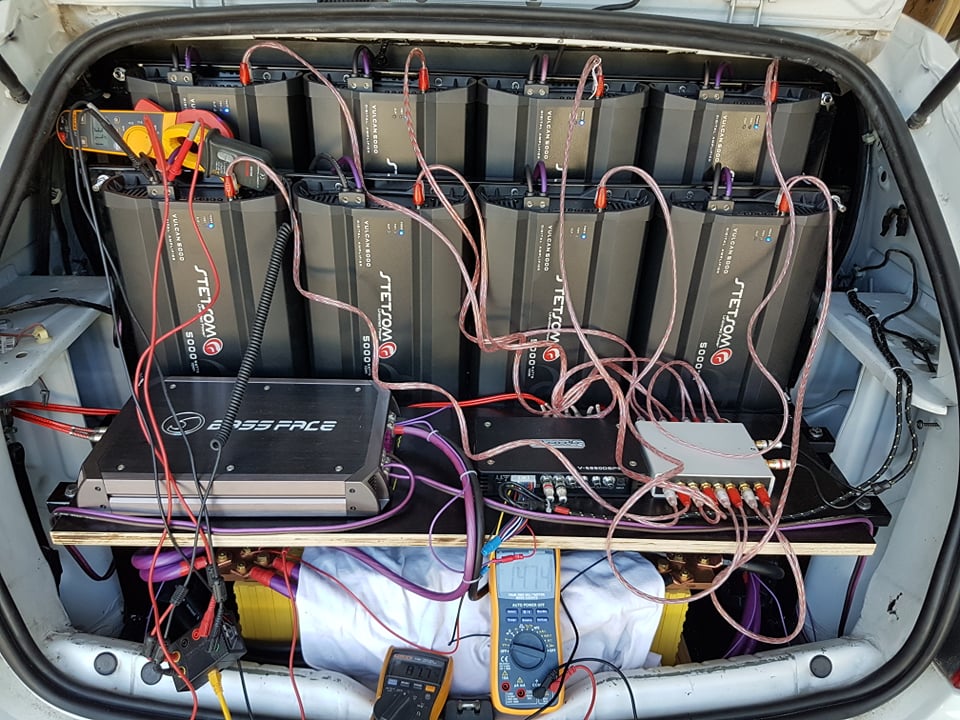

Done a temporary wiring for RCA's, doesn't look nice... 😂😂😂





First test, even if I have no interest in dB Drag, the legal score (power x 8 so not very efficiens in my opinion + the frequency for the legal score is low)

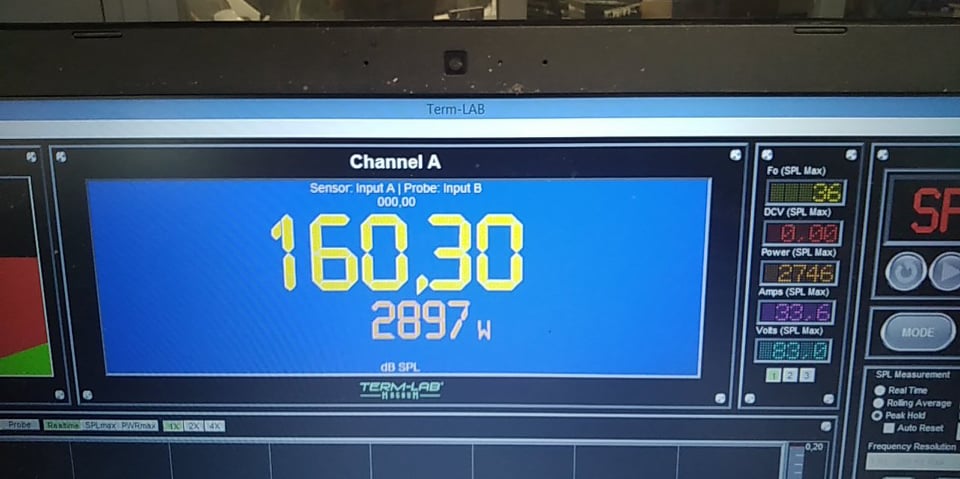

Then a bit of testing with an outlaw score (here I'm really satisfied, power is again x 8 so that's 16kw total I think it's not bad). Frequency is a bit on the high so I'll have to modify to lower it.

[Car Audio 83]

4 hours ago, 2loud4uboyz said:

 I can tell this system will knock the dust out your brain. Looks really clean and loud. And I see your cat likes to get in the way on the computer too, my cat does the same thing. Man what a nice build.

Thanks dude, yeah I try to do my best to keep it a bit clean

[Car Audio 83]

I cleaned up the wiring, relocated the DSP and the RCAs box, changed the tweeters amp, added the power supply, and voilà !
