Multiple battery's wiring help


Recommended Posts

Vehicle ref. 2012 f250 diesel



2 agm xs group 65 under hood (coming)

1 northstar 220 behind seat

Mechman 370 alt.(coming)

Current wiring big 4+ all 1/0

Current amps jp10.4/ jp63/ jp8.4

Conservative ratings 13000 watts.



I have 2 runs of shca 1/0 ran from fuse holder under hood to the agm in rear.

Is the 2 runs enough To the rear battery then all the amps fed off that battery's buss bars? I will most likely add another northstar 220 behind seat after I figure out my space. Should I run 4 runs of 1/0 to rear battery(s)?











Link to comment
Share on other sites

On 1/24/2023 at 4:22 AM, blazn22s said:

Vehicle ref. 2012 f250 diesel



2 agm xs group 65 under hood (coming)

1 northstar 220 behind seat

Mechman 370 alt.(coming)

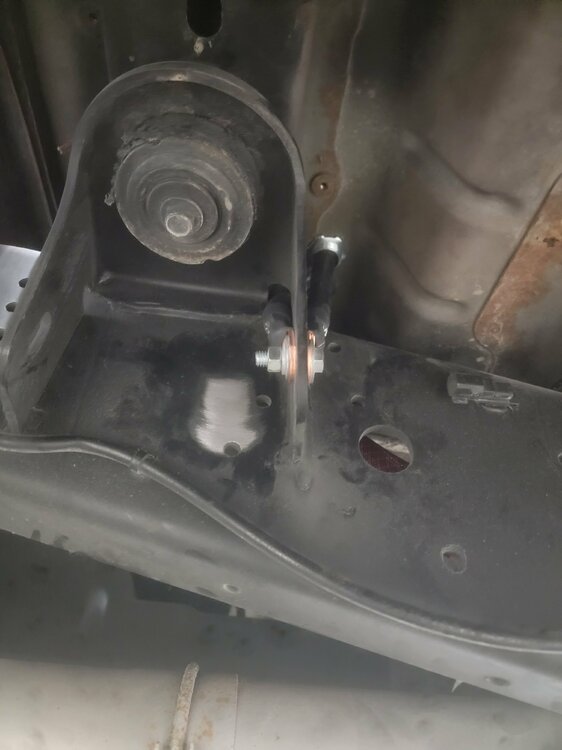

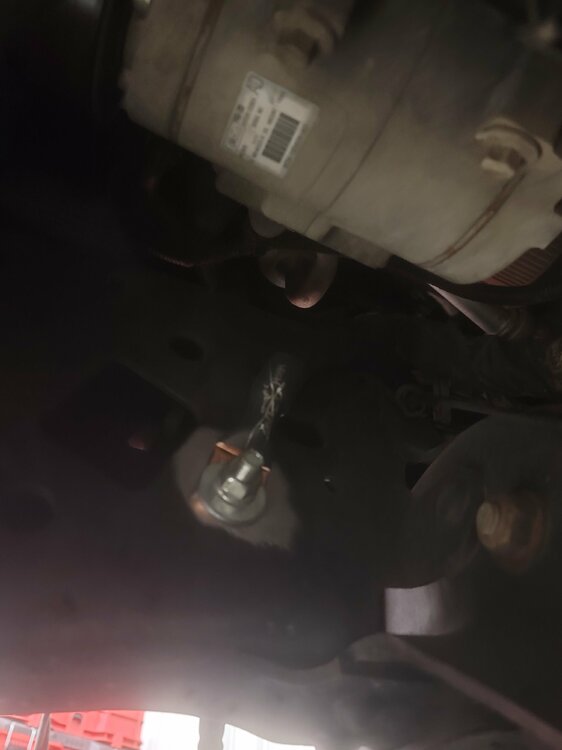

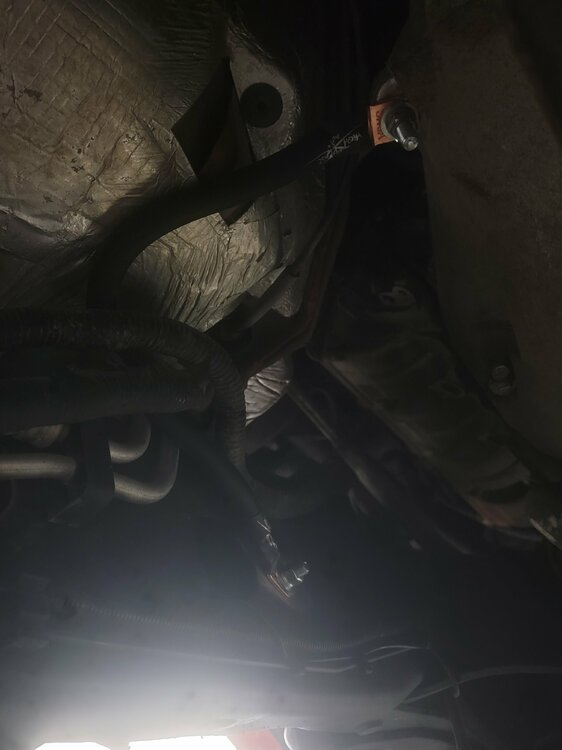

Current wiring big 4+ all 1/0

Current amps jp10.4/ jp63/ jp8.4

Conservative ratings 13000 watts.

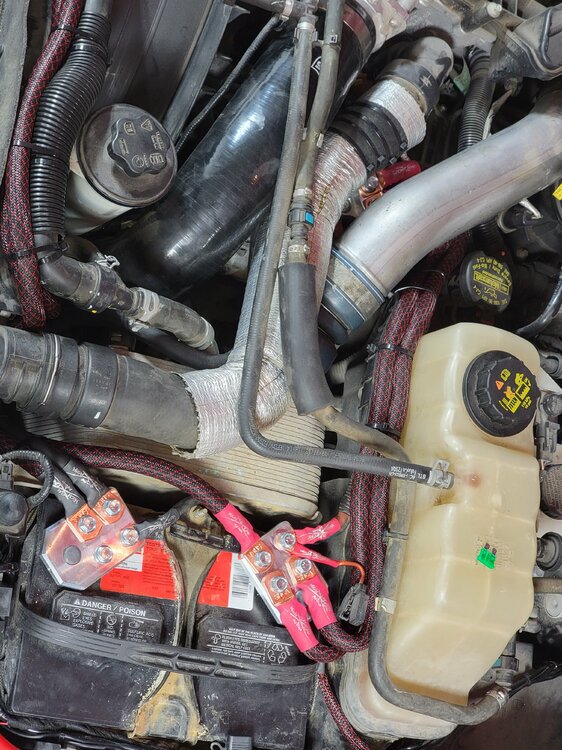

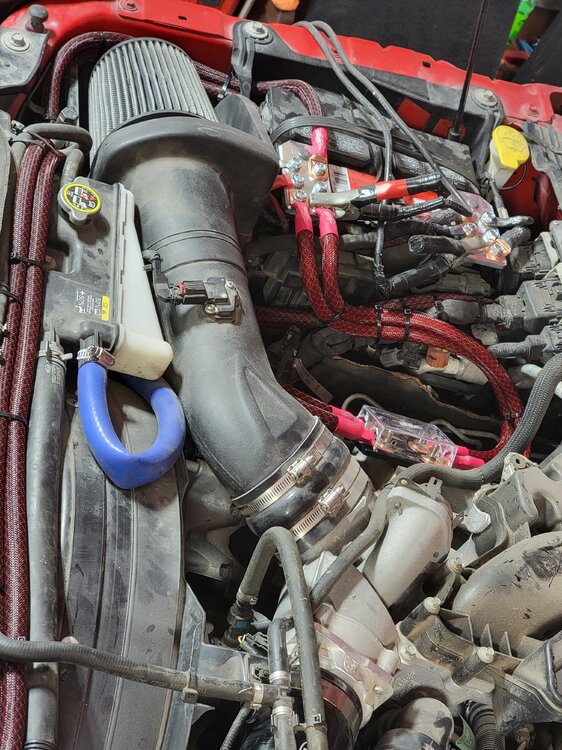

I have 2 runs of shca 1/0 ran from fuse holder under hood to the agm in rear.

Is the 2 runs enough To the rear battery then all the amps fed off that battery's buss bars? I will most likely add another northstar 220 behind seat after I figure out my space. Should I run 4 runs of 1/0 to rear battery(s)?





/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230123_010448.thumb.jpg.911a3006f51cf4c69ae5083c99c593b5.jpg

/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230123_010430.thumb.jpg.b4058faa7862f106e2cf4909a91a0381.jpg

/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230123_000506.thumb.jpg.60e876ebe804739663a5d2a538b42544.jpg

/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230123_000455.thumb.jpg.85373975a9dfbdb836011e9b306ca262.jpg

/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230123_000419.thumb.jpg.4cd1638d6a0595cb39d62e55422e3e1c.jpg

/cdn-cgi/mirage/08f4581191bf386f0d0e8c5c3b2efcd36baeefe9c5fca4764d88c433f818ad55/1280/https://www.stevemeadedesigns.com/board/uploads/monthly_2023_01/20230120_181639.thumb.jpg.8a1c22b0cafcb77812ba5c67771ae1a2.jpg

1 run can run roughly 350 amps so do the math your gonna need at least 4 runs

06 Charger

Pioneer double din

Pioneer 6.5 and 6×9's

Knukoncept Krystal kable rca's

0 ga knukoncept kolossus wire

Big 3 same wire ^ 1 run

8g karma ss speaker wire

Sundown sia 3500d at 1ohm

2 Sundown U series 12's

Duralast platinum agm H7 (Main)

Xs power d3400

Trying to find a ho alt





Link to comment
Share on other sites

They sell one but can easily make one but move the batteries under the cab off the frame, Run 2 runs and save the money, this will not only save wiring but also your batteries will last longer and be much happier. Is it a 6.7? I guess I assumed since you have 2 but it is just as easy to add a second to a gasser. If it is a PS make sure to at least connect the batteries straight to one another if not. I have only dealt with 2 alternator trucks and the batteries are not directly linked like my 06 6.0.

That much power and your obvious DIY ability why not go lithium if you don't mind my asking?

Also, Curious where is "4 runs" coming from?

Link to comment
Share on other sites

I am an idiot, I just seen the engine pictures so ignore that part...... (I don't want to edit due to what I said is still relevant and for future potential to help someone else)

Side note, Is it just me or are our trucks just acoustically challenged? I have swapped my systems from my truck to a car and the difference is asinine on how much better it has been in everything compared to the truck, I deadened, tuned and played with different ports and positions and just never came close to as loud, hard hitting or clean in anything else lol. I have 2 buddies with superduty's and it's not bad, just different 🤷‍♀️ IYKYK I guess

Link to comment
Share on other sites

I currently have 2 runs ran from the front to the rear to the agm battery, i thought about running another 2 but don't know if it's needed since the bulk of the amp draw is going to be from the agm in rear and the 2 runs should supply enough amperage to charge it, being I just have the 1 370 alt. I've been trying to find the lower alt bracket to possibly add the factory 157 Alt to it to get me up to about 530 amps. Even then the 2 runs should carry that fine with 2 300 amp fuses.

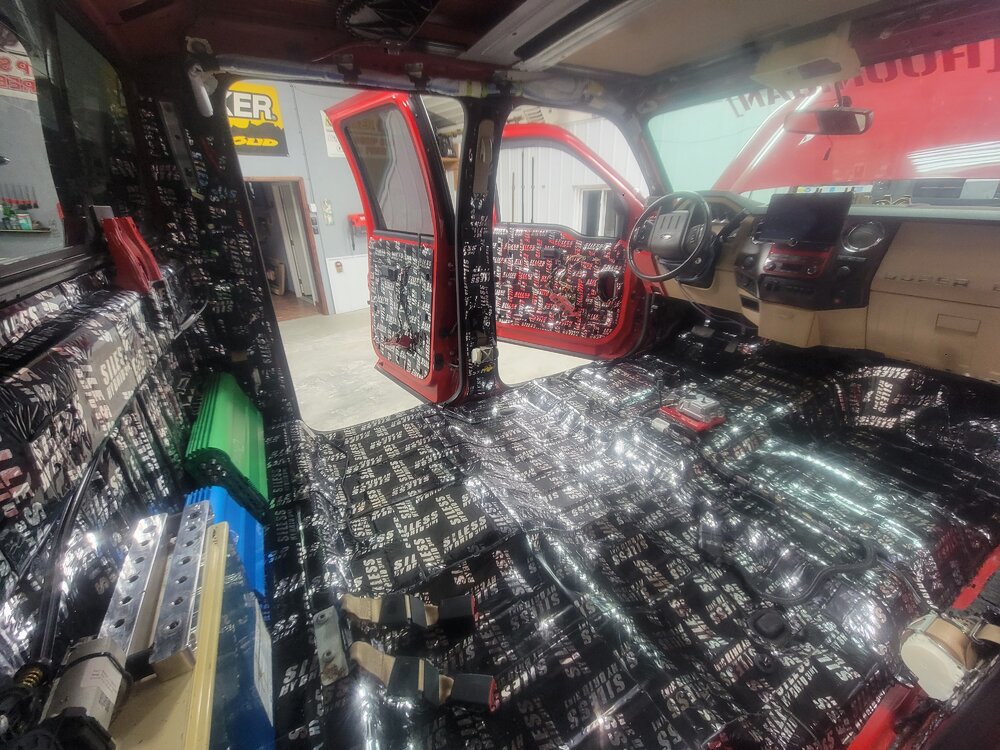

Yea I mean I got 37s with 22x14 so the road noise is primarily the issue I had. So hopefully matting the whole cab is going to help I haven't drove it yet to find out if it made a difference. I've had a couple systems in this truck and I've managed to get them to sound decent but like you said I could take that same system throw into a blazer or Tahoe and it would be way louder for some reason. I decided to go with the nightshade 12 with shit load of power gonna try to do a center console build around 3 cubic feet and see if it'll slap lol. If not back to the drawing board.



As far as lithium tbh I've never messed with lithium and don't know much about it. I looked into it and talked to couple people and they told me I should just go with agm because I didn't wanna remove the battery's under the hood. I guess just want to keep it semi simple. From my under standing I would have to do a battery delete remove all battery's to run lithium?



Always open for advice and knowledge tho.
