Need help identifying some 10's i picked up...

[pcregal79]

[pcregal79]

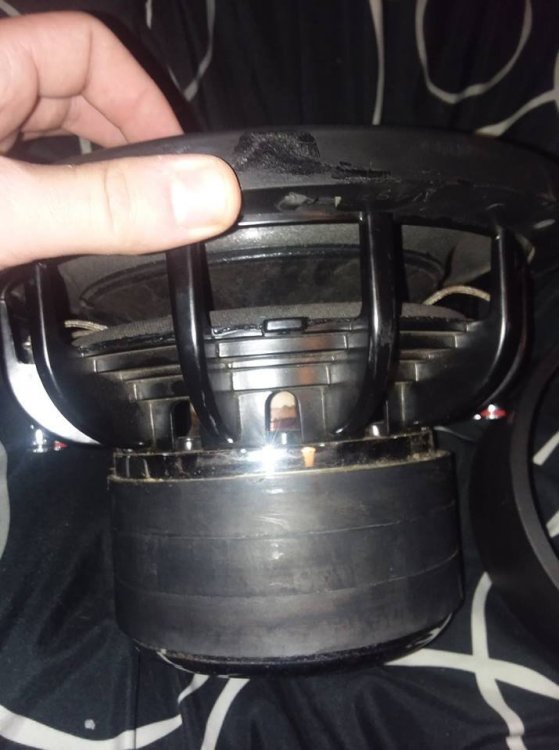

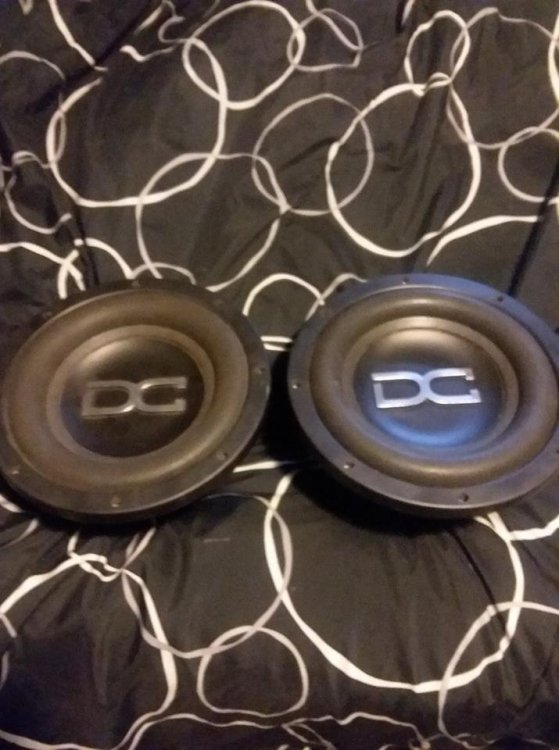

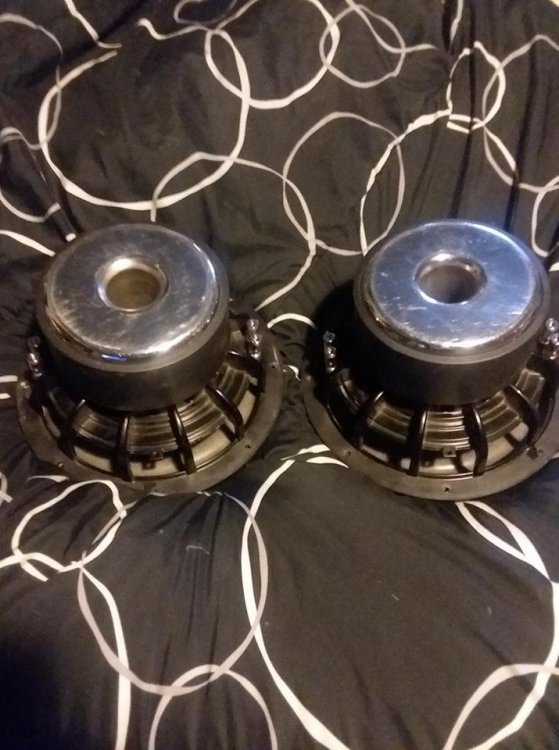

They have 3 inch voice coils, 12 spoke baskets, and are triple stacked magnets. Not sure if they are authentic because the bottom looks different than any I see online. If they are would like to know if they are level 3's or 4's. One voice coil is shot and looks like its been reconed before. Planning on upgrading to level 4 soft parts on both anyways if they are actually DC's. Input on identification and if they are worth it would be much appreciated. Thanks in advance

[KCK Jukebox]

They look like oldschool dc’s possibly lvl 4s

[Borris The Blade]

Those look like the old m1 motors which is why they look different then the ones on the DC site now. Couldn't tell you if those are level 3 or 4s I'm no expert.

[CrackFactory]

The current model Level 4's have a double stack magnet so I believe you have a level 3. I'm not sure since its an older one though.



Edit: The website shows a triple stack on a level 4. I may have been misinformed.

[audiofanaticz]

They are the old style level 3s. The old style level 4s have a dual stack magnet and a much smaller pole vent.

https://web.archive.org/web/20080324052206/http://www.dcsoundlab.com:80/level3.html

[pcregal79]

Thanks bud. Was hoping they were level 4's but oh well. I still recone them and try them out.
