11BangBang Posted November 6, 2009 Report Share Posted November 6, 2009 I know I need a relay but how exactly do I hook it up. Does the door trigger wire go to the relay as well as the domelight supervision wire. I installed this alarm 5 or so months ago just fixing a few things I did not hook up 2001 Tahoe Alpine IVA-W505 2 OPTIMA's RED/YELLOW DUAL ALTs 140/220 (2) HIFONICS BXI1280D (1) HIFONICS ZXI6408 (4) ALPINE SPR-13S 5.25 (4) ALPINE SPR-17S 6.5 (2) KICKER 15L7 at 1 ohm 4.5 CUBIC@38HZ Link to comment Share on other sites More sharing options...
Shyne151 Posted November 6, 2009 Report Share Posted November 6, 2009 You shoudln't have to do anything with the door trigger wire. 85- domelight supervision wire(black/white if dei alarm) 86- 12v 87- either ground or 12v depending on your domelight wire. 30- goes to domelight wire in car. -Installer for Duke's Car Stereo 2000 Pontiac Grand Prix - Ported Eaton M90 S/C, 3.5" pulley, XS Power Headers, 1.9 Rockers, FWI, Poly Motor Mounts, Custom Tune. RF T1000-1bdCP and T400-4 Boston Acoustics SPG 555 Kenwood eXcelon 995 RF Punch 6.5" components and MB Quart Premium 6x9"s Powermaster Alternator, YellowTop D34, Vmax CT1000 Link to comment Share on other sites More sharing options...
ilovetoinstall Posted November 10, 2009 Report Share Posted November 10, 2009 I know I need a relay but how exactly do I hook it up. Does the door trigger wire go to the relay as well as the domelight supervision wire. I installed this alarm 5 or so months ago just fixing a few things I did not hook up what are u trying to do make it so your alarm watches the dome light to cover all doors.....? if so u shouldent need a relay if your alarm has a negitive door pin input because u can get the white wire on ur underdash light the only catch to that is u need to make sure that your domelight switch is never overidden, if u want to do each door pin lemme know ill give u the colors and locations and explain what u have to do.... Greg, Triple C Auto Niagara Falls NY Under construction2002 Chevy Suburban pioneer 8000NEX 3 Sets of ARC Audio 6000 components in custom front doors 2 Powerbass midrange in center council 4 Super tweets 2 Focal 900.6 6 channels 4 American Bass VFL Comp 15's (currently running 2) DC 12.0k DC Power dual alt bracket 2 XS Power D3400's under the hood 3 C&D technologies 110ah in rear along with multiple runs of 0 AWG OFC Link to comment Share on other sites More sharing options...
Double D Posted November 12, 2009 Report Share Posted November 12, 2009 Isn't the tahoe where if the window is down, you just hit the interior dome light switch on the dash and that turns off all doors?? Link to comment Share on other sites More sharing options...
The Performer Posted November 12, 2009 Report Share Posted November 12, 2009 Just a consideration for you, using the dome supervision only allows the alarm to know if the dome light turns on when the alarm is armed. Your doors just happen to usually trigger your dome light. There's a little switch however that can disable the dome light from turning on when the doors are open. Leave the lights disabled before you get out and the alarm wont know if the doors are opened or not. Best way to go about it is to run leads from the door latch triggers. 01 tahoe? I believe the triggers are in the doors. In my opinion it's worth the extra work to run leads. CERTIFIED BITCHES!!! Not being new at something doesn't mean anything. Just because a prostitute isn't new at what she does, doesn't change the fact that she still 'sucks' Click to see my build! Proud DC owner Link to comment Share on other sites More sharing options...
Shyne151 Posted November 12, 2009 Report Share Posted November 12, 2009 Just a consideration for you, using the dome supervision only allows the alarm to know if the dome light turns on when the alarm is armed. Your doors just happen to usually trigger your dome light. There's a little switch however that can disable the dome light from turning on when the doors are open. Leave the lights disabled before you get out and the alarm wont know if the doors are opened or not.Best way to go about it is to run leads from the door latch triggers. 01 tahoe? I believe the triggers are in the doors. In my opinion it's worth the extra work to run leads. All the door triggers for the tahoe's is at the BCM located below the steering wheel. He said the only wire he has left is the domelight supervision wire... so I'm assuming he has his door triggers wired up. Which is why I posted how to wire up a relay to control your domelights with a domelight supervision wire. I guess the original poster didn't care much, he never posted back replies to anyone's posts. -Installer for Duke's Car Stereo 2000 Pontiac Grand Prix - Ported Eaton M90 S/C, 3.5" pulley, XS Power Headers, 1.9 Rockers, FWI, Poly Motor Mounts, Custom Tune. RF T1000-1bdCP and T400-4 Boston Acoustics SPG 555 Kenwood eXcelon 995 RF Punch 6.5" components and MB Quart Premium 6x9"s Powermaster Alternator, YellowTop D34, Vmax CT1000 Link to comment Share on other sites More sharing options...
ilovetoinstall Posted December 7, 2009 Report Share Posted December 7, 2009 All the door triggers for the tahoe's is at the BCM located below the steering wheel. He said the only wire he has left is the domelight supervision wire... so I'm assuming he has his door triggers wired up. Which is why I posted how to wire up a relay to control your domelights with a domelight supervision wire.I guess the original poster didn't care much, he never posted back replies to anyone's posts. wooord Greg, Triple C Auto Niagara Falls NY Under construction2002 Chevy Suburban pioneer 8000NEX 3 Sets of ARC Audio 6000 components in custom front doors 2 Powerbass midrange in center council 4 Super tweets 2 Focal 900.6 6 channels 4 American Bass VFL Comp 15's (currently running 2) DC 12.0k DC Power dual alt bracket 2 XS Power D3400's under the hood 3 C&D technologies 110ah in rear along with multiple runs of 0 AWG OFC Link to comment Share on other sites More sharing options...

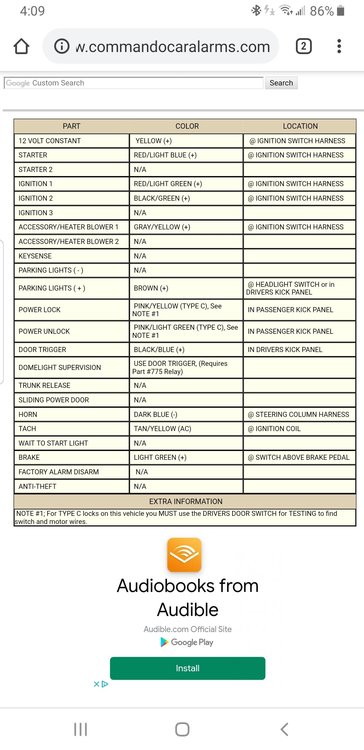

Jim2467 Posted June 26, 2019 Report Share Posted June 26, 2019 May i ask you very knowledgeable gentlemen a couple of questions please? I have a 1993 ford bronco and I am trying to install a python 5305p dome light supervision. My dome light supervision wire is black/yellow (-) 200 mA and my (-) door input is green and my (+) door input is violet my dome light door switch on the bronco is black/blue that goes from negative when door closed to positive when door is open the other side of the switch wire is green/yellow it is positive when door is open or closed. How do i wire in a relay to operate the dome light supervision? Any help would be greatly appreciated. Thanks for taking some of your time to read this. My name is Jimmy, I have a Python 5305P remote start, alarm & keyless entry with a 2 way LCD remote and a regular 1 way remote. I have the keyless entry and the alarm wired in and working correctly. But I am having a problem getting the remote starter wired in correctly and getting it to work properly. I have the wiring diagram for the unit and the wiring diagram for my Bronco but im not sure that i am choosing the right wires to connect together in the proper sequence because it doesn't work no matter how i try to wire it. I live in Siler City NC. How much would it cost to just have the remote starter part wired up correctly and make sure it works properly there are only 9 wires in the 10 pin harness that need to be wired one pin slot is empty and there is one out of the other nine that is optional? Or could someone please tell me exactly where each of the wires in the 10 pin harness connects to under the steering column. I have a color chart for my factory wires and the color chart for the 10 pin harness for the remote starter. I just need to know which wires connect to each other please. I am permanently disabled and any help would be greatly appreciated because I live on a very limited income and this remote start is going to help me in many ways to be able to start my bronco and have the climate control set to make it more comfortable for me and i want have to make extra trips in and out to start it manually. Link to comment Share on other sites More sharing options...
