WalledSonic Posted February 12, 2018 Author Report Share Posted February 12, 2018 FInished the clear panel for the second 5K. Just used the first one I made as a template Also made some new leads for my DMM with some pieces from Parts Express and some extra 12 gauge speaker wire. Crimped and then soldered Also made a 20' long lead so I can check voltage drop anywhere in the car. Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...

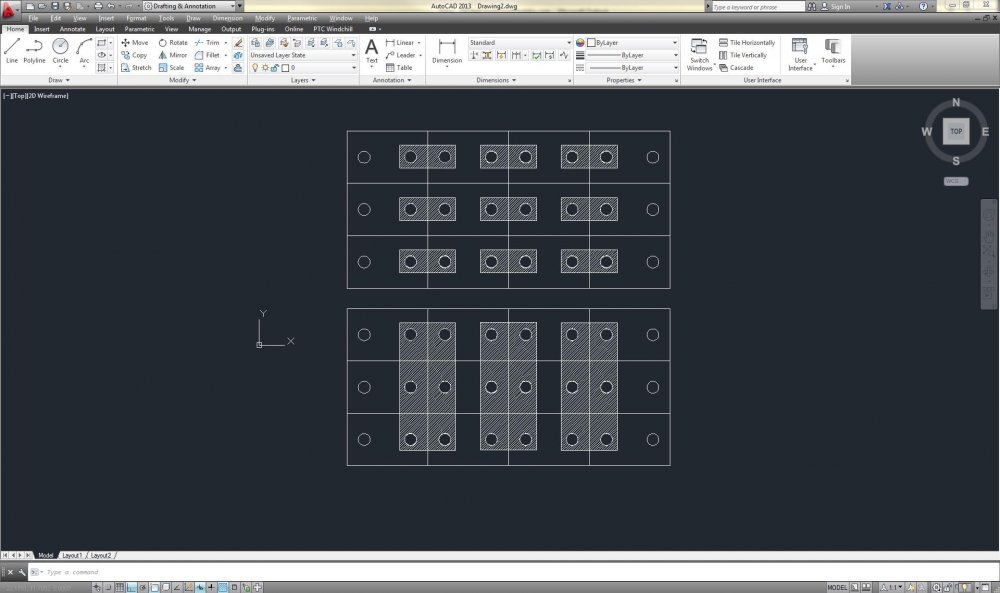

WalledSonic Posted February 13, 2018 Author Report Share Posted February 13, 2018 Top pic shows how the JYs come stock. Bottom pic shows the cross linking bus (i dont know what you call it) to branch the cells together across the 3 banks. Getting copper this week to get the new bars going. Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...
rocking.that.eclipse Posted February 13, 2018 Report Share Posted February 13, 2018 AutoCad for the win lol Link to comment Share on other sites More sharing options...
WalledSonic Posted February 13, 2018 Author Report Share Posted February 13, 2018 Just now, rocking.that.eclipse said: AutoCad for the win lol 2D, baby. We have some 3D stuff, but unless everything is 3D, you cant work in 3D. So very antiquated! Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...
rocking.that.eclipse Posted February 14, 2018 Report Share Posted February 14, 2018 I'm not very good in AutoCad. I use it for layout drawings for machines and layouts for plants but that's about it. I find 3d Cad like inventor, and solidworks, to have a more user friendly work space. Plus there are no hot keys that I know in AutoCad... I live on hot keys lol Link to comment Share on other sites More sharing options...
WalledSonic Posted February 16, 2018 Author Report Share Posted February 16, 2018 On 2/14/2018 at 6:21 AM, rocking.that.eclipse said: I'm not very good in AutoCad. I use it for layout drawings for machines and layouts for plants but that's about it. I find 3d Cad like inventor, and solidworks, to have a more user friendly work space. Plus there are no hot keys that I know in AutoCad... I live on hot keys lol Acad 2017 has hot keys, ive recently learned. We have like 100,000 files in 2D so we’ll be working partially in 2D for years to come. Should have it installed at work by Wednesday. Our file server requires us to be up to date on softwares. Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...

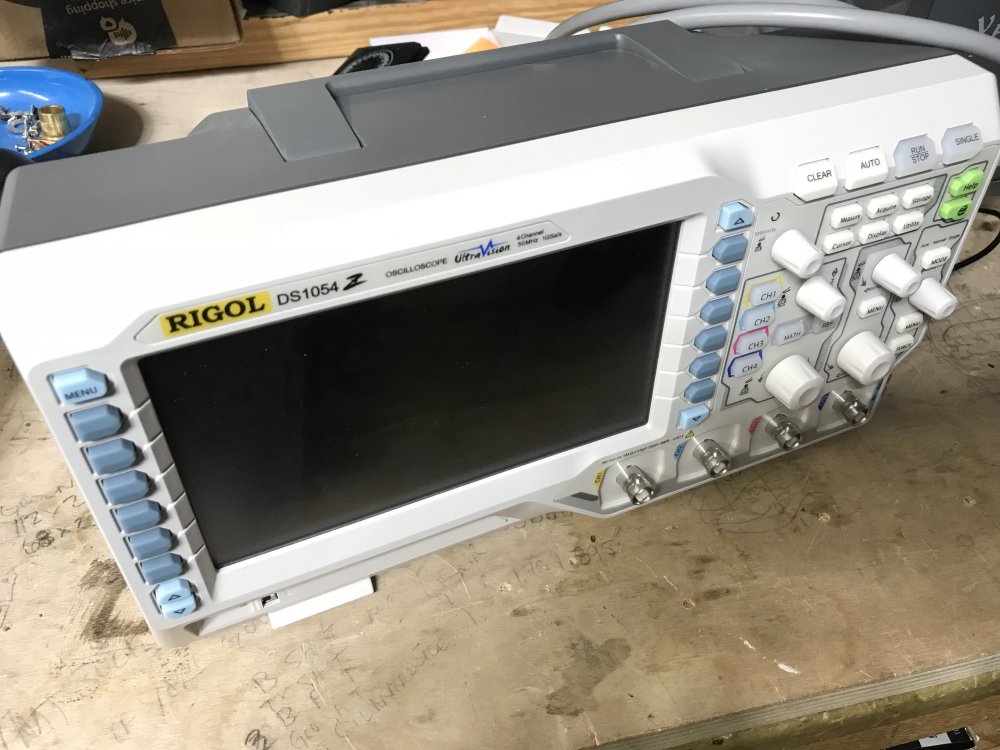

WalledSonic Posted February 16, 2018 Author Report Share Posted February 16, 2018 My EE buddy has a 4 channel oscilliscope that i picked up at lunch today. Gonna phase balance my amps to perfection this weekend! Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...
WalledSonic Posted February 22, 2018 Author Report Share Posted February 22, 2018 OM-1 install For those wondering if you can take apart the OM-1 to fit the display in a standard 2-1/8" hole, the answer is no. Also, Chimpo and Dancing Banana lol The leads on the OM-1 are small so I decided to add some solder. Cut some holes in these bullet connectors. I may need to remove my dash in the future, so rather than cut leads I can just pull the connection apart. Mods is life Also cut a huge hole on the back plate so the bullet connectors can slip thru I really wish this thing fit into my cluster, but it doesnt. *sigh*. So here it will reside. E6000 is awesome on plastics. Mock up Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...
WalledSonic Posted February 22, 2018 Author Report Share Posted February 22, 2018 OM-1 Install Part 2 Had to remove an amp so I can install the OM-1 lead onto a speaker connection. My amps are mounted upside down so you cant reach the subleads easily. You can see here how much pressure is on the neoprene foam after removing the amp Here's the lead connections before Heres the lead connections after Now with the amp mounted, I can reach the lead screws in case I want to disconnect them. Checking gains. It was dead on 70.0V as I set it months ago. Crazy how accurate all this equipment is. The detents on OM-1 setting knob has the OM-1 going off around 68.4V, but the difference in the bass knob from 68.4V to 70.0V is literally a cunt hair, so thats what the OM-1 is set at. I fucking love this little magnet thing for the DMM. Extremely convenient. And this right here is why you fuse wires. I disconnected the ignition on wire in the dash but didnt tape it or remove the fuse. Also, I must have started the car at some point along the way, popping the fuse. People that are against fusing for power runs have more balls than common sense. Fusing is for everyday idiots (like most of us) that make mistakes. Lessons. Much more on tap soon. Some serious welding, new subs, blah blah blah. Thanks for looking. Chevy Sonic Wall (4) 15's on 10k Build Log https://www.stevemeadedesigns.com/board/topic/209412-2015-chevy-sonicwall4-15s10klithiumlarge-case-hairpin-us-alts/ (4) Fi SP4 15's | (2) Ampere 5Ks | Active! | Arc KS600.2 & KS125.2mini | CDT Silk Domes | Silver Flute 8s | 240Ah JY | US Alts Jeep Wrangler JK (4) 8's in a 4th Order Build Log https://www.stevemeadedesigns.com/board/topic/209841-shadow-2016-jeep-wrangler-jk4th-order4-8sdc-35klarge-case-hairpin-us-alts/ IG @walledsonic Link to comment Share on other sites More sharing options...
scooter99 Posted February 22, 2018 Report Share Posted February 22, 2018 Nice freaking update man! Looking good. Facebook Page: S99Creations 2006 F250 Lariat Build Link to comment Share on other sites More sharing options...
